IslandPathversion 1.0

IslandPath Analysis: Acinetobacter baumannii ATCC 17978

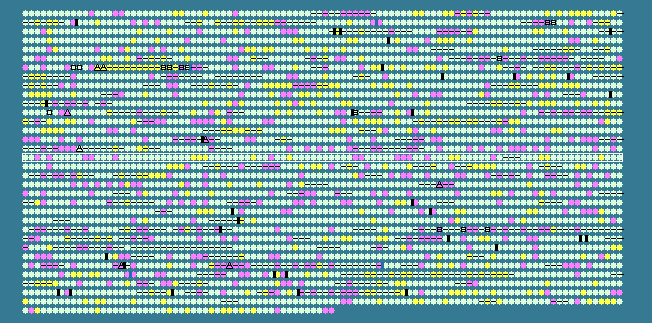

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1601	 38.58	0	1945995..1947710	+	571	126641716	-	A1S_1671	-	PltJ
1602	 38.68	0	1947817..1948845	+	342	126641717	-	A1S_1672	-	hypothetical protein
1603	 36.62	-1	1948964..1949968	+	334	126641718	-	A1S_1673	-	inner membrane permease protein
1604	 36.83	0	1950018..1950617	-	199	126641719	-	A1S_1674	-	hypothetical protein
1605	 35.06	-1	1950927..1951388	+	153	126641720	-	A1S_1675	-	hypothetical protein
1606	 42.48	0	1951602..1951907	+	101	126641721	-	A1S_1676	-	hypothetical protein
1607	 37.57	0	1952188..1953201	-	337	126641722	-	A1S_1677	-	putative porin precursor
1608	 41.43	0	1953549..1953869	-	106	126641723	-	A1S_1678	-	putative histidine triad family protein
1609	 37.21	0	1953981..1954238	-	85	126641724	-	A1S_1679	-	putative signal peptide
1610	 38.31	0	1955071..1955271	+	66	126641725	-	A1S_1680	-	hypothetical protein
1611	 32.78	-2	1956945..1957487	+	180	126641726	-	A1S_1681	-	putative methyltransferase
1612	 36.52	-1	1957568..1958446	-	292	126641727	-	A1S_1682	-	putative poly(R)-hydroxyalkanoic acid synthase
1613	 40.65	0	1958991..1959974	+	327	126641728	-	A1S_1683	-	O-succinylhomoserine sulfhydrylase
1614	 39.46	0	1960690..1960983	+	97	126641729	-	A1S_1684	-	hypothetical protein
1615	 41.81	0	1961071..1961589	+	172	126641730	-	A1S_1685	-	recombination protein gap repair
1616	 34.90	-1	1962063..1963019	+	318	126641731	-	A1S_1686	-	ribonuclease D
1617	 41.82	0	1964331..1964495	-	54	126641732	-	A1S_1687	-	transcriptional regulator
1618	 41.95	0	1964977..1965243	+	88	126641733	-	A1S_1688	-	hypothetical protein
1619	 40.14	0	1965344..1965622	+	92	126641734	-	A1S_1689	-	hypothetical protein
1620	 39.46	0	1965802..1966503	+	233	126641735	-	A1S_1690	-	putative ATPase
1621	 41.69	0	1966702..1967706	+	334	126641736	-	A1S_1691	-	hypothetical protein
1622	 39.97	0	1967743..1968948	+	401	162286734	-	A1S_1692	-	tryptophan synthase subunit beta
1623	 37.70	0	1969434..1970189	+	251	126641738	-	A1S_1693	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1624	 43.59	0	1970202..1971293	+	363	162286733	-	A1S_1694	-	chorismate synthase
1625	 37.32	0	1971390..1972619	-	409	126641740	-	A1S_1695	-	putative two-component response regulator
1626	 43.22	0	1973066..1973692	+	208	126641741	-	A1S_1696	-	hypothetical protein
1627	 41.24	0	1973858..1974679	-	273	126641742	-	A1S_1697	-	putative transcriptional regulator
1628	 39.73	0	1975035..1975769	-	244	126641743	-	A1S_1698	-	lipoyl synthase
1629	 45.23	+1	1976626..1977348	+	240	126641744	-	A1S_1699	-	acetoin:26-dichlorophenolindophenol oxidoreductase alpha subunit
1630	 44.51	+1	1977335..1978381	+	348	126641745	-	A1S_1700	-	acetoin:26-dichlorophenolindophenol oxidoreductase beta subunit
1631	 44.27	+1	1978428..1979918	+	496	126641746	-	A1S_1701	-	dihydrolipoamide acetyltransferase
1632	 42.86	0	1980181..1981020	+	279	126641747	-	A1S_1702	-	dihydrolipoamide dehydrogenase
1633	 41.21	0	1981170..1981334	+	54	126641748	-	A1S_1703	-	dihydrolipoamide dehydrogenase
1634	 43.01	0	1981475..1982146	+	223	126641749	-	A1S_1704	-	acetoin dehydrogenase
1635	 41.32	0	1982308..1983234	+	308	126641750	-	A1S_1705	-	putative (RR)-butanediol dehydrogenase
1636	 37.83	0	1983437..1984081	-	214	126641751	-	A1S_1706	-	hypothetical protein
1637	 38.89	0	1984262..1985323	-	353	126641752	-	A1S_1707	-	putative transcriptional regulator protein
1638	 38.07	0	1985726..1986421	+	231	126641753	-	A1S_1708	-	beta-lactamase-like protein
1639	 44.40	+1	1986722..1988086	+	454	126641754	-	A1S_1709	-	hypothetical protein
1640	 42.74	0	1988352..1989053	+	233	126641755	-	A1S_1710	-	hypothetical protein
1641	 38.51	0	1989280..1990167	+	295	126641756	-	A1S_1711	-	homoserine dehydrogenase putative
1642	 36.65	-1	1990200..1990922	-	240	126641757	-	A1S_1712	-	DMT family permease
1643	 40.13	0	1991359..1992138	+	259	126641758	-	A1S_1713	-	AraC family transcriptional regulator
1644	 42.09	0	1992135..1992431	-	98	126641759	-	A1S_1714	-	transcriptional regulatory protein
1645	 43.94	+1	1992773..1993234	+	153	126641760	-	A1S_1715	-	(Acyl-carrier protein) phosphodiesterase
1646	 41.26	0	1993318..1994541	-	407	126641761	-	A1S_1716	-	chromate transporter
1647	 42.46	0	1995115..1995651	+	178	126641762	-	A1S_1717	-	GntR family transcriptional regulator
1648	 41.64	0	1995680..1997413	+	577	126641763	-	A1S_1718	-	putative oxidoreductase
1649	 36.99	0	1997434..1997679	+	81	126641764	-	A1S_1719	-	4Fe-4S ferredoxin iron-sulfur binding
1650	 40.59	0	1997972..1999129	+	385	126641765	-	A1S_1720	-	hypothetical protein
1651	 41.30	0	1999341..2000018	+	225	126641766	-	A1S_1721	-	ABC-type nitrate/sulfonate/bicarbonate transport system permease component
1652	 37.76	0	2000272..2000859	+	195	126641767	-	A1S_1722	-	putative ATP-binding component of ABC transporter
1653	 40.36	0	2000958..2001854	+	298	126641768	-	A1S_1723	-	phycobiliprotein putative
1654	 40.58	0	2002159..2003304	-	381	126641769	-	A1S_1724	-	major facilitator superfamily alpha-ketoglutarate permease
1655	 37.42	0	2004120..2006174	+	684	126641770	-	A1S_1725	-	putative ferric siderophore receptor protein
1656	 36.44	-1	2006231..2007646	-	471	162286732	aspA	A1S_1726	-	aspartate ammonia-lyase
1657	 33.33	-1	2009465..2010232	+	255	126641772	-	A1S_1727	-	LysR family transcriptional regulator
1658	 37.18	0	2010536..2011366	+	276	126641773	-	A1S_1728	-	LysR family transcriptional regulator
1659	 41.61	0	2011427..2012392	-	321	126641774	-	A1S_1729	-	putative acetyl-CoA acetyltransferase
1660	 38.06	0	2012665..2013870	-	401	126641775	-	A1S_1730	-	short-chain fatty acid transporter
1661	 40.81	0	2014191..2014832	-	213	126641776	-	A1S_1731	-	acetoacetyl-CoA transferase beta subunit
1662	 38.07	0	2014834..2015319	-	161	126641777	-	A1S_1732	-	acetoacetyl-CoA transferase alpha subunit
1663	 33.64	-1	2015784..2016434	-	216	126641778	-	A1S_1733	-	LysR family transcriptional regulator
1664	 33.63	-1	2017552..2018226	+	224	126641779	-	A1S_1734	-	hypothetical protein
1665	 30.98	-2	2018575..2018829	-	84	126641780	-	A1S_1735	-	hypothetical protein
1666	 41.00	0	2020616..2021959	+	447	126641781	-	A1S_1736	-	hypothetical protein
1667	 40.62	0	2022107..2022778	+	223	126641782	-	A1S_1737	-	3-hydroxybutyrate dehydrogenase
1668	 35.95	-1	2023178..2024095	+	305	126641783	-	A1S_1738	-	putative transcriptional regulator
1669	 38.72	0	2024163..2024738	-	191	126641784	-	A1S_1739	-	major facilitator transporter
1670	 39.43	0	2024923..2025447	-	174	126641785	-	A1S_1740	-	benzoate transport
1671	 43.14	0	2025966..2027087	+	373	126641786	-	A1S_1741	-	putative dienelactone hydrolase
1672	 45.51	+1	2027262..2027885	+	207	126641787	-	A1S_1742	-	oxidoreductase
1673	 44.16	+1	2028013..2029167	+	384	126641788	-	A1S_1743	-	putative oxygenase subunit protein
1674	 43.18	0	2029331..2029726	+	131	126641789	-	A1S_1744	-	putative electron transfer flavoprotein
1675	 40.16	0	2029879..2030727	+	282	126641790	-	A1S_1745	-	putative signal peptide
1676	 37.43	0	2030784..2031662	-	292	126641791	-	A1S_1746	-	putative transcriptional regulator
1677	 39.86	0	2032292..2032567	-	91	126641792	-	A1S_1747	-	anthranilate dioxygenase reductase
1678	 37.04	0	2032830..2033261	+	143	126641793	-	A1S_1748	-	replication protein
1679	 34.03	-1	2034290..2036299	+	669	126641794	-	A1S_1749	-	ABC transporter-like protein
1680	 40.78	0	2036447..2039428	-	993	126641795	-	A1S_1750	-	AdeB
1681	 43.29	0	2039554..2039985	-	143	126641796	-	A1S_1751	-	AdeA membrane fusion protein
1682	 41.27	0	2040251..2040754	-	167	126641797	-	A1S_1752	-	AdeA membrane fusion protein
1683	 37.74	0	2040999..2041634	+	211	126641798	-	A1S_1753	-	AdeR
1684	 38.16	0	2041903..2042751	+	282	126641799	-	A1S_1754	-	AdeS
1685	 38.25	0	2043503..2044417	+	304	126641800	-	A1S_1755	-	AdeT
1686	 39.09	0	2044493..2045551	-	352	126641801	-	A1S_1756	-	AraC family transcriptional regulator
1687	 46.34	+1	2045710..2046624	+	304	126641802	-	A1S_1757	-	Alpha/beta hydrolase
1688	 46.42	+1	2046769..2047509	+	246	126641803	-	A1S_1758	-	Short-chain dehydrogenase/reductase SDR
1689	 39.61	0	2047777..2048397	+	206	126641804	-	A1S_1759	-	Short-chain dehydrogenase/reductase SDR
1690	 40.83	0	2049638..2050384	+	248	126641805	-	A1S_1760	-	hypothetical protein
1691	 37.94	0	2051254..2051709	-	151	126641806	-	A1S_1761	-	acetyltransferase
1692	 37.03	0	2052477..2053559	-	360	126641807	-	A1S_1762	-	hypothetical protein
1693	 39.25	0	2054413..2054784	-	123	126641808	-	A1S_1763	-	putative transcriptional regulator
1694	 37.80	0	2055690..2055935	-	81	126641809	-	A1S_1764	-	putative transcriptional regulator
1695	 38.67	0	2055995..2057062	-	355	126641810	-	A1S_1765	-	hypothetical protein
1696	 39.30	0	2058097..2058582	-	161	126641811	-	A1S_1766	-	hypothetical protein
1697	 43.84	+1	2058753..2059523	-	256	126641812	-	A1S_1767	-	putative acid phosphatase
1698	 40.47	0	2059851..2060915	-	354	126641813	-	A1S_1768	-	hypothetical protein
1699	 43.02	0	2061004..2062242	-	412	126641814	-	A1S_1769	-	RND efflux transporter
1700	 42.13	0	2062329..2063795	-	488	126641815	-	A1S_1770	-	hypothetical protein
40.16	MEAN

3.49	STD DEV
