IslandPath Analysis: Acinetobacter baumannii ATCC 17978

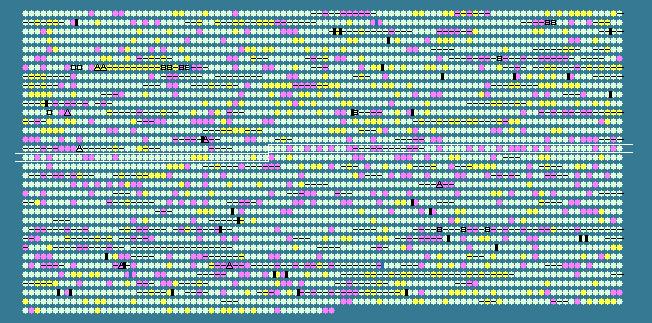

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1542	 39.61	0	1879778..1880845	+	355	126641657	-	A1S_1612	-	ABC-type dipeptide/oligopeptide/nickel transport systems permease components
1543	 40.50	0	1881041..1882588	+	515	126641658	-	A1S_1613	-	putative ABC transporter ATP-binding protein
1544	 39.55	0	1882696..1883355	+	219	126641659	-	A1S_1614	-	hypothetical protein
1545	 35.57	-1	1884363..1884944	+	193	126641660	-	A1S_1615	-	PAPS (adenosine 3'-phosphate 5'-phosphosulfate) x
1546	 40.61	0	1885050..1885736	+	228	126641661	-	A1S_1616	-	hypothetical protein
1547	 42.32	0	1885792..1886058	-	88	126641662	-	A1S_1617	-	30S ribosomal protein S20
1548	 33.33	-1	1886469..1886936	+	155	126641663	-	A1S_1618	-	hypothetical protein
1549	 39.86	0	1887027..1887455	+	142	126641664	-	A1S_1619	-	ribonuclease activity regulator protein RraA
1550	 36.38	-1	1887639..1888262	+	207	126641665	-	A1S_1620	-	hypothetical protein
1551	 37.70	0	1888540..1889340	+	266	126641666	-	A1S_1621	-	putative iron-dependent peroxidase
1552	 29.91	-2	1889544..1889777	+	77	126641667	-	A1S_1622	-	hypothetical protein
1553	 39.94	0	1890209..1893373	+	1054	126641668	-	A1S_1623	-	transcription-repair coupling protein
1554	 42.78	0	1893649..1894008	+	119	126641669	-	A1S_1624	-	hypothetical protein
1555	 34.68	-1	1894121..1894939	+	272	126641670	-	A1S_1625	-	putative adenylate or guanylate cyclase
1556	 36.05	-1	1895019..1895534	+	171	126641671	-	A1S_1626	-	putative adenylate or guanylate cyclase
1557	 38.15	0	1895581..1895829	-	82	126641672	-	A1S_1627	-	hypothetical protein
1558	 41.10	0	1895938..1897533	-	531	126641673	hscA	A1S_1628	-	chaperone protein HscA
1559	 35.38	-1	1897836..1898324	-	162	126641674	-	A1S_1629	-	co-chaperone protein (Hsc20)
1560	 35.02	-1	1898440..1898676	-	78	126641675	-	A1S_1630	-	hypothetical protein
1561	 39.39	0	1898791..1899087	-	98	126641676	-	A1S_1631	-	iron-binding protein
1562	 40.94	0	1899244..1899519	-	91	126641677	-	A1S_1632	-	cysteine desulfurase
1563	 40.42	0	1899591..1900394	-	267	126641678	-	A1S_1633	-	cysteine desulfurase
1564	 42.34	0	1900462..1900905	-	147	126641679	-	A1S_1634	-	iscRSUA operon repressor
1565	 35.93	-1	1901046..1901507	-	153	126641680	-	A1S_1635	-	hypothetical protein
1566	 34.43	-1	1901904..1902359	+	151	126641681	-	A1S_1636	-	putative poly(hydroxyalcanoate) granule associated protein
1567	 38.46	0	1902529..1902801	+	90	126641682	-	A1S_1637	-	DNA-binding protein HU-beta
1568	 37.51	0	1903201..1904061	+	286	126641683	-	A1S_1638	-	peptidyl-prolyl cis-trans isomerase precursor
1569	 39.59	0	1904257..1904799	+	180	126641684	-	A1S_1639	-	peptidyl-prolyl cis-trans isomerase precursor
1570	 36.62	-1	1904838..1905629	-	263	126641685	-	A1S_1640	-	transcriptional regulator
1571	 37.11	0	1906059..1907198	+	379	126641686	-	A1S_1641	-	alkane 1-monooxygenase
1572	 43.55	0	1907314..1908390	-	358	126641687	-	A1S_1642	-	putative acyl-CoA dehydrogenase
1573	 39.94	0	1908541..1909584	-	347	126641688	-	A1S_1643	-	putative acyl-CoA dehydrogenase
1574	 40.03	0	1910054..1911262	-	402	126641689	-	A1S_1644	-	hypothetical protein
1575	 34.05	-1	1911664..1911942	-	92	126641690	-	A1S_1645	-	hypothetical protein
1576	 37.20	0	1912286..1912621	+	111	126641691	-	A1S_1646	-	hypothetical protein
1577	 36.16	-1	1913226..1914779	+	517	126641692	-	A1S_1647	-	putative siderophore biosynthesis protein
1578	 37.39	0	1914898..1916205	+	435	126641693	-	A1S_1648	-	putative lysine/ornithine N-monooxygenase
1579	 40.20	0	1916298..1917665	+	455	126641694	-	A1S_1649	-	RND efflux transporter
1580	 34.23	-1	1917677..1918348	+	223	126641695	-	A1S_1650	-	hypothetical protein
1581	 38.96	0	1918560..1919519	+	319	126641696	-	A1S_1651	-	hypothetical protein
1582	 36.42	-1	1919757..1921439	+	560	126641697	-	A1S_1652	-	hypothetical protein
1583	 33.81	-1	1921593..1922222	+	209	126641698	-	A1S_1653	-	hypothetical protein
1584	 35.92	-1	1922401..1922826	+	141	126641699	-	A1S_1654	-	putative demethylmenaquinone methyltransferase
1585	 38.33	0	1922990..1925230	+	746	126641700	-	A1S_1655	-	putative ferric siderophore receptor protein
1586	 36.33	-1	1925864..1927132	+	422	126641701	-	A1S_1656	-	hypothetical protein
1587	 37.28	0	1927717..1928223	+	168	126641702	-	A1S_1657	-	putative siderophore biosynthesis protein; putative acetyltransferase
1588	 36.43	-1	1928698..1930701	+	667	126641703	-	A1S_1658	-	haloacid dehalogenase-like hydrolase
1589	 39.56	0	1931489..1931938	+	149	126641704	-	A1S_1659	-	cobalbumin biosynthesis enzyme
1590	 43.00	0	1932189..1932995	+	268	126641705	-	A1S_1660	-	nicotinate-nucleotide-dimethylbenzimidazole phosphoribosyltransferase
1591	 38.18	0	1933093..1933587	+	164	126641706	-	A1S_1661	-	fructose-26-bisphosphatase
1592	 37.88	0	1933916..1935280	+	454	126641707	-	A1S_1662	-	hypothetical protein
1593	 38.31	0	1935609..1936130	+	173	126641708	-	A1S_1663	-	cobalamin-5-phosphate synthase CobS
1594	 38.93	0	1936207..1937349	-	380	126641709	-	A1S_1664	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1595	 39.30	0	1937413..1938216	-	267	126641710	-	A1S_1665	-	hypothetical protein
1596	 35.37	-1	1938732..1940201	-	489	126641711	-	A1S_1666	-	hypothetical protein
1597	 38.04	0	1940643..1942682	-	679	126641712	-	A1S_1667	-	putative ferric hydroxamate siderophore receptor
1598	 37.86	0	1943072..1944175	+	367	126641713	-	A1S_1668	-	lipid A-disaccharide synthase
1599	 33.99	-1	1944172..1944630	-	152	126641714	-	A1S_1669	-	TetR family transcriptional regulator
1600	 40.11	0	1945061..1945960	+	299	126641715	-	A1S_1670	-	secretion protein HlyD
1601	 38.58	0	1945995..1947710	+	571	126641716	-	A1S_1671	-	PltJ
1602	 38.68	0	1947817..1948845	+	342	126641717	-	A1S_1672	-	hypothetical protein
1603	 36.62	-1	1948964..1949968	+	334	126641718	-	A1S_1673	-	inner membrane permease protein
1604	 36.83	0	1950018..1950617	-	199	126641719	-	A1S_1674	-	hypothetical protein
1605	 35.06	-1	1950927..1951388	+	153	126641720	-	A1S_1675	-	hypothetical protein
1606	 42.48	0	1951602..1951907	+	101	126641721	-	A1S_1676	-	hypothetical protein
1607	 37.57	0	1952188..1953201	-	337	126641722	-	A1S_1677	-	putative porin precursor
1608	 41.43	0	1953549..1953869	-	106	126641723	-	A1S_1678	-	putative histidine triad family protein
1609	 37.21	0	1953981..1954238	-	85	126641724	-	A1S_1679	-	putative signal peptide
1610	 38.31	0	1955071..1955271	+	66	126641725	-	A1S_1680	-	hypothetical protein
1611	 32.78	-2	1956945..1957487	+	180	126641726	-	A1S_1681	-	putative methyltransferase
1612	 36.52	-1	1957568..1958446	-	292	126641727	-	A1S_1682	-	putative poly(R)-hydroxyalkanoic acid synthase
1613	 40.65	0	1958991..1959974	+	327	126641728	-	A1S_1683	-	O-succinylhomoserine sulfhydrylase
1614	 39.46	0	1960690..1960983	+	97	126641729	-	A1S_1684	-	hypothetical protein
1615	 41.81	0	1961071..1961589	+	172	126641730	-	A1S_1685	-	recombination protein gap repair
1616	 34.90	-1	1962063..1963019	+	318	126641731	-	A1S_1686	-	ribonuclease D
1617	 41.82	0	1964331..1964495	-	54	126641732	-	A1S_1687	-	transcriptional regulator
1618	 41.95	0	1964977..1965243	+	88	126641733	-	A1S_1688	-	hypothetical protein
1619	 40.14	0	1965344..1965622	+	92	126641734	-	A1S_1689	-	hypothetical protein
1620	 39.46	0	1965802..1966503	+	233	126641735	-	A1S_1690	-	putative ATPase
1621	 41.69	0	1966702..1967706	+	334	126641736	-	A1S_1691	-	hypothetical protein
1622	 39.97	0	1967743..1968948	+	401	162286734	-	A1S_1692	-	tryptophan synthase subunit beta
1623	 37.70	0	1969434..1970189	+	251	126641738	-	A1S_1693	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1624	 43.59	0	1970202..1971293	+	363	162286733	-	A1S_1694	-	chorismate synthase
1625	 37.32	0	1971390..1972619	-	409	126641740	-	A1S_1695	-	putative two-component response regulator
1626	 43.22	0	1973066..1973692	+	208	126641741	-	A1S_1696	-	hypothetical protein
1627	 41.24	0	1973858..1974679	-	273	126641742	-	A1S_1697	-	putative transcriptional regulator
1628	 39.73	0	1975035..1975769	-	244	126641743	-	A1S_1698	-	lipoyl synthase
1629	 45.23	+1	1976626..1977348	+	240	126641744	-	A1S_1699	-	acetoin:26-dichlorophenolindophenol oxidoreductase alpha subunit
1630	 44.51	+1	1977335..1978381	+	348	126641745	-	A1S_1700	-	acetoin:26-dichlorophenolindophenol oxidoreductase beta subunit
1631	 44.27	+1	1978428..1979918	+	496	126641746	-	A1S_1701	-	dihydrolipoamide acetyltransferase
1632	 42.86	0	1980181..1981020	+	279	126641747	-	A1S_1702	-	dihydrolipoamide dehydrogenase
1633	 41.21	0	1981170..1981334	+	54	126641748	-	A1S_1703	-	dihydrolipoamide dehydrogenase
1634	 43.01	0	1981475..1982146	+	223	126641749	-	A1S_1704	-	acetoin dehydrogenase
1635	 41.32	0	1982308..1983234	+	308	126641750	-	A1S_1705	-	putative (RR)-butanediol dehydrogenase
1636	 37.83	0	1983437..1984081	-	214	126641751	-	A1S_1706	-	hypothetical protein
1637	 38.89	0	1984262..1985323	-	353	126641752	-	A1S_1707	-	putative transcriptional regulator protein
1638	 38.07	0	1985726..1986421	+	231	126641753	-	A1S_1708	-	beta-lactamase-like protein
1639	 44.40	+1	1986722..1988086	+	454	126641754	-	A1S_1709	-	hypothetical protein
1640	 42.74	0	1988352..1989053	+	233	126641755	-	A1S_1710	-	hypothetical protein
1641	 38.51	0	1989280..1990167	+	295	126641756	-	A1S_1711	-	homoserine dehydrogenase putative
40.16	MEAN

3.49	STD DEV
