IslandPathversion 1.0

IslandPath Analysis: Acinetobacter baumannii ATCC 17978

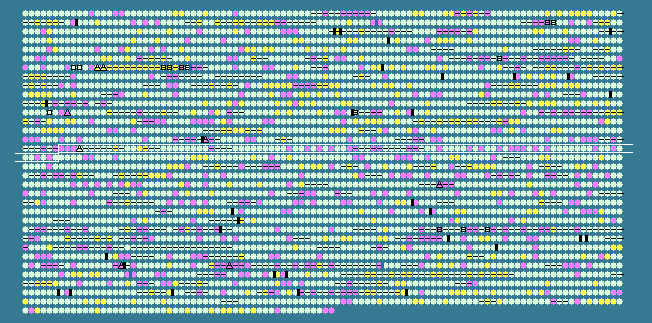

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1507	 35.43	-1	1824776..1826209	-	477	126641622	-	A1S_1577	-	putative flavin-binding monooxygenase
1508	 34.74	-1	1826682..1827464	+	260	126641623	-	A1S_1578	-	putative transcriptional regulator
1509	 36.48	-1	1827769..1828689	+	306	126641624	-	A1S_1579	-	putative ATPase
1510	 39.12	0	1829393..1829824	+	143	126641625	-	A1S_1580	-	integrase
1511	 40.99	0	1830300..1830743	-	147	126641626	-	A1S_1581	-	methyltransferase putative
1512	 39.17	0	1833406..1834005	-	199	126641627	-	A1S_1582	-	Cro/CI family transcriptional regulator
1513	 39.06	0	1834443..1834739	+	98	126641628	-	A1S_1583	-	hypothetical protein
1514	 39.60	0	1834826..1835623	+	265	126641629	-	A1S_1584	-	hypothetical protein
1515	 40.41	0	1835683..1836954	+	423	126641630	-	A1S_1585	-	putative replicative DNA helicase
1516	 48.33	+2	1842309..1842668	+	119	126641631	-	A1S_1586	-	EsvK1
1517	 37.78	0	1843587..1844036	+	149	126641632	-	A1S_1587	-	EsvK2
1518	 43.16	0	1844308..1845213	+	301	126641633	-	A1S_1588	-	Phage terminase-like protein large subunit
1519	 41.32	0	1845498..1846436	+	312	126641634	-	A1S_1589	-	hypothetical protein
1520	 44.52	+1	1846645..1847091	+	148	126641635	-	A1S_1590	-	peptidase U35 phage prohead HK97
1521	 44.02	+1	1847237..1848256	+	339	126641636	-	A1S_1591	-	phage major capsid protein HK97
1522	 43.14	0	1848766..1849122	+	118	126641637	-	A1S_1592	-	putative Phage head-tail adaptor
1523	 43.24	0	1849168..1849611	+	147	126641638	-	A1S_1593	-	hypothetical protein
1524	 43.00	0	1849686..1849985	+	99	126641639	-	A1S_1594	-	hypothetical protein
1525	 41.90	0	1850115..1850534	+	139	126641640	-	A1S_1595	-	hypothetical protein
1526	 42.81	0	1851946..1852779	+	277	126641641	-	A1S_1596	-	hypothetical protein
1527	 39.89	0	1853088..1855268	+	726	126641642	-	A1S_1597	-	lambda family phage tail tape measure protein
1528	 38.43	0	1856802..1859429	+	875	126641643	-	A1S_1598	-	hypothetical protein
1529	 39.19	0	1859604..1861346	+	580	126641644	-	A1S_1599	-	hypothetical protein
1530	 42.17	0	1862455..1862952	+	165	126641645	-	A1S_1600	-	lysozyme
1531	 38.22	0	1864364..1866370	+	668	126641646	-	A1S_1601	-	malate synthase G
1532	 33.01	-2	1866614..1866922	+	102	126641647	-	A1S_1602	-	hypothetical protein
1533	 38.65	0	1866989..1867402	-	137	126641648	-	A1S_1603	-	biopolymer transport protein ExbD/TolR
1534	 39.02	0	1867422..1867808	-	128	126641649	-	A1S_1604	-	biopolymer transport protein ExbD/TolR
1535	 41.38	0	1867860..1868468	-	202	126641650	-	A1S_1605	-	biopolymer transport proteins
1536	 37.55	0	1869607..1870104	-	165	126641651	-	A1S_1606	-	hypothetical protein
1537	 40.07	0	1870353..1872221	-	622	126641652	-	A1S_1607	-	TonB-dependent receptor
1538	 37.65	0	1873228..1874871	+	547	126641653	-	A1S_1608	-	heme-binding protein A precursor
1539	 40.32	0	1875166..1876710	+	514	126641654	-	A1S_1609	-	heme-binding protein A precursor
1540	 39.23	0	1876711..1878744	+	677	126641655	-	A1S_1610	-	Zn-dependent oligopeptidase
1541	 37.99	0	1878880..1879695	+	271	126641656	-	A1S_1611	-	ABC-type dipeptide/oligopeptide/nickel transport systems permease components
1542	 39.61	0	1879778..1880845	+	355	126641657	-	A1S_1612	-	ABC-type dipeptide/oligopeptide/nickel transport systems permease components
1543	 40.50	0	1881041..1882588	+	515	126641658	-	A1S_1613	-	putative ABC transporter ATP-binding protein
1544	 39.55	0	1882696..1883355	+	219	126641659	-	A1S_1614	-	hypothetical protein
1545	 35.57	-1	1884363..1884944	+	193	126641660	-	A1S_1615	-	PAPS (adenosine 3'-phosphate 5'-phosphosulfate) x
1546	 40.61	0	1885050..1885736	+	228	126641661	-	A1S_1616	-	hypothetical protein
1547	 42.32	0	1885792..1886058	-	88	126641662	-	A1S_1617	-	30S ribosomal protein S20
1548	 33.33	-1	1886469..1886936	+	155	126641663	-	A1S_1618	-	hypothetical protein
1549	 39.86	0	1887027..1887455	+	142	126641664	-	A1S_1619	-	ribonuclease activity regulator protein RraA
1550	 36.38	-1	1887639..1888262	+	207	126641665	-	A1S_1620	-	hypothetical protein
1551	 37.70	0	1888540..1889340	+	266	126641666	-	A1S_1621	-	putative iron-dependent peroxidase
1552	 29.91	-2	1889544..1889777	+	77	126641667	-	A1S_1622	-	hypothetical protein
1553	 39.94	0	1890209..1893373	+	1054	126641668	-	A1S_1623	-	transcription-repair coupling protein
1554	 42.78	0	1893649..1894008	+	119	126641669	-	A1S_1624	-	hypothetical protein
1555	 34.68	-1	1894121..1894939	+	272	126641670	-	A1S_1625	-	putative adenylate or guanylate cyclase
1556	 36.05	-1	1895019..1895534	+	171	126641671	-	A1S_1626	-	putative adenylate or guanylate cyclase
1557	 38.15	0	1895581..1895829	-	82	126641672	-	A1S_1627	-	hypothetical protein
1558	 41.10	0	1895938..1897533	-	531	126641673	hscA	A1S_1628	-	chaperone protein HscA
1559	 35.38	-1	1897836..1898324	-	162	126641674	-	A1S_1629	-	co-chaperone protein (Hsc20)
1560	 35.02	-1	1898440..1898676	-	78	126641675	-	A1S_1630	-	hypothetical protein
1561	 39.39	0	1898791..1899087	-	98	126641676	-	A1S_1631	-	iron-binding protein
1562	 40.94	0	1899244..1899519	-	91	126641677	-	A1S_1632	-	cysteine desulfurase
1563	 40.42	0	1899591..1900394	-	267	126641678	-	A1S_1633	-	cysteine desulfurase
1564	 42.34	0	1900462..1900905	-	147	126641679	-	A1S_1634	-	iscRSUA operon repressor
1565	 35.93	-1	1901046..1901507	-	153	126641680	-	A1S_1635	-	hypothetical protein
1566	 34.43	-1	1901904..1902359	+	151	126641681	-	A1S_1636	-	putative poly(hydroxyalcanoate) granule associated protein
1567	 38.46	0	1902529..1902801	+	90	126641682	-	A1S_1637	-	DNA-binding protein HU-beta
1568	 37.51	0	1903201..1904061	+	286	126641683	-	A1S_1638	-	peptidyl-prolyl cis-trans isomerase precursor
1569	 39.59	0	1904257..1904799	+	180	126641684	-	A1S_1639	-	peptidyl-prolyl cis-trans isomerase precursor
1570	 36.62	-1	1904838..1905629	-	263	126641685	-	A1S_1640	-	transcriptional regulator
1571	 37.11	0	1906059..1907198	+	379	126641686	-	A1S_1641	-	alkane 1-monooxygenase
1572	 43.55	0	1907314..1908390	-	358	126641687	-	A1S_1642	-	putative acyl-CoA dehydrogenase
1573	 39.94	0	1908541..1909584	-	347	126641688	-	A1S_1643	-	putative acyl-CoA dehydrogenase
1574	 40.03	0	1910054..1911262	-	402	126641689	-	A1S_1644	-	hypothetical protein
1575	 34.05	-1	1911664..1911942	-	92	126641690	-	A1S_1645	-	hypothetical protein
1576	 37.20	0	1912286..1912621	+	111	126641691	-	A1S_1646	-	hypothetical protein
1577	 36.16	-1	1913226..1914779	+	517	126641692	-	A1S_1647	-	putative siderophore biosynthesis protein
1578	 37.39	0	1914898..1916205	+	435	126641693	-	A1S_1648	-	putative lysine/ornithine N-monooxygenase
1579	 40.20	0	1916298..1917665	+	455	126641694	-	A1S_1649	-	RND efflux transporter
1580	 34.23	-1	1917677..1918348	+	223	126641695	-	A1S_1650	-	hypothetical protein
1581	 38.96	0	1918560..1919519	+	319	126641696	-	A1S_1651	-	hypothetical protein
1582	 36.42	-1	1919757..1921439	+	560	126641697	-	A1S_1652	-	hypothetical protein
1583	 33.81	-1	1921593..1922222	+	209	126641698	-	A1S_1653	-	hypothetical protein
1584	 35.92	-1	1922401..1922826	+	141	126641699	-	A1S_1654	-	putative demethylmenaquinone methyltransferase
1585	 38.33	0	1922990..1925230	+	746	126641700	-	A1S_1655	-	putative ferric siderophore receptor protein
1586	 36.33	-1	1925864..1927132	+	422	126641701	-	A1S_1656	-	hypothetical protein
1587	 37.28	0	1927717..1928223	+	168	126641702	-	A1S_1657	-	putative siderophore biosynthesis protein; putative acetyltransferase
1588	 36.43	-1	1928698..1930701	+	667	126641703	-	A1S_1658	-	haloacid dehalogenase-like hydrolase
1589	 39.56	0	1931489..1931938	+	149	126641704	-	A1S_1659	-	cobalbumin biosynthesis enzyme
1590	 43.00	0	1932189..1932995	+	268	126641705	-	A1S_1660	-	nicotinate-nucleotide-dimethylbenzimidazole phosphoribosyltransferase
1591	 38.18	0	1933093..1933587	+	164	126641706	-	A1S_1661	-	fructose-26-bisphosphatase
1592	 37.88	0	1933916..1935280	+	454	126641707	-	A1S_1662	-	hypothetical protein
1593	 38.31	0	1935609..1936130	+	173	126641708	-	A1S_1663	-	cobalamin-5-phosphate synthase CobS
1594	 38.93	0	1936207..1937349	-	380	126641709	-	A1S_1664	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1595	 39.30	0	1937413..1938216	-	267	126641710	-	A1S_1665	-	hypothetical protein
1596	 35.37	-1	1938732..1940201	-	489	126641711	-	A1S_1666	-	hypothetical protein
1597	 38.04	0	1940643..1942682	-	679	126641712	-	A1S_1667	-	putative ferric hydroxamate siderophore receptor
1598	 37.86	0	1943072..1944175	+	367	126641713	-	A1S_1668	-	lipid A-disaccharide synthase
1599	 33.99	-1	1944172..1944630	-	152	126641714	-	A1S_1669	-	TetR family transcriptional regulator
1600	 40.11	0	1945061..1945960	+	299	126641715	-	A1S_1670	-	secretion protein HlyD
1601	 38.58	0	1945995..1947710	+	571	126641716	-	A1S_1671	-	PltJ
1602	 38.68	0	1947817..1948845	+	342	126641717	-	A1S_1672	-	hypothetical protein
1603	 36.62	-1	1948964..1949968	+	334	126641718	-	A1S_1673	-	inner membrane permease protein
1604	 36.83	0	1950018..1950617	-	199	126641719	-	A1S_1674	-	hypothetical protein
1605	 35.06	-1	1950927..1951388	+	153	126641720	-	A1S_1675	-	hypothetical protein
1606	 42.48	0	1951602..1951907	+	101	126641721	-	A1S_1676	-	hypothetical protein
40.16	MEAN

3.49	STD DEV
