IslandPathversion 1.0

IslandPath Analysis: Acinetobacter baumannii ATCC 17978

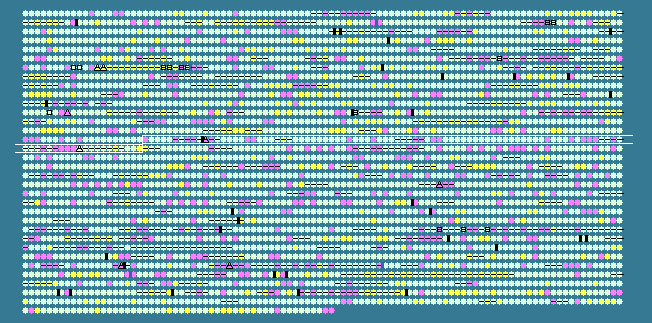

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1421	 36.67	-1	1736517..1737176	+	219	126641536	-	A1S_1490	-	glutamate/aspartate transport protein
1422	 40.52	0	1737418..1738113	+	231	126641537	-	A1S_1491	-	glutamate/aspartate transport protein
1423	 39.93	0	1738203..1738793	+	196	126641538	-	A1S_1492	-	glutamate/aspartate transport protein
1424	 39.96	0	1739053..1739550	+	165	126641539	-	A1S_1493	-	glutamate/aspartate transport protein
1425	 40.73	0	1739601..1740857	-	418	126641540	-	A1S_1494	-	putative protein (DcaP-like)
1426	 32.42	-2	1741404..1741733	+	109	126641541	-	A1S_1495	-	putative transcriptional regulator
1427	 38.95	0	1741764..1742333	-	189	126641542	-	A1S_1496	-	hypothetical protein
1428	 35.54	-1	1742676..1743083	-	135	126641543	-	A1S_1497	-	putative acyltransferase
1429	 27.15	-2	1743405..1743857	-	150	126641544	-	A1S_1498	-	TetR family transcriptional regulator
1430	 38.94	0	1744499..1745104	+	201	126641545	-	A1S_1499	-	hypothetical protein
1431	 27.95	-2	1746192..1746767	+	191	126641546	-	A1S_1501	-	Phage integrase
1432	 35.35	-1	1747347..1748141	-	264	126641547	-	A1S_1502	-	hypothetical protein
1433	 39.06	0	1748390..1748773	+	127	126641548	-	A1S_1503	-	transmembrane pair
1434	 36.79	0	1748831..1750246	-	471	126641549	-	A1S_1504	-	purine-cytosine permease
1435	 37.40	0	1751076..1751960	-	294	126641550	-	A1S_1505	-	hypothetical protein
1436	 40.22	0	1752313..1752951	+	212	126641551	-	A1S_1506	-	LysR family transcriptional regulator
1437	 38.83	0	1753747..1754655	-	302	126641552	-	A1S_1507	-	fimbrial protein
1438	 36.13	-1	1754763..1757192	-	809	126641553	-	A1S_1508	-	fimbrial biogenesis outer membrane usher protein
1439	 31.67	-2	1757352..1758011	-	219	126641554	-	A1S_1509	-	pili assembly chaperone
1440	 40.11	0	1758163..1758531	-	122	126641555	-	A1S_1510	-	fimbrial protein
1441	 38.60	0	1759816..1760745	-	309	126641556	-	A1S_1511	-	biotin synthase
1442	 40.15	0	1760905..1761858	-	317	126641557	-	A1S_1512	-	putative ferredoxin
1443	 40.50	0	1762004..1763482	+	492	126641558	-	A1S_1513	-	hypothetical protein
1444	 45.77	+1	1763487..1763912	-	141	126641559	-	A1S_1514	-	holliday junction nuclease
1445	 39.56	0	1764262..1764855	+	197	126641560	-	A1S_1515	-	hypothetical protein
1446	 38.10	0	1764993..1765265	+	90	126641561	-	A1S_1516	-	putative antibiotic resistance
1447	 40.10	0	1765468..1766043	-	191	126641562	-	A1S_1517	-	beta-lactamase OXA-95
1448	 40.00	0	1766847..1767251	+	134	126641563	-	A1S_1518	-	putative suppressor of F exclusion of phage T7
1449	 41.95	0	1768129..1769010	-	293	126641564	-	A1S_1519	-	methionine adenosyltransferase
1450	 39.02	0	1769919..1770692	+	257	126641565	-	A1S_1520	-	transketolase
1451	 42.07	0	1771066..1771809	+	247	126641566	-	A1S_1521	-	transketolase
1452	 37.01	0	1771864..1772271	-	135	126641567	-	A1S_1522	-	redox disulfide bond formation protein OsmC-like protein
1453	 38.51	0	1772556..1773077	+	173	126641568	-	A1S_1523	-	putative signal peptide
1454	 37.69	0	1773123..1773719	-	198	126641569	-	A1S_1524	-	hypothetical protein
1455	 35.08	-1	1774130..1774645	+	171	126641570	-	A1S_1525	-	hypothetical protein
1456	 37.20	0	1774681..1774887	-	68	126641571	-	A1S_1526	-	hypothetical protein
1457	 37.87	0	1775160..1776128	-	322	126641572	-	A1S_1527	-	tRNA (uracil-5-)-methyltransferase
1458	 40.45	0	1776928..1780695	-	1255	126641573	-	A1S_1528	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
1459	 36.34	-1	1780928..1781293	+	121	126641574	-	A1S_1529	-	leucine-responsive regulatory protein
1460	 41.94	0	1781374..1782651	-	425	126641575	-	A1S_1530	-	SSS family major sodium/proline symporter
1461	 38.48	0	1783223..1783921	-	232	126641576	-	A1S_1531	-	putative cobalamin biosynthetic protein (CobB)
1462	 38.26	0	1784020..1784283	-	87	126641577	-	A1S_1532	-	glycine cleavage complex protein H
1463	 38.42	0	1784433..1785218	-	261	126641578	-	A1S_1533	-	AraC family transcriptional regulator
1464	 40.59	0	1785567..1786007	-	146	126641579	-	A1S_1534	-	putative dehydratase
1465	 37.87	0	1786007..1787749	-	580	126641580	-	A1S_1535	-	putative transport protein
1466	 32.22	-2	1788229..1788588	-	119	126641581	-	A1S_1536	-	putative nucleoprotein/polynucleotide-associated enzyme
1467	 35.93	-1	1788769..1789383	-	204	126641582	-	A1S_1537	-	hypothetical protein
1468	 39.52	0	1789455..1790408	-	317	126641583	-	A1S_1538	-	serine/threonine transporter SstT
1469	 35.82	-1	1791080..1791361	-	93	126641584	-	A1S_1539	-	ArsR family transcriptional regulator
1470	 32.90	-2	1791863..1792321	-	152	126641585	-	A1S_1540	-	TetR family transcriptional regulator
1471	 37.35	0	1792767..1793837	-	356	126641586	-	A1S_1541	-	hypothetical protein
1472	 37.88	0	1793961..1794554	-	197	126641587	-	A1S_1542	-	putative Maf-like protein
1473	 38.99	0	1795237..1796262	+	341	126641588	-	A1S_1543	-	phosphoglycerate kinase
1474	 42.10	0	1796750..1797787	+	345	162286736	-	A1S_1544	-	fructose-1,6-bisphosphate aldolase
1475	 39.12	0	1797906..1799150	-	414	126641590	-	A1S_1545	-	peptidyl-prolyl cis-trans isomerase
1476	 39.12	0	1799216..1800961	-	581	126641591	-	A1S_1546	-	organic solvent tolerance protein precursor
1477	 41.76	0	1801161..1801670	-	169	126641592	-	A1S_1547	-	organic solvent tolerance protein precursor
1478	 38.24	0	1801914..1802789	+	291	126641593	-	A1S_1548	-	putative phosphotransferase
1479	 41.71	0	1802870..1803478	+	202	126641594	-	A1S_1549	-	putative nucleotidyl transferase
1480	 37.92	0	1803719..1804198	+	159	126641595	-	A1S_1550	-	glucose-inhibited division protein B
1481	 38.91	0	1804358..1805002	+	214	126641596	-	A1S_1551	-	chromosome partitioning protein
1482	 39.04	0	1805221..1805886	+	221	126641597	-	A1S_1552	-	chromosome partitioning protein
1483	 39.45	0	1806065..1806571	+	168	126641598	-	A1S_1553	-	MotA/TolQ/ExbB proton channel
1484	 39.15	0	1806638..1807015	+	125	126641599	-	A1S_1554	-	putative biopolymer transport protein ExbD/TolR
1485	 38.77	0	1807102..1808739	+	545	126641600	-	A1S_1555	-	lipid transport protein flippase
1486	 37.66	0	1809036..1809752	+	238	126641601	-	A1S_1556	-	tetraacyldisaccharide 4'-kinase
1487	 40.16	0	1809762..1810523	+	253	162286735	-	A1S_1557	-	3-deoxy-manno-octulosonate cytidylyltransferase
1488	 34.45	-1	1810535..1811515	+	326	126641603	-	A1S_1558	-	DNA polymerase III delta prime subunit
1489	 37.36	0	1811596..1811868	+	90	126641604	-	A1S_1559	-	type 4 fimbrial biogenesis protein
1490	 38.74	0	1811994..1812659	+	221	126641605	-	A1S_1560	-	putative deoxyribonuclease
1491	 38.31	0	1812784..1813305	+	173	126641606	-	A1S_1561	-	putative transcriptional regulator
1492	 33.73	-1	1813369..1813869	+	166	126641607	-	A1S_1562	-	putative general secretion pathway protein G precursor
1493	 37.36	0	1813892..1814239	+	115	126641608	-	A1S_1563	-	general secretion pathway protein I precursor
1494	 34.94	-1	1814443..1814940	+	165	126641609	-	A1S_1564	-	general secretion pathway protein J precursor
1495	 35.34	-1	1815051..1815899	+	282	126641610	-	A1S_1565	-	general secretion pathway protein K
1496	 36.18	-1	1816270..1816725	+	151	126641611	-	A1S_1566	-	putative 6-pyruvoyl-tetrahydropterin synthase
1497	 37.54	0	1816872..1817489	+	205	126641612	-	A1S_1567	-	uracil-DNA glycosylase
1498	 41.48	0	1817567..1818610	+	347	126641613	-	A1S_1568	-	putative enoyl-CoA hydratase/isomerase
1499	 36.27	-1	1818713..1819120	+	135	126641614	-	A1S_1569	-	putative deaminase
1500	 38.44	0	1819301..1819633	+	110	126641615	-	A1S_1570	-	hypothetical protein
1501	 40.88	0	1819758..1820327	+	189	126641616	-	A1S_1571	-	cytidylate kinase
1502	 41.67	0	1820666..1822105	+	479	126641617	rpsA	A1S_1572	-	30S ribosomal protein S1
1503	 41.76	0	1822292..1822564	+	90	126641618	-	A1S_1573	-	integration host factor beta subunit
1504	 35.71	-1	1822703..1822954	+	83	126641619	-	A1S_1574	-	hypothetical protein
1505	 37.61	0	1823117..1823818	+	233	126641620	-	A1S_1575	-	orotidine-5'-phosphate decarboxylase
1506	 34.54	-1	1823815..1824726	-	303	126641621	-	A1S_1576	-	hypothetical protein
1507	 35.43	-1	1824776..1826209	-	477	126641622	-	A1S_1577	-	putative flavin-binding monooxygenase
1508	 34.74	-1	1826682..1827464	+	260	126641623	-	A1S_1578	-	putative transcriptional regulator
1509	 36.48	-1	1827769..1828689	+	306	126641624	-	A1S_1579	-	putative ATPase
1510	 39.12	0	1829393..1829824	+	143	126641625	-	A1S_1580	-	integrase
1511	 40.99	0	1830300..1830743	-	147	126641626	-	A1S_1581	-	methyltransferase putative
1512	 39.17	0	1833406..1834005	-	199	126641627	-	A1S_1582	-	Cro/CI family transcriptional regulator
1513	 39.06	0	1834443..1834739	+	98	126641628	-	A1S_1583	-	hypothetical protein
1514	 39.60	0	1834826..1835623	+	265	126641629	-	A1S_1584	-	hypothetical protein
1515	 40.41	0	1835683..1836954	+	423	126641630	-	A1S_1585	-	putative replicative DNA helicase
1516	 48.33	+2	1842309..1842668	+	119	126641631	-	A1S_1586	-	EsvK1
1517	 37.78	0	1843587..1844036	+	149	126641632	-	A1S_1587	-	EsvK2
1518	 43.16	0	1844308..1845213	+	301	126641633	-	A1S_1588	-	Phage terminase-like protein large subunit
1519	 41.32	0	1845498..1846436	+	312	126641634	-	A1S_1589	-	hypothetical protein
1520	 44.52	+1	1846645..1847091	+	148	126641635	-	A1S_1590	-	peptidase U35 phage prohead HK97
40.16	MEAN

3.49	STD DEV
