IslandPath Analysis: Acinetobacter baumannii ATCC 17978

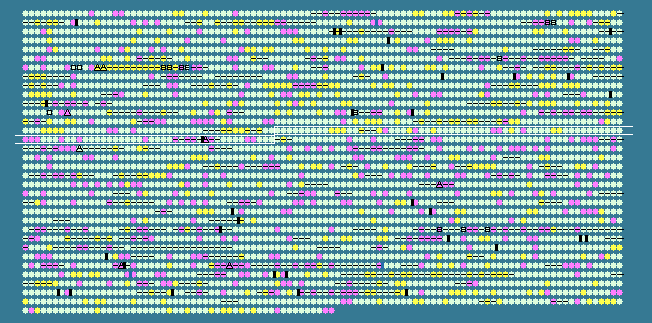

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1343	 42.16	0	1654118..1654570	-	150	126641458	-	A1S_1412	-	glutathione S-transferase-like protein
1344	 40.16	0	1654864..1655625	-	253	126641459	-	A1S_1413	-	regulatory protein
1345	 41.22	0	1656457..1657014	+	185	126641460	-	A1S_1414	-	LrgB-like protein
1346	 42.32	0	1657022..1658290	-	422	126641461	-	A1S_1415	-	transcriptional regulator
1347	 43.54	0	1658784..1659263	+	159	126641462	-	A1S_1416	-	negative transcriptional regulator
1348	 41.61	0	1659453..1659899	+	148	126641463	-	A1S_1417	-	putative amino-acid acetyltransferase
1349	 41.51	0	1659908..1661020	-	370	126641464	-	A1S_1418	-	MFS permease
1350	 41.07	0	1661105..1661686	-	193	126641465	-	A1S_1419	-	anti-sigm factor ChrR
1351	 38.18	0	1662055..1662879	+	274	126641466	-	A1S_1420	-	regulatory protein LysR:LysR, substrate-binding
1352	 44.35	+1	1662989..1664668	+	559	126641467	-	A1S_1421	-	malonate decarboxylase alpha subunit
1353	 45.01	+1	1664722..1665552	+	276	126641468	-	A1S_1422	-	triphosphoribosyl-dephospho-CoA synthase
1354	 46.01	+1	1665579..1665854	+	91	126641469	-	A1S_1423	-	malonate decarboxylase subunit delta
1355	 42.80	0	1665970..1666698	+	242	126641470	-	A1S_1424	-	malonate decarboxylase subunit beta
1356	 43.61	0	1666803..1667522	+	239	126641471	-	A1S_1425	-	malonate decarboxylase gamma subunit
1357	 44.33	+1	1667558..1668121	+	187	126641472	-	A1S_1426	-	phosphoribosyl-dephospho-CoA transferase
1358	 43.46	0	1668263..1669072	+	269	126641473	-	A1S_1427	-	malonate decarboxylase epsilon subunit
1359	 43.33	0	1669238..1669537	+	99	126641474	-	A1S_1428	-	malonate transporter
1360	 45.60	+1	1669602..1670294	+	230	126641475	-	A1S_1429	-	malonate transporter
1361	 33.33	-1	1670344..1670766	-	140	126641476	-	A1S_1430	-	LysR family malonate utilization transcriptional regulator
1362	 39.55	0	1670805..1671206	-	133	126641477	-	A1S_1431	-	LysR family malonate utilization transcriptional regulator
1363	 39.03	0	1671358..1672656	-	432	126641478	-	A1S_1432	-	hypothetical protein
1364	 42.25	0	1673023..1673964	-	313	126641479	-	A1S_1433	-	ubiquinol oxidase subunit II
1365	 44.18	+1	1674020..1675264	-	414	126641480	-	A1S_1434	-	ubiquinol oxidase subunit I
1366	 32.57	-2	1676212..1676994	+	260	126641481	-	A1S_1435	-	hypothetical protein
1367	 43.59	0	1677169..1677636	+	155	126641482	-	A1S_1436	-	putative acyl-CoA dehydrogenase
1368	 41.03	0	1677765..1678349	+	194	126641483	-	A1S_1437	-	putative acyl-CoA dehydrogenase
1369	 44.50	+1	1678799..1679353	+	184	126641484	-	A1S_1438	-	putative coenzyme F420-dependent N5N10-methylene tetrahydromethanopterin reductase
1370	 40.59	0	1679478..1679918	+	146	126641485	-	A1S_1439	-	putative coenzyme F420-dependent N5N10-methylene tetrahydromethanopterin reductase
1371	 42.72	0	1680324..1681580	+	418	126641486	-	A1S_1440	-	MFS family transporter
1372	 40.34	0	1681642..1682826	-	394	126641487	-	A1S_1441	-	putative signal peptide
1373	 40.02	0	1683413..1684309	+	298	126641488	-	A1S_1442	-	taurine ABC transporter periplasmic taurine-binding protein
1374	 40.69	0	1684421..1685113	+	230	126641489	-	A1S_1443	-	taurine ATP-binding transport system component
1375	 43.25	0	1685365..1685979	+	204	126641490	-	A1S_1444	-	ABC taurine transporter permease subunit
1376	 43.13	0	1686021..1686857	+	278	126641491	tauD	A1S_1445	-	taurine dioxygenase
1377	 43.29	0	1686939..1687571	-	210	126641492	-	A1S_1446	-	hydantoin racemase
1378	 40.71	0	1687670..1689025	-	451	126641493	-	A1S_1447	-	putative permease
1379	 36.46	-1	1689709..1690284	+	191	126641494	-	A1S_1448	-	putative transcriptional regulator
1380	 31.68	-2	1690323..1691048	-	241	126641495	-	A1S_1449	-	transcriptional regulatory protein
1381	 42.76	0	1691481..1692095	+	204	126641496	-	A1S_1450	-	hypothetical protein
1382	 44.08	+1	1692552..1694300	+	582	126641497	-	A1S_1451	-	hypothetical protein
1383	 38.44	0	1694588..1694959	-	123	126641498	-	A1S_1452	-	arsenate reductase
1384	 34.85	-1	1695101..1695430	+	109	126641499	-	A1S_1453	-	arsenite inducible repressor
1385	 37.60	0	1695703..1696569	+	288	126641500	-	A1S_1454	-	transmembrane arsenate pump protein
1386	 40.22	0	1696661..1697488	-	275	126641501	-	A1S_1455	-	putative transcriptional regulator
1387	 41.34	0	1697764..1698225	+	153	126641502	-	A1S_1456	-	putative chromate transport protein
1388	 41.61	0	1698312..1698746	+	144	126641503	-	A1S_1457	-	putative chromate transport protein
1389	 44.97	+1	1699166..1699732	+	188	126641504	-	A1S_1458	-	alkyl hydroperoxide reductase subunit F
1390	 47.83	+2	1699740..1700015	+	91	126641505	-	A1S_1459	-	alkyl hydroperoxide reductase subunit F
1391	 42.48	0	1700125..1700463	+	112	126641506	-	A1S_1460	-	alkyl hydroperoxide reductase subunit F
1392	 37.76	0	1700517..1702346	-	609	126641507	-	A1S_1461	-	hypothetical protein
1393	 38.13	0	1702640..1703368	-	242	126641508	-	A1S_1462	-	hypothetical protein
1394	 42.33	0	1703685..1704251	-	188	126641509	-	A1S_1463	-	serine acetyltransferase
1395	 42.31	0	1704493..1705227	-	244	126641510	-	A1S_1464	-	putative tRNA/rRNA methyltransferase
1396	 41.96	0	1705347..1708814	-	1155	126641511	-	A1S_1465	-	DNA polymerase III alpha chain
1397	 38.68	0	1709125..1709985	-	286	126641512	-	A1S_1466	-	glutaminase-asparaginase
1398	 39.49	0	1710877..1711932	-	351	126641513	-	A1S_1467	-	putative glutamate symport transmembrane protein
1399	 41.49	0	1712652..1713902	-	416	126641514	-	A1S_1468	-	aminotransferase AlaT
1400	 42.66	0	1714314..1714742	+	142	126641515	-	A1S_1469	-	peptide methionine sulfoxide reductase
1401	 35.60	-1	1714739..1715224	+	161	126641516	-	A1S_1470	-	glutathione peroxidase
1402	 35.33	-1	1715469..1716068	+	199	126641517	-	A1S_1471	-	AraC family transcriptional regulator
1403	 30.92	-2	1716310..1716765	+	151	126641518	-	A1S_1472	-	putative amino acid efflux protein putative threonine efflux protein
1404	 40.07	0	1716826..1717983	-	385	126641519	-	A1S_1473	-	hypothetical protein
1405	 40.98	0	1718021..1720438	-	805	126641520	-	A1S_1474	-	uridylyltransferase
1406	 42.12	0	1720712..1721770	-	352	126641521	purT	A1S_1475	-	phosphoribosylglycinamide formyltransferase 2
1407	 35.69	-1	1722032..1722328	-	98	126641522	-	A1S_1476	-	hypothetical protein
1408	 38.72	0	1722893..1723468	-	191	126641523	-	A1S_1477	-	putative amino acid transporter
1409	 38.00	0	1723735..1724205	+	156	126641524	-	A1S_1478	-	hypothetical protein
1410	 33.33	-1	1724786..1725241	-	151	126641525	-	A1S_1479	-	hypothetical protein
1411	 37.22	0	1725748..1726107	+	119	126641526	-	A1S_1480	-	hypothetical protein
1412	 39.96	0	1726153..1727043	-	296	126641527	-	A1S_1481	-	putative GTP-binding protein
1413	 42.95	0	1727338..1727784	-	148	126641528	-	A1S_1482	-	D-and L-methionine transport protein x
1414	 39.32	0	1727979..1728797	-	272	126641529	-	A1S_1483	-	D-and L-methionine transport protein
1415	 38.66	0	1729061..1729942	-	293	126641530	-	A1S_1484	-	D-methionine transport protein
1416	 38.47	0	1729908..1730627	-	239	126641531	-	A1S_1485	-	D-methionine transport protein
1417	 41.22	0	1730753..1731880	-	375	126641532	-	A1S_1486	-	putative monooxygenase (DszA-like)
1418	 42.08	0	1732165..1733388	-	407	126641533	-	A1S_1487	-	putative Acyl-CoA dehydrogenase
1419	 39.81	0	1733401..1734636	-	411	126641534	-	A1S_1488	-	putative Acyl-CoA dehydrogenase
1420	 38.82	0	1735036..1735746	+	236	126641535	-	A1S_1489	-	putative glutathione S-transferase
1421	 36.67	-1	1736517..1737176	+	219	126641536	-	A1S_1490	-	glutamate/aspartate transport protein
1422	 40.52	0	1737418..1738113	+	231	126641537	-	A1S_1491	-	glutamate/aspartate transport protein
1423	 39.93	0	1738203..1738793	+	196	126641538	-	A1S_1492	-	glutamate/aspartate transport protein
1424	 39.96	0	1739053..1739550	+	165	126641539	-	A1S_1493	-	glutamate/aspartate transport protein
1425	 40.73	0	1739601..1740857	-	418	126641540	-	A1S_1494	-	putative protein (DcaP-like)
1426	 32.42	-2	1741404..1741733	+	109	126641541	-	A1S_1495	-	putative transcriptional regulator
1427	 38.95	0	1741764..1742333	-	189	126641542	-	A1S_1496	-	hypothetical protein
1428	 35.54	-1	1742676..1743083	-	135	126641543	-	A1S_1497	-	putative acyltransferase
1429	 27.15	-2	1743405..1743857	-	150	126641544	-	A1S_1498	-	TetR family transcriptional regulator
1430	 38.94	0	1744499..1745104	+	201	126641545	-	A1S_1499	-	hypothetical protein
1431	 27.95	-2	1746192..1746767	+	191	126641546	-	A1S_1501	-	Phage integrase
1432	 35.35	-1	1747347..1748141	-	264	126641547	-	A1S_1502	-	hypothetical protein
1433	 39.06	0	1748390..1748773	+	127	126641548	-	A1S_1503	-	transmembrane pair
1434	 36.79	0	1748831..1750246	-	471	126641549	-	A1S_1504	-	purine-cytosine permease
1435	 37.40	0	1751076..1751960	-	294	126641550	-	A1S_1505	-	hypothetical protein
1436	 40.22	0	1752313..1752951	+	212	126641551	-	A1S_1506	-	LysR family transcriptional regulator
1437	 38.83	0	1753747..1754655	-	302	126641552	-	A1S_1507	-	fimbrial protein
1438	 36.13	-1	1754763..1757192	-	809	126641553	-	A1S_1508	-	fimbrial biogenesis outer membrane usher protein
1439	 31.67	-2	1757352..1758011	-	219	126641554	-	A1S_1509	-	pili assembly chaperone
1440	 40.11	0	1758163..1758531	-	122	126641555	-	A1S_1510	-	fimbrial protein
1441	 38.60	0	1759816..1760745	-	309	126641556	-	A1S_1511	-	biotin synthase
1442	 40.15	0	1760905..1761858	-	317	126641557	-	A1S_1512	-	putative ferredoxin
40.16	MEAN

3.49	STD DEV
