IslandPath Analysis: Acinetobacter baumannii ATCC 17978

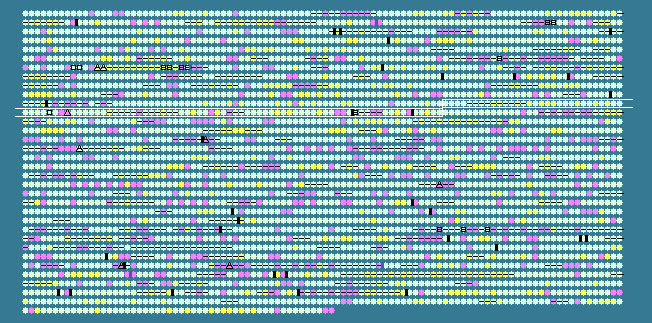

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1071	 38.92	0	1329148..1329648	-	166	126641186	-	A1S_1138	-	putative cytochrome
1072	 40.97	0	1329942..1330334	+	130	126641187	-	A1S_1139	-	putative signal peptide
1073	 40.19	0	1330442..1330966	+	174	126641188	-	A1S_1140	-	RNAse HII
1074	 36.99	0	1331036..1331254	-	72	126641189	-	A1S_1141	-	carbon storage regulator
1075	 41.56	0	1331537..1332691	-	384	126641190	-	A1S_1142	-	aspartate kinase
1076	 39.23	0	1336526..1336966	-	146	126641191	-	A1S_1143	-	hypothetical protein
1077	 37.91	0	1337194..1337871	-	225	126641192	-	A1S_1144	-	S24 family peptidase
1078	 40.96	0	1337988..1338236	+	82	126641193	-	A1S_1145	-	putative Cro protein
1079	 50.13	+2	1339221..1339976	-	251	126641195	-	A1S_1147	-	site-specific DNA methylase-like protein
1080	 49.51	+2	1339423..1340040	+	205	126641194	-	A1S_1146	-	site-specific DNA-methyltransferase
1081	 41.41	0	1342844..1343140	+	98	126641196	-	A1S_1148	-	hypothetical protein
1082	 36.94	0	1344620..1344979	+	119	126641197	-	A1S_1149	-	hypothetical protein
1083	 44.44	+1	1345113..1345589	+	158	126641198	-	A1S_1150	-	hypothetical protein
1084	 43.19	0	1345648..1346124	+	158	126641199	-	A1S_1151	-	hypothetical protein
1085	 43.79	+1	1346204..1347628	+	474	126641200	-	A1S_1152	-	putative helicase
1086	 42.08	0	1347829..1348971	+	380	126641201	-	A1S_1153	-	putative phage-related protein
1087	 44.16	+1	1349138..1349728	+	196	126641202	-	A1S_1154	-	putative bacteriophage protein
1088	 44.97	+1	1350882..1352084	+	400	126641203	-	A1S_1155	-	putative phage-related protein
1089	 48.48	+2	1352173..1352568	+	131	126641204	-	A1S_1156	-	hypothetical protein
1090	 43.03	0	1352703..1353548	+	281	126641205	-	A1S_1157	-	hypothetical protein
1091	 42.42	0	1353650..1353946	+	98	126641206	-	A1S_1158	-	putative signal peptide
1092	 42.56	0	1354004..1354339	+	111	126641207	-	A1S_1159	-	hypothetical protein
1093	 46.03	+1	1354590..1355030	+	146	126641208	-	A1S_1160	-	hypothetical protein
1094	 42.06	0	1355146..1355466	+	106	126641209	-	A1S_1161	-	hypothetical protein
1095	 43.39	0	1355631..1356296	+	221	126641210	-	A1S_1162	-	hypothetical protein
1096	 44.62	+1	1356686..1356880	+	64	126641211	-	A1S_1163	-	hypothetical protein
1097	 41.09	0	1357609..1359477	+	622	126641212	-	A1S_1164	-	putative phage tail tape meausure protein
1098	 45.28	+1	1359590..1360585	+	331	126641213	-	A1S_1165	-	putative phage tail tape meausure protein
1099	 41.08	0	1360656..1361249	+	197	126641214	-	A1S_1166	-	hypothetical protein
1100	 41.70	0	1361375..1362103	+	242	126641215	-	A1S_1167	-	hypothetical protein
1101	 39.88	0	1362328..1363962	+	544	126641216	-	A1S_1168	-	hypothetical protein
1102	 41.49	0	1365218..1365499	+	93	126641217	-	A1S_1169	-	hypothetical protein
1103	 43.35	0	1365673..1367649	+	658	126641218	-	A1S_1170	-	hypothetical protein
1104	 42.40	0	1368280..1368687	+	135	126641219	-	A1S_1171	-	hypothetical protein
1105	 41.57	0	1369012..1369545	-	177	126641220	-	A1S_1172	-	putative transposase
1106	 38.20	0	1370417..1371547	-	376	126641221	-	A1S_1173	-	RumB
1107	 35.96	-1	1371719..1372213	-	164	126641222	-	A1S_1174	-	DNA polymerase V component
1108	 36.27	-1	1374218..1375342	-	374	126641223	-	A1S_1175	-	phage integrase
1109	 41.41	0	1375710..1378223	-	837	126641224	-	A1S_1176	-	alanyl-tRNA synthetase
1110	 38.69	0	1378709..1379641	+	310	126641225	-	A1S_1177	-	glyceraldehyde 3-phosphate dehydrogenase
1111	 40.35	0	1380171..1381082	+	303	126641226	-	A1S_1178	-	ATP phosphoribosyltransferase regulatory subunit
1112	 43.04	0	1381396..1382466	+	356	126641227	-	A1S_1179	-	adenylosuccinate synthetase
1113	 42.72	0	1383089..1383802	+	237	126641228	-	A1S_1180	-	putative Zn-dependent protease with chaperone function
1114	 41.36	0	1383862..1384758	-	298	126641229	-	A1S_1181	-	oxidoreductase
1115	 43.69	+1	1385134..1385529	-	131	126641230	-	A1S_1182	-	cyclic AMP receptor protein
1116	 41.31	0	1386293..1386643	+	116	126641231	-	A1S_1183	-	hypothetical protein
1117	 38.80	0	1386797..1387162	+	121	126641232	-	A1S_1184	-	putative acyltransferase (PhnO)
1118	 39.97	0	1387159..1387911	-	250	126641233	-	A1S_1185	-	M24/M37 family peptidase
1119	 42.47	0	1388329..1390845	+	838	126641234	-	A1S_1186	-	ATP-dependent protease Hsp 100
1120	 35.58	-1	1390902..1391390	-	162	126641235	-	A1S_1187	-	CinA-like protein
1121	 39.26	0	1392102..1392641	-	179	126641236	-	A1S_1188	-	putative N-6 adenine-specific DNA methylase
1122	 41.56	0	1392692..1393906	-	404	126641237	-	A1S_1189	-	putative N-6 adenine-specific DNA methylase
1123	 41.72	0	1395025..1396026	+	333	162286738	pyrB	A1S_1190	-	aspartate carbamoyltransferase catalytic subunit
1124	 43.90	+1	1396186..1396914	+	242	126641239	-	A1S_1191	-	aspartate carbamoyltransferase non-catalytic chain
1125	 40.56	0	1397025..1397273	+	82	126641240	-	A1S_1192	-	aspartate carbamoyltransferase non-catalytic chain
1126	 42.71	0	1397709..1398902	+	397	126641241	-	A1S_1193	-	OmpA/MotB
1127	 38.48	0	1399244..1399768	+	174	126641242	-	A1S_1194	-	hypothetical protein
1128	 38.32	0	1399922..1400242	-	106	126641243	-	A1S_1195	-	putative glutathione S-transferase
1129	 44.55	+1	1400576..1401217	-	213	126641244	-	A1S_1196	-	tRNA(guanine-7)methyltransferase
1130	 39.78	0	1401525..1402919	+	464	126641245	-	A1S_1197	-	putative extracellular nuclease
1131	 40.02	0	1402981..1403877	+	298	126641246	-	A1S_1198	-	putative extracellular nuclease
1132	 33.50	-1	1404085..1404696	+	203	126641247	-	A1S_1199	-	putative glutathionine S-transferase
1133	 44.28	+1	1405278..1406099	-	273	126641248	-	A1S_1200	-	alkyl hydroperoxide reductase subunit F
1134	 41.44	0	1406312..1406866	-	184	126641249	-	A1S_1201	-	alkyl hydroperoxide reductase subunit F
1135	 35.62	-1	1407107..1407325	+	72	126641250	-	A1S_1202	-	hypothetical protein
1136	 40.94	0	1407503..1407949	+	148	126641251	-	A1S_1203	-	o-methyl transferase
1137	 39.35	0	1408014..1408229	-	71	126641252	-	A1S_1204	-	hypothetical protein
1138	 42.63	0	1408422..1408916	-	164	126641253	-	A1S_1205	-	alkyl hydroperoxide reductase C22 subunit
1139	 42.30	0	1409578..1412397	+	939	126641254	-	A1S_1206	-	ATP-dependent helicase
1140	 38.32	0	1412553..1413194	+	213	126641255	-	A1S_1207	-	ATP-dependent helicase
1141	 40.69	0	1413376..1414395	+	339	126641256	-	A1S_1208	-	3-oxoacyl-(acyl carrier protein) synthase III
1142	 39.19	0	1414496..1415536	-	346	126641257	-	A1S_1209	-	putative benzoate transport porin (BenP)
1143	 44.72	+1	1415803..1417014	-	403	126641258	-	A1S_1210	-	major facilitator transporter
1144	 41.79	0	1417630..1418682	-	350	126641259	-	A1S_1211	-	benzoate transporter
1145	 46.06	+1	1418881..1419666	-	261	162286737	benD	A1S_1212	-	1,6-dihydroxycyclohexa-2,4-diene-1-carboxylate dehydrogenase
1146	 42.38	0	1419688..1420527	-	279	126641261	-	A1S_1213	-	benzoate 12-dioxygenase electron transfer component
1147	 40.00	0	1420775..1421149	-	124	126641262	-	A1S_1214	-	benzoate 12-dioxygenase beta subunit
1148	 43.53	0	1421272..1422654	-	460	126641263	-	A1S_1215	-	benzoate 12 dioxygenase alpha subunit
1149	 42.08	0	1423177..1423896	+	239	126641264	-	A1S_1216	-	LysR regulator
1150	 44.64	+1	1424370..1426784	+	804	126641265	-	A1S_1217	-	heavy metal translocating P-type ATPase
1151	 37.54	0	1426905..1427261	+	118	126641266	-	A1S_1218	-	heavy metal regulator HmrR
1152	 42.77	0	1427359..1427697	+	112	126641267	-	A1S_1219	-	glutathione-dependent formaldehyde-activating GFA
1153	 34.54	-1	1430076..1430489	+	137	126641268	-	A1S_1220	-	putative threonine efflux protein
1154	 33.85	-1	1430989..1431183	-	64	126641269	-	A1S_1221	-	hypothetical protein
1155	 38.42	0	1431176..1432354	-	392	126641270	xseA	A1S_1222	-	exodeoxyribonuclease VII large subunit
1156	 36.75	0	1432945..1433178	+	77	126641271	-	A1S_1224	-	transposase
1157	 38.05	0	1433330..1433923	-	197	126641272	-	A1S_1225	-	peptidase S24 S26A and S26B
1158	 38.28	0	1434992..1435537	+	181	126641273	-	A1S_1226	-	hypothetical protein
1159	 29.14	-2	1435604..1436080	-	158	126641274	-	A1S_1227	-	amino acid transporter LysE
1160	 34.26	-1	1436739..1436954	+	71	126641275	-	A1S_1228	-	cold shock protein
1161	 37.70	0	1437928..1438476	+	182	126641276	-	A1S_1229	-	pyrroline-5-carboxylate reductase
1162	 37.91	0	1440551..1441381	+	276	126641277	-	A1S_1230	-	phage putative head morphogenesis protein
1163	 48.34	+2	1441533..1442558	-	341	126641278	-	A1S_1231	-	hypothetical protein
1164	 42.77	0	1442967..1443305	+	112	126641279	-	A1S_1232	-	EsvB
1165	 30.04	-2	1444540..1445055	+	171	126641280	-	A1S_1233	-	hypothetical protein
1166	 41.44	0	1446570..1447913	-	447	126641281	-	A1S_1235	-	cysteinyl-tRNA synthetase
1167	 42.18	0	1448358..1449182	+	274	126641282	-	A1S_1236	-	D-arabinose 5-phosphate isomerase
1168	 45.20	+1	1449330..1449725	+	131	126641283	-	A1S_1237	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
1169	 37.90	0	1449874..1450311	+	145	126641284	-	A1S_1238	-	hypothetical protein
1170	 41.43	0	1450424..1450843	+	139	126641285	-	A1S_1239	-	putative transport protein
40.16	MEAN

3.49	STD DEV
