IslandPath Analysis: Acinetobacter baumannii ATCC 17978

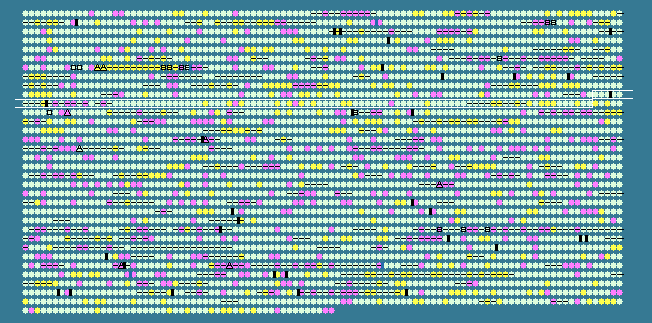

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.16 STD DEV: 3.49
Acinetobacter baumannii ATCC 17978, complete genome - 1..3976747
3352 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
996	 38.21	0	1225489..1225857	+	122	126641111	-	A1S_1061	-	putative oligopeptide transport protein
997	 42.18	0	1226112..1227287	+	391	126641112	-	A1S_1062	-	putative FMN oxidoreductase
998	 38.81	0	1227346..1229316	-	656	126641113	-	A1S_1063	-	TonB-dependent siderophore receptor
999	 42.20	0	1229738..1230256	-	172	126641114	-	A1S_1065	-	ribonuclease T
1000	 39.74	0	1230385..1231305	-	306	126641115	-	A1S_1066	-	dihydroorotase
1001	 37.85	0	1231659..1232831	+	390	126641116	-	A1S_1067	-	GGDEF
1002	 42.06	0	1232890..1233336	-	148	126641117	-	A1S_1068	-	argininosuccinate synthetase
1003	 41.31	0	1233575..1234138	-	187	126641118	-	A1S_1069	-	argininosuccinate synthetase
1004	 44.39	+1	1235088..1237049	+	653	126641119	-	A1S_1070	-	24-dienoyl-CoA reductase
1005	 41.20	0	1239650..1240297	+	215	126641120	-	A1S_1072	-	hypothetical protein
1006	 34.95	-1	1241147..1250797	+	3216	126641121	-	A1S_1073	-	hemolysin-type calcium-binding region
1007	 40.13	0	1252212..1252520	-	102	126641122	-	A1S_1074	-	hypothetical protein
1008	 35.63	-1	1252573..1253529	-	318	126641123	-	A1S_1075	-	D-amino-acid dehydrogenase
1009	 34.36	-1	1253895..1254671	-	258	126641124	-	A1S_1076	-	LysR family transcriptional regulator
1010	 39.35	0	1255120..1256316	+	398	126641125	-	A1S_1077	-	hypothetical protein
1011	 27.05	-2	1256498..1257070	-	190	126641126	-	A1S_1078	-	hypothetical protein
1012	 37.16	0	1257925..1259520	+	531	126641127	-	A1S_1079	-	dichlorophenol hydroxylase
1013	 38.74	0	1260195..1260860	+	221	126641128	-	A1S_1080	-	putative lipoprotein
1014	 35.33	-1	1262185..1262736	+	183	126641129	-	A1S_1081	-	putative transcriptional regulator
1015	 41.94	0	1263572..1263931	-	119	126641130	-	A1S_1082	-	hypothetical protein
1016	 38.58	0	1264315..1265610	-	431	126641131	-	A1S_1083	-	aromatic amino acid APC transporter
1017	 41.63	0	1265818..1267227	-	469	126641132	-	A1S_1084	-	glycine/D-amino acid oxidases (deaminating)
1018	 41.33	0	1267283..1268545	-	420	126641133	-	A1S_1085	-	amino acid transporters
1019	 37.71	0	1268809..1269516	-	235	126641134	-	A1S_1086	-	hypothetical protein
1020	 39.24	0	1269582..1270157	-	191	126641135	-	A1S_1087	-	GntR family transcriptional regulator
1021	 41.83	0	1270361..1270960	-	199	126641136	-	A1S_1088	-	hypothetical protein
1022	 43.12	0	1271160..1272518	-	452	126641137	-	A1S_1089	-	hypothetical protein
1023	 37.35	0	1272908..1273330	-	140	126641138	-	A1S_1090	-	AsnC family transcriptional regulator
1024	 43.25	0	1273508..1273981	+	157	126641139	-	A1S_1091	-	succinylornithine transaminase (carbon starvation protein C)
1025	 40.08	0	1274184..1274702	+	172	126641140	-	A1S_1092	-	succinylornithine transaminase (carbon starvation protein C)
1026	 39.24	0	1274795..1275793	+	332	126641141	-	A1S_1093	-	arginine/ornithine N-succinyltransferase beta subunit
1027	 37.56	0	1276307..1277656	+	449	126641142	-	A1S_1094	-	D-serine/D-alanine/glycine transporter
1028	 42.11	0	1279525..1280937	-	470	126641143	-	A1S_1095	-	aldehyde dehydrogenase
1029	 40.58	0	1281289..1282185	+	298	126641144	-	A1S_1096	-	hypothetical protein
1030	 37.17	0	1282201..1283034	-	277	126641145	-	A1S_1097	-	hypothetical protein
1031	 43.67	+1	1283223..1284518	-	431	126641146	-	A1S_1098	-	D-galactarate dehydrogenase
1032	 41.47	0	1284841..1286118	-	425	126641147	-	A1S_1099	-	major facilitator superfamily D-glucarate/D-galactarate permease
1033	 42.32	0	1286548..1287816	+	422	126641148	-	A1S_1100	-	D-glucarate dehydratase
1034	 40.93	0	1287943..1288890	+	315	126641149	-	A1S_1101	-	5-dehydro-4-deoxyglucarate dehydratase
1035	 45.51	+1	1289161..1290507	+	448	126641150	-	A1S_1102	-	2-ketoglutarate semialdehyde dehydrogenase
1036	 36.50	-1	1290928..1291464	+	178	126641151	-	A1S_1103	-	GntR family transcriptional regulator
1037	 45.47	+1	1291529..1293127	-	532	126641152	-	A1S_1104	-	chlorogenate esterase
1038	 42.90	0	1293314..1293658	-	114	126641153	-	A1S_1105	-	hypothetical protein
1039	 43.20	0	1293744..1294280	-	178	126641154	-	A1S_1106	-	hypothetical protein
1040	 42.42	0	1294337..1295557	-	406	126641155	-	A1S_1107	-	porin
1041	 43.48	0	1295671..1296606	-	311	126641156	-	A1S_1108	-	acyl coenzyme A dehydrogenase
1042	 42.66	0	1296885..1298492	-	535	126641157	-	A1S_1109	-	feruloyl-CoA synthase
1043	 44.58	+1	1298853..1300079	-	408	126641158	-	A1S_1110	-	hydroxybenzaldehyde dehydrogenase
1044	 43.45	0	1300342..1301181	-	279	126641159	-	A1S_1111	-	p-hydroxycinnamoyl CoA hydratase/lyase
1045	 44.56	+1	1301521..1302660	+	379	126641160	-	A1S_1112	-	putative 3-hydroxyphenylpropionic transporter MhpT
1046	 33.83	-1	1302788..1303189	+	133	126641161	-	A1S_1113	-	putative transcriptional regulator
1047	 44.86	+1	1303347..1303988	+	213	126641162	-	A1S_1114	-	ferulate or vanillate catabolism transcriptional regulator
1048	 41.64	0	1304032..1304862	-	276	126641163	-	A1S_1115	-	vanillate O-demethylase oxidoreductase
1049	 44.38	+1	1304989..1306065	-	358	126641164	-	A1S_1116	-	vanillate O-demethylase oxygenase subunit
1050	 41.97	0	1306596..1307903	+	435	126641165	-	A1S_1117	-	MFS superfamily vanillate transporter
1051	 39.21	0	1308178..1309215	+	345	126641166	-	A1S_1118	-	putative porin for vanillate trafficking (VanP)
1052	 43.10	0	1309275..1310840	-	521	126641167	-	A1S_1119	-	choline dehydrogenase-like flavoprotein
1053	 41.43	0	1310974..1311294	-	106	126641168	-	A1S_1120	-	lipase/esterase
1054	 45.35	+1	1311318..1311758	-	146	126641169	-	A1S_1121	-	lipase/esterase
1055	 43.99	+1	1311939..1312604	-	221	126641170	-	A1S_1122	-	putative short-chain dehydrogenase
1056	 41.63	0	1312838..1314139	-	433	126641171	-	A1S_1123	-	putative flavin-binding monooxygenase
1057	 42.69	0	1314525..1315475	+	316	126641172	-	A1S_1124	-	AraC family transcriptional regulator
1058	 38.28	0	1315487..1316254	-	255	126641173	-	A1S_1125	-	putative transferase
1059	 38.81	0	1316474..1317769	-	431	126641174	-	A1S_1126	-	putative flavin-binding monooxygenase
1060	 42.60	0	1318022..1318690	-	222	126641175	-	A1S_1127	-	short chain dehydrogenase/reductase family oxidoreductase
1061	 38.62	0	1318918..1319730	-	270	126641176	-	A1S_1128	-	hypothetical protein
1062	 29.89	-2	1320592..1321026	+	144	126641177	-	A1S_1129	-	repressor protein
1063	 40.37	0	1321091..1321630	-	179	126641178	-	A1S_1130	-	Pirin-like:cupin 2 barrel
1064	 39.49	0	1322540..1323286	+	248	126641179	-	A1S_1131	-	hypothetical protein
1065	 42.97	0	1323529..1324182	+	217	126641180	-	A1S_1132	-	short chain dehydrogenase/reductase family oxidoreductase
1066	 39.43	0	1324206..1324697	+	163	126641181	-	A1S_1133	-	putative flavin-binding monooxygenase
1067	 38.70	0	1324805..1325755	+	316	126641182	-	A1S_1134	-	putative flavin-binding monooxygenase
1068	 45.21	+1	1326784..1327044	+	86	126641183	-	A1S_1135	-	putative transporter
1069	 41.82	0	1327347..1327994	+	215	126641184	-	A1S_1136	-	putative transporter
1070	 38.84	0	1328106..1329104	+	332	162286739	-	A1S_1137	-	adenosine deaminase
1071	 38.92	0	1329148..1329648	-	166	126641186	-	A1S_1138	-	putative cytochrome
1072	 40.97	0	1329942..1330334	+	130	126641187	-	A1S_1139	-	putative signal peptide
1073	 40.19	0	1330442..1330966	+	174	126641188	-	A1S_1140	-	RNAse HII
1074	 36.99	0	1331036..1331254	-	72	126641189	-	A1S_1141	-	carbon storage regulator
1075	 41.56	0	1331537..1332691	-	384	126641190	-	A1S_1142	-	aspartate kinase
1076	 39.23	0	1336526..1336966	-	146	126641191	-	A1S_1143	-	hypothetical protein
1077	 37.91	0	1337194..1337871	-	225	126641192	-	A1S_1144	-	S24 family peptidase
1078	 40.96	0	1337988..1338236	+	82	126641193	-	A1S_1145	-	putative Cro protein
1079	 50.13	+2	1339221..1339976	-	251	126641195	-	A1S_1147	-	site-specific DNA methylase-like protein
1080	 49.51	+2	1339423..1340040	+	205	126641194	-	A1S_1146	-	site-specific DNA-methyltransferase
1081	 41.41	0	1342844..1343140	+	98	126641196	-	A1S_1148	-	hypothetical protein
1082	 36.94	0	1344620..1344979	+	119	126641197	-	A1S_1149	-	hypothetical protein
1083	 44.44	+1	1345113..1345589	+	158	126641198	-	A1S_1150	-	hypothetical protein
1084	 43.19	0	1345648..1346124	+	158	126641199	-	A1S_1151	-	hypothetical protein
1085	 43.79	+1	1346204..1347628	+	474	126641200	-	A1S_1152	-	putative helicase
1086	 42.08	0	1347829..1348971	+	380	126641201	-	A1S_1153	-	putative phage-related protein
1087	 44.16	+1	1349138..1349728	+	196	126641202	-	A1S_1154	-	putative bacteriophage protein
1088	 44.97	+1	1350882..1352084	+	400	126641203	-	A1S_1155	-	putative phage-related protein
1089	 48.48	+2	1352173..1352568	+	131	126641204	-	A1S_1156	-	hypothetical protein
1090	 43.03	0	1352703..1353548	+	281	126641205	-	A1S_1157	-	hypothetical protein
1091	 42.42	0	1353650..1353946	+	98	126641206	-	A1S_1158	-	putative signal peptide
1092	 42.56	0	1354004..1354339	+	111	126641207	-	A1S_1159	-	hypothetical protein
1093	 46.03	+1	1354590..1355030	+	146	126641208	-	A1S_1160	-	hypothetical protein
1094	 42.06	0	1355146..1355466	+	106	126641209	-	A1S_1161	-	hypothetical protein
1095	 43.39	0	1355631..1356296	+	221	126641210	-	A1S_1162	-	hypothetical protein
40.16	MEAN

3.49	STD DEV
