IslandPath Analysis: Acidobacteria bacterium Ellin345

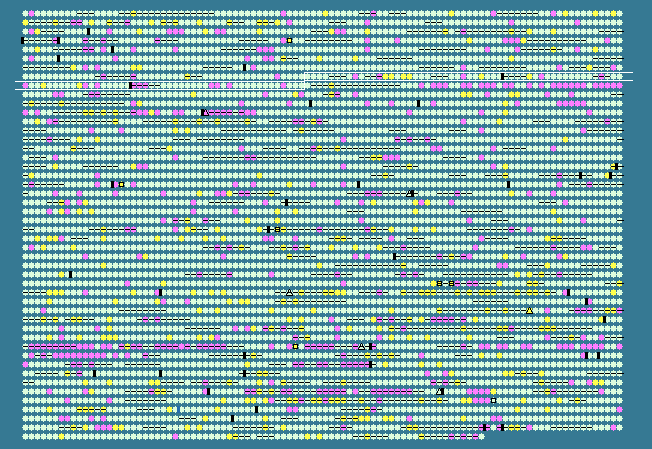

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 58.57   STD DEV: 2.67
Acidobacteria bacterium Ellin345, complete genome - 1..5650368
4777 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
748	 58.08	0	922742..924196	+	484	94967779	-	Acid345_0748	-	ResB-like protein
749	 59.90	0	924220..925638	+	472	94967780	-	Acid345_0749	-	cytochrome c assembly protein
750	 61.72	+1	925739..926911	+	390	94967781	-	Acid345_0750	-	periplasmic sensor signal transduction histidine kinase
751	 58.98	0	926933..928390	+	485	94967782	-	Acid345_0751	-	two component, sigma54 specific, Fis family transcriptional regulator
752	 58.52	0	928395..929057	-	220	94967783	-	Acid345_0752	-	hemolysin III family channel protein
753	 57.94	0	929268..930848	-	526	94967784	-	Acid345_0753	-	Alpha-L-arabinofuranosidase
754	 59.61	0	930963..933599	-	878	94967785	-	Acid345_0754	-	ABC efflux pump, inner membrane subunit
755	 55.29	-1	933596..933973	-	125	94967786	-	Acid345_0755	-	PadR family transcriptional regulator
756	 51.96	-2	934382..934789	+	135	94967787	-	Acid345_0756	-	hypothetical protein
757	 60.84	0	934889..935557	-	222	94967788	-	Acid345_0757	-	TPR repeat-containing protein
758	 60.34	0	935621..936916	-	431	94967789	-	Acid345_0758	-	glutamyl-tRNA reductase
759	 57.10	0	937206..937508	+	100	94967790	-	Acid345_0759	-	cytochrome c, class I
760	 54.58	-1	937660..937965	+	101	94967791	-	Acid345_0760	-	cytochrome c, class I
761	 62.30	+1	938002..938619	+	205	94967792	-	Acid345_0761	-	2Fe-2S protein
762	 62.29	+1	938622..940973	+	783	94967793	-	Acid345_0762	-	xanthine dehydrogenase, molybdenum binding subunit apoprotein
763	 61.57	+1	940976..941995	+	339	94967794	-	Acid345_0763	-	molybdopterin dehydrogenase, FAD-binding
764	 63.94	+2	942304..944613	-	769	94967795	-	Acid345_0764	-	hypothetical protein
765	 62.18	+1	944783..945496	+	237	94967796	-	Acid345_0765	-	hypothetical protein
766	 57.53	0	945627..946250	+	207	94967797	-	Acid345_0766	-	hypothetical protein
767	 59.97	0	946602..947273	+	223	94967798	-	Acid345_0767	-	glycine cleavage H-protein
768	 61.78	+1	947425..949083	+	552	94967799	-	Acid345_0768	-	TPR repeat-containing protein
769	 59.50	0	949080..949400	+	106	94967800	-	Acid345_0769	-	ethyl tert-butyl ether degradation EthD
770	 59.94	0	949414..951687	+	757	94967801	-	Acid345_0770	-	TPR repeat-containing serine/threonin protein kinase
771	 59.47	0	951684..952544	+	286	94967802	-	Acid345_0771	-	hypothetical protein
772	 56.47	0	952688..953089	-	133	94967803	-	Acid345_0772	-	hypothetical protein
773	 57.74	0	953236..954165	+	309	94967804	-	Acid345_0773	-	cytochrome c, class I
774	 53.41	-1	954162..954659	+	165	94967805	-	Acid345_0774	-	small integral membrane protein
775	 60.69	0	955012..955647	-	211	94967806	-	Acid345_0775	-	abortive infection protein
776	 60.83	0	955815..958760	-	981	94967807	-	Acid345_0776	-	excinuclease ABC subunit A
777	 64.95	+2	959400..960392	-	330	94967808	-	Acid345_0777	-	hypothetical protein
778	 59.72	0	960488..961480	+	330	94967809	-	Acid345_0778	-	hypothetical protein
779	 60.32	0	961481..963307	-	608	94967810	-	Acid345_0779	-	ATP dependent DNA ligase
780	 62.03	+1	963353..965593	-	746	94967811	-	Acid345_0780	-	hypothetical protein
781	 56.57	0	965853..966743	-	296	94967812	-	Acid345_0781	-	oxidoreductase
782	 60.30	0	966981..967310	-	109	94967813	-	Acid345_0782	-	hypothetical protein
783	 58.29	0	967343..970468	-	1041	94967814	-	Acid345_0783	-	TonB-dependent receptor
784	 58.36	0	970813..974040	-	1075	94967815	-	Acid345_0784	-	hypothetical protein
785	 62.15	+1	974604..975467	+	287	94967816	-	Acid345_0785	-	hypothetical protein
786	 59.98	0	975564..976415	+	283	94967817	-	Acid345_0786	-	hypothetical protein
787	 54.97	-1	976446..976787	-	113	94967818	-	Acid345_0787	-	histidine triad (HIT) protein
788	 60.69	0	976799..977317	+	172	94967819	-	Acid345_0788	-	acetyltransferase
789	 61.15	0	977387..978148	-	253	94967820	-	Acid345_0789	-	rare lipoprotein A
790	 56.28	0	978175..978405	-	76	94967821	-	Acid345_0790	-	hypothetical protein
791	 59.45	0	978745..979506	+	253	94967822	-	Acid345_0791	-	hypothetical protein
792	 59.02	0	979598..980290	+	230	94967823	-	Acid345_0792	-	hypothetical protein
793	 59.74	0	980576..982696	+	706	94967824	-	Acid345_0793	-	radical SAM family Fe-S protein
794	 59.91	0	982769..984943	-	724	94967825	-	Acid345_0794	-	lysine decarboxylase transcriptional regulator, CadC
795	 60.22	0	985164..986699	+	511	94967826	-	Acid345_0795	-	thiol oxidoreductase-like
796	 57.92	0	986835..987680	+	281	94967827	-	Acid345_0796	-	short-chain dehydrogenase/reductase SDR
797	 55.05	-1	987710..988234	-	174	94967828	-	Acid345_0797	-	hypothetical protein
798	 60.26	0	988431..989210	+	259	94967829	-	Acid345_0798	-	UbiE/COQ5 methyltransferase
799	 61.01	0	989314..990975	+	553	94967830	-	Acid345_0799	-	vitamin K epoxide reductase
800	 60.25	0	990993..992114	+	373	94967831	-	Acid345_0800	-	putative lipoprotein signal peptide
801	 54.69	-1	992157..993383	+	408	94967832	-	Acid345_0801	-	proteinase inhibitor I4, serpin
802	 58.90	0	993566..995251	+	561	94967833	-	Acid345_0802	-	radical SAM family Fe-S protein
803	 58.33	0	995421..995864	+	147	94967834	-	Acid345_0803	-	hypothetical protein
804	 63.08	+1	996395..997369	+	324	94967835	-	Acid345_0804	-	A/G-specific DNA glycosylase
805	 58.57	0	997369..997899	+	176	94967836	-	Acid345_0805	-	peroxiredoxin-like
806	 58.75	0	998087..999778	+	563	94967837	-	Acid345_0806	-	peptidase M28
807	 55.62	-1	999828..1000325	-	165	94967838	-	Acid345_0807	-	hypothetical protein
808	 58.86	0	1000440..1001900	+	486	94967839	-	Acid345_0808	-	TPR repeat-containing protein
809	 57.47	0	1002020..1004248	+	742	94967840	-	Acid345_0809	-	hypothetical protein
810	 62.38	+1	1004249..1006093	-	614	94967841	-	Acid345_0810	-	TonB-like protein
811	 54.95	-1	1006181..1006624	+	147	94967842	-	Acid345_0811	-	hypothetical protein
812	 61.31	+1	1006625..1007278	-	217	94967843	-	Acid345_0812	-	cyclase/dehydrase
813	 54.76	-1	1007400..1008155	+	251	94967844	-	Acid345_0813	-	hypothetical protein
814	 57.40	0	1008152..1010482	+	776	94967845	-	Acid345_0814	-	Amylo-alpha-1,6-glucosidase
815	 58.52	0	1010573..1011100	-	175	94967846	-	Acid345_0815	-	rubrerythrin
816	 57.30	0	1011179..1011541	-	120	94967847	-	Acid345_0816	-	hypothetical protein
817	 59.75	0	1011759..1012886	+	375	94967848	-	Acid345_0817	-	radical SAM family Fe-S protein
818	 57.65	0	1012883..1015090	-	735	94967849	-	Acid345_0818	-	hypothetical protein
819	 52.61	-2	1015759..1016007	+	82	94967850	-	Acid345_0819	-	hypothetical protein
820	 54.76	-1	1016227..1018755	+	842	94967851	-	Acid345_0820	-	glycogen/starch/alpha-glucan phosphorylase
821	 53.02	-2	1018800..1020221	-	473	94967852	-	Acid345_0821	-	PAS/PAC sensor signal transduction histidine kinase
822	 55.79	-1	1020564..1021538	+	324	94967853	-	Acid345_0822	-	response regulator receiver protein
823	 58.58	0	1021736..1023244	+	502	94967854	-	Acid345_0823	-	TPR repeat-containing protein
824	 57.27	0	1023346..1025016	+	556	94967855	-	Acid345_0824	-	ASPIC/UnbV
825	 58.63	0	1025268..1026275	+	335	94967856	-	Acid345_0825	-	ABC transporter, substrate-binding protein, aliphatic sulphonates
826	 59.73	0	1026291..1027112	+	273	94967857	-	Acid345_0826	-	ABC transporter, ATPase subunit
827	 57.44	0	1027105..1027863	+	252	94967858	-	Acid345_0827	-	ABC aliphatic sulfonate transporter, inner membrane subunit
828	 56.66	0	1027916..1028854	+	312	94967859	-	Acid345_0828	-	sulfate adenylyltransferase subunit 2
829	 57.11	0	1028854..1030485	+	543	94967860	-	Acid345_0829	-	sulfate adenylyltransferase subunit 1
830	 58.01	0	1030478..1031182	+	234	94967861	-	Acid345_0830	-	phosphoadenylylsulfate reductase (thioredoxin)
831	 56.48	0	1031237..1032994	+	585	94967862	-	Acid345_0831	-	hypothetical protein
832	 49.62	-2	1033041..1033304	-	87	94967863	-	Acid345_0832	-	hypothetical protein
833	 55.04	-1	1033911..1035656	+	581	94967864	-	Acid345_0833	-	hypothetical protein
834	 56.13	0	1035676..1036605	+	309	94967865	-	Acid345_0834	-	polysaccharide export protein
835	 54.79	-1	1036662..1038893	+	743	94967866	-	Acid345_0835	-	protein-tyrosine kinase
836	 55.96	0	1038928..1039926	+	332	94967867	-	Acid345_0836	-	hypothetical protein
837	 57.63	0	1039966..1041348	+	460	94967868	-	Acid345_0837	-	polysaccharide biosynthesis protein
838	 57.92	0	1041562..1042647	+	361	94967869	-	Acid345_0838	-	serine phosphatase
839	 61.33	+1	1042776..1043468	+	230	94967870	-	Acid345_0839	-	glyoxalase/bleomycin resistance protein/dioxygenase
840	 59.35	0	1043528..1044907	+	459	94967871	-	Acid345_0840	-	mercuric reductase
841	 61.41	+1	1044930..1045424	-	164	94967872	-	Acid345_0841	-	endoribonuclease L-PSP
842	 59.13	0	1045700..1046362	+	220	94967873	-	Acid345_0842	-	hypothetical protein
843	 58.82	0	1046364..1048505	+	713	94967874	-	Acid345_0843	-	PAS/PAC sensor signal transduction histidine kinase
844	 53.44	-1	1048538..1048930	+	130	94967875	-	Acid345_0844	-	response regulator receiver protein
845	 61.59	+1	1049003..1049554	+	183	94967876	-	Acid345_0845	-	response regulator receiver protein
846	 58.38	0	1050006..1050512	-	168	94967877	-	Acid345_0846	-	hypothetical protein
847	 60.94	0	1050524..1054087	-	1187	94967878	-	Acid345_0847	-	hypothetical protein
58.57	MEAN

2.67	STD DEV
