IslandPath Analysis: Acidobacteria bacterium Ellin345

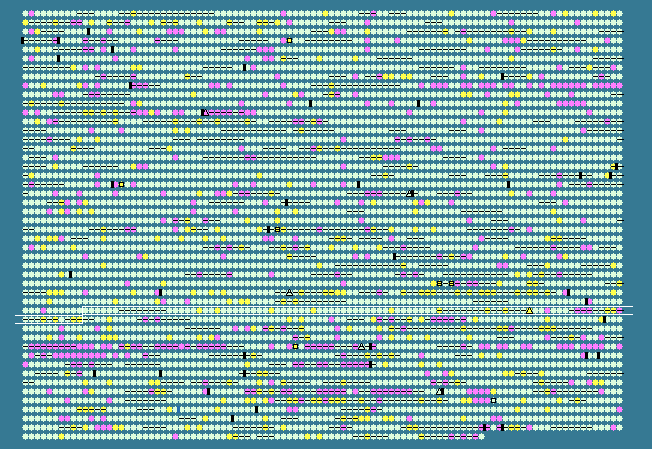

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.57 STD DEV: 2.67
Acidobacteria bacterium Ellin345, complete genome - 1..5650368
4777 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3311	 57.19	0	3928274..3928864	-	196	94970342	-	Acid345_3315	-	hexapaptide repeat-containing transferase
3312	 60.45	0	3928872..3929933	-	353	94970343	-	Acid345_3316	-	oxidoreductase
3313	 59.81	0	3930061..3932001	-	646	94970344	-	Acid345_3317	-	hypothetical protein
3314	 60.49	0	3932017..3932988	-	323	94970345	-	Acid345_3318	-	transglutaminase-like
3315	 56.42	0	3932992..3933957	-	321	94970346	-	Acid345_3319	-	hypothetical protein
3316	 57.81	0	3933961..3935427	-	488	94970347	-	Acid345_3320	-	hypothetical protein
3317	 60.58	0	3935514..3937205	-	563	94970348	-	Acid345_3321	-	hypothetical protein
3318	 56.40	0	3937228..3938970	-	580	94970349	-	Acid345_3322	-	hypothetical protein
3319	 58.48	0	3939379..3940758	+	459	94970350	-	Acid345_3323	-	secretion protein HlyD
3320	 59.24	0	3940813..3941580	+	255	94970351	-	Acid345_3324	-	ABC transporter, ATPase subunit
3321	 58.16	0	3942122..3942685	+	187	94970352	-	Acid345_3325	-	hypothetical protein
3322	 61.38	+1	3942777..3945161	+	794	94970353	-	Acid345_3326	-	carbohydrate-binding family V/XII protein
3323	 59.30	0	3945165..3946643	-	492	94970354	-	Acid345_3327	-	metallophosphoesterase
3324	 56.97	0	3946837..3947589	-	250	94970355	-	Acid345_3328	-	haloacid dehalogenase-like hydrolase
3325	 60.95	0	3947641..3948585	+	314	94970356	-	Acid345_3329	-	hypothetical protein
3326	 62.01	+1	3948604..3949698	+	364	94970357	-	Acid345_3330	-	hypothetical protein
3327	 58.65	0	3950213..3950761	-	182	94970358	-	Acid345_3331	-	hypothetical protein
3328	 58.82	0	3950824..3951384	-	186	94970359	-	Acid345_3332	-	hypothetical protein
3329	 60.71	0	3951418..3952860	-	480	94970360	-	Acid345_3333	-	amino acid transporter
3330	 62.66	+1	3952847..3955639	-	930	94970361	-	Acid345_3334	-	hypothetical protein
3331	 60.46	0	3955864..3957699	+	611	94970362	-	Acid345_3335	-	metal dependent phosphohydrolase
3332	 60.85	0	3957769..3958731	+	320	94970363	-	Acid345_3336	-	signal recognition particle-docking protein FtsY
3333	 63.08	+1	3958724..3959923	+	399	94970364	-	Acid345_3337	-	5-amino-6-(5-phosphoribosylamino)uracil reductase / diaminohydroxyphosphoribosylaminopyrimidine deaminase
3334	 59.69	0	3959911..3960426	-	171	94970365	-	Acid345_3338	-	hypothetical protein
3335	 55.77	-1	3960510..3960968	-	152	94970366	-	Acid345_3339	-	hypothetical protein
3336	 58.00	0	3961029..3963590	-	853	94970367	-	Acid345_3340	-	DNA topoisomerase
3337	 59.24	0	3963700..3964857	-	385	94970368	-	Acid345_3341	-	DNA processing protein DprA, putative
3338	 57.11	0	3964903..3965739	+	278	94970369	-	Acid345_3342	-	hypothetical protein
3339	 57.05	0	3965821..3966465	+	214	94970370	-	Acid345_3343	-	membrane protein
3340	 59.57	0	3966515..3967585	-	356	94970371	-	Acid345_3344	-	von Willebrand factor, type A
3341	 59.48	0	3967692..3968693	-	333	94970372	-	Acid345_3345	-	ribosomal large subunit pseudouridine synthase D
3342	 62.21	+1	3968713..3969273	-	186	94970373	-	Acid345_3346	-	membrane-bound metal-dependent hydrolase
3343	 56.63	0	3969276..3969584	-	102	94970374	-	Acid345_3347	-	Rieske (2Fe-2S) oxidoreductase
3344	 60.26	0	3969588..3970445	-	285	94970375	-	Acid345_3348	-	dimethyladenosine transferase
3345	 58.76	0	3970597..3972051	+	484	94970376	-	Acid345_3349	-	glycogen/starch synthases, ADP-glucose type
3346	 58.99	0	3972096..3974582	+	828	94970377	-	Acid345_3350	-	ABC efflux pump, inner membrane subunit
3347	 60.22	0	3974905..3976362	-	485	94970378	-	Acid345_3351	-	amino acid transporter
3348	 60.62	0	3976319..3977758	-	479	94970379	-	Acid345_3352	-	SSS family solute/sodium (Na+) symporter
3349	 64.12	+2	3977919..3978821	+	300	94970380	-	Acid345_3353	-	ATPase, BadF/BadG/BcrA/BcrD type
3350	 61.47	+1	3978865..3979518	+	217	94970381	-	Acid345_3354	-	phage SPO1 DNA polymerase-related protein
3351	 57.62	0	3979519..3979938	+	139	94970382	-	Acid345_3355	-	hypothetical protein
3352	 60.07	0	3979943..3981397	-	484	94970383	-	Acid345_3356	-	two component, sigma54 specific, Fis family transcriptional regulator
3353	 59.59	0	3981390..3984302	-	970	94970384	-	Acid345_3357	-	multi-sensor signal transduction histidine kinase
3354	 58.62	0	3984825..3985433	+	202	94970385	-	Acid345_3358	-	NADH-quinone oxidoreductase, B subunit
3355	 60.54	0	3985513..3986328	+	271	94970386	-	Acid345_3359	-	hypothetical protein
3356	 59.28	0	3986391..3987770	-	459	94970387	-	Acid345_3360	-	hypothetical protein
3357	 59.12	0	3988303..3988713	+	136	94970388	-	Acid345_3361	-	hypothetical protein
3358	 56.97	0	3988710..3989978	+	422	94970389	-	Acid345_3362	-	N-glycosyltransferase PgaC
3359	 59.03	0	3989975..3991585	+	536	94970390	-	Acid345_3363	-	hypothetical protein
3360	 58.43	0	3991675..3993531	+	618	94970391	-	Acid345_3364	-	multicopper oxidase, type 3
3361	 61.89	+1	3993541..3994335	-	264	94970392	-	Acid345_3365	-	Alpha/beta hydrolase
3362	 62.79	+1	3994439..3994825	-	128	94970393	-	Acid345_3366	-	hypothetical protein
3363	 57.33	0	3994961..3995410	-	149	94970394	-	Acid345_3367	-	ferric uptake regulator family protein
3364	 58.82	0	3995518..3997008	-	496	94970395	-	Acid345_3368	-	WD-40-like beta propeller repeat-containing protein
3365	 60.82	0	3997048..3998415	-	455	94970396	-	Acid345_3369	-	serine/threonine protein kinase
3366	 60.59	0	3998512..4000980	+	822	94970397	-	Acid345_3370	-	penicillin amidase
3367	 57.84	0	4001038..4002204	-	388	94970398	-	Acid345_3371	-	hypothetical protein
3368	 57.58	0	4002229..4002690	-	153	94970399	-	Acid345_3372	-	hypothetical protein
3369	 56.44	0	4002662..4002925	-	87	94970400	-	Acid345_3373	-	hypothetical protein
3370	 62.36	+1	4003128..4003661	-	177	94970401	-	Acid345_3374	-	hypothetical protein
3371	 60.18	0	4004028..4004366	-	112	94970402	-	Acid345_3375	-	hypothetical protein
3372	 57.35	0	4004405..4004812	-	135	94970403	-	Acid345_3376	-	hypothetical protein
3373	 61.49	+1	4004809..4005639	-	276	94970404	-	Acid345_3377	-	chromosomal replication initiator, DnaA-like
3374	 61.26	+1	4005636..4005857	-	73	94970405	-	Acid345_3378	-	hypothetical protein
3375	 56.63	0	4006060..4006368	-	102	94970406	-	Acid345_3379	-	hypothetical protein
3376	 60.85	0	4006361..4006549	-	62	94970407	-	Acid345_3380	-	hypothetical protein
3377	 60.94	0	4006543..4006839	-	98	94970408	-	Acid345_3381	-	hypothetical protein
3378	 62.44	+1	4006832..4007257	-	141	94970409	-	Acid345_3382	-	hypothetical protein
3379	 59.86	0	4007268..4007561	-	97	94970410	-	Acid345_3383	-	hypothetical protein
3380	 60.72	0	4007750..4008439	-	229	94970411	-	Acid345_3384	-	hypothetical protein
3381	 62.09	+1	4008449..4008994	-	181	94970412	-	Acid345_3385	-	hypothetical protein
3382	 59.62	0	4009004..4009315	-	103	94970413	-	Acid345_3386	-	hypothetical protein
3383	 58.51	0	4009312..4009728	-	138	94970414	-	Acid345_3387	-	hypothetical protein
3384	 60.26	0	4009963..4010961	-	332	94970415	-	Acid345_3388	-	hypothetical protein
3385	 63.53	+1	4010965..4013034	-	689	94970416	-	Acid345_3389	-	integrase catalytic subunit
3386	 57.72	0	4013093..4013584	-	163	94970417	-	Acid345_3390	-	hypothetical protein
3387	 59.27	0	4013890..4014633	+	247	94970418	-	Acid345_3391	-	putative prophage repressor
3388	 51.76	-2	4014645..4015268	+	207	94970419	-	Acid345_3392	-	hypothetical protein
3389	 57.94	0	4015290..4016183	+	297	94970420	-	Acid345_3393	-	hypothetical protein
3390	 56.46	0	4016183..4016917	+	244	94970421	-	Acid345_3394	-	hypothetical protein
3391	 60.65	0	4016978..4020019	+	1013	94970422	-	Acid345_3395	-	hypothetical protein
3392	 59.97	0	4020066..4020857	+	263	94970423	-	Acid345_3396	-	D12 class N6 adenine-specific DNA methyltransferase
3393	 52.90	-2	4021732..4022973	+	413	94970424	-	Acid345_3397	-	hypothetical protein
3394	 54.09	-1	4022951..4023292	+	113	94970425	-	Acid345_3398	-	hypothetical protein
3395	 51.99	-2	4023289..4023942	+	217	94970426	-	Acid345_3399	-	hypothetical protein
3396	 60.13	0	4024182..4024655	+	157	94970427	-	Acid345_3400	-	mannosyl-glycoprotein endo-beta-N-acetylglucosamidase
3397	 60.80	0	4024652..4025299	+	215	94970428	-	Acid345_3401	-	hypothetical protein
3398	 62.39	+1	4025664..4026014	+	116	94970429	-	Acid345_3402	-	hypothetical protein
3399	 62.17	+1	4026014..4026436	+	140	94970430	-	Acid345_3403	-	hypothetical protein
3400	 54.83	-1	4026433..4026753	+	106	94970431	-	Acid345_3404	-	hypothetical protein
3401	 57.33	0	4026753..4027373	+	206	94970432	-	Acid345_3405	-	hypothetical protein
3402	 61.28	+1	4027354..4028802	+	482	94970433	-	Acid345_3406	-	hypothetical protein
3403	 60.05	0	4028799..4030310	+	503	94970434	-	Acid345_3407	-	hypothetical protein
3404	 63.43	+1	4030307..4031203	+	298	94970435	-	Acid345_3408	-	hypothetical protein
3405	 60.31	0	4031222..4031614	+	130	94970436	-	Acid345_3409	-	hypothetical protein
3406	 62.18	+1	4031695..4033500	+	601	94970437	-	Acid345_3410	-	hypothetical protein
3407	 61.08	0	4033497..4034033	+	178	94970438	-	Acid345_3411	-	hypothetical protein
3408	 61.68	+1	4034160..4034540	+	126	94970439	-	Acid345_3412	-	hypothetical protein
3409	 62.29	+1	4034559..4035266	+	235	94970440	-	Acid345_3413	-	hypothetical protein
3410	 64.64	+2	4035326..4035769	+	147	94970441	-	Acid345_3414	-	hypothetical protein
58.57	MEAN

2.67	STD DEV
