IslandPath Analysis: Acidobacteria bacterium Ellin345

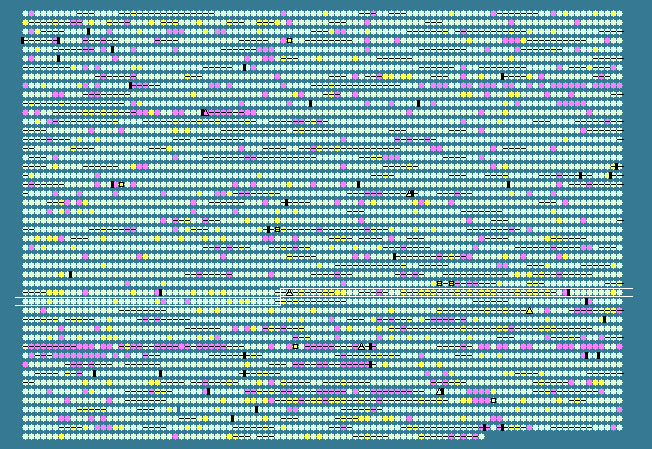

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.57 STD DEV: 2.67
Acidobacteria bacterium Ellin345, complete genome - 1..5650368
4777 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3144	 57.05	0	3742506..3743399	-	297	94970175	-	Acid345_3148	-	hypothetical protein
3145	 61.86	+1	3743486..3744649	-	387	94970176	-	Acid345_3149	-	phage integrase
3146	 61.69	+1	3745261..3745521	-	86	94970177	-	Acid345_3150	-	hypothetical protein
3147	 63.64	+1	3745532..3746125	-	197	94970178	-	Acid345_3151	-	hypothetical protein
3148	 57.28	0	3746109..3746534	-	141	94970179	-	Acid345_3152	-	hypothetical protein
3149	 59.59	0	3746539..3746976	-	145	94970180	-	Acid345_3153	-	hypothetical protein
3150	 61.90	+1	3746987..3747364	-	125	94970181	-	Acid345_3154	-	hypothetical protein
3151	 62.20	+1	3747398..3747778	-	126	94970182	-	Acid345_3155	-	hypothetical protein
3152	 62.71	+1	3747775..3750579	-	934	94970183	-	Acid345_3156	-	hypothetical protein
3153	 65.05	+2	3750580..3751011	-	143	94970184	-	Acid345_3157	-	hypothetical protein
3154	 63.80	+1	3751008..3751634	-	208	94970185	-	Acid345_3158	-	hypothetical protein
3155	 59.94	0	3751634..3752302	-	222	94970186	-	Acid345_3159	-	hypothetical protein
3156	 59.96	0	3752312..3755011	-	899	94970187	-	Acid345_3160	-	hypothetical protein
3157	 59.83	0	3755008..3757494	-	828	94970188	-	Acid345_3161	-	hypothetical protein
3158	 60.53	0	3757487..3757975	-	162	94970189	-	Acid345_3162	-	hypothetical protein
3159	 56.44	0	3757972..3758274	-	100	94970190	-	Acid345_3163	-	hypothetical protein
3160	 54.66	-1	3758277..3758684	-	135	94970191	-	Acid345_3164	-	hypothetical protein
3161	 57.97	0	3758681..3758956	-	91	94970192	-	Acid345_3165	-	hypothetical protein
3162	 60.56	0	3759141..3759566	-	141	94970193	-	Acid345_3166	-	hypothetical protein
3163	 61.02	0	3759632..3759985	-	117	94970194	-	Acid345_3167	-	hypothetical protein
3164	 66.67	+2	3760105..3760416	-	103	94970195	-	Acid345_3168	-	hypothetical protein
3165	 58.82	0	3760413..3760871	-	152	94970196	-	Acid345_3169	-	hypothetical protein
3166	 60.12	0	3760872..3761207	-	111	94970197	-	Acid345_3170	-	hypothetical protein
3167	 62.90	+1	3761207..3761578	-	123	94970198	-	Acid345_3171	-	hypothetical protein
3168	 64.21	+2	3761632..3762078	-	148	94970199	-	Acid345_3172	-	hypothetical protein
3169	 63.17	+1	3762156..3764501	-	781	94970200	-	Acid345_3173	-	peptidase S49
3170	 61.95	+1	3764498..3766108	-	536	94970201	-	Acid345_3174	-	phage portal protein, lambda
3171	 59.74	0	3766108..3766713	-	201	94970202	-	Acid345_3175	-	hypothetical protein
3172	 60.47	0	3766976..3769057	-	693	94970203	-	Acid345_3176	-	phage terminase GpA
3173	 63.04	+1	3769257..3769697	-	146	94970204	-	Acid345_3177	-	hypothetical protein
3174	 60.42	0	3769911..3770150	-	79	94970205	-	Acid345_3178	-	hypothetical protein
3175	 63.47	+1	3770140..3770514	-	124	94970206	-	Acid345_3179	-	hypothetical protein
3176	 57.26	0	3770511..3770744	-	77	94970207	-	Acid345_3180	-	hypothetical protein
3177	 63.43	+1	3770741..3771388	-	215	94970208	-	Acid345_3181	-	hypothetical protein
3178	 64.93	+2	3771571..3772146	-	191	94970209	-	Acid345_3182	-	hypothetical protein
3179	 64.47	+2	3772187..3772777	-	196	94970210	-	Acid345_3183	-	hypothetical protein
3180	 59.94	0	3772744..3773709	-	321	94970211	-	Acid345_3184	-	hypothetical protein
3181	 58.53	0	3773882..3774385	-	167	94970212	-	Acid345_3185	-	hypothetical protein
3182	 59.72	0	3774438..3774869	-	143	94970213	-	Acid345_3186	-	hypothetical protein
3183	 63.13	+1	3774878..3775555	-	225	94970214	-	Acid345_3187	-	hypothetical protein
3184	 60.89	0	3775854..3776390	-	178	94970215	-	Acid345_3188	-	hypothetical protein
3185	 65.04	+2	3776494..3777291	-	265	94970216	-	Acid345_3189	-	hypothetical protein
3186	 63.07	+1	3777857..3778162	-	101	94970217	-	Acid345_3190	-	response regulator receiver protein
3187	 60.97	0	3778195..3778668	-	157	94970218	-	Acid345_3191	-	hypothetical protein
3188	 63.10	+1	3778665..3778916	-	83	94970219	-	Acid345_3192	-	hypothetical protein
3189	 58.47	0	3778916..3780709	-	597	94970220	-	Acid345_3193	-	parB-like partition proteins
3190	 56.68	0	3781059..3781889	-	276	94970221	-	Acid345_3194	-	hypothetical protein
3191	 53.26	-1	3781927..3783246	-	439	94970222	-	Acid345_3195	-	hypothetical protein
3192	 59.51	0	3783577..3784386	+	269	94970223	-	Acid345_3196	-	zinc/iron transporter
3193	 59.26	0	3784388..3784630	-	80	94970224	-	Acid345_3197	-	hypothetical protein
3194	 59.83	0	3784677..3785759	-	360	94970225	-	Acid345_3198	-	translation-associated GTPase
3195	 58.96	0	3785852..3786370	-	172	94970226	-	Acid345_3199	-	hypothetical protein
3196	 58.87	0	3786536..3789010	+	824	94970227	-	Acid345_3200	-	hypothetical protein
3197	 60.42	0	3789055..3790014	-	319	94970228	-	Acid345_3201	-	ATPase
3198	 61.34	+1	3790169..3791125	-	318	94970229	-	Acid345_3202	-	HtpX-2 peptidase
3199	 62.24	+1	3791183..3791611	+	142	94970230	-	Acid345_3203	-	hypothetical protein
3200	 61.44	+1	3791659..3792978	-	439	94970231	-	Acid345_3204	-	hypothetical protein
3201	 58.33	0	3793019..3793366	-	115	94970232	-	Acid345_3205	-	hypothetical protein
3202	 61.52	+1	3793366..3793851	-	161	94970233	-	Acid345_3206	-	hypothetical protein
3203	 59.92	0	3793851..3795881	-	676	94970234	-	Acid345_3207	-	cytochrome c assembly protein
3204	 56.69	0	3796137..3796577	+	146	94970235	-	Acid345_3208	-	response regulator receiver protein
3205	 62.33	+1	3796574..3796942	-	122	94970236	-	Acid345_3209	-	response regulator receiver protein
3206	 57.68	0	3797135..3797401	-	88	94970237	-	Acid345_3210	-	hypothetical protein
3207	 58.44	0	3797601..3799643	-	680	94970238	-	Acid345_3211	-	amidohydrolase
3208	 60.14	0	3799721..3800977	-	418	94970239	-	Acid345_3212	-	aminopeptidase T
3209	 59.63	0	3801059..3801811	+	250	94970240	-	Acid345_3213	-	adenylate kinase
3210	 57.73	0	3802726..3803799	+	357	94970241	-	Acid345_3214	-	TonB-like protein
3211	 59.45	0	3803827..3805656	+	609	94970242	-	Acid345_3215	-	peptidase M48, Ste24p
3212	 57.60	0	3805730..3806479	+	249	94970243	-	Acid345_3216	-	hypothetical protein
3213	 59.89	0	3806555..3807115	+	186	94970244	-	Acid345_3217	-	hypothetical protein
3214	 58.89	0	3807170..3810397	-	1075	94970245	-	Acid345_3218	-	hypothetical protein
3215	 59.72	0	3810624..3812567	+	647	94970246	-	Acid345_3219	-	DNA mismatch repair protein MutL
3216	 63.29	+1	3812619..3813566	+	315	94970247	-	Acid345_3220	-	hypothetical protein
3217	 61.70	+1	3813563..3814246	+	227	94970248	-	Acid345_3221	-	cytidylate kinase
3218	 58.35	0	3814250..3815884	-	544	94970249	-	Acid345_3222	-	TPR repeat-containing protein
3219	 58.98	0	3815986..3817377	-	463	94970250	-	Acid345_3223	-	soluble pyridine nucleotide transhydrogenase
3220	 60.67	0	3817505..3818839	+	444	94970251	-	Acid345_3224	-	aminopeptidase P
3221	 59.32	0	3818843..3819877	+	344	94970252	-	Acid345_3225	-	abortive infection protein
3222	 61.06	0	3819867..3820169	-	100	94970253	-	Acid345_3226	-	hypothetical protein
3223	 63.30	+1	3820275..3820928	+	217	94970254	-	Acid345_3227	-	thymidylate kinase
3224	 53.02	-2	3820931..3821245	+	104	94970255	-	Acid345_3228	-	hypothetical protein
3225	 58.73	0	3821333..3822580	-	415	94970256	rho	Acid345_3229	-	transcription termination factor Rho
3226	 58.86	0	3823425..3827162	-	1245	94970257	-	Acid345_3230	-	Ig-like, group 2
3227	 57.54	0	3827303..3828211	-	302	94970258	-	Acid345_3231	-	hypothetical protein
3228	 52.81	-2	3828288..3828554	-	88	94970259	-	Acid345_3232	-	prevent-host-death protein
3229	 61.15	0	3828598..3830139	-	513	94970260	-	Acid345_3233	-	Mg chelatase-related protein
3230	 60.27	0	3830390..3831670	+	426	94970261	-	Acid345_3234	-	type IV pilus assembly PilZ
3231	 58.39	0	3832178..3832648	-	156	94970262	-	Acid345_3235	-	hypothetical protein
3232	 59.32	0	3833032..3835209	+	725	94970263	-	Acid345_3236	-	multi-sensor hybrid histidine kinase
3233	 57.45	0	3835282..3835563	+	93	94970264	-	Acid345_3237	-	hypothetical protein
3234	 58.82	0	3835594..3835848	+	84	94970265	-	Acid345_3238	-	hypothetical protein
3235	 62.17	+1	3835897..3837096	-	399	94970266	-	Acid345_3239	-	acetyl-CoA acetyltransferase
3236	 58.98	0	3837257..3838024	+	255	94970267	-	Acid345_3240	-	abortive infection protein
3237	 62.84	+1	3838454..3839158	-	234	94970268	-	Acid345_3241	-	hypothetical protein
3238	 62.18	+1	3839352..3840488	-	378	94970269	-	Acid345_3242	-	chaperone DnaJ
3239	 61.54	+1	3840543..3841088	-	181	94970270	-	Acid345_3243	-	GrpE protein
3240	 59.58	0	3841095..3842138	-	347	94970271	-	Acid345_3244	-	heat-inducible transcription repressor HrcA
3241	 59.46	0	3842470..3843648	+	392	94970272	-	Acid345_3245	-	putative esterase
3242	 60.32	0	3843696..3846341	+	881	94970273	-	Acid345_3246	-	Beta-glucosidase
3243	 60.77	0	3846384..3847925	-	513	94970274	-	Acid345_3247	-	beta-lactamase
58.57	MEAN

2.67	STD DEV
