IslandPath Analysis: Acidobacteria bacterium Ellin345

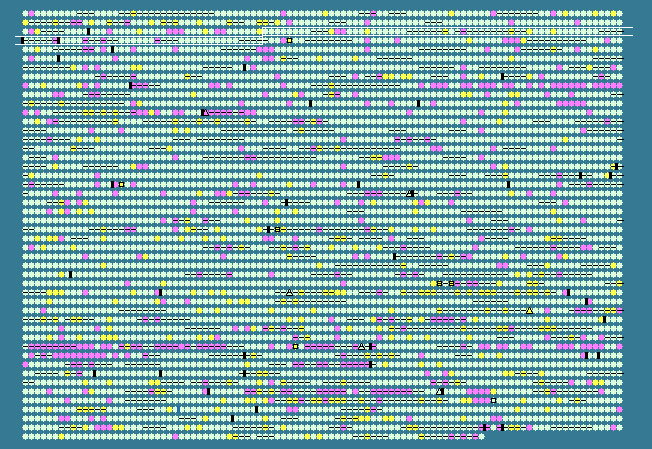

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.57 STD DEV: 2.67
Acidobacteria bacterium Ellin345, complete genome - 1..5650368
4777 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
241	 59.45	0	252526..254271	+	581	94967272	-	Acid345_0241	-	malto-oligosyltrehalose trehalohydrolase
242	 57.20	0	254261..254746	-	161	94967273	-	Acid345_0242	-	gluconate kinase
243	 60.91	0	254783..256015	+	410	94967274	-	Acid345_0243	-	major facilitator transporter
244	 57.42	0	256207..258012	+	601	94967275	-	Acid345_0244	-	GTP-binding protein LepA
245	 58.98	0	258339..259106	-	255	94967276	-	Acid345_0245	-	TonB-like protein
246	 57.52	0	259208..259666	-	152	94967277	-	Acid345_0246	-	hypothetical protein
247	 59.14	0	259873..260523	-	216	94967278	-	Acid345_0247	-	outer membrane chaperone Skp (OmpH)
248	 57.39	0	260801..263581	-	926	94967279	-	Acid345_0248	-	surface antigen (D15)
249	 57.27	0	263908..264450	+	180	94967280	-	Acid345_0249	-	hypothetical protein
250	 55.33	-1	264914..265204	+	96	94967281	-	Acid345_0250	-	hypothetical protein
251	 60.49	0	265215..265538	+	107	94967282	-	Acid345_0251	-	RNA-binding protein, RNP-1
252	 65.25	+2	265532..265813	+	93	94967283	-	Acid345_0252	-	hypothetical protein
253	 55.04	-1	265861..266247	-	128	94967284	-	Acid345_0253	-	hypothetical protein
254	 52.72	-2	266296..266754	-	152	94967285	-	Acid345_0254	-	hypothetical protein
255	 58.81	0	266927..268123	-	398	94967286	-	Acid345_0255	-	sodium/hydrogen exchanger
256	 58.73	0	268334..268711	+	125	94967287	-	Acid345_0256	-	hypothetical protein
257	 59.21	0	268766..269194	+	142	94967288	-	Acid345_0257	-	thioesterase superfamily protein
258	 63.44	+1	269449..270534	+	361	94967289	-	Acid345_0258	-	recA protein
259	 57.22	0	270643..271362	+	239	94967290	-	Acid345_0259	-	uridylate kinase
260	 59.09	0	271907..272236	+	109	94967291	-	Acid345_0260	-	hypothetical protein
261	 55.95	0	272346..272933	+	195	94967292	-	Acid345_0261	-	ribosome recycling factor
262	 59.43	0	273000..274865	-	621	94967293	-	Acid345_0262	-	hypothetical protein
263	 59.63	0	274892..277576	+	894	94967294	-	Acid345_0263	-	serine/threonine protein kinase
264	 56.13	0	277624..278145	-	173	94967295	-	Acid345_0264	-	MerR family transcriptional regulator
265	 61.45	+1	278243..278989	+	248	94967296	-	Acid345_0265	-	3-oxoacyl-[acyl-carrier-protein] reductase
266	 57.78	0	278990..279439	-	149	94967297	-	Acid345_0266	-	hypothetical protein
267	 56.02	0	279800..280156	+	118	94967298	-	Acid345_0267	-	XRE family transcriptional regulator
268	 61.01	0	280224..280877	-	217	94967299	-	Acid345_0268	-	two component LuxR family transcriptional regulator
269	 57.31	0	281102..281710	+	202	94967300	-	Acid345_0269	-	hypothetical protein
270	 56.55	0	281732..282067	+	111	94967301	-	Acid345_0270	-	hypothetical protein
271	 64.03	+2	282306..283292	+	328	94967302	-	Acid345_0271	-	OmpA/MotB family outer membrane protein
272	 58.89	0	283532..284470	+	312	94967303	-	Acid345_0272	-	hypothetical protein
273	 56.16	0	284564..285115	+	183	94967304	-	Acid345_0273	-	methylated-DNA--protein-cysteine methyltransferase
274	 54.58	-1	285225..285497	+	90	94967305	-	Acid345_0274	-	hypothetical protein
275	 59.53	0	285560..286204	+	214	94967306	-	Acid345_0275	-	negative transcriptional regulator
276	 58.98	0	286201..287592	-	463	94967307	-	Acid345_0276	-	phosphoglucosamine mutase
277	 60.30	0	287596..288270	-	224	94967308	-	Acid345_0277	-	YbbR-like protein
278	 60.98	0	288267..289145	-	292	94967309	-	Acid345_0278	-	hypothetical protein
279	 61.70	+1	289200..290567	-	455	94967310	-	Acid345_0279	-	exodeoxyribonuclease VII large subunit
280	 60.48	0	290737..293724	+	995	94967311	-	Acid345_0280	-	response regulator receiver protein
281	 60.42	0	293829..294884	-	351	94967312	-	Acid345_0281	-	phospho-2-dehydro-3-deoxyheptonate aldolase
282	 63.59	+1	294926..295933	-	335	94967313	-	Acid345_0282	-	glucokinase
283	 61.96	+1	295942..296664	-	240	94967314	-	Acid345_0283	-	GntR family transcriptional regulator
284	 60.45	0	297224..298156	+	310	94967315	-	Acid345_0284	-	ABC transporter, ATPase subunit
285	 62.18	+1	298156..299226	+	356	94967316	-	Acid345_0285	-	ABC multidrug efflux pump, inner membrane subunit
286	 60.73	0	299310..299882	+	190	94967317	-	Acid345_0286	-	hypothetical protein
287	 58.91	0	299988..302603	-	871	94967318	-	Acid345_0287	-	polysaccharide deacetylase
288	 62.03	+1	302759..303319	-	186	94967319	-	Acid345_0288	-	hypothetical protein
289	 62.45	+1	303445..305862	+	805	94967320	-	Acid345_0289	-	ABC efflux pump, inner membrane subunit
290	 61.40	+1	305864..306547	-	227	94967321	-	Acid345_0290	-	protein of unknown function DUF861, cupin_3
291	 60.15	0	306628..308268	-	546	94967322	-	Acid345_0291	-	cytochrome c, class I
292	 61.32	+1	308620..311331	-	903	94967323	-	Acid345_0292	-	hypothetical protein
293	 58.45	0	311354..312193	-	279	94967324	-	Acid345_0293	-	hypothetical protein
294	 59.24	0	312174..312671	-	165	94967325	-	Acid345_0294	-	ECF subfamily RNA polymerase sigma-24 factor
295	 60.69	0	312948..313667	+	239	94967326	-	Acid345_0295	-	hypothetical protein
296	 61.35	+1	313689..315869	+	726	94967327	-	Acid345_0296	-	hypothetical protein
297	 60.69	0	316370..318811	+	813	94967328	-	Acid345_0297	-	ABC efflux pump, inner membrane subunit
298	 59.51	0	318924..320195	+	423	94967329	-	Acid345_0298	-	hypothetical protein
299	 60.30	0	320199..321077	-	292	94967330	-	Acid345_0299	-	putative oxidoreductase
300	 59.69	0	321148..321792	+	214	94967331	-	Acid345_0300	-	TetR family transcriptional regulator
301	 61.44	+1	322143..322697	+	184	94967332	-	Acid345_0301	-	hypothetical protein
302	 60.76	0	322804..324072	+	422	94967333	-	Acid345_0302	-	UDP-glucose/GDP-mannose dehydrogenase
303	 59.10	0	324176..324598	+	140	94967334	-	Acid345_0303	-	OsmC-like protein
304	 60.59	0	324729..325814	+	361	94967335	-	Acid345_0304	-	hypothetical protein
305	 60.34	0	325811..326569	+	252	94967336	-	Acid345_0305	-	nucleotidyl transferase
306	 55.02	-1	326582..326830	-	82	94967337	-	Acid345_0306	-	hypothetical protein
307	 56.10	0	327364..330534	-	1056	94967338	-	Acid345_0307	-	acriflavin resistance protein
308	 57.19	0	330534..331799	-	421	94967339	-	Acid345_0308	-	secretion protein HlyD
309	 57.66	0	331796..333172	-	458	94967340	-	Acid345_0309	-	outer membrane efflux protein
310	 56.22	0	333176..334630	-	484	94967341	-	Acid345_0310	-	periplasmic sensor signal transduction histidine kinase
311	 54.94	-1	334627..335325	-	232	94967342	-	Acid345_0311	-	two component transcriptional regulator
312	 55.56	-1	335466..336464	+	332	94967343	-	Acid345_0312	-	hypothetical protein
313	 57.08	0	336532..337449	-	305	94967344	-	Acid345_0313	-	phosphoesterase, PA-phosphatase related
314	 53.50	-1	337549..338019	-	156	94967345	-	Acid345_0314	-	hypothetical protein
315	 56.69	0	338261..341638	-	1125	94967346	-	Acid345_0315	-	hypothetical protein
316	 59.86	0	341980..342273	-	97	94967347	-	Acid345_0316	-	hypothetical protein
317	 58.33	0	342299..343450	-	383	94967348	-	Acid345_0317	-	hypothetical protein
318	 56.19	0	343505..343924	-	139	94967349	-	Acid345_0318	-	hypothetical protein
319	 57.85	0	344060..346009	+	649	94967350	-	Acid345_0319	-	ASPIC/UnbV
320	 57.46	0	346156..347979	-	607	94967351	-	Acid345_0320	-	hypothetical protein
321	 57.89	0	347992..349119	-	375	94967352	-	Acid345_0321	-	aldose 1-epimerase
322	 60.82	0	349155..350744	-	529	94967353	-	Acid345_0322	-	ribulokinase
323	 54.63	-1	350763..350978	-	71	94967354	-	Acid345_0323	-	hypothetical protein
324	 58.45	0	350987..352690	-	567	94967355	-	Acid345_0324	-	SSS family solute/sodium (Na+) symporter
325	 57.80	0	352697..353395	-	232	94967356	araD	Acid345_0325	-	L-ribulose-5-phosphate 4-epimerase
326	 60.35	0	353576..355078	-	500	94967357	-	Acid345_0326	-	L-arabinose isomerase
327	 60.00	0	355106..355360	-	84	94967358	-	Acid345_0327	-	hypothetical protein
328	 60.45	0	355532..357187	+	551	94967359	-	Acid345_0328	-	Alpha-L-arabinofuranosidase
329	 59.20	0	357323..358366	+	347	94967360	-	Acid345_0329	-	LacI family transcription regulator
330	 55.94	0	358380..359153	-	257	94967361	-	Acid345_0330	-	hypothetical protein
331	 57.56	0	359440..359922	-	160	94967362	-	Acid345_0331	-	phosphate transporter
332	 60.51	0	360199..363399	+	1066	94967363	-	Acid345_0332	-	hypothetical protein
333	 56.93	0	363432..364376	+	314	94967364	-	Acid345_0333	-	xylose isomerase-like TIM barrel
334	 60.72	0	364377..365234	-	285	94967365	-	Acid345_0334	-	short-chain dehydrogenase/reductase SDR
335	 57.24	0	365323..366744	-	473	94967366	-	Acid345_0335	-	hypothetical protein
336	 57.96	0	366834..367901	+	355	94967367	-	Acid345_0336	-	teichoic acid biosynthesis related protein
337	 58.67	0	368124..368636	-	170	94967368	-	Acid345_0337	-	hypothetical protein
338	 58.10	0	368665..369318	-	217	94967369	-	Acid345_0338	-	hypothetical protein
339	 58.40	0	369398..370159	-	253	94967370	-	Acid345_0339	-	MerR family transcriptional regulator
340	 61.35	+1	370214..371173	-	319	94967371	-	Acid345_0340	-	cytochrome oxidase assembly
58.57	MEAN

2.67	STD DEV
