IslandPath Analysis: Acidobacteria bacterium Ellin345

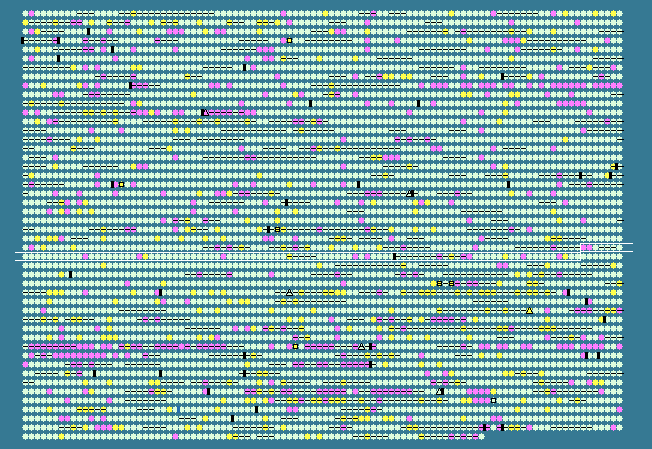

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 58.57 STD DEV: 2.67
Acidobacteria bacterium Ellin345, complete genome - 1..5650368
4777 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2694	 52.74	-2	3190064..3190501	+	145	94969725	-	Acid345_2698	-	hypothetical protein
2695	 52.97	-2	3190682..3191068	+	128	94969726	-	Acid345_2699	-	hypothetical protein
2696	 59.07	0	3191137..3192636	-	499	94969727	-	Acid345_2700	-	hypothetical protein
2697	 58.44	0	3192828..3194297	-	489	94969728	-	Acid345_2701	-	amino acid transporter
2698	 56.85	0	3194403..3195095	-	230	94969729	-	Acid345_2702	-	cyclic nucleotide-binding protein
2699	 58.03	0	3195345..3196085	+	246	94969730	-	Acid345_2703	-	cyclic nucleotide-binding protein
2700	 59.70	0	3196239..3196712	+	157	94969731	-	Acid345_2704	-	hypothetical protein
2701	 57.60	0	3196915..3197256	+	113	94969732	-	Acid345_2705	-	hypothetical protein
2702	 58.90	0	3197370..3198116	+	248	94969733	-	Acid345_2706	-	hypothetical protein
2703	 57.88	0	3198128..3199492	+	454	94969734	-	Acid345_2707	-	hypothetical protein
2704	 57.61	0	3199556..3201256	-	566	94969735	-	Acid345_2708	-	type I phosphodiesterase/nucleotide pyrophosphatase
2705	 56.48	0	3201530..3202393	-	287	94969736	-	Acid345_2709	-	hypothetical protein
2706	 59.90	0	3202401..3203642	-	413	94969737	-	Acid345_2710	-	radical SAM family Fe-S protein
2707	 57.66	0	3203808..3204629	+	273	94969738	-	Acid345_2711	-	hypothetical protein
2708	 56.04	0	3204630..3206135	-	501	94969739	-	Acid345_2712	-	cytochrome c family protein
2709	 57.76	0	3206230..3208206	-	658	94969740	-	Acid345_2713	-	cytochrome b subunit of formate dehydrogenase-like
2710	 57.84	0	3208256..3208561	-	101	94969741	-	Acid345_2714	-	cytochrome c, class I
2711	 53.83	-1	3208881..3209558	+	225	94969742	-	Acid345_2715	-	hypothetical protein
2712	 57.72	0	3209698..3212457	+	919	94969743	-	Acid345_2716	-	serine/threonine protein kinase
2713	 58.39	0	3212516..3213928	+	470	94969744	-	Acid345_2717	-	beta-lactamase
2714	 59.86	0	3214087..3215688	+	533	94969745	-	Acid345_2718	-	serine phosphatase
2715	 60.16	0	3215692..3216060	+	122	94969746	-	Acid345_2719	-	glyoxalase/bleomycin resistance protein/dioxygenase
2716	 60.63	0	3216057..3216686	-	209	94969747	-	Acid345_2720	-	hypothetical protein
2717	 59.32	0	3216673..3218088	-	471	94969748	-	Acid345_2721	-	Iron-sulfur cluster binding protein
2718	 57.61	0	3218085..3218813	-	242	94969749	-	Acid345_2722	-	hypothetical protein
2719	 58.75	0	3218813..3221680	-	955	94969750	-	Acid345_2723	-	FAD linked oxidase-like
2720	 53.20	-2	3221991..3222287	+	98	94969751	-	Acid345_2724	-	hypothetical protein
2721	 65.75	+2	3222366..3223019	-	217	94969752	-	Acid345_2725	-	putative lipoprotein
2722	 57.89	0	3223171..3224526	-	451	94969753	-	Acid345_2726	-	undecaprenyl-phosphate galactosephosphotransferase
2723	 62.02	+1	3224534..3225739	-	401	94969754	-	Acid345_2727	-	glycosyl transferase, group 1
2724	 60.74	0	3225697..3226557	-	286	94969755	-	Acid345_2728	-	glycosyl transferase family protein
2725	 58.96	0	3226578..3227861	-	427	94969756	-	Acid345_2729	-	hypothetical protein
2726	 60.02	0	3227861..3228958	-	365	94969757	-	Acid345_2730	-	glycosyl transferase, group 1
2727	 61.43	+1	3228955..3230139	-	394	94969758	-	Acid345_2731	-	lipopolysaccharide biosynthesis
2728	 61.05	0	3230136..3232397	-	753	94969759	-	Acid345_2732	-	polysaccharide export protein
2729	 60.91	0	3232610..3234277	+	555	94969760	-	Acid345_2733	-	hypothetical protein
2730	 59.35	0	3234645..3235478	+	277	94969761	-	Acid345_2734	-	hypothetical protein
2731	 59.87	0	3235489..3237519	-	676	94969762	-	Acid345_2735	-	Beta-N-acetylhexosaminidase
2732	 60.72	0	3237650..3238204	+	184	94969763	-	Acid345_2736	-	rubrerythrin
2733	 57.98	0	3238277..3238909	-	210	94969764	-	Acid345_2737	-	Ham1-like protein
2734	 53.54	-1	3239327..3240415	+	362	94969765	-	Acid345_2738	-	acyltransferase 3
2735	 60.23	0	3240500..3242254	-	584	94969766	-	Acid345_2739	-	aspartyl/asparaginyl beta-hydroxylase
2736	 61.06	0	3242401..3243933	+	510	94969767	-	Acid345_2740	-	peptidase M48, Ste24p
2737	 60.37	0	3244127..3246541	+	804	94969768	-	Acid345_2741	-	hypothetical protein
2738	 60.25	0	3246684..3248195	+	503	94969769	-	Acid345_2742	-	fumarase
2739	 58.40	0	3248384..3248734	-	116	94969770	-	Acid345_2743	-	anti-sigma-factor antagonist
2740	 60.18	0	3249004..3251283	-	759	94969771	-	Acid345_2744	-	hypothetical protein
2741	 57.70	0	3251412..3252125	-	237	94969772	-	Acid345_2745	-	peptidase M15D, vanX D-ala-D-ala dipeptidase
2742	 60.71	0	3252261..3253217	-	318	94969773	-	Acid345_2746	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha
2743	 58.19	0	3253374..3256853	-	1159	94969774	-	Acid345_2747	-	DNA polymerase III, alpha subunit
2744	 56.98	0	3256940..3257290	-	116	94969775	-	Acid345_2748	-	hypothetical protein
2745	 64.83	+2	3257360..3257902	+	180	94969776	-	Acid345_2749	-	GCN5-related N-acetyltransferase
2746	 61.85	+1	3257960..3258499	+	179	94969777	-	Acid345_2750	-	hypothetical protein
2747	 60.43	0	3258554..3259963	-	469	94969778	-	Acid345_2751	-	hypothetical protein
2748	 57.37	0	3260076..3260570	+	164	94969779	-	Acid345_2752	-	hypothetical protein
2749	 58.66	0	3260567..3261964	-	465	94969780	thiH	Acid345_2753	-	thiamine biosynthesis protein ThiH
2750	 60.01	0	3262059..3263516	+	485	94969781	-	Acid345_2754	-	hypothetical protein
2751	 59.57	0	3263513..3264625	-	370	94969782	-	Acid345_2755	-	hypothetical protein
2752	 56.36	0	3264622..3264912	-	96	94969783	-	Acid345_2756	-	hypothetical protein
2753	 57.17	0	3264991..3266232	-	413	94969784	-	Acid345_2757	-	ABC efflux pump, inner membrane subunit
2754	 59.86	0	3266237..3267484	-	415	94969785	-	Acid345_2758	-	ABC efflux pump, inner membrane subunit
2755	 58.03	0	3267674..3268171	+	165	94969786	-	Acid345_2759	-	hypothetical protein
2756	 54.38	-1	3268210..3268746	+	178	94969787	-	Acid345_2760	-	hypothetical protein
2757	 60.57	0	3268753..3269589	-	278	94969788	-	Acid345_2761	-	3-hydroxybutyryl-CoA dehydrogenase
2758	 53.54	-1	3269582..3269779	-	65	94969789	-	Acid345_2762	-	hypothetical protein
2759	 59.29	0	3269935..3272958	+	1007	94969790	-	Acid345_2763	-	malto-oligosyltrehalose synthase
2760	 60.30	0	3272905..3274458	-	517	94969791	-	Acid345_2764	-	4-alpha-glucanotransferase
2761	 60.10	0	3274587..3276551	-	654	94969792	-	Acid345_2765	-	PpiC-type peptidyl-prolyl cis-trans isomerase
2762	 60.22	0	3276747..3277769	+	340	94969793	-	Acid345_2766	-	radical SAM family Fe-S protein
2763	 57.01	0	3278126..3278674	-	182	94969794	-	Acid345_2767	-	carbonic anhydrase
2764	 57.51	0	3278969..3279361	+	130	94969795	-	Acid345_2768	-	hypothetical protein
2765	 58.46	0	3279388..3279789	-	133	94969796	-	Acid345_2769	-	hypothetical protein
2766	 60.17	0	3279980..3281164	+	394	94969797	-	Acid345_2770	-	amino acid aldolase or racemase-like
2767	 57.83	0	3281195..3281443	+	82	94969798	-	Acid345_2771	-	hypothetical protein
2768	 60.02	0	3281691..3283406	+	571	94969799	-	Acid345_2772	-	sodium/hydrogen exchanger
2769	 57.17	0	3283648..3284226	+	192	94969800	-	Acid345_2773	-	hypothetical protein
2770	 51.01	-2	3284543..3284989	+	148	94969801	-	Acid345_2774	-	hypothetical protein
2771	 59.59	0	3285161..3288709	+	1182	94969802	-	Acid345_2775	-	hypothetical protein
2772	 63.42	+1	3290270..3290977	+	235	94969803	-	Acid345_2776	-	hypothetical protein
2773	 58.62	0	3291217..3291651	+	144	94969804	-	Acid345_2777	-	hypothetical protein
2774	 51.00	-2	3291773..3292123	+	116	94969805	-	Acid345_2778	-	hypothetical protein
2775	 49.50	-2	3292095..3292694	+	199	94969806	-	Acid345_2779	-	hypothetical protein
2776	 61.45	+1	3293229..3294398	+	389	94969807	-	Acid345_2780	-	N-acetylglucosamine 6-phosphate deacetylase
2777	 60.14	0	3294838..3295803	+	321	94969808	-	Acid345_2781	-	histidine kinase
2778	 58.69	0	3295803..3297194	+	463	94969809	-	Acid345_2782	-	two component, sigma54 specific, Fis family transcriptional regulator
2779	 56.07	0	3297447..3297767	+	106	94969810	-	Acid345_2783	-	tRNA pseudouridine synthase C
2780	 55.29	-1	3297896..3298150	+	84	94969811	-	Acid345_2784	-	glutaredoxin
2781	 62.08	+1	3298450..3299103	-	217	94969812	-	Acid345_2785	-	hypothetical protein
2782	 58.77	0	3299103..3299507	-	134	94969813	-	Acid345_2786	-	protein-methionine-S-oxide reductase
2783	 56.99	0	3299603..3300367	+	254	94969814	-	Acid345_2787	-	carboxymethylenebutenolidase
2784	 53.43	-1	3300411..3300818	+	135	94969815	-	Acid345_2788	-	hypothetical protein
2785	 57.64	0	3300823..3301719	+	298	94969816	-	Acid345_2789	-	histone deacetylase superfamily protein
2786	 61.82	+1	3302066..3303490	-	474	94969817	-	Acid345_2790	-	dihydrolipoamide dehydrogenase
2787	 60.71	0	3303505..3305352	-	615	94969818	-	Acid345_2791	-	dihydrolipoamide acetyltransferase
2788	 59.66	0	3305365..3308046	-	893	94969819	aceE	Acid345_2792	-	pyruvate dehydrogenase subunit E1
2789	 57.97	0	3308178..3309338	+	386	94969820	-	Acid345_2793	-	aminotransferase
2790	 52.94	-2	3309322..3309576	-	84	94969821	-	Acid345_2794	-	hypothetical protein
2791	 62.06	+1	3309693..3310538	-	281	94969822	-	Acid345_2795	-	ferredoxin--NADP(+) reductase subunit alpha
2792	 60.81	0	3310535..3311968	-	477	94969823	-	Acid345_2796	-	sulfide dehydrogenase (flavoprotein) subunit SudA
2793	 58.61	0	3312268..3313161	+	297	94969824	-	Acid345_2797	-	ABC transporter, ATPase subunit
58.57	MEAN

2.67	STD DEV
