IslandPath Analysis: Yersinia pestis Antiqua

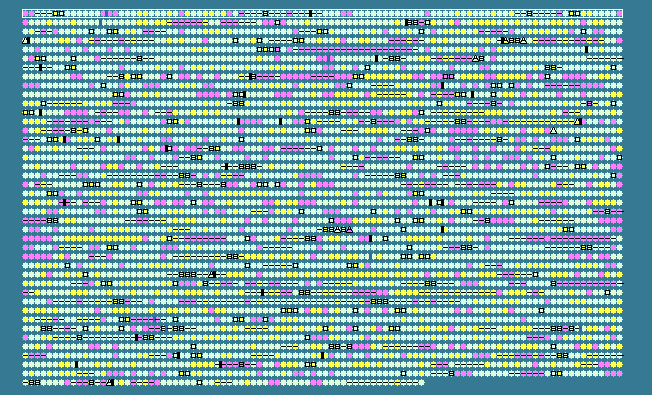

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 48.01   STD DEV: 4.91
Yersinia pestis Antiqua, complete genome - 1..4702289
4167 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 42.86	-1	270..710	-	146	108805999	-	YPA_0001	-	flavodoxin
2	 41.34	-1	803..1264	-	153	108806000	-	YPA_0002	-	DNA-binding transcriptional regulator AsnC
3	 45.52	0	1434..2426	+	330	108806001	-	YPA_0003	-	asparagine synthetase AsnA
4	 47.72	0	2525..3991	-	488	108806002	yieM	YPA_0004	-	hypothetical protein
5	 46.71	0	3995..5482	-	495	108806003	-	YPA_0005	-	regulatory ATPase RavA
6	 52.79	0	5552..6574	+	340	108806004	-	YPA_0006	-	transposase for insertion sequence IS100
7	 50.38	0	6574..7353	+	259	108806005	-	YPA_0007	-	transposase/IS protein
8	 45.95	0	7397..7507	-	36	108806006	-	YPA_0008	-	hypothetical protein
9	 45.80	0	7781..9649	+	622	108806007	trkD	YPA_0009	-	potassium transport protein Kup
10	 48.10	0	9854..10273	+	139	108806008	-	YPA_0010	-	D-ribose pyranase
11	 50.05	0	10324..11250	+	308	108806009	-	YPA_0011	-	ribokinase
12	 49.71	0	11303..11473	+	56	108806010	-	YPA_0012	-	hypothetical protein
13	 46.46	0	11470..12894	-	474	108806011	-	YPA_0013	-	putative membrane transport protein
14	 44.01	0	12974..13666	-	230	108806012	-	YPA_0014	-	putative GntR-famly transcriptional regulator
15	 44.52	0	20351..21280	+	309	108806013	-	YPA_0015	-	homoserine O-succinyltransferase
16	 25.00	-2	21480..21623	-	47	108806014	-	YPA_0016	-	hypothetical protein
17	 47.90	0	21701..23299	+	532	108806015	-	YPA_0017	-	malate synthase
18	 51.30	0	23346..24653	+	435	108806016	-	YPA_0018	-	isocitrate lyase
19	 46.41	0	24909..26636	+	575	108806017	aceK	YPA_0019	-	bifunctional isocitrate dehydrogenase kinase/phosphatase protein
20	 53.70	+1	26756..27349	-	197	108806018	-	YPA_0020	-	repressor of aceBA operon
21	 51.92	0	27815..31510	+	1231	108806019	metH	YPA_0021	-	B12-dependent methionine synthase
22	 44.58	0	31606..36513	-	1635	108806020	-	YPA_0022	-	hemolysin
23	 47.47	0	36583..38082	-	499	108806021	-	YPA_0023	-	hemolysin activator protein
24	 46.84	0	38012..38359	-	115	108806022	-	YPA_0024	-	hypothetical protein
25	 52.74	0	38840..40225	-	461	108806023	-	YPA_0025	-	aspartate kinase III
26	 48.69	0	40595..42241	+	548	108806024	pgi	YPA_0026	-	glucose-6-phosphate isomerase
27	 38.97	-1	42376..42783	+	135	108806025	-	YPA_0027	-	phosphate-starvation-inducible protein PsiE
28	 52.75	0	42926..43816	-	296	108806026	malG	YPA_0028	-	maltose transporter permease
29	 48.42	0	43830..45407	-	525	108806027	malF	YPA_0029	-	maltose transporter membrane protein
30	 48.60	0	45594..46805	-	403	108806028	malE	YPA_0030	-	maltose ABC transporter periplasmic protein
31	 53.59	+1	47393..47629	+	78	108806029	-	YPA_0031	-	hypothetical protein
32	 53.51	+1	47633..48742	+	369	108806030	-	YPA_0032	-	maltose/maltodextrin transporter ATP-binding protein
33	 48.66	0	48813..50084	+	423	108806031	lamB	YPA_0033	-	maltoporin
34	 51.64	0	50325..51236	+	303	108806032	-	YPA_0034	-	maltose regulon periplasmic protein
35	 31.87	-2	51575..51985	+	136	108806033	-	YPA_0035	-	hypothetical protein
36	 48.94	0	52137..52655	-	172	108806034	-	YPA_0036	-	hypothetical protein
37	 43.78	0	53179..53676	+	165	108806035	-	YPA_0037	-	hypothetical protein
38	 49.60	0	53744..55225	+	493	108806036	-	YPA_0038	-	hypothetical protein
39	 47.62	0	55232..55672	+	146	108806037	-	YPA_0039	-	hypothetical protein
40	 48.00	0	55672..56898	+	408	108806038	-	YPA_0040	-	hypothetical protein
41	 46.44	0	56788..57573	-	261	108806039	-	YPA_0041	-	transposase for insertion sequence IS1661
42	 47.86	0	57627..58163	-	178	108806040	-	YPA_0042	-	insertion element IS1661 DNA-binding protein
43	 48.52	0	58229..58498	-	89	108806041	rpsO	YPA_0043	-	30S ribosomal protein S15
44	 49.44	0	58620..59594	-	324	108806042	truB	YPA_0044	-	tRNA pseudouridine synthase B
45	 44.53	0	59594..60004	-	136	108806043	rbfA	YPA_0045	-	ribosome-binding factor A
46	 49.60	0	60070..62724	-	884	108806044	infB	YPA_0046	-	translation initiation factor IF-2
47	 49.13	0	62749..64236	-	495	108806045	nusA	YPA_0047	-	transcription elongation factor NusA
48	 46.80	0	64258..64710	-	150	108806046	-	YPA_0048	-	hypothetical protein
49	 48.21	0	65242..65577	-	111	108806047	secG	YPA_0049	-	preprotein translocase subunit SecG
50	 47.65	0	65800..67140	-	446	108806048	glmM	YPA_0050	-	phosphoglucosamine mutase
51	 47.60	0	67150..67983	-	277	108806049	folP	YPA_0051	-	dihydropteroate synthase
52	 46.98	0	68103..70037	-	644	108806050	hflB	YPA_0052	-	ATP-dependent metalloprotease
53	 45.56	0	70094..70723	-	209	108806051	rrmJ	YPA_0053	-	23S rRNA methyltransferase J
54	 43.88	0	70870..71163	+	97	108806052	-	YPA_0054	-	hypothetical protein
55	 42.35	-1	71291..71767	-	158	108806053	greA	YPA_0055	-	transcription elongation factor GreA
56	 48.24	0	72025..73473	+	482	108806054	-	YPA_0056	-	D-alanyl-D-alanine carboxypeptidase/endopeptidase
57	 49.32	0	73479..74141	+	220	108806055	-	YPA_0057	-	DNA-binding transcriptional regulator BasR
58	 46.82	0	74138..75205	+	355	108806056	-	YPA_0058	-	sensor protein BasS/PmrB
59	 48.93	0	75300..76472	-	390	108806057	obgE	YPA_0059	-	GTPase ObgE
60	 48.63	0	76473..77459	-	328	108806058	-	YPA_0060	-	hypothetical protein
61	 48.84	0	77547..77804	-	85	108806059	rpmA	YPA_0061	-	50S ribosomal protein L27
62	 45.51	0	77824..78135	-	103	108806060	rplU	YPA_0062	-	50S ribosomal protein L21
63	 48.97	0	78395..79366	+	323	108806061	-	YPA_0063	-	octaprenyl diphosphate synthase
64	 46.84	0	79463..79810	-	115	108806062	-	YPA_0064	-	hypothetical protein
65	 49.64	0	79994..80269	+	91	108806063	-	YPA_0065	-	putative DNA-binding protein
66	 47.71	0	80703..81641	-	312	108806064	-	YPA_0066	-	malate dehydrogenase
67	 45.22	0	82105..82575	+	156	108806065	-	YPA_0067	-	arginine repressor
68	 40.91	-1	82964..83227	+	87	108806066	-	YPA_0068	-	hypothetical protein
69	 50.04	0	83523..84905	-	460	108806067	-	YPA_0069	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl- me so-diaminopimelate ligase
70	 46.45	0	85076..86089	+	337	108806068	-	YPA_0070	-	fructose-1,6-bisphosphatase
71	 46.78	0	86289..86816	+	175	108806069	-	YPA_0071	-	inorganic pyrophosphatase
72	 45.94	0	86934..87290	-	118	108806070	-	YPA_0072	-	hypothetical protein
73	 52.35	0	87293..91210	-	1305	108806071	-	YPA_0073	-	hypothetical protein
74	 51.35	0	91207..92943	-	578	108806072	-	YPA_0074	-	hypothetical protein
75	 53.21	+1	93218..93856	+	212	108806073	-	YPA_0075	-	methionine sulfoxide reductase A
76	 46.25	0	94134..95465	+	443	108806074	-	YPA_0076	-	hypothetical protein
77	 45.54	0	95573..95785	-	70	108806075	-	YPA_0077	-	hypothetical protein
78	 45.92	0	96121..96684	+	187	108806076	-	YPA_0078	-	hypothetical protein
79	 53.71	+1	96687..97427	-	246	108806077	-	YPA_0079	-	PAPS (adenosine 3'-phosphate 5'-phosphosulfate) 3'(2'),5'-bisphosphate nucleotidase
80	 48.39	0	97874..99832	+	652	108806078	cpdB	YPA_0080	-	bifunctional 2',3'-cyclic nucleotide 2'-phosphodiesterase/3'-nucleotidase periplasmic precursor protein
81	 48.80	0	99987..100652	+	221	108806079	-	YPA_0081	-	cell morphogenesis/cell wall metabolism regulator
82	 52.01	0	100750..101370	-	206	108806080	-	YPA_0082	-	peptidyl-prolyl cis-trans isomerase
83	 51.28	0	101712..102452	+	246	108806081	-	YPA_0083	-	hypothetical protein
84	 45.18	0	102592..103047	+	151	108806082	-	YPA_0084	-	hypothetical protein
85	 45.97	0	103169..103627	-	152	108806083	-	YPA_0085	-	transposase for the IS1541 insertion element
86	 49.45	0	103823..104275	-	150	108806084	rplI	YPA_0086	-	50S ribosomal protein L9
87	 47.37	0	104315..104542	-	75	108806085	rpsR	YPA_0087	-	30S ribosomal protein S18
88	 47.66	0	104547..104867	-	106	108806086	-	YPA_0088	-	primosomal replication protein N
89	 50.89	0	104873..105265	-	130	108806087	rpsF	YPA_0089	-	30S ribosomal protein S6
90	 43.73	0	105279..105557	-	92	108806088	-	YPA_0090	-	hypothetical protein
91	 49.72	0	105632..106333	-	233	108806089	-	YPA_0091	-	esterase
92	 52.79	0	106390..107412	+	340	108806090	-	YPA_0092	-	transposase for insertion sequence IS100
93	 50.38	0	107412..108191	+	259	108806091	-	YPA_0093	-	transposase/IS protein
94	 62.96	+2	108789..109004	+	71	108806092	-	YPA_0094	-	hypothetical protein
95	 52.56	0	109156..111792	-	878	108806093	-	YPA_0095	-	phosphoenolpyruvate carboxylase
96	 50.43	0	112166..113329	-	387	108806094	-	YPA_0096	-	acetylornithine deacetylase
97	 50.45	0	113580..114584	+	334	108806095	argC	YPA_0097	-	N-acetyl-gamma-glutamyl-phosphate reductase
98	 50.97	0	114750..115526	+	258	108806096	-	YPA_0098	-	acetylglutamate kinase
99	 50.66	0	115693..117066	+	457	108806097	-	YPA_0099	-	argininosuccinate lyase
100	 44.36	0	117665..120157	+	830	108806098	-	YPA_0100	-	putative TonB dependent receptor protein
48.01	MEAN

4.91	STD DEV
