IslandPath Analysis: Yersinia pestis biovar Microtus str. 91001

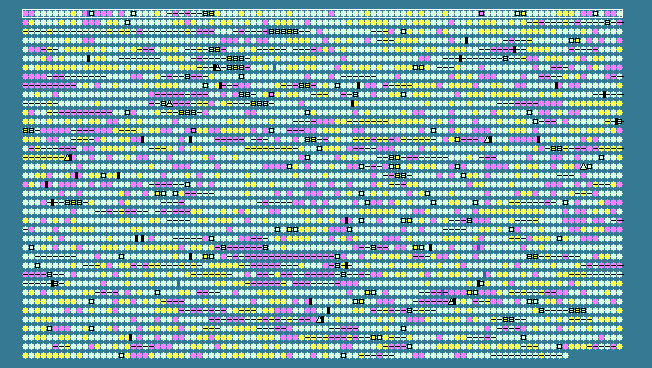

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.78 STD DEV: 5.00
Yersinia pestis biovar Microtus str. 91001, complete genome - 1..4595065
3891 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 42.86	0	21..461	-	146	45439866	fldA1	YP_0001	-	flavodoxin
2	 41.56	-1	554..1015	-	153	45439867	asnC	YP_0002	-	DNA-binding transcriptional regulator AsnC
3	 45.52	0	1185..2177	+	330	45439868	asnA	YP_0003	-	asparagine synthetase AsnA
4	 47.72	0	2276..3742	-	488	45439869	yieM	YP_0004	-	hypothetical protein
5	 46.40	0	3746..5314	-	522	45439870	-	YP_0005	-	regulatory ATPase RavA
6	 45.80	0	5588..7456	+	622	45439871	trkD	YP_0006	-	potassium transport protein Kup
7	 48.10	0	7661..8080	+	139	45439872	rbsD1	YP_0007	-	D-ribose pyranase
8	 50.05	0	8131..9057	+	308	45439873	rbsK1	YP_0008	-	ribokinase
9	 51.47	0	9077..9280	+	67	45439874	purR1	YP_0009	-	transcriptional regulator
10	 46.46	0	9277..10701	-	474	45439875	proP1	YP_0010	-	putative membrane transport protein
11	 44.06	0	10781..11470	-	229	45439876	fadR1	YP_0011	-	putative GntR-famly transcriptional regulator
12	 49.63	0	17690..18898	+	402	45439877	-	YP_0012	-	transposase for the IS285 insertion element
13	 40.86	-1	18956..19513	-	185	45439878	mobB	YP_0013	-	molybdopterin-guanine dinucleotide biosynthesis protein B
14	 43.15	0	19486..20127	-	213	45439879	mobA	YP_0014	-	molybdopterin-guanine dinucleotide biosynthesis protein A
15	 41.11	-1	20227..20496	+	89	45439880	-	YP_0015	-	hypothetical protein
16	 46.50	0	20587..21573	+	328	45439881	-	YP_0016	-	serine/threonine protein kinase
17	 42.15	-1	21601..22224	+	207	45439882	dsbA	YP_0017	-	periplasmic protein disulfide isomerase I
18	 47.48	0	22716..25514	+	932	45439883	polA	YP_0018	-	DNA polymerase I
19	 45.88	0	25872..26381	+	169	45439884	tnp_1	YP_0019	-	transposase for the IS1541 insertion element
20	 46.54	0	26633..27283	-	216	45439885	-	YP_0020	-	GTPase EngB
21	 48.50	0	28028..28594	+	188	45439886	-	YP_0021	-	hypothetical protein
22	 47.74	0	28777..30150	+	457	161511483	hemN1	YP_0022	-	coproporphyrinogen III oxidase
23	 52.65	0	30204..31616	-	470	161511482	glnG	YP_0023	-	nitrogen regulation protein NR(I)
24	 49.24	0	31624..32673	-	349	161511481	glnL	YP_0024	-	nitrogen regulation protein NR(II)
25	 50.78	0	32926..34335	-	469	45439890	glnA	YP_0025	-	glutamine synthetase
26	 42.77	-1	34521..34679	-	52	45439891	-	YP_0026	-	hypothetical protein
27	 49.01	0	34897..36720	+	607	45439892	bipA	YP_0027	-	putative GTPase
28	 44.16	0	37042..37632	+	196	45439893	-	YP_0028	-	phosphatase
29	 48.36	0	37669..38613	+	314	45439894	rbn	YP_0029	-	ribonuclease BN
30	 48.86	0	38620..39057	+	145	45439895	dtd	YP_0030	-	D-tyrosyl-tRNA deacylase
31	 50.45	0	39131..39913	-	260	45439896	dnaC_1	YP_0031	-	transposase/IS protein
32	 52.79	+1	39910..40932	-	340	45439897	-	YP_0032	-	transposase for insertion sequence IS100
33	 52.56	0	41326..42126	+	266	45439898	wecD1	YP_0033	-	hypothetical protein
34	 47.64	0	42261..43616	-	451	45439899	-	YP_0034	-	hypothetical protein
35	 50.57	0	44118..45527	-	469	45439900	uraA	YP_0035	-	putative membrane permease
36	 50.04	0	45741..46955	+	404	45439901	gltS	YP_0036	-	sodium/glutamate symport carrier protein
37	 51.59	0	47321..49402	-	693	45439902	recG	YP_0037	-	ATP-dependent DNA helicase RecG
38	 49.64	0	49403..50095	-	230	45439903	trmH	YP_0038	-	tRNA guanosine-2'-O-methyltransferase
39	 48.93	0	50101..52209	-	702	45439904	spoT	YP_0039	-	bifunctional (p)ppGpp synthetase II/ guanosine-3',5'-bis pyrophosphate 3'-pyrophosphohydrolase
40	 51.45	0	52229..52504	-	91	45439905	rpoZ	YP_0040	-	DNA-directed RNA polymerase subunit omega
41	 46.47	0	52559..53182	-	207	45439906	gmk	YP_0041	-	guanylate kinase
42	 48.12	0	53583..55286	+	567	45439907	ligB	YP_0042	-	NAD-dependent DNA ligase LigB
43	 47.28	0	55299..55922	-	207	45439908	-	YP_0043	-	hypothetical protein
44	 48.50	0	56325..57188	-	287	45439909	-	YP_0044	-	hypothetical protein
45	 51.32	0	57315..58031	+	238	45439910	rph	YP_0045	-	ribonuclease PH
46	 50.77	0	58198..58845	+	215	45439911	pyrE	YP_0046	-	orotate phosphoribosyltransferase
47	 47.91	0	58980..59576	-	198	45439912	slmA	YP_0047	-	nucleoid occlusion protein
48	 49.04	0	59698..60168	-	156	45439913	dut	YP_0048	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
49	 48.15	0	60134..61348	-	404	161511480	dfp	YP_0049	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
50	 45.44	0	61545..62213	+	222	45439915	radC	YP_0050	-	DNA repair protein RadC
51	 50.63	0	62476..62712	+	78	45439916	rpmB	YP_0051	-	50S ribosomal protein L28
52	 39.29	-1	62724..62891	+	55	45439917	rpmG	YP_0052	-	50S ribosomal protein L33
53	 48.89	0	62974..63783	+	269	45439918	mutM	YP_0053	-	formamidopyrimidine-DNA glycosylase
54	 46.25	0	63789..64268	-	159	45439919	coaD	YP_0054	-	phosphopantetheine adenylyltransferase
55	 46.62	0	64265..65047	-	260	45439920	kdtX	YP_0055	-	lipopolysaccharide core biosynthesis glycosyl transferase
56	 49.64	0	65048..66433	-	461	45439921	kdtA	YP_0056	-	3-deoxy-D-manno-octulosonic-acid transferase
57	 50.71	0	66745..67734	-	329	45439922	rfaC	YP_0057	-	ADP-heptose:LPS heptosyl transferase I
58	 51.74	0	67710..68774	-	354	161511479	rfaF	YP_0058	-	ADP-heptose:LPS heptosyltransferase II
59	 45.12	0	68805..69737	-	310	161511478	rfaD	YP_0059	-	ADP-L-glycero-D-mannoheptose-6-epimerase
60	 50.08	0	69983..71194	+	403	161511477	kbl	YP_0060	-	2-amino-3-ketobutyrate coenzyme A ligase
61	 48.15	0	71204..72229	+	341	45439926	tdh	YP_0061	-	L-threonine 3-dehydrogenase
62	 49.96	0	73325..74695	-	456	45439927	nlpD1	YP_0063	-	hypothetical protein
63	 50.13	0	74705..76252	-	515	45439928	gpmI	YP_0064	-	phosphoglyceromutase
64	 45.06	0	76649..77083	+	144	45439929	pspE1	YP_0065	-	hypothetical protein
65	 51.41	0	77202..77450	+	82	45439930	grxC	YP_0066	-	glutaredoxin 3
66	 48.43	0	77538..78014	+	158	45439931	secB	YP_0067	-	preprotein translocase subunit SecB
67	 51.57	0	78014..79033	+	339	45439932	gpsA	YP_0068	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
68	 45.39	0	79093..79233	+	46	45439933	-	YP_0069	-	hypothetical protein
69	 49.76	0	79299..80120	+	273	161511476	cysE	YP_0070	-	serine acetyltransferase
70	 49.08	0	80243..80731	-	162	45439935	cspR	YP_0071	-	putative methyltransferase
71	 52.02	0	80920..81984	+	354	45439936	ada	YP_0072	-	bifunctional regulatory protein/DNA repair protein
72	 49.89	0	82033..83409	-	458	45439937	cpxA	YP_0073	-	two-component sensor protein
73	 49.79	0	83406..84128	-	240	45439938	cpxR1	YP_0074	-	DNA-binding transcriptional regulator CpxR
74	 46.63	0	84278..84766	+	162	45439939	cpxP	YP_0075	-	periplasmic stress adaptor protein CpxP
75	 46.33	0	85223..85399	+	58	45439940	-	YP_0076	-	hypothetical protein
76	 51.04	0	85444..86403	+	319	45439941	-	YP_0077	-	hypothetical protein
77	 41.46	-1	86471..86593	-	40	45439942	-	YP_0078	-	putative transposase
78	 48.50	0	86965..87867	+	300	45439943	fieF	YP_0079	-	ferrous iron efflux protein F
79	 47.15	0	88085..89068	+	327	45439944	pfkA	YP_0080	-	6-phosphofructokinase
80	 45.55	0	89256..90278	+	340	45439945	sbp	YP_0081	-	sulfate transporter subunit
81	 48.23	0	90528..91346	-	272	45439946	modA1	YP_0082	-	hypothetical protein
82	 44.61	0	91422..92849	-	475	45439947	citT1	YP_0083	-	putative membrane transport protein
83	 50.45	0	93209..93991	-	260	45439948	dnaC_2	YP_0085	-	transposase/IS protein
84	 52.79	+1	93988..95010	-	340	45439949	-	YP_0086	-	transposase for insertion sequence IS100
85	 49.88	0	95584..96405	-	273	45439950	-	YP_0087	-	hypothetical protein
86	 49.23	0	96398..97693	+	431	45439951	lysR1	YP_0088	-	transcriptional regulator
87	 48.96	0	97925..98692	-	255	45439952	tpiA	YP_0089	-	triosephosphate isomerase
88	 45.13	0	98821..99456	-	211	45439953	-	YP_0090	-	hypothetical protein
89	 50.50	0	99538..100038	+	166	45439954	-	YP_0091	-	hypothetical protein
90	 51.94	0	100379..101125	-	248	45439955	fpr	YP_0092	-	ferredoxin-NADP reductase
91	 52.42	0	101280..102290	-	336	161511475	glpX	YP_0093	-	fructose 1,6-bisphosphatase II
92	 52.03	0	102527..104050	-	507	45439957	glpK1	YP_0094	-	glycerol kinase
93	 50.88	0	104227..105075	-	282	45439958	glpF	YP_0095	-	glycerol uptake facilitator protein
94	 39.17	-1	105085..105324	-	79	45439959	-	YP_0096	-	hypothetical protein
95	 42.92	0	105687..105926	+	79	45439960	-	YP_0097	-	hypothetical protein
96	 45.88	0	106134..106643	-	169	45439961	tnp_2	YP_0098	-	transposase for the IS1541 insertion element
97	 50.72	0	106769..106975	+	68	45439962	-	YP_0099	-	hypothetical protein
98	 43.83	0	106984..109098	-	704	45439963	sunT	YP_0100	-	putative secretion ATPase
99	 39.33	-1	109091..110407	-	438	45439964	acrA1	YP_0101	-	hypothetical protein
100	 45.83	0	110596..110835	+	79	45439965	-	YP_0102	-	hypothetical protein
47.78	MEAN

5.00	STD DEV
