IslandPath Analysis: Yersinia pestis KIM

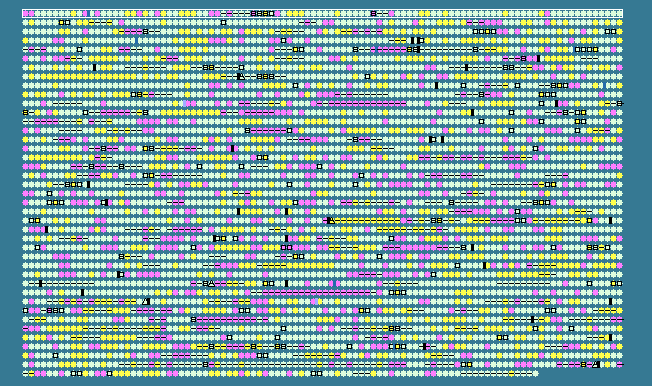

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 47.98   STD DEV: 5.00
Yersinia pestis KIM, complete genome - 1..4600755
4086 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 42.86	-1	21..461	-	146	22123923	mioC	y0001	-	flavodoxin
2	 41.56	-1	554..1015	-	153	22123924	asnC	y0002	-	DNA-binding transcriptional regulator AsnC
3	 45.52	0	1185..2177	+	330	22123925	asnA	y0003	-	asparagine synthetase AsnA
4	 47.72	0	2276..3742	-	488	22123926	yieM	y0004	-	hypothetical protein
5	 46.65	0	3746..5299	-	517	22123927	-	y0005	-	regulatory ATPase RavA
6	 45.80	0	5573..7441	+	622	22123928	trkD	y0006	-	potassium transport protein Kup
7	 48.10	0	7646..8065	+	139	22123929	rbsD	y0007	-	D-ribose pyranase
8	 50.05	0	8116..9042	+	308	22123930	rbsK	y0008	-	ribokinase
9	 51.47	0	9062..9265	+	67	22123931	-	y0009	-	hypothetical protein
10	 46.46	0	9262..10686	-	474	22123932	-	y0010	-	major facilitator permease
11	 44.06	0	10766..11455	-	229	22123933	-	y0011	-	hypothetical protein
12	 44.52	0	18140..19069	+	309	22123935	metA	y0013	-	homoserine O-succinyltransferase
13	 26.00	-2	19262..19411	-	49	22123936	-	y0014	-	hypothetical protein
14	 47.98	0	19456..21087	+	543	22123937	aceB	y0015	-	malate synthase
15	 51.30	0	21134..22441	+	435	22123938	aceA	y0016	-	isocitrate lyase
16	 46.41	0	22514..24241	+	575	22123939	aceK	y0018	-	bifunctional isocitrate dehydrogenase kinase/phosphatase protein
17	 51.45	0	24077..24214	-	45	22123940	-	y0017	-	hypothetical protein
18	 53.70	+1	24361..24954	-	197	22123941	iclR	y0019	-	acetate operon repressor
19	 51.92	0	25420..29115	+	1231	22123942	metH	y0020	-	B12-dependent methionine synthase
20	 44.49	0	29211..34175	-	1654	22123943	hylA	y0021	-	hemolysin precursor
21	 52.74	0	36445..37830	-	461	22123944	lysC	y0023	-	aspartate kinase III
22	 48.69	0	38200..39846	+	548	22123945	pgi	y0024	-	glucose-6-phosphate isomerase
23	 38.97	-1	39981..40388	+	135	22123946	psiE	y0025	-	phosphate-starvation-inducible protein PsiE
24	 52.63	0	40531..41442	-	303	22123947	malG	y0026	-	maltose transporter permease
25	 48.27	0	41435..43027	-	530	22123948	malF	y0027	-	maltose transporter membrane protein
26	 48.60	0	43199..44410	-	403	22123949	malE	y0028	-	maltose ABC transporter periplasmic protein
27	 53.44	+1	44888..45250	+	120	22123950	-	y0030	-	hypothetical protein
28	 53.59	+1	44998..45234	+	78	22123951	-	y0029	-	hypothetical protein
29	 53.51	+1	45238..46347	+	369	22123952	malK	y0031	-	maltose/maltodextrin transporter ATP-binding protein
30	 48.66	0	46418..47689	+	423	161484925	lamB	y0032	-	maltoporin
31	 51.29	0	47912..48841	+	309	22123954	malM	y0033	-	maltose regulon periplasmic protein
32	 32.08	-2	49078..49236	-	52	22123955	-	y0034	-	hypothetical protein
33	 31.34	-2	49240..49590	+	116	22123956	-	y0035	-	hypothetical protein
34	 48.94	0	49742..50260	-	172	22123957	-	y0036	-	hypothetical protein
35	 43.91	0	50781..51281	+	166	22123958	-	y0037	-	hypothetical protein
36	 49.60	0	51349..52830	+	493	22123959	-	y0038	-	hypothetical protein
37	 47.62	0	52837..53277	+	146	22123960	-	y0039	-	hypothetical protein
38	 48.00	0	53277..54503	+	408	22123961	-	y0040	-	hypothetical protein
39	 41.86	-1	54393..54650	-	85	22123962	-	y0041	-	transposase
40	 50.45	0	54689..55471	-	260	22123963	-	y0042	-	transposase/IS protein
41	 52.79	0	55468..56490	-	340	22123964	-	y0043	-	transposase
42	 46.01	0	56560..56985	+	141	22123965	-	y0044	-	transposase
43	 42.92	-1	57193..57432	-	79	22123966	-	y0045	-	hypothetical protein
44	 50.88	0	58060..58908	+	282	22123967	glpF	y0046	-	glycerol uptake facilitator protein
45	 52.03	0	59085..60608	+	507	22123968	glpK	y0047	-	glycerol kinase
46	 52.42	0	60845..61855	+	336	161484924	glpX	y0048	-	fructose 1,6-bisphosphatase II
47	 52.07	0	62010..62756	+	248	22123970	fpr	y0049	-	ferredoxin-NADP reductase
48	 50.50	0	63097..63597	-	166	22123971	-	y0050	-	hypothetical protein
49	 45.37	0	63700..64314	+	204	22123972	-	y0051	-	hypothetical protein
50	 48.96	0	64443..65210	+	255	22123973	tpiA	y0052	-	triosephosphate isomerase
51	 49.23	0	65442..66737	-	431	22123974	-	y0053	-	transcriptional regulator
52	 49.88	0	66730..67551	+	273	22123975	-	y0054	-	hypothetical protein
53	 54.06	+1	67548..68261	+	237	22123976	-	y0055	-	hypothetical protein
54	 44.61	0	68327..69754	+	475	22123977	-	y0056	-	membrane pump protein
55	 48.23	0	69830..70648	+	272	22123978	modA	y0057	-	hypothetical protein
56	 45.55	0	70898..71920	-	340	22123979	sbp	y0058	-	sulfate transporter subunit
57	 47.15	0	72108..73091	-	327	22123980	pfkA	y0059	-	6-phosphofructokinase
58	 48.50	0	73309..74211	-	300	22123981	fieF	y0060	-	ferrous iron efflux protein F
59	 41.46	-1	74583..74705	+	40	22123982	-	y0061	-	transposase
60	 51.04	0	74773..75732	-	319	22123983	-	y0062	-	hypothetical protein
61	 46.33	0	75777..75953	-	58	22123984	-	y0063	-	hypothetical protein
62	 43.52	0	75932..76039	+	35	22123985	-	y0064	-	hypothetical protein
63	 46.08	0	76049..76252	+	67	22123986	-	y0065	-	hypothetical protein
64	 46.63	0	76410..76898	-	162	22123987	cpxP	y0066	-	periplasmic stress adaptor protein CpxP
65	 49.79	0	77048..77770	+	240	22123988	cpxR	y0067	-	DNA-binding transcriptional regulator CpxR
66	 49.89	0	77767..79143	+	458	22123989	cpxA	y0069	-	two-component sensor protein
67	 54.25	+1	78938..79090	-	50	22123990	-	y0068	-	hypothetical protein
68	 52.02	0	79192..80256	-	354	22123991	ada	y0070	-	O6-methylguanine-DNA methyltransferase; transcription activator/repressor
69	 48.89	0	80349..80933	+	194	22123992	-	y0071	-	hypothetical protein
70	 49.76	0	81056..81877	-	273	161484923	cysE	y0072	-	serine acetyltransferase
71	 51.57	0	82143..83162	-	339	22123994	gpsA	y0073	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
72	 48.43	0	83162..83638	-	158	22123995	secB	y0074	-	preprotein translocase subunit SecB
73	 51.41	0	83726..83974	-	82	22123996	grxC	y0075	-	glutaredoxin 3
74	 45.06	0	84093..84527	-	144	22123997	-	y0076	-	hypothetical protein
75	 50.13	0	84924..86471	+	515	22123998	-	y0077	-	phosphoglyceromutase
76	 49.96	0	86481..87851	+	456	22123999	-	y0078	-	hypothetical protein
77	 48.15	0	88947..89972	-	341	22124000	tdh	y0080	-	L-threonine 3-dehydrogenase
78	 50.17	0	89982..91193	-	403	161484922	kbl	y0081	-	2-amino-3-ketobutyrate coenzyme A ligase
79	 45.12	0	91439..92371	+	310	161484921	rfaD	y0083	-	ADP-L-glycero-D-mannoheptose-6-epimerase
80	 47.81	0	92016..92243	+	75	22124003	-	y0082	-	hypothetical protein
81	 51.74	0	92402..93466	+	354	161484920	rfaF	y0084	-	ADP-heptose:LPS heptosyltransferase II
82	 50.71	0	93442..94431	+	329	22124005	rfaC	y0085	-	ADP-heptose:LPS heptosyl transferase I
83	 49.71	0	94743..96128	+	461	22124006	kdtA	y0086	-	3-deoxy-D-manno-octulosonic-acid transferase
84	 46.62	0	96129..96911	+	260	22124007	-	y0087	-	lipopolysaccharide core biosynthesis glycosyl transferase
85	 46.25	0	96908..97387	+	159	22124008	coaD	y0088	-	phosphopantetheine adenylyltransferase
86	 48.89	0	97393..98202	-	269	22124009	mutM	y0090	-	formamidopyrimidine-DNA glycosylase
87	 54.72	+1	97396..97554	+	52	22124010	-	y0089	-	hypothetical protein
88	 39.29	-1	98285..98452	-	55	22124011	rpmG	y0091	-	50S ribosomal protein L33
89	 45.44	0	98963..99631	-	222	22124012	radC	y0092	-	DNA repair protein RadC
90	 48.15	0	99828..101042	+	404	161484919	dfp	y0093	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
91	 49.04	0	101008..101478	+	156	22124014	dut	y0094	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
92	 47.91	0	101600..102196	+	198	22124015	slmA	y0095	-	nucleoid occlusion protein
93	 50.77	0	102331..102978	-	215	22124016	pyrE	y0096	-	orotate phosphoribosyltransferase
94	 51.32	0	103145..103861	-	238	22124017	rph	y0097	-	ribonuclease PH
95	 48.50	0	103988..104851	+	287	22124018	-	y0098	-	hypothetical protein
96	 47.28	0	105254..105877	+	207	22124019	-	y0099	-	hypothetical protein
97	 48.12	0	105890..107593	-	567	22124020	ligB	y0100	-	NAD-dependent DNA ligase LigB
98	 46.47	0	107994..108617	+	207	22124021	gmk	y0101	-	guanylate kinase
99	 51.45	0	108672..108947	+	91	22124022	rpoZ	y0102	-	DNA-directed RNA polymerase subunit omega
100	 48.93	0	108967..111075	+	702	22124023	spoT	y0103	-	bifunctional (p)ppGpp synthetase II/ guanosine-3',5'-bis pyrophosphate 3'-pyrophosphohydrolase
47.98	MEAN

5.00	STD DEV
