IslandPath Analysis: Yersinia pestis CO92

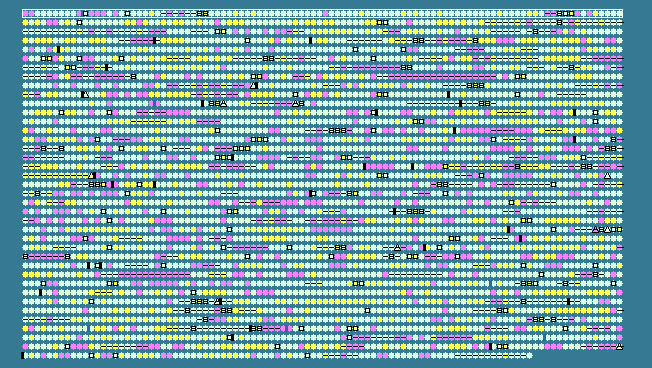

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 47.92   STD DEV: 4.90
Yersinia pestis CO92, complete genome - 1..4653728
3885 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 42.86	-1	271..711	-	146	16120354	-	YPO0001	-	flavodoxin
2	 41.56	-1	804..1265	-	153	16120355	asnC	YPO0002	-	DNA-binding transcriptional regulator AsnC
3	 45.52	0	1435..2427	+	330	16120356	asnA	YPO0003	-	asparagine synthetase AsnA
4	 47.72	0	2526..3992	-	488	16120357	yieM	YPO0004	-	hypothetical protein
5	 46.65	0	3996..5549	-	517	16120358	-	YPO0005	-	regulatory ATPase RavA
6	 45.80	0	5823..7691	+	622	16120359	trkD	YPO0006	-	potassium transport protein Kup
7	 48.10	0	7896..8315	+	139	16120360	-	YPO0007	-	D-ribose pyranase
8	 50.05	0	8366..9292	+	308	16120361	rbsK	YPO0008	-	ribokinase
9	 46.46	0	9512..10936	-	474	16120362	-	YPO0009	-	putative membrane transport protein
10	 44.06	0	11016..11705	-	229	16120363	-	YPO0010	-	putative GntR-famly transcriptional regulator
11	 49.79	0	17906..19114	+	402	16120364	y1062	YPO0011	-	transposase for the IS285 insertion element
12	 40.68	-1	19172..19702	-	176	16120365	mobB	YPO0012	-	molybdopterin-guanine dinucleotide biosynthesis protein B
13	 43.30	0	19702..20343	-	213	16120366	mobA	YPO0013	-	molybdopterin-guanine dinucleotide biosynthesis protein A
14	 41.11	-1	20443..20712	+	89	16120367	-	YPO0013a	-	hypothetical protein
15	 46.50	0	20792..21778	+	328	16120368	-	YPO0014	-	serine/threonine protein kinase
16	 42.15	-1	21806..22429	+	207	16120369	dsbA	YPO0015	-	periplasmic protein disulfide isomerase I
17	 47.52	0	22921..25719	+	932	16120370	polA	YPO0017	-	DNA polymerase I
18	 45.97	0	26128..26586	+	152	16120371	tnp	YPO0018	-	transposase for the IS1541 insertion element
19	 46.54	0	26838..27488	-	216	16120372	-	YPO0019	-	GTPase EngB
20	 48.50	0	28233..28799	+	188	16120373	-	YPO0020	-	hypothetical protein
21	 47.74	0	28982..30355	+	457	16120374	hemN	YPO0021	-	coproporphyrinogen III oxidase
22	 52.65	0	30409..31821	-	470	16120375	glnG	YPO0022	-	nitrogen regulation protein NR(I)
23	 49.24	0	31829..32878	-	349	16120376	glnL	YPO0023	-	nitrogen regulation protein NR(II)
24	 50.78	0	33131..34540	-	469	16120377	glnA	YPO0024	-	glutamine synthetase
25	 42.77	-1	34726..34884	-	52	16120378	-	YPO0025	-	hypothetical protein
26	 49.01	0	35102..36925	+	607	16120379	bipA	YPO0026	-	putative GTPase
27	 44.16	0	37247..37837	+	196	16120380	-	YPO0027	-	phosphatase
28	 48.02	0	37934..38818	+	294	16120381	rbn	YPO0028	-	ribonuclease BN
29	 48.86	0	38825..39262	+	145	16120382	-	YPO0029	-	D-tyrosyl-tRNA deacylase
30	 50.45	0	39336..40118	-	260	16120383	-	YPO0030	-	transposase/IS protein
31	 52.79	0	40115..41137	-	340	16120384	-	YPO0031	-	transposase for insertion sequence IS100
32	 50.97	0	41407..42330	+	307	16120385	-	YPO0032	-	hypothetical protein
33	 48.30	0	42465..44174	-	569	16120386	-	YPO0033	-	hypothetical protein
34	 50.51	0	44322..45707	-	461	16120387	-	YPO0034	-	putative membrane permease
35	 50.04	0	45945..47159	+	404	16120388	gltS	YPO0035	-	sodium/glutamate symport carrier protein
36	 51.63	0	47525..49606	-	693	16120389	recG	YPO0036	-	ATP-dependent DNA helicase RecG
37	 49.64	0	49607..50299	-	230	16120390	trmH	YPO0037	-	tRNA guanosine-2'-O-methyltransferase
38	 48.93	0	50305..52413	-	702	16120391	spoT	YPO0038	-	bifunctional (p)ppGpp synthetase II/ guanosine-3',5'-bis pyrophosphate 3'-pyrophosphohydrolase
39	 51.45	0	52433..52708	-	91	16120392	rpoZ	YPO0039	-	DNA-directed RNA polymerase subunit omega
40	 46.47	0	52763..53386	-	207	16120393	gmk	YPO0040	-	guanylate kinase
41	 48.12	0	53787..55490	+	567	16120394	ligB	YPO0041	-	NAD-dependent DNA ligase LigB
42	 47.28	0	55503..56126	-	207	16120395	-	YPO0042	-	hypothetical protein
43	 48.50	0	56529..57392	-	287	16120396	-	YPO0043	-	hypothetical protein
44	 51.32	0	57519..58235	+	238	16120397	rph	YPO0044	-	ribonuclease PH
45	 50.77	0	58402..59049	+	215	16120398	pyrE	YPO0045	-	orotate phosphoribosyltransferase
46	 47.91	0	59184..59780	-	198	16120399	slmA	YPO0046	-	nucleoid occlusion protein
47	 49.12	0	59902..60357	-	151	16120400	dut	YPO0047	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
48	 48.15	0	60338..61552	-	404	161486896	dfp	YPO0048	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
49	 45.44	0	61749..62417	+	222	16120402	radC	YPO0049	-	DNA repair protein RadC
50	 50.63	0	62680..62916	+	78	16120403	rpmB	YPO0050	-	50S ribosomal protein L28
51	 39.29	-1	62928..63095	+	55	16120404	rpmG	YPO0051	-	50S ribosomal protein L33
52	 48.89	0	63178..63987	+	269	16120405	mutM	YPO0052	-	formamidopyrimidine-DNA glycosylase
53	 46.25	0	63993..64472	-	159	16120406	coaD	YPO0053	-	phosphopantetheine adenylyltransferase
54	 46.62	0	64469..65251	-	260	16120407	kdtX	YPO0054	-	lipopolysaccharide core biosynthesis glycosyl transferase
55	 50.55	0	65252..66529	-	425	16120408	kdtA	YPO0055	-	3-deoxy-D-manno-octulosonic-acid transferase
56	 50.72	0	66949..67914	-	321	16120409	rfaC	YPO0056	-	ADP-heptose:LPS heptosyl transferase I
57	 51.74	0	67914..68978	-	354	16120410	rfaF	YPO0057	-	ADP-heptose:LPS heptosyltransferase II
58	 45.12	0	69009..69941	-	310	16120411	rfaD	YPO0058	-	ADP-L-glycero-D-mannoheptose-6-epimerase
59	 50.17	0	70187..71398	+	403	16120412	kbl	YPO0059	-	2-amino-3-ketobutyrate coenzyme A ligase
60	 48.15	0	71408..72433	+	341	16120413	tdh	YPO0060	-	L-threonine 3-dehydrogenase
61	 50.04	0	73529..74899	-	456	161486895	-	YPO0063	-	hypothetical protein
62	 50.13	0	74909..76456	-	515	16120415	-	YPO0064	-	phosphoglyceromutase
63	 45.06	0	76853..77287	+	144	16120416	-	YPO0065	-	hypothetical protein
64	 51.41	0	77406..77654	+	82	16120417	grxC	YPO0066	-	glutaredoxin 3
65	 48.43	0	77742..78218	+	158	16120418	secB	YPO0067	-	preprotein translocase subunit SecB
66	 51.57	0	78218..79237	+	339	16120419	gpsA	YPO0068	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
67	 45.39	0	79297..79437	+	46	16120420	-	YPO0069	-	hypothetical protein
68	 49.76	0	79503..80324	+	273	16120421	cysE	YPO0070	-	serine acetyltransferase
69	 49.08	0	80447..80935	-	162	16120422	-	YPO0071	-	putative methyltransferase
70	 52.02	0	81124..82188	+	354	16120423	-	YPO0072	-	bifunctional regulatory protein/DNA repair protein
71	 49.89	0	82237..83613	-	458	16120424	cpxA	YPO0073	-	two-component sensor protein
72	 49.93	0	83610..84308	-	232	16120425	cpxR	YPO0074	-	DNA-binding transcriptional regulator CpxR
73	 46.63	0	84482..84970	+	162	16120426	cpxP	YPO0075	-	periplasmic stress adaptor protein CpxP
74	 51.04	0	85648..86607	+	319	16120427	-	YPO0076	-	hypothetical protein
75	 48.50	0	87169..88071	+	300	16120428	fieF	YPO0077	-	ferrous iron efflux protein F
76	 47.15	0	88289..89272	+	327	16120429	pfkA	YPO0078	-	6-phosphofructokinase
77	 46.06	0	89493..90482	+	329	16120430	sbp1	YPO0079	-	sulfate transporter subunit
78	 48.23	0	90732..91550	-	272	16120431	-	YPO0080	-	hypothetical protein
79	 44.61	0	91626..93053	-	475	16120432	-	YPO0081	-	putative membrane transport protein
80	 54.06	+1	93119..93832	-	237	16120433	-	YPO0082	-	hypothetical protein
81	 47.37	0	93829..94761	-	310	16120434	-	YPO0083	-	hypothetical protein
82	 51.19	0	94892..95938	+	348	16120435	-	YPO0084	-	transcriptional regulator
83	 48.96	0	96170..96937	-	255	16120436	tpiA	YPO0085	-	triosephosphate isomerase
84	 45.13	0	97066..97701	-	211	16120437	-	YPO0086	-	hypothetical protein
85	 51.95	0	97849..98283	+	144	16120438	-	YPO0087	-	hypothetical protein
86	 52.07	0	98624..99370	-	248	16120439	fpr	YPO0088	-	ferredoxin-NADP reductase
87	 50.88	0	101532..102380	-	282	16120440	glpF	YPO0091	-	glycerol uptake facilitator protein
88	 39.17	-1	102390..102629	-	79	16120441	-	YPO0092	-	hypothetical protein
89	 42.92	-1	103008..103247	+	79	16120442	-	YPO0093	-	hypothetical protein
90	 45.75	0	103455..103913	-	152	16120443	tnp	YPO0094	-	transposase for the IS1541 insertion element
91	 50.45	0	105645..106427	-	260	16120444	-	YPO0096	-	transposase/IS protein
92	 52.59	0	106424..107446	-	340	16120445	-	YPO0097	-	transposase for insertion sequence IS100
93	 38.83	-1	108358..109593	-	411	16120446	-	YPO0099	-	hypothetical protein
94	 45.83	0	109863..110102	+	79	16120447	-	YPO0100	-	hypothetical protein
95	 29.33	-2	110277..110426	+	49	16120448	-	YPO0101	-	hypothetical protein
96	 53.16	+1	110732..111316	+	194	16120449	-	YPO0102	-	hypothetical protein
97	 47.53	0	111433..111918	-	161	16120450	menG	YPO0103	-	ribonuclease activity regulator protein RraA
98	 49.02	0	112060..112977	-	305	16120451	menA	YPO0104	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
99	 48.80	0	113213..114544	-	443	16120452	hslU	YPO0105	-	ATP-dependent protease ATP-binding subunit
100	 48.76	0	114615..115139	-	174	16120453	hslV	YPO0106	-	ATP-dependent protease peptidase subunit
47.92	MEAN

4.90	STD DEV
