IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

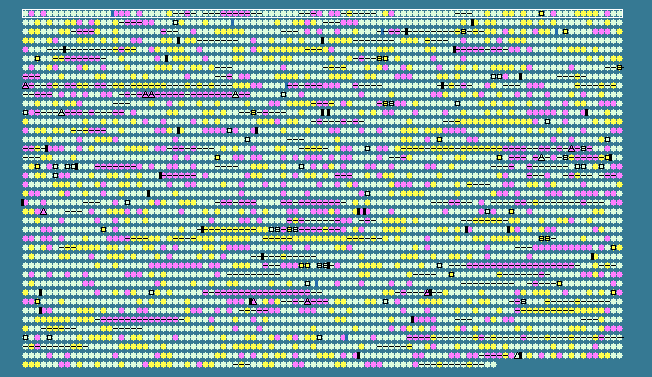

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 47.74   STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 45.12	0	270..710	-	146	123440404	-	YE0001	-	flavodoxin
2	 41.77	-1	802..1263	-	153	123440405	asnC	YE0002	-	DNA-binding transcriptional regulator AsnC
3	 45.52	0	1449..2441	+	330	123440406	asnA	YE0003	-	asparagine synthetase AsnA
4	 41.82	-1	2595..3266	+	223	123440407	-	YE0004	-	hypothetical protein
5	 49.15	0	3276..4742	-	488	123440408	yieM	YE0005	-	hypothetical protein
6	 46.06	0	4746..6254	-	502	123440409	-	YE0006	-	regulatory ATPase RavA
7	 48.38	0	6708..8435	+	575	123440410	trkD	YE0007	-	potassium transport protein Kup
8	 46.43	0	8606..9025	+	139	123440411	-	YE0008	-	D-ribose pyranase
9	 47.44	0	9033..10535	+	500	123440412	rbsA	YE0009	-	D-ribose transporter ATP binding protein
10	 49.28	0	10623..11588	+	321	123440413	rbsC	YE0010	-	ribose ABC transporter permease protein
11	 46.96	0	11760..12647	+	295	123440414	prlB	YE0011	-	D-ribose transporter subunit RbsB
12	 49.51	0	12811..13737	+	308	123440415	rbsK	YE0012	-	ribokinase
13	 48.60	0	13740..14741	+	333	123440416	rbsR	YE0012A	-	transcriptional repressor RbsR
14	 47.86	0	14738..16162	-	474	123440417	-	YE0013	-	putative membrane transport protein
15	 46.38	0	16237..16926	-	229	123440418	-	YE0014	-	putative GntR-famly transcriptional regulator
16	 40.72	-1	23194..23721	-	175	123440419	mobB	YE0016	-	molybdopterin-guanine dinucleotide biosynthesis protein B
17	 42.83	-1	23718..24317	-	199	123440420	mobA	YE0017	-	molybdopterin-guanine dinucleotide biosynthesis protein A
18	 39.63	-1	24462..24731	+	89	123440421	-	YE0018	-	hypothetical protein
19	 48.33	0	24823..25809	+	328	123440422	-	YE0019	-	serine/threonine protein kinase
20	 42.63	-1	25856..26479	+	207	123440423	dsbA	YE0020	-	periplasmic protein disulfide isomerase I
21	 46.98	0	27070..29868	+	932	123440424	polA	YE0021	-	DNA polymerase I
22	 45.72	0	30302..30955	-	217	123440425	-	YE0022	-	GTPase EngB
23	 48.85	0	31718..32284	+	188	123440426	-	YE0023	-	hypothetical protein
24	 45.85	0	32467..33840	+	457	123440427	hemN	YE0024	-	coproporphyrinogen III oxidase
25	 52.80	+1	33989..35401	-	470	123440428	glnG	YE0025	-	nitrogen regulation protein NR(I)
26	 49.43	0	35409..36458	-	349	123440429	glnL	YE0026	-	nitrogen regulation protein NR(II)
27	 49.43	0	36607..38016	-	469	123440430	glnA	YE0027	-	glutamine synthetase
28	 40.54	-1	38201..38311	-	36	123440431	-	YE0028	-	hypothetical protein
29	 49.62	0	38529..40352	+	607	123440432	bipA	YE0029	-	putative GTPase
30	 48.30	0	40648..41235	+	195	123440433	-	YE0030	-	phosphatase
31	 46.24	0	41328..42218	+	296	123440434	rbn	YE0031	-	ribonuclease BN
32	 48.17	0	42225..42662	+	145	123440435	-	YE0032	-	D-tyrosyl-tRNA deacylase
33	 48.27	0	42914..43837	+	307	123440436	-	YE0033	-	hypothetical protein
34	 33.62	-2	44431..45117	+	228	123440437	-	YE0035	-	LuxR family transcription regulatory protein
35	 36.68	-2	45147..45833	+	228	123440438	-	YE0036	-	LuxR family transcription regulatory protein
36	 35.23	-2	45863..46549	+	228	123440439	-	YE0037	-	LuxR family transcription regulatory protein
37	 34.79	-2	46579..47265	+	228	123440440	-	YE0038	-	LuxR family transcription regulatory protein
38	 35.66	-2	47294..47980	+	228	123440441	-	YE0039	-	LuxR family transcription regulatory protein
39	 47.78	0	48077..49786	-	569	123440442	-	YE0040	-	hypothetical protein
40	 50.36	0	49933..51318	-	461	123440443	-	YE0041	-	putative membrane permease
41	 49.47	0	51557..52771	+	404	123440444	gltC	YE0042	-	sodium/glutamate symport carrier protein
42	 50.96	0	52840..54921	-	693	123440445	recG	YE0043	-	ATP-dependent DNA helicase RecG
43	 47.47	0	54922..55614	-	230	123440446	spoU	YE0044	-	tRNA guanosine-2'-O-methyltransferase
44	 49.03	0	55620..57722	-	700	123440447	spoT	YE0045	-	bifunctional (p)ppGpp synthetase II/ guanosine-3',5'-bis pyrophosphate 3'-pyrophosphohydrolase
45	 48.55	0	57741..58016	-	91	123440448	rpoZ	YE0046	-	DNA-directed RNA polymerase subunit omega
46	 46.79	0	58071..58694	-	207	123440449	gmk	YE0047	-	guanylate kinase
47	 46.41	0	58977..60674	+	565	123440450	ligB	YE0048	-	NAD-dependent DNA ligase LigB
48	 45.31	0	60692..61309	-	205	123440451	-	YE0049	-	hypothetical protein
49	 44.20	0	61529..62080	+	183	123440452	-	YE0050	-	hypothetical protein
50	 38.90	-1	62176..63360	-	394	123440453	cru	YE0051	-	nucleoside permease
51	 45.30	0	63619..64512	+	297	123440454	-	YE0052	-	enoyl-CoA hydratase
52	 43.41	0	64538..66532	-	664	123440455	-	YE0053	-	RNase II stability modulator
53	 39.83	-1	67055..67885	-	276	123440456	-	YE0055	-	metallo-beta-lactamase superfamily protein
54	 48.84	0	68287..69150	-	287	123440457	-	YE0057	-	hypothetical protein
55	 51.60	0	69277..69993	+	238	123440458	rph	YE0058	-	ribonuclease PH
56	 47.98	0	70145..70786	+	213	123440459	pyrE	YE0059	-	orotate phosphoribosyltransferase
57	 48.24	0	70864..71460	-	198	123440460	slmA	YE0060	-	nucleoid occlusion protein
58	 46.49	0	71581..72036	-	151	123440461	dut	YE0061	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
59	 51.09	0	72017..73204	-	395	123440462	dfp	YE0062	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
60	 46.04	0	73442..74110	+	222	123440463	radC	YE0063	-	DNA repair protein RadC
61	 52.32	0	74374..74610	+	78	123440464	rpmB	YE0064	-	50S ribosomal protein L28
62	 40.48	-1	74622..74789	+	55	123440465	rpmG	YE0065	-	50S ribosomal protein L33
63	 48.77	0	74876..75685	+	269	123440466	fpg	YE0066	-	formamidopyrimidine-DNA glycosylase
64	 47.50	0	75792..76271	-	159	123440467	coaD	YE0067	-	phosphopantetheine adenylyltransferase
65	 47.25	0	76268..77050	-	260	123440468	kdtX	YE0068	-	lipopolysaccharide core biosynthesis glycosyl transferase
66	 50.08	0	77051..78328	-	425	123440469	kdtA	YE0069	-	3-deoxy-D-manno-octulosonic-acid transferase
67	 50.21	0	78869..79834	-	321	123440470	rfa-2	YE0070	-	ADP-heptose:LPS heptosyl transferase I
68	 50.14	0	79834..80898	-	354	123440471	rfaF	YE0071	-	ADP-heptose:LPS heptosyltransferase II
69	 47.59	0	80929..81861	-	310	123440472	rfaD	YE0072	-	ADP-L-glycero-D-mannoheptose-6-epimerase
70	 48.93	0	82105..83316	+	403	123440473	kbl	YE0073	-	2-amino-3-ketobutyrate coenzyme A ligase
71	 47.86	0	83341..84366	+	341	123440474	tdh	YE0074	-	L-threonine 3-dehydrogenase
72	 49.03	0	84557..85582	-	341	123440475	-	YE0075	-	hypothetical protein
73	 49.70	0	85606..86760	-	384	123440476	-	YE0076	-	hypothetical protein
74	 49.74	0	86983..88530	-	515	123440477	-	YE0077	-	phosphoglyceromutase
75	 48.74	0	88772..89206	+	144	123440478	-	YE0078	-	hypothetical protein
76	 50.60	0	89256..89504	+	82	123440479	grxC	YE0079	-	glutaredoxin 3
77	 50.74	0	89596..90066	+	156	123440480	secB	YE0080	-	preprotein translocase subunit SecB
78	 52.75	+1	90066..91085	+	339	123440481	gpsA	YE0081	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
79	 50.12	0	91211..92032	+	273	123440482	cysE	YE0082	-	serine acetyltransferase
80	 48.61	0	92213..92716	-	167	123440483	-	YE0083	-	putative methyltransferase
81	 52.55	+1	92988..93986	+	332	123440484	-	YE0084	-	bifunctional regulatory protein/DNA repair protein
82	 51.34	0	94056..95432	-	458	123440485	cpxA	YE0085	-	two-component sensor protein
83	 48.21	0	95429..96127	-	232	123440486	cpxR	YE0086	-	DNA-binding transcriptional regulator CpxR
84	 53.12	+1	96348..96812	+	154	123440487	cpxP	YE0087	-	periplasmic stress adaptor protein CpxP
85	 48.28	0	96944..97846	+	300	123440488	fieF	YE0088	-	ferrous iron efflux protein F
86	 48.39	0	98096..99091	+	331	123440489	pfkA	YE0089	-	6-phosphofructokinase
87	 55.96	+1	99139..100473	-	444	123440490	-	YE0090	-	transposase for insertion sequence element IS1660
88	 46.57	0	100712..101701	+	329	123440491	sbp1	YE0091	-	sulfate transporter subunit
89	 43.23	0	101902..102093	+	63	123440492	-	YE0092	-	hypothetical protein
90	 49.48	0	102318..103085	-	255	123440493	tpiA	YE0093	-	triosephosphate isomerase
91	 49.57	0	103214..103798	-	194	123440494	-	YE0094	-	hypothetical protein
92	 50.11	0	104103..104537	+	144	123440495	-	YE0095	-	hypothetical protein
93	 51.81	0	104780..105526	-	248	123440496	fpr	YE0096	-	ferredoxin-NADP reductase
94	 54.09	+1	105845..107029	+	394	123440497	emrD	YE0097	-	multidrug resistance protein D
95	 51.34	0	107115..108125	-	336	123440498	glpX	YE0098	-	fructose 1,6-bisphosphatase II
96	 52.10	0	108307..109830	-	507	123440499	glpK	YE0099	-	glycerol kinase
97	 50.53	0	109907..110755	-	282	123440500	glpF	YE0100	-	glycerol uptake facilitator protein
98	 44.17	0	111350..111589	+	79	123440501	-	YE0101	-	hypothetical protein
99	 45.47	0	111726..112211	-	161	123440502	menG	YE0102	-	ribonuclease activity regulator protein RraA
100	 50.29	0	112342..113196	-	284	123440503	menA	YE0103	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
47.74	MEAN

4.70	STD DEV
