IslandPath Analysis: Xanthomonas oryzae pv. oryzae PXO99A

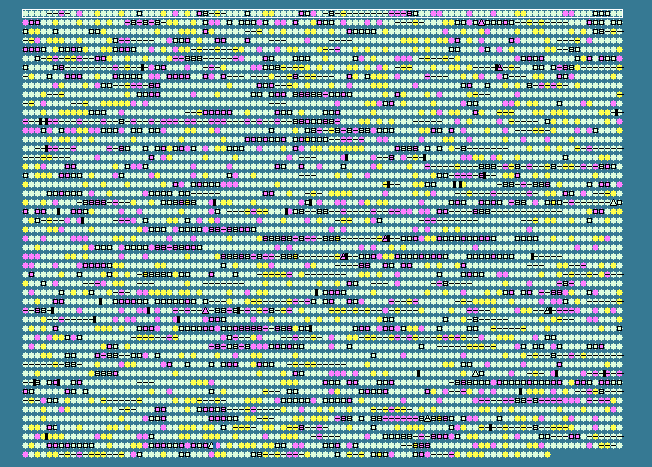

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 63.70   STD DEV: 3.77
Xanthomonas oryzae pv. oryzae PXO99A, complete genome - 1..5240075
4988 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 64.71	0	45..1373	+	442	188574271	dnaA	PXO_03483	-	chromosomal replication initiator protein DnaA
2	 61.67	0	1651..2751	+	366	188574272	dnaN	PXO_03482	-	DNA polymerase III, beta subunit
3	 64.48	0	4013..5110	+	365	188574273	-	PXO_03481	-	DNA replication and repair RecF protein
4	 64.42	0	5226..7670	+	814	188574274	gyrB	PXO_03480	-	DNA gyrase, B subunit
5	 66.55	0	7738..8574	+	278	188574275	-	PXO_03479	-	caax amino terminal protease family
6	 64.06	0	8761..9567	+	268	188574276	ste24p	PXO_03478	-	peptidase M48, Ste24p
7	 59.88	-1	9844..11037	+	397	188574277	-	PXO_03477	-	tetratricopeptide repeat domain protein
8	 65.95	0	11308..11862	+	184	188574278	-	PXO_03476	-	TonB protein
9	 64.04	0	11947..12708	+	253	188574279	-	PXO_03475	-	biopolymer transport ExbB protein
10	 58.97	-1	12788..13177	+	129	188574280	-	PXO_03474	-	biopolymer transport ExbD1 protein
11	 60.37	0	13214..13594	+	126	188574281	-	PXO_03473	-	biopolymer transport ExbD2 protein
12	 64.97	0	13890..14657	-	255	188574282	pdxJ	PXO_03472	-	pyridoxal phosphate biosynthesis protein PdxJ
13	 68.27	+1	14668..14916	-	82	188574283	-	PXO_03471	-	hypothetical protein
14	 66.53	0	15012..16472	-	486	188574284	-	PXO_03470	-	cardiolipin synthetase
15	 65.08	0	17119..18129	-	336	188574285	fbp	PXO_03469	-	fructose-1,6-bisphosphatase
16	 65.50	0	18401..19603	-	400	188574286	-	PXO_03468	-	aspartate aminotransferase
17	 68.12	+1	19745..21883	+	712	188574287	-	PXO_03467	-	TonB-dependent outer membrane Receptor
18	 65.99	0	22094..22387	+	97	188574288	-	PXO_03466	-	hypothetical protein
19	 63.68	0	22419..22652	-	77	188574289	-	PXO_03465	-	hypothetical protein
20	 62.28	0	23163..24143	-	326	188574290	-	PXO_03464	-	ISXoo7 transposase
21	 66.84	0	24191..25357	-	388	188574291	-	PXO_03463	-	L-lactate dehydrogenase
22	 65.20	0	25504..25776	-	90	188574292	-	PXO_03462	-	isoprenylcysteine carboxyl methyltransferase (icmt) family
23	 67.15	0	26212..26829	-	205	188574293	-	PXO_03461	-	transcriptional regulator
24	 67.42	0	27070..27201	-	43	188574294	-	PXO_03459	-	transcriptional regulator
25	 64.04	0	27546..28763	+	405	188574295	-	PXO_03458	-	trans-2-enoyl-CoA reductase
26	 58.77	-1	28787..28900	-	37	188574296	-	PXO_03457	-	hypothetical protein
27	 60.38	0	29030..29188	-	52	188574297	-	PXO_03456	-	hypothetical protein
28	 67.55	+1	29384..30406	-	340	188574298	-	PXO_03455	-	2-keto-3-deoxygluconate kinase
29	 65.02	0	30732..30974	+	80	188574299	-	PXO_03454	-	TonB-dependent receptor
30	 58.70	-1	32636..33112	+	158	188574300	-	PXO_03450	-	transposase (IS4 family)
31	 60.48	0	34518..34727	-	69	188574301	-	PXO_03449	-	transposase
32	 64.86	0	34958..35620	-	220	188574302	-	PXO_03448	-	hypothetical protein
33	 68.81	+1	35774..36568	-	264	188574303	lasA	PXO_03447	-	LasA
34	 63.25	0	36546..36662	-	38	188574304	-	PXO_03446	-	hypothetical protein
35	 65.23	0	36724..37209	+	161	188574305	-	PXO_03445	-	hypothetical protein
36	 62.33	0	37568..38212	-	214	188574306	-	PXO_03444	-	proline-betaine transporter
37	 64.58	0	38213..38788	-	191	188574307	-	PXO_03443	-	proline/betaine transporter
38	 61.52	0	39435..40523	-	362	188574308	-	PXO_03442	-	ISXo2 putative transposase
39	 65.57	0	40591..40863	-	90	188574309	-	PXO_03441	-	thioredoxin
40	 63.16	0	40884..41282	-	132	188574310	atsE	PXO_03440	-	AtsE
41	 67.24	0	41374..42066	-	230	188574311	-	PXO_03439	-	hypothetical protein
42	 69.33	+1	42236..42685	-	149	188574312	mutT	PXO_03438	-	MutT-nudix family protein
43	 63.84	0	42822..42998	+	58	188574313	-	PXO_03437	-	hypothetical protein
44	 64.10	0	43461..44084	+	207	188574314	-	PXO_03436	-	neutral protease A
45	 66.67	0	44057..44176	+	39	188574315	-	PXO_03435	-	hypothetical protein
46	 67.10	0	44254..44484	+	76	188574316	-	PXO_03434	-	hypothetical protein
47	 59.70	-1	44739..45686	-	315	188574317	-	PXO_03433	-	ISXoo15 transposase
48	 63.61	0	45827..46873	-	348	188574318	-	PXO_03432	-	ISXoo2 transposase
49	 58.62	-1	47120..47293	+	57	188574319	-	PXO_03431	-	hypothetical protein
50	 61.30	0	47346..47606	+	86	188574320	-	PXO_03430	-	hypothetical protein
51	 62.90	0	47698..47883	+	61	188574321	-	PXO_03429	-	putative secreted protein
52	 61.89	0	47997..48959	-	320	188574322	-	PXO_03428	-	ISXoo6 transposase
53	 62.91	0	49028..49453	+	141	188574323	-	PXO_03427	-	hypothetical protein
54	 68.36	+1	49654..50541	+	295	188574324	-	PXO_03426	-	cell division inhibitor
55	 60.83	0	51290..51409	-	39	188574325	-	PXO_05414	-	hypothetical protein
56	 62.79	0	51624..52475	-	283	188574326	-	PXO_03425	-	histone H1
57	 65.48	0	52717..54153	+	478	188574327	-	PXO_03424	-	protease do
58	 66.94	0	54270..54632	+	120	188574328	-	PXO_03423	-	hypothetical protein
59	 65.23	0	54636..55121	+	161	188574329	-	PXO_03422	-	hypothetical protein
60	 63.27	0	55208..55501	+	97	188574330	-	PXO_03421	-	hypothetical protein
61	 63.05	0	56059..57495	-	478	188574331	hpaF	PXO_03420	-	HpaF leucine rich hrp associated protein
62	 54.35	-2	58067..58204	-	45	188574332	-	PXO_03419	-	hypothetical protein
63	 59.83	-1	58413..58529	-	38	188574333	-	PXO_03418	-	hypothetical protein
64	 59.07	-1	58563..60971	-	802	188574334	hrpF	PXO_03417	-	HrpF/NolX/HrpK
65	 52.73	-2	61493..61657	+	54	188574335	-	PXO_03416	-	transposase
66	 63.61	0	61663..62874	+	403	188574336	isXo8	PXO_03415	-	ISXo8 transposase
67	 64.17	0	63109..63549	+	146	188574337	hpa3	PXO_03414	-	Hpa3
68	 62.73	0	63828..65531	+	567	188574338	xopF1	PXO_03413	-	XopF1 effector
69	 55.73	-2	65947..66138	-	63	188574339	hpaB	PXO_03412	-	HpaB
70	 54.09	-2	66472..66630	-	52	188574340	hrpE	PXO_03411	-	HrpE type III pilin
71	 60.49	0	66834..67076	-	80	188574341	hrpD6	PXO_03410	-	HrpD6
72	 64.16	0	67086..67844	-	252	188574342	-	PXO_03409	-	HrpD5
73	 63.41	0	68021..68848	-	275	188574343	hpaA	PXO_03408	-	HpaA
74	 65.20	0	68845..69048	-	67	188574344	hrcS	PXO_03407	-	HrcS
75	 58.76	-1	69110..69754	-	214	188574345	epaP	PXO_03406	-	type III secretion apparatus protein, YscR/HrcR family
76	 63.02	0	69741..70562	-	273	188574346	hrpD1	PXO_03405	-	type III secretion apparatus protein, YscQ/HrcQ family
77	 62.25	0	70919..71167	+	82	188574347	-	PXO_03404	-	hypothetical protein
78	 61.74	0	71428..73314	-	628	188574348	hrcV	PXO_03403	-	HrcV
79	 59.07	-1	73359..74438	-	359	188574349	hrcU	PXO_03402	-	HrcU
80	 63.15	0	74683..75108	+	141	188574350	-	PXO_03401	-	type III secretion protein HrpB1/HrpK
81	 61.07	0	75142..75534	+	130	188574351	-	PXO_03400	-	type III secretion protein HrpB2
82	 61.40	0	75557..76297	+	246	188574352	-	PXO_03399	-	type III secretion apparatus lipoprotein, YscJ/HrcJ family
83	 67.71	+1	76362..76934	+	190	188574353	-	PXO_03398	-	type III secretion protein HrpB4
84	 68.80	+1	76919..77620	+	233	188574354	-	PXO_03397	-	type III secretion apparatus protein, HrpE/YscL family
85	 65.46	0	77610..78938	+	442	188574355	-	PXO_03396	-	type III secretion apparatus H+-transporting two-sector ATPase
86	 65.69	0	78931..79440	+	169	188574356	-	PXO_03395	-	type III secretion protein HrpB7
87	 64.00	0	78966..79115	-	49	188574357	-	PXO_05802	-	hypothetical protein
88	 61.49	0	79437..80267	+	276	188574358	epaR	PXO_03394	-	type III secretion apparatus protein SpaR/YscT/HrcT
89	 62.50	0	80392..82167	+	591	188574359	hrpA1	PXO_03393	-	HrpA type III secretion outer membrane pore, YscC/HrcC family
90	 60.24	0	82906..83325	-	139	188574360	hpa1	PXO_03392	-	Hpa1
91	 59.02	-1	83705..83887	-	60	188574361	-	PXO_05803	-	hypothetical protein
92	 53.52	-2	83938..84264	+	108	188574362	hpa2	PXO_03391	-	Hpa2
93	 61.64	0	84728..85642	-	304	188574363	-	PXO_03390	-	hypothetical protein
94	 62.50	0	85667..85882	+	71	188574364	-	PXO_03389	-	hypothetical protein
95	 63.84	0	86278..86454	-	58	188574365	-	PXO_05417	-	hypothetical protein
96	 64.10	0	87379..87612	-	77	188574366	-	PXO_03388	-	ISXoo2 transposase
97	 66.27	0	87649..88146	-	165	188574367	-	PXO_03387	-	transposase
98	 63.29	0	88146..88352	-	68	188574368	-	PXO_03386	-	putative transposase
99	 66.37	0	88496..88837	-	113	188574369	-	PXO_03385	-	hypothetical protein
100	 64.10	0	89169..91580	+	803	188574370	-	PXO_03384	-	small-conductance mechanosensitive channel
63.70	MEAN

3.77	STD DEV
