IslandPath Analysis: Xanthomonas oryzae pv. oryzae MAFF 311018

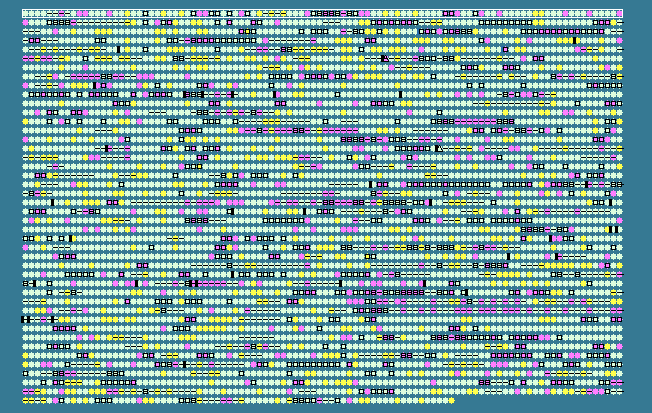

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 63.74   STD DEV: 3.69
Xanthomonas oryzae pv. oryzae MAFF 311018, complete genome - 1..4940217
4372 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 64.64	0	41..1369	+	442	84621658	dnaA	XOO_0001	-	chromosomal replication initiation protein
2	 61.76	0	1647..2747	+	366	84621659	-	XOO_0002	-	DNA polymerase III subunit beta
3	 64.00	0	3999..5087	+	362	84621660	recF	XOO_0003	-	recombination protein F
4	 64.34	0	5219..7663	+	814	84621661	gyrB	XOO_0004	-	DNA gyrase subunit B
5	 65.71	0	7731..8567	+	278	84621662	-	XOO_0005	-	hypothetical protein
6	 64.06	0	8754..9560	+	268	84621663	-	XOO_0006	-	hypothetical protein
7	 59.80	-1	9837..11030	+	397	84621664	-	XOO_0007	-	hypothetical protein
8	 63.84	0	11184..11855	+	223	84621665	-	XOO_0008	-	tonB protein
9	 64.30	0	11940..12701	+	253	84621666	-	XOO_0009	-	biopolymer transport ExbB protein
10	 59.34	-1	12748..13170	+	140	84621667	-	XOO_0010	-	biopolymer transport ExbD1 protein
11	 59.66	-1	13174..13587	+	137	84621668	-	XOO_0011	-	biopolymer transport ExbD2 protein
12	 64.97	0	13883..14650	-	255	84621669	-	XOO_0012	-	pyridoxal phosphate biosynthetic protein PdxJ
13	 66.03	0	14661..14972	-	103	84621670	-	XOO_0013	-	hypothetical protein
14	 66.67	0	15005..16465	-	486	84621671	-	XOO_0014	-	cardiolipin synthetase
15	 57.58	-1	16475..16870	-	131	84621672	-	XOO_0015	-	hypothetical protein
16	 65.08	0	17112..18122	-	336	84621673	-	XOO_0016	-	fructose-1,6-bisphosphatase
17	 65.50	0	18394..19596	-	400	84621674	-	XOO_0017	-	aromatic amino acid aminotransferase
18	 68.12	+1	19738..21876	+	712	84621675	-	XOO_0018	-	iron transporter
19	 66.21	0	21940..22380	+	146	84621676	-	XOO_0019	-	hypothetical protein
20	 66.30	0	22497..23042	+	181	84621677	-	XOO_0020	-	hypothetical protein
21	 62.28	0	23156..24136	-	326	84621678	-	XOO_0021	-	ISXoo7 transposase
22	 66.84	0	24184..25350	-	388	84621679	lldD	XOO_0022	-	L-lactate dehydrogenase
23	 66.31	0	25497..26063	-	188	84621680	-	XOO_0023	-	hypothetical protein
24	 67.94	+1	26207..26911	-	234	84621681	-	XOO_0024	-	hypothetical protein
25	 66.08	0	27062..27400	-	112	84621682	-	XOO_0025	-	hypotethical protein
26	 63.85	0	27538..28746	+	402	84621683	-	XOO_0026	-	trans-2-enoyl-CoA reductase
27	 67.84	+1	29374..30396	-	340	84621684	-	XOO_0027	-	2-keto-3-deoxygluconate kinase
28	 63.48	0	30683..30964	+	93	84621685	-	XOO_0028	-	hypothetical protein
29	 61.30	0	31219..32187	+	322	84621686	-	XOO_0029	-	ISXo1 transposase
30	 49.43	-2	32675..33811	+	378	84621687	-	XOO_0030	-	hypothetical protein
31	 50.48	-2	33793..34515	+	240	84621688	-	XOO_0031	-	ATP-binding protein of ABC transporter
32	 62.75	0	35117..36493	-	458	84621689	-	XOO_0032	-	ISXoo4 transposase
33	 64.82	0	36450..37697	-	415	84621690	-	XOO_0033	-	ISXoo5 transposase
34	 65.53	0	37823..38086	+	87	84621691	-	XOO_0034	-	hypothetical protein
35	 63.11	0	38132..38947	+	271	84621692	-	XOO_0035	-	ISXo5 transposase
36	 64.43	0	39096..39452	+	118	84621693	-	XOO_0036	-	hypothetical protein
37	 53.50	-2	39690..40304	-	204	84621694	-	XOO_0037	-	hypothetical protein
38	 62.08	0	40479..41459	-	326	84621695	-	XOO_0038	-	ISXoo7 transposase
39	 63.89	0	41819..42070	+	83	84621696	-	XOO_0039	-	hypothetical protein
40	 68.76	+1	42078..43367	+	429	84621697	-	XOO_0040	-	ATP-dependent RNA helicase
41	 62.80	0	43807..44142	-	111	84621698	-	XOO_0041	-	hypothetical protein
42	 67.39	0	44269..44406	-	45	84621699	-	XOO_0042	-	hypothetical protein
43	 61.81	0	44417..44848	-	143	84621700	-	XOO_0043	-	VirK protein
44	 68.55	+1	45197..46633	-	478	84621701	-	XOO_0044	-	hypothetical protein
45	 65.57	0	46712..47260	-	182	84621702	-	XOO_0045	-	hypothetical protein
46	 60.61	0	47426..47722	-	98	84621703	-	XOO_0046	-	hypothetical protein
47	 67.05	0	47924..48184	-	86	84621704	-	XOO_0047	-	hypothetical protein
48	 54.80	-2	48201..48596	-	131	84621705	-	XOO_0048	-	hypothetical protein
49	 63.48	0	49351..50574	-	407	84621706	-	XOO_0049	-	ISXoo8 transposase
50	 61.74	0	50590..51015	-	141	84621707	-	XOO_0050	-	ISXo8 transposase
51	 58.54	-1	51086..51442	+	118	84621708	-	XOO_0051	-	ISXo3 transposase orfA
52	 58.91	-1	51408..51884	+	158	84621709	-	XOO_0052	-	ISXo3 transposase orfB
53	 61.73	0	51871..52701	-	276	84621710	-	XOO_0053	-	ISXo8 transposase
54	 55.35	-2	52689..53501	-	270	84621711	-	XOO_0054	-	hypothetical protein
55	 63.06	0	53566..54564	+	332	84621712	-	XOO_0055	-	ISXo5 transposase
56	 62.95	0	54983..56302	+	439	84621713	-	XOO_0056	-	ISXo8 transposase
57	 55.59	-2	56420..57466	+	348	84621714	-	XOO_0057	-	methylamine utilization protein precursor
58	 56.02	-2	57607..58104	-	165	84621715	-	XOO_0058	-	hypothetical protein
59	 65.35	0	58268..58948	-	226	84621716	-	XOO_0059	-	hypothetical protein
60	 63.62	0	58917..61079	-	720	84621717	-	XOO_0060	-	glycogen debranching enzyme
61	 68.82	+1	61194..61379	-	61	84621718	-	XOO_0061	-	hypothetical protein
62	 66.97	0	61402..64005	-	867	84621719	-	XOO_0062	-	maltooligosyltrehalose synthase
63	 67.74	+1	64002..65951	-	649	84621720	-	XOO_0063	-	4-alpha-glucanotransferase
64	 65.76	0	65948..67705	-	585	84621721	-	XOO_0064	-	maltooligosyltrehalose trehalohydrolase
65	 66.98	0	67708..69942	-	744	84621722	-	XOO_0065	-	glycogen branching enzyme
66	 67.45	+1	69939..71468	-	509	84621723	glgA	XOO_0066	-	glycogen synthase
67	 66.91	0	71996..73624	+	542	84621724	-	XOO_0067	-	hypothetical protein
68	 63.00	0	73621..74985	-	454	84621725	-	XOO_0068	-	hypothetical protein
69	 65.71	0	75178..76119	-	313	84621726	-	XOO_0069	-	hypothetical protein
70	 64.12	0	76360..78084	+	574	84621727	-	XOO_0070	-	ABC transporter substrate binding protein
71	 56.49	-1	78091..78375	-	94	84621728	-	XOO_0071	-	ISXoo11 transposase
72	 54.81	-2	78435..78881	-	148	84621729	-	XOO_0072	-	ISXoo12 transposase
73	 59.39	-1	78914..79174	+	86	84621730	-	XOO_0073	-	hypothetical protein
74	 64.07	0	79193..81658	-	821	84621731	-	XOO_0074	-	hypothetical protein
75	 66.37	0	81936..82277	+	113	84621732	-	XOO_0075	-	hypothetical protein
76	 64.71	0	82627..83394	+	255	84621733	-	XOO_0076	-	ISXoo2 transposase
77	 60.15	0	83720..83980	-	86	84621734	-	XOO_0077	-	hypothetical protein
78	 63.64	0	84159..84422	-	87	84621735	-	XOO_0078	-	hypothetical protein
79	 62.06	0	85028..86047	+	339	84621736	-	XOO_0079	-	hypothetical protein
80	 55.70	-2	86511..86984	-	157	84621737	-	XOO_0080	-	Hpa2-like protein
81	 60.48	0	87450..87869	+	139	84621738	-	XOO_0081	-	Hpa1-like protein
82	 62.54	0	88608..90425	-	605	84621739	-	XOO_0082	-	HrcC protein
83	 61.49	0	90508..91338	-	276	84621740	-	XOO_0083	-	HrcT protein
84	 65.69	0	91335..91844	-	169	84621741	-	XOO_0084	-	HrpB7 protein
85	 65.54	0	91837..93165	-	442	84621742	-	XOO_0085	-	type III secretion system ATPase
86	 68.80	+1	93155..93856	-	233	84621743	-	XOO_0086	-	type III secretion system protein HrpB
87	 67.46	+1	93841..94470	-	209	84621744	-	XOO_0087	-	HrpB4 protein
88	 61.42	0	94478..95239	-	253	84621745	-	XOO_0088	-	HrcJ protein
89	 61.07	0	95241..95633	-	130	84621746	-	XOO_0089	-	HrpB2 protein
90	 62.72	0	95667..96122	-	151	84621747	-	XOO_0090	-	HrpB1 protein
91	 58.89	-1	96337..97416	+	359	84621748	-	XOO_0091	-	type III secretion system protein HrcU
92	 61.61	0	97410..99347	+	645	84621749	-	XOO_0092	-	HrcV protein
93	 63.92	0	99371..99988	+	205	84621750	-	XOO_0093	-	HpaP protein
94	 63.39	0	100120..101034	+	304	84621751	-	XOO_0094	-	HrcQ protein
95	 58.76	-1	101021..101665	+	214	84621752	-	XOO_0095	-	type III secretion system protein
96	 62.45	0	101670..101930	+	86	84621753	-	XOO_0096	-	HrcS protein
97	 63.41	0	101927..102754	+	275	84621754	-	XOO_0097	-	HpaA protein
98	 62.41	0	102751..103689	+	312	84621755	-	XOO_0098	-	HrpD5 protein
99	 60.49	0	103699..103941	+	80	84621756	-	XOO_0099	-	HrpD6 protein
100	 53.19	-2	104022..104303	+	93	84621757	-	XOO_0100	-	HrpE1 protein
63.74	MEAN

3.69	STD DEV
