IslandPath Analysis: Xanthomonas campestris pv. campestris str. B100

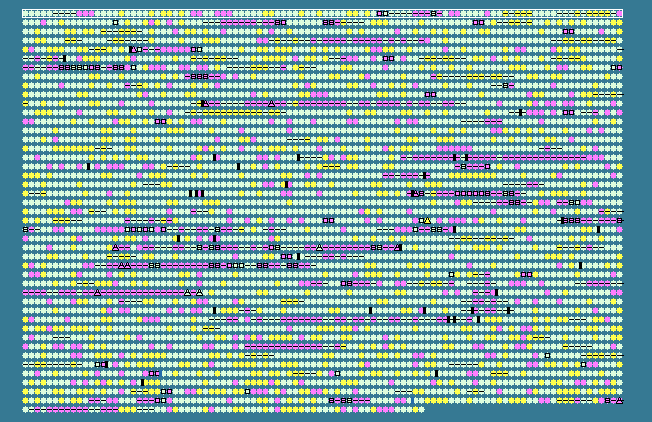

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 64.83   STD DEV: 4.61
Xanthomonas campestris pv. campestris, complete genome - 1..5079002
4467 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 65.91	0	1..1329	+	442	188989397	dnaA	xccb100_0001	-	chromosomal replication initiator protein
2	 64.49	0	1605..2705	+	366	188989398	dnaN	xccb100_0002	-	DNA polymerase III beta chain
3	 65.58	0	3543..4736	+	397	188989399	-	xccb100_0003	-	DNA replication and repair protein
4	 64.99	0	4831..7275	+	814	188989400	gyrB	xccb100_0004	-	DNA gyrase subunit B
5	 67.86	0	7343..8179	+	278	188989401	-	xccb100_0005	-	putative membrane protease
6	 66.17	0	8242..9048	+	268	188989402	-	xccb100_0006	-	putative exported peptidase/protease
7	 63.16	0	9187..10383	+	398	188989403	-	xccb100_0007	-	hypothetical protein
8	 63.84	0	10537..11208	+	223	188989404	tonB1	xccb100_0008	-	macromolecule import protein
9	 64.17	0	11294..12055	+	253	188989405	exbB1	xccb100_0009	-	macromolecule import protein
10	 60.28	0	12102..12524	+	140	188989406	exbD1	xccb100_0010	-	macromolecule import protein
11	 61.31	0	12528..12938	+	136	188989407	exbD2	xccb100_0011	-	macromolecule import protein
12	 53.09	-2	13553..13876	+	107	188989408	-	xccb100_0012	-	hypothetical protein
13	 62.04	0	14129..14539	+	136	188989409	exbD3	xccb100_0013	-	macromolecule import protein
14	 67.32	0	14617..15387	-	256	188989410	pdxJ	xccb100_0014	-	pyridoxal phosphate biosynthetic protein
15	 67.78	0	15395..15664	-	89	188989411	-	xccb100_0015	-	hypothetical protein
16	 66.74	0	15739..17199	-	486	188989412	cls1	xccb100_0016	-	cardiolipin synthase family enzyme
17	 68.86	0	17484..18578	+	364	188989413	-	xccb100_0017	-	hypothetical protein
18	 65.41	0	18673..19386	-	237	188989414	-	xccb100_0018	-	hypothetical protein
19	 66.08	0	20015..21367	-	450	188989415	fadL	xccb100_0019	-	outer membrane fatty acid porin
20	 67.82	0	21587..22279	+	230	188989416	-	xccb100_0020	-	rhomboid family membrane protein
21	 61.37	0	22308..22628	+	106	188989417	-	xccb100_0021	-	hypothetical protein
22	 69.60	+1	22628..23614	+	328	188989418	serA2	xccb100_0022	-	phosphoglycerate dehydrogenase
23	 61.75	0	23854..24036	+	60	188989419	-	xccb100_0023	-	hypothetical protein
24	 68.62	0	24570..26057	-	495	188989420	ctp	xccb100_0024	-	periplasmic carboxyl-terminal protease
25	 68.70	0	26458..27687	-	409	188989421	-	xccb100_0025	-	hypothetical protein
26	 65.14	0	27846..28502	+	218	188989422	-	xccb100_0026	-	hypothetical protein
27	 68.68	0	28560..30344	+	594	188989423	-	xccb100_0027	-	putative exported peptidase
28	 61.57	0	30723..31154	-	143	188989424	-	xccb100_0028	-	putative exported peptidase
29	 60.00	-1	31588..32637	-	349	188989425	egl1	xccb100_0029	-	exported cellulase
30	 61.06	0	33046..34098	-	350	188989426	egl2	xccb100_0030	-	exported cellulase
31	 63.38	0	34729..35793	-	354	188989427	egl3	xccb100_0031	-	exported cellulase
32	 64.21	0	36107..37165	+	352	188989428	mtdH	xccb100_0032	-	mannitol dehydrogenase
33	 44.62	-2	37409..37780	-	123	188989429	-	xccb100_0033	-	hypothetical peptidase-like protein
34	 42.37	-2	37933..38109	-	58	188989430	-	xccb100_0034	-	hypothetical protein
35	 50.49	-2	38146..38652	-	168	188989431	-	xccb100_0035	-	hypothetical protein
36	 68.22	0	38697..40178	-	493	188989432	gltD	xccb100_0036	-	glutamate synthase (NADPH), beta subunit
37	 67.18	0	40300..44772	-	1490	188989433	gltB	xccb100_0037	-	glutamate synthase (NADPH), alpha subunit
38	 66.40	0	44975..45355	-	126	188989434	-	xccb100_0038	-	hypothetical protein
39	 66.74	0	45436..46767	+	443	188989435	-	xccb100_0039	-	putative DNA topoisomerase
40	 63.04	0	46883..47461	-	192	188989436	-	xccb100_0040	-	methyltransferase
41	 70.72	+1	48386..48730	-	114	188989437	-	xccb100_0041	-	hypothetical protein
42	 71.49	+1	49270..50160	+	296	188989438	-	xccb100_0042	-	pirin-like protein
43	 67.08	0	50379..51098	+	239	188989439	-	xccb100_0043	-	putative acyl carrier protein phosphodiesterase
44	 67.77	0	51443..52345	-	300	188989440	-	xccb100_0044	-	transcriptional regulator, LysR family
45	 68.30	0	52636..52941	-	101	188989441	-	xccb100_0045	-	hypothetical protein
46	 67.26	0	52938..53615	-	225	188989442	-	xccb100_0046	-	chaperone-like protein
47	 68.35	0	53750..54640	+	296	188989443	-	xccb100_0047	-	transcriptional regulator, LysR family
48	 64.21	0	54678..55247	-	189	188989444	-	xccb100_0048	-	putative transcriptional regulator, TetR family
49	 67.18	0	55508..55894	+	128	188989445	-	xccb100_0049	-	transcriptional regulator, penicillinase repressor family
50	 69.54	+1	55898..57601	+	567	188989446	-	xccb100_0050	-	membrane anchored putative peptidase
51	 68.31	0	58128..58979	+	283	188989447	-	xccb100_0051	-	hypothetical protein
52	 67.92	0	59221..59697	+	158	188989448	-	xccb100_0052	-	hypothetical protein
53	 67.43	0	59691..60347	+	218	188989449	-	xccb100_0053	-	hypothetical protein
54	 67.30	0	60766..61554	-	262	188989450	-	xccb100_0054	-	exported protein phosphoesterase
55	 68.67	0	61565..64258	-	897	188989451	-	xccb100_0055	-	exported TonB-dependent receptor
56	 70.38	+1	64334..65491	+	385	188989452	xylR	xccb100_0056	-	xylose repressor-like protein
57	 67.78	0	65630..67786	+	718	188989453	avrBs2	xccb100_0057	-	avirulence protein
58	 70.76	+1	67971..69461	-	496	188989454	-	xccb100_0058	-	hypothetical protein
59	 66.67	0	69458..71977	-	839	188989455	-	xccb100_0059	-	putative ATP-dependent helicase
60	 58.80	-1	72924..73190	+	88	188989456	-	xccb100_0060	-	IS1477 transposase ORFA
61	 62.83	0	73223..74056	+	277	188989457	-	xccb100_0061	-	IS1477 transposase ORFB
62	 68.23	0	74796..75497	+	233	188989458	-	xccb100_0062	-	Hemolysin-III family membrane protein
63	 62.50	0	75564..75875	-	103	188989459	-	xccb100_0063	-	hypothetical protein
64	 62.80	0	76049..76255	-	68	188989460	-	xccb100_0064	-	hypothetical protein
65	 63.89	0	76581..77048	-	155	188989461	-	xccb100_0065	-	hypothetical protein
66	 61.11	0	77017..77268	-	83	188989462	-	xccb100_0066	-	hypothetical protein
67	 41.30	-2	78492..79508	+	338	188989463	-	xccb100_0067	-	hypothetical protein
68	 39.58	-2	79508..80131	+	207	188989464	-	xccb100_0068	-	hypothetical protein
69	 62.30	0	80213..81427	-	404	188989465	-	xccb100_0069	-	IS1481 transposase
70	 52.87	-2	81495..81668	-	57	188989466	-	xccb100_0070	-	hypothetical protein
71	 65.08	0	81681..82058	-	125	188989467	-	xccb100_0071	-	hypothetical protein
72	 58.71	-1	82236..83642	-	468	188989468	-	xccb100_0072	-	hypothetical protein
73	 58.54	-1	83681..84295	-	204	188989469	-	xccb100_0073	-	hypothetical protein
74	 65.32	0	84458..84679	-	73	188989470	-	xccb100_0074	-	hypothetical protein
75	 64.58	0	85079..85318	-	79	188989471	-	xccb100_0075	-	hypothetical protein
76	 63.64	0	85324..85422	-	32	188989472	-	xccb100_0076	-	hypothetical protein
77	 66.80	0	85470..86231	+	253	188989473	-	xccb100_0077	-	putative deaminase
78	 61.23	0	86629..86904	-	91	188989474	-	xccb100_0078	-	hypothetical protein
79	 65.15	0	86952..87149	-	65	188989475	-	xccb100_0079	-	transcriptional regulator, LuxR family
80	 63.21	0	87660..88613	+	317	188989476	-	xccb100_0080	-	hypothetical protein
81	 73.14	+1	88757..89884	-	375	188989477	-	xccb100_0081	-	hypothetical protein
82	 66.89	0	90042..90482	+	146	188989478	-	xccb100_0082	-	hypothetical protein
83	 68.59	0	91366..91677	-	103	188989479	-	xccb100_0083	-	hypothetical protein
84	 69.01	0	91674..92738	-	354	188989480	-	xccb100_0084	-	Zinc metalloprotease
85	 70.02	+1	92850..93506	-	218	188989481	-	xccb100_0085	-	hypothetical protein
86	 67.82	0	93739..94173	+	144	188989482	-	xccb100_0086	-	hypothetical protein
87	 67.44	0	94662..95702	+	346	188989483	-	xccb100_0087	-	hypothetical protein
88	 68.07	0	95894..97036	+	380	188989484	aes	xccb100_0088	-	exported acetyl esterase
89	 63.91	0	97143..97541	+	132	188989485	-	xccb100_0089	-	hypothetical protein
90	 66.07	0	97557..97889	+	110	188989486	-	xccb100_0090	-	putative thioredoxin
91	 65.39	0	98708..100198	+	496	188989487	proP1	xccb100_0091	-	osmo-regulated MFS family proline/glycine-betaine
92	 67.97	0	100214..100672	-	152	188989488	-	xccb100_0092	-	hypothetical protein
93	 69.90	+1	100772..101638	+	288	188989489	-	xccb100_0093	-	hypothetical protein
94	 66.32	0	101613..102473	+	286	188989490	-	xccb100_0094	-	hypothetical protein
95	 74.90	+2	102552..104324	-	590	188989491	-	xccb100_0095	-	membrane-anchored conserved hypothetical protein
96	 74.26	+2	104473..106737	-	754	188989492	-	xccb100_0096	-	membrane-anchored conserved hypothetical protein
97	 75.04	+2	106734..107915	-	393	188989493	-	xccb100_0097	-	membrane-anchored conserved hypothetical protein
98	 73.24	+1	108073..108969	-	298	188989494	-	xccb100_0098	-	hypothetical protein
99	 67.63	0	108983..110125	-	380	188989495	-	xccb100_0099	-	MoxR-like ATPase
100	 60.65	0	110285..111082	-	265	188989496	-	xccb100_0100	-	hypothetical protein
64.83	MEAN

4.61	STD DEV
