IslandPath Analysis: Xanthomonas campestris pv. vesicatoria str. 85-10

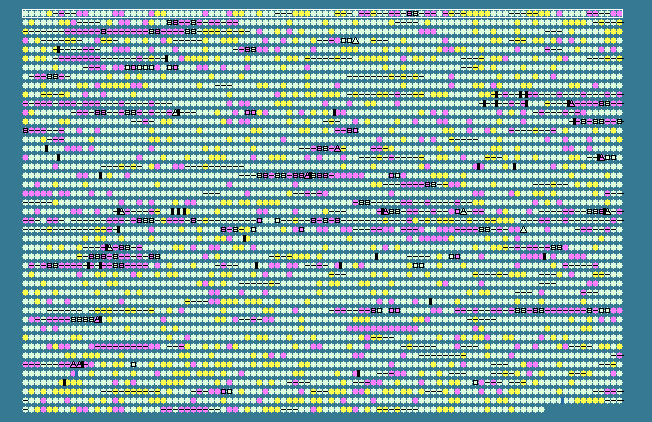

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 64.66   STD DEV: 3.90
Xanthomonas campestris pv. vesicatoria str. 85-10, complete genome - 1..5178466
4487 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 66.29	0	1..1329	+	442	78045557	dnaA	XCV0001	-	chromosomal replication initiation protein
2	 63.22	0	1606..2706	+	366	78045558	dnaN	XCV0002	-	DNA polymerase III subunit beta
3	 66.49	0	3750..4856	+	368	78045559	recF	XCV0003	-	recombination protein F
4	 64.91	0	4917..7415	+	832	78045560	gyrB	XCV0004	-	DNA gyrase subunit B
5	 69.53	+1	7484..8320	+	278	78045561	-	XCV0005	-	putative membrane protease
6	 63.93	0	8504..9271	+	255	78045562	-	XCV0006	-	putative peptidase precursor
7	 60.39	-1	9588..10781	+	397	78045563	-	XCV0007	-	putative secreted protein
8	 64.43	0	10935..11606	+	223	78045564	tonB1	XCV0008	-	energy transducer TonB protein
9	 64.57	0	11692..12453	+	253	78045565	exbB1	XCV0009	-	biopolymer transport ExbB protein
10	 60.05	-1	12500..12922	+	140	78045566	exbD1	XCV0010	-	biopolymer transport ExbD protein
11	 59.66	-1	12926..13339	+	137	78045567	exbD2	XCV0011	-	biopolymer transport ExbD protein
12	 61.52	0	13586..13993	+	135	78045568	exbD3	XCV0012	-	biopolymer transport ExbD protein
13	 67.71	0	14248..15015	-	255	78045569	pdxJ	XCV0013	-	pyridoxal phosphate biosynthetic protein PdxJ
14	 67.78	0	15023..15292	-	89	78045570	-	XCV0014	-	hypothetical protein
15	 66.67	0	15368..16828	-	486	78045571	cls	XCV0015	-	cardiolipin synthetase
16	 54.15	-2	17004..17930	+	308	78045572	-	XCV0016	-	putative secreted protein
17	 55.84	-2	17930..18520	+	196	78045573	-	XCV0017	-	hypothetical protein
18	 65.78	0	18729..19856	-	375	78045574	-	XCV0018	-	hypothetical protein
19	 63.59	0	20064..20777	-	237	78045575	-	XCV0019	-	hypothetical protein
20	 67.11	0	21039..22379	-	446	78045576	fadL	XCV0020	-	FadL family outer membrane protein
21	 67.24	0	22597..23289	+	230	78045577	-	XCV0021	-	rhomboid family membrane protein
22	 59.56	-1	23353..23718	+	121	78045578	-	XCV0022	-	hypothetical protein
23	 69.99	+1	23718..24710	+	330	78045579	serA	XCV0023	-	D-3-phosphoglycerate dehydrogenase
24	 68.24	0	24877..26406	-	509	78045580	ctp	XCV0024	-	periplasmic carboxyl-terminal protease
25	 67.56	0	26511..27746	-	411	78045581	-	XCV0025	-	putative peptidase
26	 65.14	0	27907..28563	+	218	78045582	-	XCV0026	-	putative secreted protein
27	 67.67	0	28725..30521	+	598	78045583	-	XCV0027	-	putative peptidase precursor
28	 63.29	0	30846..31289	-	147	78045584	-	XCV0028	-	putative secreted protein
29	 62.43	0	31584..32717	-	377	78045585	egl1	XCV0029	-	cellulase precursor
30	 62.85	0	32993..33280	-	95	78045586	-	XCV0030	-	putative secreted protein
31	 60.87	0	33347..34399	-	350	78045587	egl2	XCV0031	-	cellulase precursor
32	 61.97	0	34633..34866	-	77	78045588	-	XCV0032	-	hypothetical protein
33	 62.48	0	35167..36240	-	357	78045589	egl3	XCV0033	-	cellulase precursor
34	 64.78	0	36551..37609	+	352	78045590	-	XCV0034	-	Zinc-containing alcohol dehydrogenase superfamily protein
35	 51.70	-2	38332..38772	-	146	78045591	-	XCV0035	-	hypothetical protein
36	 68.29	0	38809..40290	-	493	78045592	gltD	XCV0036	-	glutamate synthase subunit beta
37	 68.19	0	40419..44891	-	1490	78045593	gltB	XCV0037	-	glutamate synthase subunit alpha
38	 64.83	0	45094..45474	-	126	78045594	-	XCV0038	-	putative secreted protein
39	 65.96	0	45531..46808	+	425	78045595	-	XCV0039	-	putative DNA topoisomerase I
40	 69.57	+1	47025..47369	-	114	78045596	-	XCV0040	-	putative secreted protein
41	 64.11	0	47618..48985	+	455	78045597	-	XCV0041	-	putative penicillin amidase (fragment)
42	 64.49	0	48913..50016	+	367	78045598	-	XCV0042	-	putative penicillin amidase (fragment)
43	 65.75	0	50096..50965	-	289	78045599	-	XCV0043	-	putative secreted protein
44	 66.78	0	51118..52005	+	295	78045600	-	XCV0044	-	LysR family transcriptional regulator
45	 67.18	0	52209..52595	+	128	78045601	-	XCV0045	-	putative penicillinase repressor family protein
46	 69.71	+1	52599..54338	+	579	78045602	-	XCV0046	-	BlaR1 peptidase M56 family protein
47	 68.29	0	55019..56068	+	349	78045603	-	XCV0047	-	putative secreted protein
48	 69.76	+1	56156..57286	+	376	78045604	-	XCV0048	-	putative secreted protein
49	 64.38	0	57425..58210	-	261	78045605	-	XCV0049	-	putative secreted protein
50	 67.72	0	58221..60878	-	885	78045606	-	XCV0050	-	TonB-dependent outer membrane receptor
51	 66.82	0	60846..62138	+	430	78045607	-	XCV0051	-	ROK family transcriptional regulator
52	 63.59	0	62327..64471	+	714	78045608	avrBs2	XCV0052	-	avirulence protein AvrBs2
53	 68.33	0	64604..64843	+	79	78045609	-	XCV0053	-	hypothetical protein
54	 68.85	+1	64955..66418	-	487	78045610	-	XCV0054	-	hypothetical protein
55	 66.11	0	66415..68910	-	831	78045611	-	XCV0055	-	putative helicase
56	 66.82	0	69088..69750	+	220	78045612	-	XCV0056	-	hemolysin-III family membrane protein
57	 59.30	-1	69816..70073	+	85	78045613	-	XCV0057	-	hypothetical protein
58	 60.28	-1	70082..70363	+	93	78045614	-	XCV0058	-	hypothetical protein
59	 68.89	+1	70546..71445	-	299	78045615	-	XCV0059	-	short chain oxidoreductase precursor
60	 66.26	0	71505..72242	-	245	78045616	-	XCV0060	-	short chain dehydrogenase
61	 62.61	0	72385..72729	+	114	78045617	-	XCV0061	-	LysR family transcriptional regulator
62	 41.12	-2	73438..75003	+	521	78045618	-	XCV0062	-	putative ATP-binding protein
63	 44.31	-2	75934..76689	-	251	78045619	-	XCV0063	-	putative protein kinase
64	 63.11	0	76728..77177	-	149	78045620	-	XCV0064	-	putative secreted protein
65	 58.80	-1	77406..77672	+	88	78045621	-	XCV0065	-	IS1477 transposase
66	 62.95	0	77705..78538	+	277	78045622	-	XCV0066	-	IS1477 transposase
67	 65.08	0	78565..78753	-	62	78045623	-	XCV0067	-	hypothetical protein
68	 56.33	-2	79153..81039	-	628	78045624	-	XCV0068	-	hypothetical protein
69	 48.77	-2	81056..81703	-	215	78045625	-	XCV0069	-	putative secreted protein
70	 65.03	0	82229..82411	-	60	78045626	-	XCV0070	-	hypothetical protein
71	 58.20	-1	82639..82827	-	62	78045627	-	XCV0071	-	hypothetical protein
72	 71.79	+1	83064..84233	-	389	78045628	-	XCV0072	-	putative secreted protein
73	 64.27	0	84393..84977	+	194	78045629	-	XCV0073	-	hypothetical protein
74	 68.91	+1	85278..85589	-	103	78045630	-	XCV0074	-	hypothetical protein
75	 68.83	+1	85586..86650	-	354	78045631	-	XCV0075	-	Zinc metalloprotease
76	 68.95	+1	86760..87416	-	218	78045632	-	XCV0076	-	hypothetical protein
77	 69.76	+1	87674..88126	+	150	78045633	-	XCV0077	-	putative NUDIX hydrolase family protein
78	 68.71	+1	88167..92132	+	1321	78045634	-	XCV0078	-	putative membrane-associated peptidase
79	 63.66	0	92516..92914	+	132	78045635	-	XCV0079	-	hypothetical protein
80	 63.64	0	92935..93264	+	109	78045636	-	XCV0080	-	putative thioredoxin
81	 65.12	0	93797..95287	+	496	78045637	proP	XCV0081	-	metabolite:H+ symporter family protein
82	 64.14	0	95631..96104	-	157	78045638	-	XCV0082	-	hypothetical protein
83	 67.77	0	96251..97069	+	272	78045639	-	XCV0083	-	hypothetical protein
84	 66.82	0	97266..97916	+	216	78045640	-	XCV0084	-	hypothetical protein
85	 74.64	+2	98176..99957	-	593	78045641	-	XCV0085	-	hypothetical protein
86	 73.56	+2	99954..102374	-	806	78045642	-	XCV0086	-	hypothetical protein
87	 72.58	+2	102371..103570	-	399	78045643	-	XCV0087	-	hypothetical protein
88	 68.22	0	103614..104513	-	299	78045644	-	XCV0088	-	hypothetical protein
89	 67.67	0	104527..105519	-	330	78045645	-	XCV0089	-	MoxR-like ATPase
90	 59.95	-1	105632..106450	-	272	78045646	-	XCV0090	-	hypothetical protein
91	 63.07	0	106447..107781	-	444	78045647	-	XCV0091	-	putative modulator of DNA gyrase
92	 64.65	0	107796..109430	-	544	78045648	-	XCV0092	-	putative modulator of DNA gyrase
93	 64.70	0	110149..111777	-	542	78045649	-	XCV0093	-	putative modulator of DNA gyrase
94	 61.28	0	112149..112538	-	129	78045650	-	XCV0094	-	hypothetical protein
95	 53.33	-2	112604..112828	-	74	78045651	-	XCV0095	-	hypothetical protein
96	 58.66	-1	112976..113362	-	128	78045652	-	XCV0096	-	hypothetical protein
97	 61.38	0	113443..113934	-	163	78045653	-	XCV0097	-	putative secreted protein
98	 64.58	0	114233..115288	-	351	78045654	cbbFC	XCV0098	-	fructose-1,6-bisphosphatase
99	 55.62	-2	115817..116803	-	328	78045655	-	XCV0099	-	putative secreted protein
100	 45.79	-2	116808..117650	-	280	78045656	-	XCV0100	-	putative secreted protein
64.66	MEAN

3.90	STD DEV
