IslandPath Analysis: Xanthobacter autotrophicus Py2

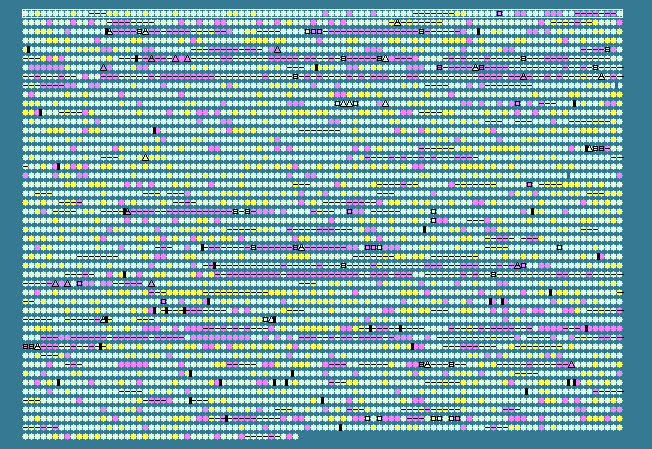

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.51   STD DEV: 3.97
Xanthobacter autotrophicus Py2, complete genome - 1..5308934
4746 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 68.90	0	330..1850	+	506	154243959	-	Xaut_0001	-	chromosomal replication initiation protein
2	 66.93	0	2273..3394	+	373	154243960	-	Xaut_0002	-	DNA polymerase III subunit beta
3	 72.56	+1	3580..4716	+	378	154243961	-	Xaut_0003	-	recombination protein F
4	 65.31	0	4865..6118	+	417	154243962	-	Xaut_0004	-	extracellular ligand-binding receptor
5	 64.52	0	6258..7142	+	294	154243963	-	Xaut_0005	-	inner-membrane translocator
6	 65.99	0	7160..8194	+	344	154243964	-	Xaut_0006	-	inner-membrane translocator
7	 68.70	0	8191..8928	+	245	154243965	-	Xaut_0007	-	ABC transporter related
8	 68.34	0	8909..9685	+	258	154243966	-	Xaut_0008	-	ABC transporter related
9	 71.63	+1	9715..10419	+	234	154243967	-	Xaut_0009	-	short-chain dehydrogenase/reductase SDR
10	 68.33	0	10609..11328	-	239	154243968	-	Xaut_0010	-	GntR family transcriptional regulator
11	 70.94	0	11359..12504	-	381	154243969	-	Xaut_0011	-	iron-containing alcohol dehydrogenase
12	 70.53	0	12683..13225	+	180	154243970	-	Xaut_0012	-	GCN5-related N-acetyltransferase
13	 67.22	0	13215..14123	-	302	154243971	-	Xaut_0013	-	acetylglutamate kinase
14	 67.40	0	14398..16035	+	545	154243972	-	Xaut_0014	-	hypothetical protein
15	 72.57	+1	16132..17265	+	377	154243973	-	Xaut_0015	-	amidohydrolase 3
16	 72.02	+1	17279..18343	-	354	154243974	-	Xaut_0016	-	hypothetical protein
17	 69.33	0	18608..19246	+	212	154243975	-	Xaut_0017	-	ChaC family protein
18	 71.89	+1	19385..19786	-	133	154243976	-	Xaut_0018	-	hypothetical protein
19	 68.61	0	19820..20641	-	273	154243977	-	Xaut_0019	-	phospholipid/glycerol acyltransferase
20	 70.99	0	20779..21681	-	300	154243978	-	Xaut_0020	-	hypothetical protein
21	 71.66	+1	21683..22684	-	333	154243979	-	Xaut_0021	-	hypothetical protein
22	 66.10	0	22671..23378	-	235	154243980	-	Xaut_0022	-	cell division ATP-binding protein FtsE
23	 67.97	0	23612..24148	+	178	154243981	-	Xaut_0023	-	hypoxanthine phosphoribosyltransferase
24	 70.11	0	24215..24853	-	212	154243982	-	Xaut_0024	-	hypothetical protein
25	 66.32	0	24850..25722	-	290	154243983	-	Xaut_0025	-	ABC-2 type transporter
26	 72.81	+1	25733..26530	-	265	154243984	-	Xaut_0026	-	ABC transporter related
27	 65.15	0	26788..27774	-	328	154243985	-	Xaut_0027	-	YVTN beta-propeller repeat-containing protein
28	 70.39	0	27828..29090	-	420	154243986	-	Xaut_0028	-	hypothetical protein
29	 68.06	0	29268..29843	+	191	154243987	-	Xaut_0029	-	hypothetical protein
30	 64.62	0	29922..30458	+	178	154243988	-	Xaut_0030	-	hypothetical protein
31	 70.82	0	30458..31444	+	328	154243989	-	Xaut_0031	-	YVTN beta-propeller repeat-containing protein
32	 64.51	0	31646..32155	-	169	154243990	-	Xaut_0032	-	formaldehyde-activating protein
33	 65.22	0	32664..32939	+	91	154243991	-	Xaut_0033	-	hypothetical protein
34	 68.03	0	33093..34046	+	317	154243992	-	Xaut_0034	-	peptidase M48 Ste24p
35	 72.09	+1	34202..36967	+	921	154243993	-	Xaut_0035	-	DNA mismatch repair protein
36	 72.96	+1	37170..38552	-	460	154243994	-	Xaut_0036	-	hypothetical protein
37	 68.75	0	38706..40052	-	448	154243995	-	Xaut_0037	-	adenylosuccinate synthetase
38	 70.90	0	40184..41599	+	471	154243996	-	Xaut_0038	-	sun protein
39	 71.06	0	41667..43511	+	614	154243997	-	Xaut_0039	-	heparinase II/III family protein
40	 70.91	0	43520..44203	-	227	154243998	-	Xaut_0040	-	GntR family transcriptional regulator
41	 68.12	0	44236..44922	-	228	154243999	-	Xaut_0041	-	putative alcohol dehydrogenase class III
42	 66.75	0	45014..46186	-	390	154244000	-	Xaut_0042	-	extracellular ligand-binding receptor
43	 68.74	0	46275..46997	-	240	154244001	-	Xaut_0043	-	ABC transporter related
44	 68.37	0	46999..47760	-	253	154244002	-	Xaut_0044	-	ABC transporter related
45	 67.62	0	47757..48599	-	280	154244003	-	Xaut_0045	-	inner-membrane translocator
46	 68.61	0	48599..49471	-	290	154244004	-	Xaut_0046	-	inner-membrane translocator
47	 64.81	0	49805..51631	+	608	154244005	-	Xaut_0047	-	ATPase central domain-containing protein
48	 70.59	0	51711..52601	-	296	154244006	-	Xaut_0048	-	DNA binding domain-containing protein
49	 69.99	0	52721..53443	+	240	154244007	-	Xaut_0049	-	molybdenum cofactor synthesis domain-containing protein
50	 68.76	0	53475..54428	-	317	154244008	-	Xaut_0050	-	cation diffusion facilitator family transporter
51	 62.32	-1	54663..55421	-	252	154244009	-	Xaut_0051	-	hypothetical protein
52	 66.20	0	55577..56425	-	282	154244010	-	Xaut_0052	-	enoyl-(acyl carrier protein) reductase
53	 67.65	0	56652..57875	-	407	154244011	-	Xaut_0053	-	3-oxoacyl-(acyl carrier protein) synthase I
54	 65.95	0	57930..58487	-	185	154244012	-	Xaut_0054	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
55	 62.41	-1	58831..59253	+	140	154244013	-	Xaut_0055	-	large conductance mechanosensitive channel protein
56	 69.55	0	59274..60347	-	357	154244014	-	Xaut_0056	-	dihydroorotate dehydrogenase 2
57	 66.24	0	60356..61054	-	232	154244015	-	Xaut_0057	-	orotate phosphoribosyltransferase
58	 69.54	0	61785..65297	-	1170	154244016	-	Xaut_0058	-	integral membrane sensor hybrid histidine kinase
59	 54.24	-2	65598..66410	+	270	154244017	-	Xaut_0059	-	hypothetical protein
60	 68.72	0	66525..67205	-	226	154244018	-	Xaut_0060	-	phospholipase/carboxylesterase
61	 67.25	0	67298..67813	-	171	154244019	-	Xaut_0061	-	MarR family transcriptional regulator
62	 68.07	0	67965..68393	+	142	154244020	-	Xaut_0062	-	OsmC family protein
63	 65.17	0	68632..69234	+	200	154244021	-	Xaut_0063	-	hypothetical protein
64	 68.39	0	69302..70864	-	520	154244022	-	Xaut_0064	-	RNA polymerase, sigma 54 subunit, RpoN
65	 68.27	0	70926..71858	-	310	154244023	-	Xaut_0065	-	ABC transporter related
66	 68.40	0	72102..72794	-	230	154244024	-	Xaut_0066	-	OstA family protein
67	 68.84	0	72791..73711	-	306	154244025	-	Xaut_0067	-	hypothetical protein
68	 68.12	0	73947..74567	-	206	154244026	-	Xaut_0068	-	3'-5' exonuclease
69	 69.34	0	74724..75209	+	161	154244027	-	Xaut_0069	-	cyanovirin containing protein
70	 69.26	0	75294..77147	-	617	154244028	-	Xaut_0070	-	dihydroxy-acid dehydratase
71	 69.82	0	77388..78812	+	474	154244029	-	Xaut_0071	-	aromatic-L-amino-acid decarboxylase
72	 75.51	+2	78818..79360	-	180	154244030	-	Xaut_0072	-	hypothetical protein
73	 73.28	+1	79363..79755	-	130	154244031	-	Xaut_0073	-	chromosomal replication initiator DnaA domain-containing protein
74	 73.41	+1	79981..80247	+	88	154244032	-	Xaut_0074	-	hypothetical protein
75	 69.20	0	80313..81299	-	328	154244033	-	Xaut_0075	-	cysteine synthase A
76	 70.52	0	81349..81789	-	146	154244034	-	Xaut_0076	-	BadM/Rrf2 family transcriptional regulator
77	 66.88	0	81800..82276	-	158	154244035	-	Xaut_0077	-	deoxyuridine 5'-triphosphate nucleotidohydrolase Dut
78	 70.28	0	82273..83490	-	405	154244036	-	Xaut_0078	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
79	 69.48	0	83713..84921	+	402	154244037	-	Xaut_0079	-	putative diguanylate cyclase
80	 63.79	0	84976..86331	+	451	154244038	-	Xaut_0080	-	transposase IS4 family protein
81	 67.99	0	86322..87755	+	477	154244039	-	Xaut_0081	-	diguanylate cyclase/phosphodiesterase
82	 66.11	0	88123..89916	+	597	154244040	-	Xaut_0082	-	transcriptional regulator NifA
83	 61.03	-1	90310..90504	+	64	154244041	-	Xaut_0083	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
84	 61.89	-1	90834..92318	+	494	154244042	-	Xaut_0084	-	FeS assembly protein SufB
85	 65.22	0	92375..93136	+	253	154244043	-	Xaut_0085	-	FeS assembly ATPase SufC
86	 69.80	0	93141..94481	+	446	154244044	-	Xaut_0086	-	FeS assembly protein SufD
87	 65.00	0	94482..95744	+	420	154244045	-	Xaut_0087	-	SufS subfamily cysteine desulfurase
88	 62.83	-1	96387..97298	+	303	154244046	-	Xaut_0088	-	nitrogenase reductase
89	 61.82	-1	97375..98880	+	501	154244047	-	Xaut_0089	-	nitrogenase molybdenum-iron protein alpha chain
90	 62.24	-1	98968..100527	+	519	154244048	-	Xaut_0090	-	nitrogenase molybdenum-iron protein beta chain
91	 64.77	0	100648..102549	+	633	154244049	-	Xaut_0091	-	nitrogenase MoFe cofactor biosynthesis protein NifE
92	 64.92	0	102559..103986	+	475	154244050	-	Xaut_0092	-	nitrogenase molybdenum-iron cofactor biosynthesis protein NifN
93	 59.60	-1	104011..104406	+	131	154244051	-	Xaut_0093	-	nitrogen fixation protein NifX
94	 59.45	-2	104415..104885	+	156	154244052	-	Xaut_0094	-	hypothetical protein
95	 59.20	-2	104901..105101	+	66	154244053	-	Xaut_0095	-	hypothetical protein
96	 61.62	-1	105120..105416	+	98	154244054	-	Xaut_0096	-	ferredoxin III 4(4Fe-4S) nif-specific
97	 65.77	0	105560..106228	+	222	154244055	-	Xaut_0097	-	NifQ family protein
98	 61.64	-1	106468..106785	-	105	154244056	-	Xaut_0098	-	hypothetical protein
99	 59.92	-1	106791..107042	-	83	154244057	-	Xaut_0099	-	hypothetical protein
100	 65.51	0	107055..107915	-	286	154244058	-	Xaut_0100	-	rhodanese domain-containing protein
67.51	MEAN

3.97	STD DEV
