IslandPath Analysis: Wolbachia endosymbiont of Drosophila melanogaster

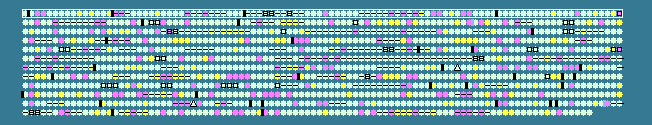

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.43   STD DEV: 3.58
Wolbachia endosymbiont of Drosophila melanogaster, complete genome - 1..1267782
1195 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 34.42	0	153..1535	+	460	42519921	dnaA	WD0001	-	chromosomal replication initiation protein
2	 33.52	0	3145..4227	+	360	42519922	ribA	WD0003	-	GTP cyclohydrolase II
3	 30.10	-1	4300..4980	+	226	42519923	-	WD0004	-	type IV secretion system protein VirB8
4	 30.06	-1	4973..5767	+	264	42519924	-	WD0005	-	type IV secretion system protein VirB9
5	 37.03	0	5784..7244	+	486	42519925	-	WD0006	-	type IV secretion system protein VirB10
6	 37.97	0	7246..8238	+	330	42519926	-	WD0007	-	type IV secretion system protein VirB11
7	 36.26	0	8269..10215	+	648	42519927	-	WD0008	-	type IV secretion system protein VirD4
8	 36.87	0	10337..11185	+	282	42519928	-	WD0009	-	surface antigen Wsp paralog
9	 34.88	0	11350..12189	-	279	42519929	-	WD0010	-	HemK family modification methylase
10	 41.48	+1	12529..12663	-	44	42519930	-	WD0012	-	hypothetical protein
11	 36.30	0	12642..12776	+	44	42519931	-	WD0013	-	hypothetical protein
12	 41.07	+1	13302..13676	+	124	42519932	rpsL	WD0014	-	30S ribosomal protein S12
13	 37.92	0	13682..14161	+	159	42519933	rpsG	WD0015	-	30S ribosomal protein S7
14	 36.71	0	14183..16258	+	691	42519934	fusA	WD0016	-	elongation factor G
15	 43.14	+2	16270..17442	+	390	42519935	tuf	WD0017	-	elongation factor Tu
16	 30.48	-1	17539..17748	+	69	42519936	secE	WD0018	-	preprotein translocase subunit SecE
17	 30.12	-1	17984..18574	+	196	42519937	-	WD0019	-	transcription antitermination protein NusG, putative
18	 37.87	0	18577..19017	+	146	42519938	rplK	WD0020	-	50S ribosomal protein L11
19	 32.26	0	19022..19675	+	217	42519939	rplA	WD0021	-	50S ribosomal protein L1
20	 31.98	0	19688..20206	+	172	42519940	rplJ	WD0022	-	50S ribosomal protein L10
21	 35.82	0	20233..20634	+	133	42519941	rplL	WD0023	-	50S ribosomal protein L7/L12
22	 35.76	0	20693..29206	+	2837	42519942	rpoBC	WD0024	-	DNA-directed RNA polymerase, beta/beta' subunits
23	 40.60	+1	29213..30175	-	320	42519943	-	WD0025	-	NifR3 family protein
24	 32.91	0	30201..30677	-	158	42519944	-	WD0026	-	hypothetical protein
25	 36.27	0	30692..31168	-	158	42519945	-	WD0027	-	hypothetical protein
26	 37.56	0	31467..32744	+	425	42519946	serS	WD0028	-	seryl-tRNA synthetase
27	 37.19	0	32779..34050	+	423	42519947	purD	WD0029	-	phosphoribosylamine--glycine ligase
28	 27.78	-2	34458..34565	-	35	42519948	-	WD0031	-	hypothetical protein
29	 33.33	0	34679..34954	-	91	42519949	-	WD0032	-	hypothetical protein
30	 33.10	0	35323..36585	-	420	42519950	-	WD0033	-	hypothetical protein
31	 31.35	-1	36604..37257	-	217	42519951	-	WD0034	-	hypothetical protein
32	 35.99	0	37671..38537	+	288	42519952	-	WD0035	-	ankyrin repeat-containing protein
33	 35.60	0	38841..39767	+	308	42519953	prsA	WD0036	-	ribose-phosphate pyrophosphokinase
34	 33.62	0	39757..40110	+	117	42519954	-	WD0037	-	glutamyl-tRNA(Gln) amidotransferase, C subunit, putative
35	 33.81	0	40152..41414	-	420	42519955	tolB	WD0038	-	translocation protein TolB
36	 37.06	0	41420..43054	-	544	42519956	-	WD0039	-	metallo-beta-lactamase family protein
37	 37.53	0	43264..44382	-	372	42519957	dnaJ	WD0040	-	dnaJ protein
38	 38.36	0	44606..45241	-	211	42519958	-	WD0041	-	hypothetical protein
39	 38.44	0	45767..46177	-	136	42519959	-	WD0042	-	hypothetical protein
40	 33.48	0	46174..46860	-	228	42519960	-	WD0043	-	reverse transcriptase, interruption-C
41	 36.26	0	46857..47198	-	113	42519961	-	WD0044	-	IS5 family transposase OrfB
42	 36.75	0	47309..47689	-	126	42519962	-	WD0045	-	IS5 family transposase OrfA
43	 36.03	0	49261..49668	-	135	42519963	-	WD0047	-	hypothetical protein
44	 34.58	0	51062..51301	-	79	42519964	-	WD0049	-	hypothetical protein
45	 37.98	0	51258..51515	-	85	42519965	-	WD0050	-	transposase, degenerate
46	 32.16	0	51493..51834	+	113	42519966	-	WD0051	-	hypothetical protein
47	 36.87	0	51846..52043	-	65	42519967	-	WD0052	-	hypothetical protein
48	 35.51	0	52111..52752	+	213	42519968	-	WD0053	-	dioxygenase, putative
49	 37.19	0	52849..54351	+	500	42519969	pepA	WD0054	-	leucyl aminopeptidase
50	 35.44	0	55045..56232	+	395	42519970	-	WD0056	-	major facilitator family transporter
51	 31.70	-1	56293..56598	+	101	42519971	-	WD0057	-	HU family DNA-binding protein
52	 33.33	0	56598..56924	+	108	42519972	-	WD0058	-	hypothetical protein
53	 36.30	0	56994..57566	+	190	42519973	nlpD	WD0059	-	M24/M37 family peptidase
54	 37.98	0	57579..60095	+	838	42519974	leuS	WD0060	-	leucyl-tRNA synthetase
55	 38.21	0	60224..60859	+	211	42519975	-	WD0061	-	hypothetical protein
56	 35.29	0	61230..61331	+	33	42519976	-	WD0062	-	hypothetical protein
57	 36.58	0	62503..63210	+	235	42519977	pdxJ	WD0064	-	pyridoxal phosphate biosynthetic protein PdxJ
58	 32.05	0	63203..63514	-	103	42519978	-	WD0065	-	HU family DNA-binding protein
59	 36.40	0	63661..64116	-	151	42519979	rpsI	WD0066	-	30S ribosomal protein S9
60	 35.95	0	64127..64585	-	152	42519980	rplM	WD0067	-	50S ribosomal protein L13
61	 34.15	0	64715..65938	+	407	42519981	-	WD0068	-	outer membrane protein TolC, putative
62	 31.60	-1	65958..66533	+	191	42519982	-	WD0069	-	hypothetical protein
63	 33.51	0	66610..67188	+	192	42519983	-	WD0070	-	ribosomal RNA large subunit methyltransferase J, putative
64	 26.85	-2	67587..67694	-	35	42519984	-	WD0072	-	hypothetical protein
65	 34.71	0	68396..70798	+	800	42519985	-	WD0073	-	ankyrin repeat-containing protein
66	 27.83	-2	70932..71258	+	108	42519986	-	WD0074	-	hypothetical protein
67	 40.86	+1	71248..71340	-	30	42519987	-	WD0075	-	hypothetical protein
68	 35.61	0	71395..71877	+	160	42519988	-	WD0076	-	uncharacterized phage protein, putative
69	 29.93	-1	72249..72659	+	136	42519989	-	WD0077	-	hypothetical protein
70	 30.26	-1	72634..73023	+	129	42519990	-	WD0078	-	hypothetical protein
71	 37.50	0	73059..73874	+	271	42519991	-	WD0079	-	hypothetical protein
72	 42.86	+2	74176..74280	+	34	42519992	-	WD0080	-	hypothetical protein
73	 34.31	0	75578..76705	-	375	42519993	-	WD0082	-	hypothetical protein
74	 31.13	-1	76813..77628	-	271	42519994	-	WD0083	-	hypothetical protein
75	 27.62	-2	77726..77830	+	34	42519995	-	WD0084	-	hypothetical protein
76	 36.39	0	77862..78647	+	261	42519996	fabI	WD0085	-	enoyl-(acyl-carrier-protein) reductase
77	 35.39	0	78664..80169	-	501	42519997	secD	WD0086	-	preprotein translocase subunit SecD
78	 38.45	0	81378..82862	-	494	42519998	guaB	WD0089	-	inosine-5'-monophosphate dehydrogenase
79	 32.29	0	82988..83848	-	286	42519999	ksgA	WD0090	-	dimethyladenosine transferase
80	 33.06	0	83976..84704	+	242	42520000	tpiA	WD0091	-	triosephosphate isomerase
81	 36.36	0	84779..85867	-	362	42520001	dprA	WD0092	-	DNA processing chain A
82	 34.67	0	85929..86303	+	124	42520002	-	WD0093	-	ferredoxin, 4Fe-4S
83	 33.33	0	86633..87280	+	215	42520003	-	WD0094	-	hypothetical protein
84	 33.33	0	87366..88313	+	315	42520004	-	WD0095	-	D-alanine--D-alanine ligase
85	 33.73	0	88294..89052	+	252	42520005	-	WD0096	-	cell division protein FtsQ, putative
86	 34.87	0	90714..91820	+	368	42520006	-	WD0098	-	D-alanyl-D-alanine carboxypeptidase
87	 33.97	0	91920..92234	+	104	42520007	-	WD0099	-	multidrug resistance protein
88	 34.20	0	92251..92595	+	114	42520008	sugE	WD0100	-	sugE protein
89	 40.35	+1	93139..93423	+	94	42520009	-	WD0102	-	hypothetical protein
90	 36.84	0	94147..97287	-	1046	42520010	putA	WD0103	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
91	 37.74	0	97422..100007	-	861	42520011	acnA	WD0105	-	aconitate hydratase
92	 33.33	0	100022..100525	-	167	42520012	secB	WD0106	-	preprotein translocase subunit SecB
93	 29.65	-1	100690..101340	+	216	42520013	-	WD0107	-	hypothetical protein
94	 35.49	0	101358..102053	+	231	42520014	dnaQ	WD0108	-	DNA polymerase III, epsilon subunit
95	 34.81	0	102098..102706	+	202	42520015	-	WD0109	-	SCO1/SenC family protein
96	 43.30	+2	102737..102997	+	86	42520016	-	WD0110	-	hypothetical protein
97	 34.96	0	103297..103419	+	40	42520017	-	WD0111	-	hypothetical protein
98	 34.55	0	103515..105902	+	795	42520018	gyrB	WD0112	-	DNA gyrase, B subunit
99	 50.78	+2	105996..106253	+	85	42520019	-	WD0113	-	hypothetical protein
100	 30.62	-1	107885..109213	+	442	42520020	-	WD0115	-	IS4 family transposase
35.43	MEAN

3.58	STD DEV
