IslandPath Analysis: Vibrio vulnificus YJ016

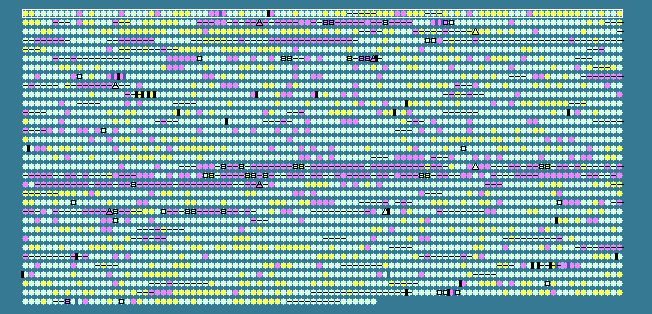

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 46.28   STD DEV: 4.03
Vibrio vulnificus YJ016 chromosome I, complete sequence - 1..3354505
3259 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 51.49	+1	353..787	-	144	37678185	-	VV0001	-	flavodoxin
2	 51.12	+1	835..2223	-	462	37678186	trmE	VV0002	-	tRNA modification GTPase TrmE
3	 48.89	0	2314..3933	-	539	37678187	-	VV0003	-	putative inner membrane protein translocase component YidC
4	 45.10	0	4160..4516	-	118	37678188	rnpA	VV0004	-	ribonuclease P
5	 49.65	0	4530..4670	-	46	37678189	rpmH	VV0005	-	50S ribosomal protein L34
6	 49.19	0	4898..5635	-	245	37678190	-	VV0006	-	ABC-type polar amino acid transport system, ATPase component
7	 48.80	0	5632..6342	-	236	37678191	-	VV0007	-	ABC-type amino acid transport system, permease component
8	 47.14	0	6385..7137	-	250	37678192	-	VV0009	-	ABC-type amino acid transport system, periplasmic component
9	 49.08	0	6389..6661	+	90	37678193	-	VV0008	-	hypothetical protein
10	 39.02	-1	7282..7404	+	40	37678194	-	VV0010	-	hypothetical protein
11	 49.68	0	7450..8856	+	468	37678195	dnaA	VV0011	-	chromosomal replication initiation protein
12	 50.68	+1	8917..10017	+	366	37678196	-	VV0012	-	DNA polymerase III subunit beta
13	 46.48	0	10027..11106	+	359	37678197	recF	VV0013	-	recombination protein F
14	 49.21	0	11125..13542	+	805	37678198	gyrB	VV0014	-	DNA gyrase subunit B
15	 46.67	0	13955..14389	+	144	37678199	-	VV0015	-	16 kDa heat shock protein A
16	 45.80	0	14370..16631	-	753	37678200	-	VV0017	-	GGDEF family protein
17	 41.36	-1	15081..15242	+	53	37678201	-	VV0016	-	hypothetical protein
18	 47.10	0	16651..17907	-	418	37678202	avtA	VV0018	-	valine--pyruvate transaminase
19	 45.18	0	18206..18568	+	120	37678203	-	VV0019	-	hypothetical protein
20	 48.80	0	18651..20732	-	693	37678204	glyS	VV0020	-	glycyl-tRNA synthetase subunit beta
21	 48.37	0	20746..21663	-	305	37678205	glyQ	VV0021	-	glycyl-tRNA synthetase subunit alpha
22	 50.99	+1	22144..22698	+	184	37678206	-	VV0022	-	hypothetical protein
23	 41.00	-1	22858..23118	+	86	37678207	-	VV0023	-	NADH dehydrogenase subunit II-related protein
24	 46.75	0	23158..23403	-	81	37678208	-	VV0024	-	cell developmental protein SirA
25	 43.01	0	23535..23720	+	61	37678209	-	VV0025	-	hypothetical protein
26	 52.17	+1	23849..24814	+	321	37678210	-	VV0026	-	transcriptional regulator
27	 51.89	+1	24886..25866	-	326	37678211	-	VV0027	-	Zn-binding alcohol dehydrogenase
28	 52.32	+1	26027..27190	-	387	37678212	fadA	VV0028	-	3-ketoacyl-CoA thiolase
29	 49.31	0	27203..29374	-	723	37678213	fadB	VV0029	-	multifunctional fatty acid oxidation complex subunit alpha
30	 46.96	0	29622..30245	+	207	37678214	-	VV0030	-	hypothetical protein
31	 48.77	0	30291..31748	+	485	37678215	-	VV0031	-	Trk-type K+ transport system, membrane component
32	 39.39	-1	31661..31792	+	43	37678216	-	VV0032	-	hypothetical protein
33	 41.24	-1	31755..32285	+	176	37678217	hemG	VV0033	-	protoporphyrinogen oxidase
34	 41.56	-1	38276..39199	-	307	37678218	-	VV0034	-	DNA-binding transcriptional regulator IlvY
35	 46.46	0	39308..40792	+	494	37678219	-	VV0035	-	ketol-acid reductoisomerase
36	 42.86	0	40988..41239	-	83	37678220	-	VV0036	-	hypothetical protein
37	 50.00	0	41385..44504	-	1039	37678221	-	VV0037	-	putative multidrug resistance protein
38	 46.43	0	44516..45622	-	368	37678222	-	VV0038	-	membrane-fusion protein
39	 44.85	0	45640..46221	-	193	37678223	-	VV0039	-	transcriptional regulator
40	 49.03	0	46389..48407	+	672	37678224	-	VV0040	-	ATP-dependent DNA helicase Rep
41	 47.68	0	48469..48921	-	150	37678225	-	VV0041	-	cytochrome c5
42	 29.94	-2	50663..50839	-	58	37678226	-	VV0042	-	hypothetical protein
43	 49.59	0	50886..52601	+	571	37678227	-	VV0043	-	peptide ABC transporter, ATP-binding protein
44	 49.52	0	52677..54233	+	518	37678228	-	VV0044	-	peptide ABC transporter, periplasmic peptide-binding protein
45	 48.77	0	54385..55362	+	325	37678229	-	VV0045	-	peptide ABC transporter, permease component
46	 51.01	+1	55365..56303	+	312	37678230	-	VV0046	-	peptide ABC transporter, permease component
47	 43.65	0	56374..56499	+	41	37678231	-	VV0047	-	hypothetical protein
48	 47.94	0	56490..57434	+	314	37678232	-	VV0048	-	hypothetical protein
49	 46.53	0	57492..60218	-	908	37678233	-	VV0049	-	hypothetical protein
50	 48.15	0	60471..61334	+	287	37678234	-	VV0050	-	hypothetical protein
51	 51.75	+1	61356..62957	-	533	37678235	-	VV0051	-	hypothetical protein
52	 48.34	0	62933..63505	-	190	37678236	-	VV0052	-	putative RNA polymerase ECF-type sigma factor
53	 50.76	+1	63502..64941	-	479	37678237	-	VV0053	-	hypothetical protein
54	 51.09	+1	64970..66304	-	444	37678238	-	VV0054	-	hypothetical protein
55	 49.25	0	66457..67254	-	265	37678239	-	VV0055	-	hypothetical protein
56	 49.39	0	67355..68251	+	298	37678240	-	VV0056	-	response regulator
57	 51.59	+1	68267..69334	+	355	37678241	-	VV0057	-	gluconate utilization system Gnt-I transcriptional repressor
58	 53.64	+1	69026..69286	-	86	37678242	-	VV0058	-	hypothetical protein
59	 55.93	+2	69385..71181	-	598	37678243	-	VV0059	-	phosphogluconate dehydratase
60	 50.57	+1	71178..71699	-	173	37678244	-	VV0060	-	thermoresistant gluconokinase
61	 51.41	+1	71813..73228	+	471	37678245	-	VV0061	-	putative gluconate permease
62	 52.78	+1	73238..73849	+	203	37678246	-	VV0062	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
63	 39.76	-1	74322..74819	+	165	37678247	-	VV0063	-	hypothetical protein
64	 38.61	-1	74819..75349	+	176	37678248	-	VV0064	-	hypothetical protein
65	 53.10	+1	75517..76872	-	451	37678249	-	VV0065	-	glutathione reductase
66	 51.19	+1	77024..77863	-	279	37678250	-	VV0066	-	hypothetical protein
67	 52.39	+1	78071..80179	+	702	37678251	-	VV0067	-	Zn-dependent oligopeptidase
68	 48.21	0	80227..80757	+	176	37678252	-	VV0068	-	hypothetical protein
69	 49.03	0	80299..80763	-	154	37678253	-	VV0069	-	DNA-binding transcriptional regulator AsnC
70	 50.21	0	80872..84018	+	1048	37678254	-	VV0070	-	sensory box/GGDEF family protein
71	 54.49	+2	84128..84907	+	259	37678255	-	VV0071	-	SAM-dependent methyltransferase
72	 47.97	0	85067..85558	+	163	37678256	-	VV0072	-	hypothetical protein
73	 50.84	+1	85662..86552	-	296	37678257	-	VV0073	-	madN protein
74	 45.39	0	86618..87148	-	176	37678258	-	VV0075	-	universal stress protein UspA
75	 42.57	0	87100..87738	+	212	37678259	-	VV0074	-	ferritin-like protein
76	 44.14	0	87825..88148	+	107	37678260	-	VV0076	-	universal stress protein UspB
77	 52.39	+1	88206..89438	+	410	37678261	-	VV0077	-	flavoprotein
78	 50.59	+1	89512..90693	-	393	37678262	-	VV0078	-	uncharacterized enzyme of heme biosynthesis
79	 49.83	0	90690..91901	-	403	37678263	-	VV0079	-	uncharacterized enzyme of heme biosynthesis
80	 50.83	+1	91916..92698	-	260	37678264	hemD	VV0080	-	uroporphyrinogen-III synthase
81	 53.57	+1	92649..93587	-	312	37678265	hemC	VV0081	-	porphobilinogen deaminase
82	 43.45	0	93713..93880	+	55	37678266	-	VV0082	-	hypothetical protein
83	 49.03	0	93951..96485	+	844	37678267	cyaA	VV0083	-	adenylate cyclase
84	 46.03	0	96618..96932	-	104	37678268	cyaY	VV0085	-	frataxin-like protein
85	 41.20	-1	96909..97124	+	71	37678269	-	VV0084	-	hypothetical protein
86	 51.91	+1	97173..98426	+	417	37678270	-	VV0086	-	diaminopimelate decarboxylase
87	 50.66	+1	98437..99267	+	276	37678271	dapF	VV0087	-	diaminopimelate epimerase
88	 50.43	+1	99310..100011	+	233	37678272	-	VV0088	-	hypothetical protein
89	 52.94	+1	99962..100930	+	322	37678273	xerC	VV0089	-	site-specific tyrosine recombinase XerC
90	 53.70	+1	100927..101643	+	238	37678274	-	VV0090	-	hydrolase
91	 51.33	+1	101773..104262	+	829	37678275	-	VV0091	-	GGDEF family protein
92	 53.63	+1	104312..104917	-	201	37678276	-	VV0092	-	hypothetical protein
93	 52.55	+1	104914..106464	-	516	37678277	-	VV0093	-	hypothetical protein
94	 48.24	0	106494..106976	+	160	37678278	-	VV0094	-	hypothetical protein
95	 50.42	+1	107074..107904	-	276	37678279	-	VV0095	-	hydrolase
96	 49.55	0	108085..109083	-	332	37678280	-	VV0096	-	lysophospholipase
97	 50.16	0	109141..109764	+	207	37678281	rhtB	VV0097	-	homoserine/homoserine lactone efflux protein
98	 48.77	0	109818..111041	+	407	37678282	-	VV0098	-	signal transduction protein
99	 48.51	0	111148..111483	+	111	37678283	-	VV0099	-	transcriptional regulator
100	 52.20	+1	111513..112514	+	333	37678284	-	VV0100	-	glyceraldehyde-3-phosphate dehydrogenase
46.28	MEAN

4.03	STD DEV
