IslandPath Analysis: Vibrio vulnificus CMCP6

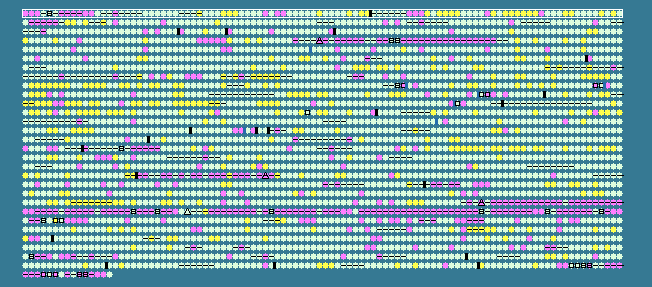

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 46.93   STD DEV: 3.43
Vibrio vulnificus CMCP6 chromosome I, complete genome - 1..3281944
2915 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 42.91	-1	1..1002	-	333	27363491	-	VV1_0001	-	putative beta-lactamase class A
2	 42.65	-1	1131..2117	-	328	27363492	-	VV1_0002	-	putative GTPase
3	 43.24	-1	2180..3844	-	554	27363493	-	VV1_0003	-	D-glutamate deacylase
4	 47.03	0	4490..5548	-	352	27363494	-	VV1_0004	-	hypothetical protein
5	 46.67	0	5621..5965	-	114	27363495	-	VV1_0005	-	transposase
6	 44.98	0	6115..7050	-	311	27363496	-	VV1_0006	-	permease
7	 37.74	-2	7740..10256	-	838	27363497	-	VV1_0007	-	small-conductance mechanosensitive channel
8	 40.15	-1	10356..10898	-	180	27363498	-	VV1_0008	-	hypothetical protein
9	 40.12	-1	10998..11969	-	323	27363499	-	VV1_0009	-	ABC-type transport system, periplasmic component
10	 42.70	-1	11962..12783	-	273	27363500	-	VV1_0010	-	ABC-type transport system, ATPase component
11	 42.74	-1	12793..13866	-	357	27363501	-	VV1_0011	-	ABC-type transport system, permease component
12	 42.06	-1	15188..15565	+	125	27363502	-	VV1_0013	-	hypothetical protein
13	 48.87	0	15571..16902	+	443	27363503	-	VV1_0014	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
14	 44.66	0	16924..17532	-	202	27363504	-	VV1_0015	-	hypothetical protein
15	 50.25	0	17701..18096	+	131	27363505	-	VV1_0016	-	hypothetical protein
16	 39.13	-2	18143..18418	-	91	27363506	-	VV1_0017	-	DNA uptake protein
17	 45.54	0	18578..20437	-	619	27363507	-	VV1_0018	-	parvulin-like peptidyl-prolyl isomerase
18	 45.92	0	20614..20907	-	97	27363508	-	VV1_0019	-	nucleoid DNA-binding protein
19	 44.44	0	21080..21385	-	101	27363509	-	VV1_0020	-	ATP-dependent Lon protease
20	 47.21	0	21370..23430	-	686	27363510	-	VV1_0021	-	ATP-dependent Lon protease
21	 46.45	0	23549..24829	-	426	27363511	clpX	VV1_0022	-	ATP-dependent protease ATP-binding subunit
22	 44.82	0	24900..25526	-	208	27363512	clpP	VV1_0023	-	ATP-dependent Clp protease proteolytic subunit
23	 44.96	0	25632..26930	-	432	27363513	tig	VV1_0024	-	trigger factor
24	 48.43	0	27482..29269	+	595	27363514	-	VV1_0025	-	Signal transduction histidine kinase regulating C4-dicarboxylate transport system
25	 48.32	0	29271..30611	+	446	27363515	-	VV1_0026	-	response regulator
26	 44.56	0	30706..32664	-	652	27363516	-	VV1_0027	-	transglutaminase-like enzyme
27	 49.63	0	32859..34220	-	453	27363517	-	VV1_0028	-	TRAP-type C4-dicarboxylate transport system, large permease component
28	 47.28	0	34224..34904	-	226	27363518	-	VV1_0029	-	TRAP-type C4-dicarboxylate transport system, small permease component
29	 48.85	0	34955..35953	-	332	27363519	-	VV1_0030	-	TRAP-type C4-dicarboxylate transport system, periplasmic component
30	 50.63	+1	36523..37638	-	371	27363520	-	VV1_0032	-	ABC-type sugar transport system, ATPase component
31	 48.72	0	37644..38501	-	285	27363521	-	VV1_0033	-	ABC-type sugar transport system, permease component
32	 49.03	0	38498..39421	-	307	27363522	-	VV1_0034	-	ABC-type sugar transport system, permease component
33	 50.32	0	39527..40774	-	415	27363523	-	VV1_0035	-	ABC-type sugar transport system, periplasmic component
34	 50.73	+1	40894..42330	-	478	27363524	-	VV1_0036	-	Signal transduction histidine kinase
35	 50.62	+1	42342..43070	-	242	27363525	-	VV1_0037	-	response regulator
36	 51.93	+1	43338..44810	-	490	27363526	-	VV1_0039	-	hypothetical protein
37	 50.03	0	44888..46522	-	544	27363527	-	VV1_0040	-	methyl-accepting chemotaxis protein
38	 49.60	0	46829..49846	-	1005	27363528	-	VV1_0041	-	RTX toxin
39	 49.48	0	50129..51385	-	418	27363529	-	VV1_0042	-	dehydrogenase
40	 45.00	0	51410..52480	-	356	27363530	-	VV1_0043	-	SAM-dependent methyltransferase
41	 40.34	-1	52511..52867	-	118	27363531	-	VV1_0044	-	hypothetical protein
42	 47.83	0	53029..53697	+	222	27363532	-	VV1_0045	-	hypothetical protein
43	 42.82	-1	53694..54452	+	252	27363533	-	VV1_0046	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
44	 37.55	-2	54547..54807	+	86	27363534	-	VV1_0047	-	Acyl carrier protein
45	 43.92	0	54824..55078	+	84	27363535	-	VV1_0048	-	acyl carrier protein
46	 46.06	0	55082..55639	+	185	27363536	-	VV1_0049	-	hypothetical protein
47	 49.20	0	55647..57014	+	455	27363537	-	VV1_0050	-	AMP-(fatty) acid ligase
48	 48.92	0	57027..57398	+	123	27363538	-	VV1_0051	-	3-hydroxymyristoyl/3-hydroxydecanoyl-(acyl carrier protein) dehydratase
49	 48.54	0	57391..59100	+	569	27363539	-	VV1_0052	-	acyltransferase
50	 51.01	+1	59084..60622	+	512	27363540	-	VV1_0053	-	histidine ammonia-lyase
51	 46.76	0	60631..61077	+	148	27363541	-	VV1_0054	-	thioesterase
52	 48.48	0	61077..61703	+	208	27363542	-	VV1_0055	-	hypothetical protein
53	 50.15	0	61732..64002	+	756	27363543	-	VV1_0056	-	exporter
54	 45.83	0	64056..64607	+	183	27363544	-	VV1_0057	-	hypothetical protein
55	 50.67	+1	64617..65804	+	395	27363545	-	VV1_0058	-	3-oxoacyl-(acyl carrier protein) synthase I
56	 49.68	0	65797..66261	+	154	27363546	-	VV1_0059	-	3-hydroxylacyl-(acyl carrier protein) dehydratase
57	 50.83	+1	66258..66983	+	241	27363547	fabG	VV1_0060	-	3-ketoacyl-(acyl-carrier-protein) reductase
58	 50.98	+1	66980..68209	+	409	27363548	-	VV1_0061	-	3-oxoacyl-(acyl carrier protein) synthase II
59	 49.78	0	68550..69224	-	224	27363549	-	VV1_0063	-	DNA-directed RNA polymerase, beta subunit/140 kD subunit
60	 48.39	0	69225..69722	-	165	27363550	-	VV1_0064	-	hypothetical protein
61	 46.71	0	70129..70614	-	161	27363551	-	VV1_0065	-	transcriptional regulator
62	 43.96	0	70656..71276	-	206	27363552	-	VV1_0066	-	bacteriophage phi 1.45 protein-like protein
63	 43.46	-1	71269..71505	-	78	27363553	-	VV1_0067	-	hypothetical protein
64	 45.71	0	71539..71748	-	69	27363554	-	VV1_0068	-	hypothetical protein
65	 41.57	-1	71783..72037	-	84	27363555	-	VV1_0069	-	hypothetical protein
66	 43.33	-1	72030..72269	-	79	27363556	-	VV1_0070	-	hypothetical protein
67	 43.12	-1	72273..72824	-	183	27363557	-	VV1_0071	-	ATP-dependent 26S proteasome regulatory subunit
68	 52.03	+1	72848..75607	-	919	27363558	-	VV1_0072	-	hypothetical protein
69	 47.81	0	75573..75800	-	75	27363559	-	VV1_0074	-	hypothetical protein
70	 52.00	+1	75862..76161	-	99	27363560	-	VV1_0075	-	hypothetical protein
71	 50.96	+1	76154..76465	-	103	27363561	-	VV1_0076	-	hypothetical protein
72	 50.46	+1	76476..76691	-	71	27363562	-	VV1_0077	-	hypothetical protein
73	 51.06	+1	76679..77383	-	234	27363563	-	VV1_0078	-	site-specific recombinase XerC
74	 50.00	0	77413..77892	-	159	27363564	-	VV1_0079	-	bacteriophage phi gp55-like protein
75	 44.97	0	78084..78272	-	62	27363565	-	VV1_0080	-	hypothetical protein
76	 48.20	0	78408..79214	+	268	27363566	-	VV1_0081	-	transcriptional regulator
77	 49.79	0	79555..79797	+	80	27363567	-	VV1_0083	-	transcriptional regulator
78	 40.79	-1	79781..81094	-	437	27363568	-	VV1_0084	-	hypothetical protein
79	 52.58	+1	81167..82174	-	335	27363569	-	VV1_0085	-	Phage protein D
80	 50.24	0	82165..82371	-	68	27363570	-	VV1_0086	-	P2-like prophage tail protein X
81	 51.77	+1	82368..82763	-	131	27363571	-	VV1_0087	-	Phage protein U
82	 54.58	+2	82772..84898	-	708	27363572	-	VV1_0088	-	hypothetical protein
83	 50.61	+1	84939..85349	-	136	27363573	-	VV1_0089	-	hypothetical protein
84	 50.71	+1	85359..85853	-	164	27363574	-	VV1_0090	-	Phage tail tube protein FII
85	 53.06	+1	85886..87046	-	386	27363575	-	VV1_0091	-	Phage tail sheath protein FI
86	 55.91	+2	87113..87391	-	92	27363576	-	VV1_0092	-	A/G-specific DNA glycosylase
87	 40.58	-1	87479..89809	-	776	27363577	-	VV1_0093	-	Phage-related tail fiber protein
88	 48.39	0	89814..90464	-	216	27363578	-	VV1_0094	-	bacteriophage P2-related tail formation protein
89	 50.41	+1	90461..91321	-	286	27363579	-	VV1_0095	-	Phage-related baseplate assembly protein
90	 50.29	0	91318..91665	-	115	27363580	-	VV1_0096	-	dTDP-glucose pyrophosphorylase
91	 55.17	+2	91664..91750	+	28	27363581	-	VV1_0097	-	hypothetical protein
92	 56.67	+2	91669..91758	-	29	27363582	-	VV1_0098	-	hypothetical protein
93	 48.77	0	91931..92416	-	161	27363583	-	VV1_0099	-	hypothetical protein
94	 49.04	0	92418..93041	-	207	27363584	-	VV1_0100	-	Phage P2 baseplate assembly protein GPV
95	 49.44	0	93041..93574	-	177	27363585	-	VV1_0101	-	hypothetical protein
96	 48.30	0	93574..94074	-	166	27363586	-	VV1_0102	-	hypothetical protein
97	 50.66	+1	94067..94672	-	201	27363587	-	VV1_0103	-	hypothetical protein
98	 45.45	0	94681..94977	-	98	27363588	-	VV1_0104	-	chromosome segregation ATPase
99	 50.92	+1	94967..95563	-	198	27363589	-	VV1_0105	-	hypothetical protein
100	 47.21	0	95613..96203	-	196	27363590	-	VV1_0106	-	ATPase component of ABC transporter
46.93	MEAN

3.43	STD DEV
