IslandPath Analysis: Vibrio harveyi ATCC BAA-1116

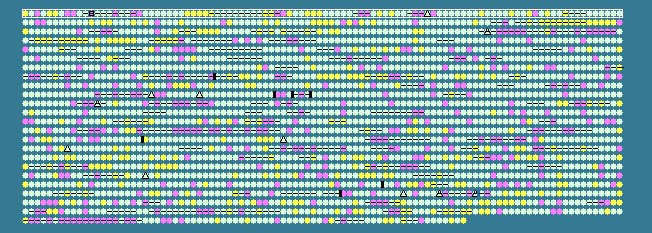

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 45.03   STD DEV: 3.78
Vibrio harveyi ATCC BAA-1116 chromosome II, complete sequence - 1..2204018
2374 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 50.78	+1	823..1269	+	148	156975953	-	VIBHAR_04723	-	hypothetical protein
2	 41.83	0	1356..1508	+	50	156975954	-	VIBHAR_04724	-	hypothetical protein
3	 39.76	-1	1457..1876	+	139	156975955	-	VIBHAR_04725	-	hypothetical protein
4	 44.24	0	2403..2567	-	54	156975957	-	VIBHAR_04727	-	hypothetical protein
5	 50.42	+1	2513..3835	+	440	156975956	-	VIBHAR_04726	-	hypothetical protein
6	 51.74	+1	3819..4106	+	95	156975958	-	VIBHAR_04728	-	hypothetical protein
7	 43.23	0	4288..5217	-	309	156975959	-	VIBHAR_04729	-	hypothetical protein
8	 41.46	0	5807..6175	-	122	156975960	-	VIBHAR_04730	-	DNA invertase
9	 39.32	-1	6472..6588	+	38	156975961	-	VIBHAR_04731	-	hypothetical protein
10	 47.38	0	6766..7776	-	336	156975962	-	VIBHAR_04732	-	hypothetical protein
11	 45.43	0	7800..8237	-	145	156975963	-	VIBHAR_04733	-	hypothetical protein
12	 40.54	-1	8409..8963	+	184	156975964	-	VIBHAR_04734	-	transposase
13	 46.15	0	9250..9600	+	116	156975965	-	VIBHAR_04735	-	hypothetical protein
14	 45.76	0	9645..9821	+	58	156975966	-	VIBHAR_04736	-	hypothetical protein
15	 44.11	0	9743..10039	+	98	156975967	-	VIBHAR_04737	-	hypothetical protein
16	 35.37	-2	10173..10760	-	195	156975968	-	VIBHAR_04738	-	cytochrome b561
17	 46.52	0	10870..12333	-	487	156975969	-	VIBHAR_04739	-	N-acetylglucosamine-binding protein A
18	 47.67	0	12545..13465	-	306	156975970	-	VIBHAR_04740	-	hypothetical protein
19	 40.85	-1	13571..13783	+	70	156975971	-	VIBHAR_04741	-	hypothetical protein
20	 37.96	-1	13757..13864	-	35	156975972	-	VIBHAR_04742	-	hypothetical protein
21	 45.76	0	13884..14366	-	160	156975973	-	VIBHAR_04743	-	transcriptional regulator
22	 48.50	0	14487..15086	+	199	156975974	-	VIBHAR_04744	-	putative threonine efflux protein
23	 42.58	0	15225..15992	+	255	156975975	-	VIBHAR_04745	-	transcriptional regulator
24	 46.10	0	15986..16126	+	46	156975976	-	VIBHAR_04746	-	NADPH-quinone reductase
25	 47.05	0	16229..17314	-	361	156975977	-	VIBHAR_04747	-	methyl-accepting chemotaxis protein
26	 46.41	0	17581..18276	-	231	156975978	-	VIBHAR_04748	-	hypothetical protein
27	 44.59	0	18497..19162	-	221	156975979	-	VIBHAR_04749	-	transcriptional regulator
28	 50.06	+1	19538..20446	+	302	156975980	-	VIBHAR_04750	-	3-hydroxyisobutyrate dehydrogenase
29	 49.48	+1	20472..21728	+	418	156975981	-	VIBHAR_04751	-	4-hydroxythreonine-4-phosphate dehydrogenase
30	 49.38	+1	21740..22387	+	215	156975982	-	VIBHAR_04752	-	putative aldolase
31	 48.91	+1	22387..23163	+	258	156975983	-	VIBHAR_04753	-	hydroxypyruvate isomerase
32	 50.27	+1	23277..24734	+	485	156975984	-	VIBHAR_04754	-	H+/gluconate symporter
33	 47.38	0	24843..25262	-	139	156975985	-	VIBHAR_04755	-	lactoylglutathione lyase
34	 44.90	0	25405..25551	+	48	156975986	-	VIBHAR_04756	-	hypothetical protein
35	 43.38	0	25585..25803	-	72	156975987	-	VIBHAR_04757	-	hypothetical protein
36	 47.42	0	25839..26129	-	96	156975988	-	VIBHAR_04758	-	hypothetical protein
37	 47.52	0	27668..27808	+	46	156975989	-	VIBHAR_04759	-	hypothetical protein
38	 45.50	0	27727..27948	+	73	156975990	-	VIBHAR_04760	-	hypothetical protein
39	 47.55	0	27945..29513	-	522	156975991	-	VIBHAR_04761	-	alkyl hydroperoxide reductase, subunit F
40	 45.88	0	29686..30243	-	185	156975992	-	VIBHAR_04762	-	alkyl hydroperoxide reductase c22 protein
41	 48.61	0	30549..30980	-	143	156975993	-	VIBHAR_04763	-	hypothetical protein
42	 49.17	+1	31145..31567	+	140	156975994	-	VIBHAR_04764	-	redox protein, regulator of disulfide bond formation
43	 39.09	-1	31832..32074	+	80	156975995	-	VIBHAR_04765	-	hypothetical protein
44	 38.69	-1	32088..32423	+	111	156975996	-	VIBHAR_04766	-	plasmid stabilization system protein protein
45	 51.91	+1	32477..33574	-	365	156975997	-	VIBHAR_04767	-	hypothetical protein
46	 44.57	0	33917..34183	-	88	156975998	-	VIBHAR_04768	-	hypothetical protein
47	 45.06	0	34484..35839	+	451	156975999	-	VIBHAR_04769	-	hypothetical protein
48	 48.92	+1	35934..37043	-	369	156976000	-	VIBHAR_04770	-	hydrolase
49	 50.38	+1	37043..39553	-	836	156976001	-	VIBHAR_04771	-	peptide ABC transporter permease
50	 49.93	+1	39540..40274	-	244	156976002	-	VIBHAR_04772	-	putative transport protein of outer membrane lipoproteins
51	 47.55	0	40514..41146	+	210	156976003	-	VIBHAR_04773	-	isochorismatase
52	 46.67	0	41135..41269	-	44	156976004	-	VIBHAR_04774	-	hypothetical protein
53	 44.94	0	41250..41585	-	111	156976005	-	VIBHAR_04775	-	glutathione peroxidase
54	 45.79	0	41592..41864	-	90	156976006	-	VIBHAR_04776	-	transcriptional regulator
55	 46.04	0	42119..42787	+	222	156976007	-	VIBHAR_04777	-	NAD(P)H quinone oxidoreductase
56	 42.90	0	42838..43140	+	100	156976008	-	VIBHAR_04778	-	hypothetical protein
57	 37.04	-2	43115..43249	-	44	156976009	-	VIBHAR_04779	-	hypothetical protein
58	 40.74	-1	43385..43762	-	125	156976010	-	VIBHAR_04780	-	hypothetical protein
59	 47.49	0	43814..45805	-	663	156976011	-	VIBHAR_04781	-	peptidase
60	 52.50	+1	45989..46927	-	312	156976012	-	VIBHAR_04782	-	hypothetical protein
61	 45.91	0	47017..47175	+	52	156976013	-	VIBHAR_04783	-	hypothetical protein
62	 49.23	+1	47162..49048	-	628	156976014	-	VIBHAR_04784	-	histidine kinase
63	 47.29	0	49367..52117	+	916	156976015	-	VIBHAR_04785	-	zinc protease
64	 47.40	0	52181..52507	-	108	156976016	-	VIBHAR_04786	-	donor-ubiquinone reductase I
65	 44.76	0	52714..53142	+	142	156976017	-	VIBHAR_04787	-	hypothetical protein
66	 40.17	-1	53163..53279	-	38	156976018	-	VIBHAR_04788	-	hypothetical protein
67	 34.07	-2	53449..53583	-	44	156976019	-	VIBHAR_04789	-	hypothetical protein
68	 44.61	0	53646..54470	+	274	156976020	-	VIBHAR_04790	-	integrase
69	 35.56	-2	54638..54772	-	44	156976021	-	VIBHAR_04791	-	hypothetical protein
70	 46.38	0	54960..55595	+	211	156976022	-	VIBHAR_04792	-	hypothetical protein
71	 47.70	0	55928..56449	+	173	156976023	-	VIBHAR_04793	-	P pilus assembly protein
72	 45.11	0	56518..58980	+	820	156976024	-	VIBHAR_04794	-	porin PapC
73	 45.42	0	59030..59749	+	239	156976025	-	VIBHAR_04795	-	chaperone PapD
74	 47.30	0	59749..60786	+	345	156976026	-	VIBHAR_04796	-	hypothetical protein
75	 46.63	0	60799..61791	+	330	156976027	-	VIBHAR_04797	-	hypothetical protein
76	 46.03	0	61923..62111	-	62	156976028	-	VIBHAR_04798	-	hypothetical protein
77	 51.11	+1	62276..62410	-	44	156976029	-	VIBHAR_04799	-	hypothetical protein
78	 48.18	0	62419..63711	+	430	156976030	-	VIBHAR_04800	-	RNA-directed DNA polymerase
79	 43.15	0	63796..64182	-	128	156976031	-	VIBHAR_04801	-	hypothetical protein
80	 47.01	0	64344..64460	+	38	156976032	-	VIBHAR_04802	-	lactoylglutathione lyase
81	 46.80	0	64534..65454	-	306	156976033	-	VIBHAR_04803	-	hypothetical protein
82	 49.94	+1	65656..66432	+	258	156976034	-	VIBHAR_04804	-	sugar kinase
83	 46.58	0	66637..67761	+	374	156976035	-	VIBHAR_04805	-	hypothetical protein
84	 46.93	0	67842..68150	-	102	156976036	-	VIBHAR_04806	-	cell shape determination protein CcmA
85	 48.64	0	68189..69142	-	317	156976037	-	VIBHAR_04807	-	hypothetical protein
86	 36.11	-2	69243..69422	+	59	156976038	-	VIBHAR_04808	-	hypothetical protein
87	 48.33	0	69545..71338	+	597	156976039	-	VIBHAR_04809	-	hypothetical protein
88	 49.96	+1	71413..72597	-	394	156976040	-	VIBHAR_04810	-	Xaa-His dipeptidase
89	 48.10	0	72594..73223	-	209	156976041	-	VIBHAR_04811	-	DNA invertase
90	 48.02	0	73409..74416	-	335	156976042	-	VIBHAR_04812	-	hypothetical protein
91	 48.91	+1	74672..75769	-	365	156976043	-	VIBHAR_04813	-	hypothetical protein
92	 47.79	0	75935..76951	-	338	156976044	-	VIBHAR_04814	-	hypothetical protein
93	 47.76	0	77053..78348	-	431	156976045	-	VIBHAR_04815	-	permease
94	 45.46	0	78626..80167	+	513	156976046	-	VIBHAR_04816	-	alkaline phosphatase synthesis sensor protein phoR
95	 47.63	0	80179..81549	+	456	156976047	-	VIBHAR_04817	-	L-serine deaminase
96	 43.75	0	81554..81697	-	47	156976048	-	VIBHAR_04818	-	hypothetical protein
97	 45.00	0	81751..81990	-	79	156976049	-	VIBHAR_04819	-	hypothetical protein
98	 47.24	0	82177..84225	-	682	156976050	-	VIBHAR_04820	-	glycogen operon protein GlgX
99	 47.10	0	84580..85923	+	447	156976051	-	VIBHAR_04821	-	maltoporin
100	 43.33	0	86027..86836	+	269	156976052	-	VIBHAR_04822	-	hypothetical protein
45.03	MEAN

3.78	STD DEV
