IslandPath Analysis: Vibrio harveyi ATCC BAA-1116

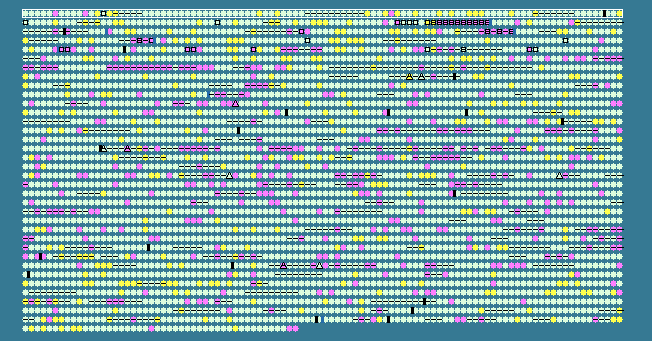

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 45.58   STD DEV: 3.31
Vibrio harveyi ATCC BAA-1116 chromosome I, complete genome - 1..3765351
3546 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 45.26	0	2016..2795	-	259	156972383	-	VIBHAR_00003	-	phosphoadenosine phosphosulfate reductase
2	 45.77	0	2788..4524	-	578	156972384	-	VIBHAR_00004	-	sulfite reductase subunit beta
3	 45.94	0	4524..6419	-	631	156972385	-	VIBHAR_00005	-	sulfite reductase (NADPH) flavoprotein subunit alpha
4	 47.19	0	6516..6746	-	76	156972386	-	VIBHAR_00006	-	thymidylate kinase
5	 43.09	0	6896..7561	-	221	156972387	-	VIBHAR_00007	-	hypothetical protein
6	 41.67	-1	7662..7877	-	71	156972388	-	VIBHAR_00008	-	phage shock protein G
7	 48.39	0	8041..8943	-	300	156972389	-	VIBHAR_00009	-	tRNA-dihydrouridine synthase A
8	 45.27	0	9277..9762	+	161	156972390	-	VIBHAR_00010	-	zinc uptake regulation protein
9	 46.10	0	9781..10242	+	153	156972391	-	VIBHAR_00011	-	chemotaxis protein CheX
10	 46.46	0	10344..11996	-	550	156972392	-	VIBHAR_00012	-	glucose-6-phosphate isomerase
11	 36.54	-2	12088..12243	+	51	156972393	-	VIBHAR_00013	-	hypothetical protein
12	 43.75	0	12243..12722	+	159	156972394	-	VIBHAR_00014	-	hypothetical protein
13	 49.36	+1	12776..13786	-	336	156972395	-	VIBHAR_00015	-	hypothetical protein
14	 43.17	0	13874..15235	-	453	156972396	-	VIBHAR_00016	-	transposase
15	 49.50	+1	15413..16513	-	366	156972397	-	VIBHAR_00017	-	alanine racemase
16	 49.18	+1	16503..17903	-	466	156972398	-	VIBHAR_00018	-	replicative DNA helicase
17	 45.10	0	18224..18988	+	254	156972399	-	VIBHAR_00019	-	hypothetical protein
18	 45.70	0	19074..19526	-	150	156972400	-	VIBHAR_00020	-	50S ribosomal protein L9
19	 45.18	0	19559..19786	-	75	156972401	-	VIBHAR_00021	-	30S ribosomal protein S18
20	 46.74	0	19803..20093	-	96	156972402	-	VIBHAR_00022	-	primosomal replication protein N
21	 48.21	0	20114..20503	-	129	156972403	-	VIBHAR_00023	-	30S ribosomal protein S6
22	 46.58	0	20748..21419	-	223	156972404	-	VIBHAR_00024	-	ribulose-phosphate 3-epimerase
23	 46.79	0	21522..22361	-	279	156972405	-	VIBHAR_00025	-	DNA adenine methylase
24	 45.98	0	22431..23924	-	497	156972406	-	VIBHAR_00026	-	hypothetical protein
25	 47.05	0	23978..25078	-	366	156972407	-	VIBHAR_00027	-	3-dehydroquinate synthase
26	 46.63	0	25110..25628	-	172	156972408	-	VIBHAR_00028	-	shikimate kinase I
27	 44.92	0	25817..27568	-	583	156972409	-	VIBHAR_00029	-	type IV pilus secretin PilQ
28	 48.64	0	27600..28115	-	171	156972410	-	VIBHAR_00030	-	fimbrial assembly protein PilP
29	 45.12	0	28105..28698	-	197	156972411	-	VIBHAR_00031	-	fimbrial assembly protein PilO
30	 45.14	0	28691..29266	-	191	156972412	-	VIBHAR_00032	-	fimbrial assembly protein PilN
31	 44.57	0	29250..30353	-	367	156972413	-	VIBHAR_00033	-	fimbrial assembly protein PilM
32	 46.81	0	30445..33012	+	855	156972414	-	VIBHAR_00034	-	penicillin-binding protein 1A
33	 46.75	0	33091..33999	-	302	156972415	-	VIBHAR_00035	-	DNA-binding transcriptional regulator OxyR
34	 45.40	0	34174..34902	+	242	156972416	-	VIBHAR_00036	-	glutaredoxin
35	 48.13	0	35130..36602	+	490	156972417	-	VIBHAR_00037	-	dihydrolipoamide dehydrogenase
36	 43.81	0	36700..36804	-	34	156972418	-	VIBHAR_00038	-	hypothetical protein
37	 43.20	0	36971..37264	+	97	156972419	-	VIBHAR_00039	-	hypothetical protein
38	 48.53	0	37419..39293	-	624	156972420	-	VIBHAR_00040	-	bifunctional argininosuccinate lyase/N-acetylglutamate synthase
39	 47.08	0	39544..40758	-	404	156972421	-	VIBHAR_00041	-	argininosuccinate synthase
40	 50.00	+1	40849..41640	-	263	156972422	-	VIBHAR_00042	-	acetylglutamate kinase
41	 46.57	0	41662..42666	-	334	156972423	-	VIBHAR_00043	-	N-acetyl-gamma-glutamyl-phosphate reductase
42	 48.20	0	42811..43947	+	378	156972424	-	VIBHAR_00044	-	acetylornithine deacetylase
43	 49.42	+1	44193..46859	+	888	156972425	-	VIBHAR_00045	-	phosphoenolpyruvate carboxylase
44	 46.37	0	47235..47840	+	201	156972426	-	VIBHAR_00046	-	transcriptional regulator
45	 48.39	0	47911..48813	-	300	156972427	-	VIBHAR_00047	-	5,10-methylenetetrahydrofolate reductase
46	 48.94	+1	49085..51493	-	802	156972428	-	VIBHAR_00048	-	bifunctional aspartate kinase II/homoserine dehydrogenase II
47	 47.72	0	51510..52670	-	386	156972429	-	VIBHAR_00049	-	cystathionine gamma-synthase
48	 45.79	0	52900..53220	+	106	156972430	-	VIBHAR_00050	-	transcriptional repressor protein MetJ
49	 46.95	0	53331..54608	-	425	156972431	-	VIBHAR_00051	-	malate oxidoreductase
50	 43.16	0	54818..55336	-	172	156972432	-	VIBHAR_00052	-	bacterioferritin
51	 42.86	0	55369..55557	-	62	156972433	-	VIBHAR_00053	-	bacterioferritin-associated ferredoxin
52	 46.84	0	55894..57078	-	394	156972434	-	VIBHAR_00054	-	elongation factor Tu
53	 47.29	0	57234..59333	-	699	156972435	-	VIBHAR_00055	-	elongation factor G
54	 45.65	0	59472..59942	-	156	156972436	-	VIBHAR_00056	-	30S ribosomal protein S7
55	 46.93	0	60043..60417	-	124	156972437	-	VIBHAR_00057	-	30S ribosomal protein S12
56	 44.93	0	60595..60870	-	91	156972438	-	VIBHAR_00058	-	hypothetical protein
57	 47.90	0	60878..61234	-	118	156972439	-	VIBHAR_00059	-	sulfur oxidation protein dsrF
58	 51.01	+1	61231..61626	-	131	156972440	-	VIBHAR_00060	-	hypothetical protein
59	 45.61	0	61629..62345	-	238	156972441	-	VIBHAR_00061	-	hypothetical protein
60	 44.57	0	62490..63272	-	260	156972442	-	VIBHAR_00062	-	peptidyl-prolyl cis-trans isomerase
61	 49.85	+1	63401..64387	+	328	156972443	-	VIBHAR_00063	-	hypothetical protein
62	 41.67	-1	64384..64611	+	75	156972444	-	VIBHAR_00064	-	hypothetical protein
63	 50.21	+1	64705..65646	-	313	156972445	-	VIBHAR_00065	-	L-asparaginase
64	 47.41	0	65777..66316	-	179	156972446	-	VIBHAR_00066	-	peptidyl-prolyl cis-trans isomerase
65	 45.53	0	66405..66650	-	81	156972447	-	VIBHAR_00067	-	hypothetical protein
66	 50.53	+1	66641..68437	-	598	156972448	-	VIBHAR_00068	-	glutathione-regulated potassium-efflux system protein KefB
67	 47.45	0	68421..69008	-	195	156972449	-	VIBHAR_00069	-	glutathione-regulated potassium-efflux system ancillary protein KefG
68	 48.85	0	69186..71105	+	639	156972450	-	VIBHAR_00070	-	ABC transporter, ATP-binding subunit
69	 46.67	0	71102..71581	+	159	156972451	-	VIBHAR_00071	-	hypothetical protein
70	 49.11	+1	71682..72689	+	335	156972452	-	VIBHAR_00072	-	putative hydrolase
71	 43.19	0	72760..72972	+	70	156972453	-	VIBHAR_00073	-	hypothetical protein
72	 50.23	+1	73097..73966	+	289	156972454	-	VIBHAR_00074	-	phosphoribulokinase
73	 44.87	0	74206..74838	+	210	156972455	-	VIBHAR_00075	-	cAMP-regulatory protein
74	 48.36	0	75036..75827	-	263	156972456	-	VIBHAR_00076	-	hypothetical protein
75	 51.51	+1	76092..77549	-	485	156972457	-	VIBHAR_00077	-	succinylglutamic semialdehyde dehydrogenase
76	 49.22	+1	77578..78597	-	339	156972458	-	VIBHAR_00078	-	arginine N-succinyltransferase
77	 49.17	+1	78706..79917	-	403	156972459	-	VIBHAR_00079	-	bifunctional N-succinyldiaminopimelate-aminotransferase/acetylornithine transaminase protein
78	 47.79	0	80279..80866	-	195	156972460	-	VIBHAR_00080	-	para-aminobenzoate synthase component II
79	 47.71	0	81056..84004	-	982	156972461	-	VIBHAR_00081	-	nuclease
80	 48.46	0	84733..85770	-	345	156972462	-	VIBHAR_00082	-	tryptophanyl-tRNA synthetase
81	 46.29	0	85886..86572	-	228	156972463	-	VIBHAR_00083	-	phosphoglycolate phosphatase
82	 50.27	+1	86698..87441	-	247	156972464	-	VIBHAR_00084	-	23S rRNA (guanosine-2'-O-)-methyltransferase
83	 48.30	0	87518..90010	-	830	156972465	-	VIBHAR_00085	-	ribonuclease R
84	 43.43	0	90128..90553	-	141	156972466	-	VIBHAR_00086	-	transcriptional repressor NsrR
85	 46.75	0	90665..91849	+	394	156972467	-	VIBHAR_00087	-	nitric oxide dioxygenase
86	 50.31	+1	91956..92591	-	211	156972468	-	VIBHAR_00088	-	sodium-type polar flagellar protein MotX
87	 45.79	0	92824..94140	-	438	156972469	-	VIBHAR_00089	-	adenylosuccinate synthetase
88	 48.15	0	94311..94499	+	62	156972470	-	VIBHAR_00090	-	hypothetical protein
89	 45.46	0	94612..95592	-	326	156972471	-	VIBHAR_00091	-	serine protease
90	 48.09	0	95595..96800	-	401	156972472	-	VIBHAR_00092	-	serine protease
91	 47.52	0	96846..98135	-	429	156972473	-	VIBHAR_00093	-	putative GTPase HflX
92	 47.35	0	98174..98437	-	87	156972474	-	VIBHAR_00094	-	RNA-binding protein Hfq
93	 46.73	0	98632..99564	-	310	156972475	-	VIBHAR_00095	-	tRNA delta(2)-isopentenylpyrophosphate transferase
94	 48.48	0	99561..101606	-	681	156972476	-	VIBHAR_00096	-	DNA mismatch repair protein
95	 47.83	0	101625..103355	-	576	156972477	-	VIBHAR_00097	-	N-acetylmuramoyl-L-alanine amidase
96	 45.38	0	103349..103813	-	154	156972478	-	VIBHAR_00098	-	hypothetical protein
97	 47.25	0	104112..105239	+	375	156972479	-	VIBHAR_00099	-	iron-sulfur cluster-binding protein
98	 44.69	0	107370..107915	-	181	156972480	-	VIBHAR_00112	-	oligoribonuclease
99	 46.92	0	107991..109109	+	372	156972481	-	VIBHAR_00113	-	ribosome-associated GTPase
100	 49.30	+1	109226..110083	+	285	156972482	-	VIBHAR_00114	-	phosphatidylserine decarboxylase
45.58	MEAN

3.31	STD DEV
