IslandPath Analysis: Thermoplasma volcanium GSS1

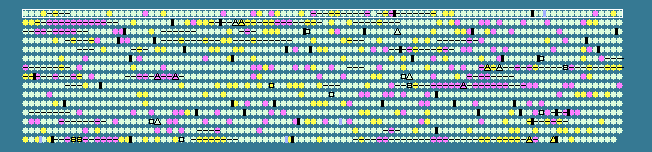

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.87   STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 40.90	0	110..1192	+	360	13540832	-	TVN0001	-	GTPase
2	 41.19	0	1433..3442	+	669	13540833	-	TVN0002	-	formate dehydrogenase, alpha subunit
3	 41.04	0	3439..4359	+	306	13540834	-	TVN0003	-	ferredoxin subunit of sulfhydrogenase II
4	 44.90	+1	4397..5131	+	244	13540835	-	TVN0004	-	anaerobic sulfite reduction protein B
5	 39.90	0	5588..7018	+	476	13540836	-	TVN0005	-	phosphate ABC transporter permease
6	 45.34	+1	7048..7455	-	135	13540837	-	TVN0006	-	hypothetical protein
7	 40.18	0	7691..8143	+	150	13540838	-	TVN0007	-	30S ribosomal protein S19e
8	 38.40	0	8127..8501	+	124	13540839	-	TVN0008	-	hypothetical protein
9	 44.23	0	8498..8653	+	51	13540840	rpl39e	TVN0009	-	50S ribosomal protein L39e
10	 37.41	-1	8663..8932	+	89	13540841	-	TVN0010	-	50S ribosomal protein L31e
11	 40.94	0	8973..9629	+	218	13540842	-	TVN0011	-	translation initiation factor IF-6
12	 43.71	0	9630..10130	-	166	13540843	pyrE	TVN0012	-	orotate phosphoribosyltransferase
13	 40.22	0	10229..12073	+	614	13540844	-	TVN0013	-	Rad3-related DNA helicase
14	 43.20	0	12192..12647	+	151	13540845	-	TVN0014	-	N-terminal acetyltransferase complex, Ard1 subunit
15	 44.47	+1	12665..13867	-	400	13540846	-	TVN0015	-	S-adenosylmethionine synthetase
16	 41.09	0	14001..15470	+	489	13540847	purH	TVN0016	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
17	 41.80	0	15475..16230	-	251	13540848	-	TVN0017	-	enoyl-CoA hydratase
18	 38.59	0	16337..17173	-	278	13540849	-	TVN0018	-	hypothetical protein
19	 43.49	0	17184..19496	-	770	13540850	-	TVN0019	-	DNA topoisomerase I
20	 41.39	0	19502..19774	-	90	13540851	-	TVN0020	-	acylphosphatase
21	 36.17	-1	19869..21347	-	492	13540852	-	TVN0021	-	permease
22	 41.28	0	21463..22242	-	259	13540853	-	TVN0022	-	ABC-type multidrug transport system, ATPase component
23	 40.06	0	22763..23743	-	326	13540854	-	TVN0023	-	hypothetical protein
24	 44.96	+1	23909..25258	+	449	13540855	-	TVN0024	-	4-aminobutyrate aminotransferase
25	 43.08	0	25269..25781	-	170	13540856	-	TVN0025	-	hypothetical protein
26	 39.90	0	25913..26689	-	258	13540857	-	TVN0026	-	arsenite transporting ATPase
27	 42.83	0	26800..27936	+	378	13540858	-	TVN0027	-	cell division protein FtsZ
28	 41.26	0	28471..29151	+	226	13540859	-	TVN0028	-	orotidine 5'-phosphate decarboxylase
29	 41.27	0	29176..29868	+	230	13540860	-	TVN0029	-	secreted serine protease (ClpP class)
30	 37.94	0	29865..30797	-	310	13540861	cobD	TVN0030	-	cobalamin biosynthesis protein
31	 39.94	0	30868..32274	-	468	13540862	-	TVN0031	-	cobyric acid synthase
32	 41.55	0	32497..34869	+	790	13540863	valS	TVN0032	-	valyl-tRNA synthetase
33	 42.02	0	35198..36820	+	540	13540864	-	TVN0033	-	CTP synthetase
34	 36.67	-1	37710..38039	+	109	13540865	-	TVN0034	-	sterol carrier protein
35	 43.07	0	38125..41370	+	1081	13540866	-	TVN0035	-	DNA polymerase II large subunit
36	 41.34	0	41375..42148	+	257	13540867	-	TVN0036	-	GTPase
37	 40.98	0	42157..42771	-	204	13540868	-	TVN0037	-	hypothetical protein
38	 40.86	0	42761..43039	-	92	13540869	-	TVN0038	-	hypothetical protein
39	 36.65	-1	43106..43618	+	170	13540870	-	TVN0039	-	hypothetical protein
40	 44.91	+1	43806..44090	+	94	13540871	-	TVN0040	-	hypothetical protein
41	 38.50	0	44114..44713	-	199	13540872	-	TVN0041	-	regulator of amino acid metabolism
42	 37.36	-1	44802..45074	-	90	13540873	-	TVN0042	-	hypothetical protein
43	 49.71	+2	45165..45689	-	174	13540874	-	TVN0043	-	hypothetical protein
44	 39.23	0	46243..46971	+	242	13540875	-	TVN0044	-	TPR repeat-containing protein
45	 41.46	0	46979..47335	-	118	13540876	-	TVN0045	-	hypothetical protein
46	 41.63	0	47464..48222	+	252	13540877	-	TVN0046	-	exonuclease III
47	 44.57	+1	48225..49505	-	426	13540878	glyA	TVN0047	-	serine hydroxymethyltransferase
48	 42.98	0	49756..49983	+	75	13540879	-	TVN0048	-	H+-ATPase subunit K
49	 35.48	-1	49989..50546	+	185	13540880	-	TVN0049	-	V-type ATP synthase subunit E
50	 40.06	0	50548..51618	+	356	13540881	-	TVN0050	-	V-type ATP synthase subunit C
51	 40.32	0	51620..51934	+	104	13540882	-	TVN0051	-	V-type ATP synthase subunit F
52	 44.36	+1	51944..54274	+	776	13540883	-	TVN0052	-	V-type ATP synthase subunit A
53	 45.84	+1	54255..55637	+	460	13540884	-	TVN0053	-	V-type ATP synthase subunit B
54	 42.90	0	55622..56269	+	215	13540885	-	TVN0054	-	V-type ATP synthase subunit D
55	 40.48	0	56417..56752	+	111	13540886	-	TVN0055	-	V-type ATP synthase subunit H
56	 41.46	0	56755..58686	+	643	13540887	-	TVN0056	-	V-type ATP synthase subunit I
57	 39.83	0	58751..59350	+	199	13540888	-	TVN0057	-	glutamine amidotransferase subunit PdxT
58	 37.28	-1	59351..60439	+	362	13540889	-	TVN0058	-	aminomethyltransferase (glycine cleavage system T protein)
59	 38.98	0	60866..61804	-	312	13540890	-	TVN0059	-	UDP-glucose 4-epimerase
60	 40.69	0	61978..62181	+	67	13540891	-	TVN0060	-	nucleic-acid-binding protein (Zn-ribbon)
61	 44.82	+1	62254..62871	+	205	13540892	-	TVN0061	-	superoxide dismutase
62	 36.42	-1	62879..63493	+	204	13540893	-	TVN0062	-	N-glycosylase/DNA lyase
63	 42.31	0	63671..64561	-	296	13540894	-	TVN0063	-	phosphate permease
64	 41.77	0	64561..65125	-	188	13540895	-	TVN0064	-	hypothetical protein
65	 43.82	0	65335..65973	+	212	13540896	-	TVN0065	-	MarC family integral membrane protein
66	 39.39	0	65980..66474	+	164	13540897	-	TVN0066	-	2'-5' RNA ligase
67	 42.75	0	66522..67031	+	169	13540898	-	TVN0067	-	hypothetical protein
68	 41.30	0	67028..67504	-	158	13540899	-	TVN0068	-	nucleic-acid-binding protein
69	 48.17	+2	67506..68678	-	390	13540900	-	TVN0069	-	acetyl-CoA acetyltransferase
70	 41.67	0	69015..70322	+	435	13540901	-	TVN0070	-	proline/betaine transport permease
71	 47.00	+1	70571..71521	+	316	13540902	-	TVN0071	-	threonine synthase
72	 45.51	+1	71521..72555	+	344	13540903	-	TVN0072	-	hypothetical protein
73	 41.68	0	72606..74006	+	466	13540904	-	TVN0073	-	metal-binding protein containing
74	 44.31	+1	74056..75057	+	333	13540905	-	TVN0074	-	D-mannonate dehydratase
75	 43.38	0	75046..75831	-	261	13540906	-	TVN0075	-	aldose dehydrogenase
76	 42.83	0	75867..76361	-	164	13540907	-	TVN0076	-	hypothetical protein
77	 43.06	0	76358..77128	-	256	13540908	-	TVN0077	-	hypothetical protein
78	 39.19	0	77159..78166	-	335	13540909	-	TVN0078	-	histidinol-phosphate aminotransferase
79	 40.32	0	78297..79184	+	295	13540910	-	TVN0079	-	hypothetical protein
80	 40.00	0	79186..79590	+	134	13540911	-	TVN0080	-	hypothetical protein
81	 42.78	0	79558..80637	-	359	13540912	-	TVN0081	-	nucleoside-diphosphate-sugar pyrophosphorylase
82	 38.16	0	80863..81816	-	317	13540913	-	TVN0082	-	hypothetical protein
83	 43.57	0	81827..83194	-	455	13540914	-	TVN0083	-	cytochrome bd-type quinol oxidase, subunit 1
84	 42.23	0	83526..84143	+	205	13540915	-	TVN0084	-	transcription activator
85	 42.30	0	84357..84869	-	170	13540916	-	TVN0085	-	hypothetical protein
86	 40.92	0	85061..85666	+	201	13540917	-	TVN0086	-	alpha/beta superfamily hydrolase
87	 40.82	0	85663..86076	+	137	13540918	-	TVN0087	-	molybdopterin converting factor, large subunit
88	 44.09	0	89391..90245	-	284	13540919	-	TVN0088	-	ATPase involved in chromosome partitioning
89	 43.89	0	90326..91936	-	536	13540920	-	TVN0089	-	formyltetrahydrofolate synthetase
90	 40.81	0	91933..92547	-	204	13540921	-	TVN0090	-	formiminotetrahydrofolate cyclodeaminase
91	 42.02	0	92631..93539	-	302	13540922	-	TVN0091	-	glutamate formiminotransferase
92	 42.40	0	93749..96052	+	767	13540923	-	TVN0092	-	ribonucleotide-diphosphate reductase subunit alpha
93	 39.53	0	96070..96843	-	257	13540924	-	TVN0093	-	metal-dependent hydrolase
94	 42.10	0	97142..98920	-	592	13540925	-	TVN0094	-	chloride channel protein
95	 38.39	0	99129..100097	-	322	13540926	-	TVN0095	-	cell wall biosynthesis glycosyltransferase
96	 36.93	-1	100132..100770	-	212	13540927	-	TVN0096	-	2-phosphosulfolactate phosphatase
97	 42.66	0	100811..101839	-	342	13540928	-	TVN0097	-	Kef-type K+ transporter NAD-binding component
98	 41.99	0	102084..102626	+	180	13540929	-	TVN0098	-	hypothetical protein
99	 45.31	+1	102621..103931	-	436	13540930	-	TVN0099	-	dihydrolipoamide dehydrogenase
100	 43.84	0	103933..105141	-	402	13540931	-	TVN0100	-	branched-chain alpha-keto acid dehydrogenase subunit E2
40.87	MEAN

3.44	STD DEV
