IslandPath Analysis: Thermoanaerobacter tengcongensis MB4

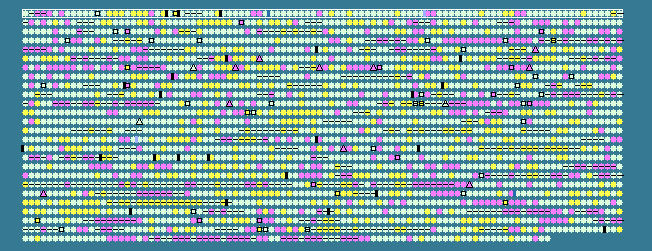

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 37.40   STD DEV: 4.04
Thermoanaerobacter tengcongensis MB4, complete genome - 1..2689445
2588 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 36.34	0	365..1696	+	443	20806543	dnaA	TTE0001	-	chromosomal replication initiation protein
2	 37.74	0	1934..3046	+	370	20806544	DnaN	TTE0002	-	DNA polymerase III subunit beta
3	 33.82	0	3060..3266	+	68	20806545	-	TTE0003	-	hypothetical protein
4	 33.88	0	3277..4371	+	364	20806546	RecF	TTE0004	-	recombinational DNA repair ATPase
5	 32.56	-1	4384..4641	+	85	20806547	-	TTE0005	-	hypothetical protein
6	 36.75	0	4653..6908	+	751	20806548	-	TTE0006	-	alpha-glucosidase
7	 33.61	0	7199..7927	-	242	20806549	-	TTE0007	-	glutamine amidotransferase
8	 35.18	0	7924..9276	-	450	20806550	MurE	TTE0008	-	UDP-N-acetylmuramyl tripeptide synthase
9	 36.67	0	9290..9619	-	109	20806551	Arc1	TTE0009	-	EMAP domain-containing protein
10	 39.44	0	9726..11690	+	654	20806552	gyrB	TTE0010	-	DNA gyrase subunit B
11	 38.08	0	11704..14127	+	807	20806553	GyrA	TTE0011	-	DNA gyrase (topoisomerase II) A subunit
12	 35.90	0	14153..15166	-	337	20806554	NemA	TTE0012	-	NADH:flavin oxidoreductase
13	 36.21	0	15687..16970	-	427	20806555	-	TTE0013	-	transposase
14	 38.49	0	17655..18158	+	167	20806556	IlvH	TTE0014	-	acetolactate synthase small subunit
15	 42.17	+1	18160..19155	+	331	20806557	IlvC	TTE0015	-	ketol-acid reductoisomerase
16	 41.12	0	19174..20367	+	397	20806558	LeuA	TTE0016	-	isopropylmalate/homocitrate/citramalate synthase
17	 42.48	+1	20358..21614	+	418	20806559	LeuC	TTE0017	-	3-isopropylmalate dehydratase large subunit
18	 38.27	0	21614..22099	+	161	20806560	leuD	TTE0018	-	3-isopropylmalate dehydratase small subunit
19	 43.54	+1	22099..23166	+	355	20806561	LeuB	TTE0019	-	isocitrate/isopropylmalate dehydrogenase
20	 44.70	+1	23171..24841	+	556	20806562	IlvD	TTE0020	-	dihydroxy-acid dehydratase
21	 40.93	0	24838..26496	+	552	20806563	IlvB	TTE0021	-	acetolactate synthase large subunit
22	 32.86	-1	26524..27588	-	354	20806564	PerM	TTE0022	-	permease
23	 36.91	0	27991..28521	+	176	20806565	LepB	TTE0024	-	Signal peptidase I
24	 41.71	+1	28805..30082	+	425	20806566	SerS	TTE0025	-	seryl-tRNA synthetase
25	 35.72	0	30406..31620	-	404	20806567	LytR	TTE0026	-	transcriptional regulator
26	 41.08	0	31806..33173	+	455	20806568	-	TTE0027	-	transposase
27	 35.59	0	36694..39306	+	870	20806569	MgtA4	TTE0030	-	cation transport ATPase
28	 36.28	0	39394..40038	+	214	20806570	-	TTE0032	-	hypothetical protein
29	 38.75	0	40025..41722	-	565	20806571	-	TTE0034	-	hypothetical protein
30	 34.62	0	41889..43292	+	467	20806572	-	TTE0033	-	hypothetical protein
31	 35.99	0	43454..44167	+	237	20806573	-	TTE0035	-	hypothetical protein
32	 36.21	0	44184..45506	+	440	20806574	-	TTE0036	-	transglutaminase-like enzyme, putative cysteine protease
33	 40.94	0	45574..46020	+	148	20806575	-	TTE0037	-	cytosine/adenosine deaminase
34	 37.23	0	46670..48568	+	632	20806576	-	TTE0038	-	response regulator
35	 37.96	0	48666..50222	+	518	20806577	DnaX	TTE0039	-	DNA polymerase III, gamma/tau subunits
36	 38.69	0	50283..50618	+	111	20806578	-	TTE0040	-	hypothetical protein
37	 39.00	0	50628..51227	+	199	20806579	RecR	TTE0041	-	recombinational DNA repair protein
38	 35.55	0	51371..52543	+	390	20806580	-	TTE0042	-	HD-GYP domain-containing protein
39	 32.97	-1	52594..52866	+	90	20806581	-	TTE0043	-	hypothetical protein
40	 31.03	-1	52979..53326	-	115	20806582	-	TTE0045	-	hypothetical protein
41	 35.19	0	53380..53541	+	53	20806583	-	TTE0046	-	hypothetical protein
42	 38.35	0	58999..59736	+	245	20806584	FabG	TTE0051	-	dehydrogenase
43	 35.27	0	59729..60451	-	240	20806585	RsuA	TTE0052	-	16S rRNA uridine-516 pseudouridylate synthase family protein
44	 35.51	0	60661..61719	+	352	20806586	PurR	TTE0053	-	transcriptional regulator
45	 40.46	0	61756..63606	+	616	20806587	OppA	TTE0054	-	ABC-type dipeptide/oligopeptide/nickel transport systems, periplasmic components
46	 37.18	0	63630..64616	+	328	20806588	DppB	TTE0055	-	ABC-type dipeptide/oligopeptide/nickel transport systems, permease components
47	 35.26	0	64613..65494	+	293	20806589	DppC	TTE0056	-	ABC-type dipeptide/oligopeptide/nickel transport systems, permease components
48	 38.43	0	65495..66475	+	326	20806590	DppD	TTE0057	-	ABC-type dipeptide/oligopeptide/nickel transport system, ATPase component
49	 38.53	0	66472..67452	+	326	20806591	OppF	TTE0058	-	ABC-type dipeptide/oligopeptide/nickel transport system, ATPase component
50	 31.03	-1	67465..67638	+	57	20806592	-	TTE0059	-	hypothetical protein
51	 36.78	0	67652..69565	+	637	20806593	-	TTE0061	-	hypothetical protein
52	 42.02	+1	69569..70477	+	302	20806594	-	TTE0062	-	glycosylase
53	 39.85	0	70493..71413	+	306	20806595	-	TTE0063	-	glycosylase
54	 38.43	0	71511..72374	+	287	20806596	FocA	TTE0064	-	formate/nitrate transporter
55	 41.33	0	72589..73638	+	349	20806597	Gcd1	TTE0065	-	nucleoside-diphosphate-sugar pyrophosphorylase
56	 38.11	0	73663..74835	+	390	20806598	RfaG	TTE0066	-	glycosyltransferase
57	 37.52	0	74850..75899	+	349	20806599	-	TTE0067	-	hypothetical protein
58	 37.44	0	75957..76955	+	332	20806600	DdlA	TTE0068	-	D-alanine-D-alanine ligase and related ATP-grasp enzyme
59	 40.76	0	77044..77811	+	255	20806601	fabG	TTE0069	-	3-ketoacyl-(acyl-carrier-protein) reductase
60	 35.59	0	77827..78402	+	191	20806602	AcrR	TTE0070	-	transcriptional regulator
61	 33.96	0	78650..80086	+	478	20806603	-	TTE0071	-	hypothetical protein
62	 36.04	0	80237..80458	+	73	20806604	-	TTE0072	-	hypothetical protein
63	 42.60	+1	80515..81420	-	301	20806605	MesJ	TTE0073	-	ATPase
64	 36.90	0	81346..81513	+	55	20806606	-	TTE0074	-	hypothetical protein
65	 39.26	0	81579..82421	+	280	20806607	TtdA	TTE0075	-	fumarate hydratase
66	 37.14	0	82441..82992	+	183	20806608	FumA	TTE0076	-	tartrate dehydratase subunit beta
67	 38.32	0	82998..83558	+	186	20806609	-	TTE0077	-	Uracil-DNA glycosylase
68	 33.79	0	88583..88801	-	72	20806610	SirA	TTE0081	-	transcriptional regulator
69	 33.33	-1	88813..89706	-	297	20806611	LysR	TTE0082	-	transcriptional regulator
70	 40.33	0	89887..90129	+	80	20806612	SirA2	TTE0083	-	transcriptional regulator
71	 39.43	0	90150..91166	+	338	20806613	-	TTE0084	-	transporter components
72	 38.42	0	91220..91573	+	117	20806614	DsrE	TTE0085	-	uncharacterized ACR involved in intracellular sulfur reduction
73	 39.17	0	91586..91945	+	119	20806615	-	TTE0086	-	hypothetical protein
74	 36.20	0	91957..92235	+	92	20806616	DsrH	TTE0087	-	uncharacterized ACR involved in oxidation of intracellular sulfur
75	 38.38	0	92266..93651	+	461	20806617	Lpd	TTE0088	-	dihydrolipoamide dehydrogenase/glutathione oxidoreductase and related enzyme
76	 39.68	0	93677..94054	+	125	20806618	GcvH	TTE0089	-	glycine cleavage system H protein (lipoate-binding)
77	 42.30	+1	94148..95095	+	315	20806619	NagC	TTE0090	-	transcriptional regulator
78	 36.33	0	95100..95666	+	188	20806620	Tag	TTE0091	-	3-methyladenine DNA glycosylase
79	 36.00	0	95720..95944	+	74	20806621	-	TTE0092	-	sigma-F transcribed protein csfB
80	 37.84	0	96004..97422	+	472	20806622	LdcC	TTE0093	-	arginine/lysine/ornithine decarboxylase
81	 41.79	+1	97419..98045	+	208	20806623	Tmk	TTE0094	-	thymidylate kinase
82	 41.21	0	98042..98371	+	109	20806624	-	TTE0095	-	hypothetical protein
83	 32.22	-1	98377..98826	+	149	20806625	-	TTE0096	-	hypothetical protein
84	 33.33	-1	98846..99808	+	320	20806626	HolB	TTE0097	-	ATPase involved in DNA replication
85	 38.89	0	99811..100692	+	293	20806627	-	TTE0098	-	hypothetical protein
86	 34.62	0	100706..101095	-	129	20806628	-	TTE0099	-	hypothetical protein
87	 40.29	0	101099..101932	-	277	20806629	-	TTE0100	-	permease
88	 37.60	0	102016..104196	-	726	20806630	-	TTE0101	-	hypothetical protein
89	 37.81	0	104297..105703	-	468	20806631	ArcA	TTE0103	-	arginine deiminase
90	 38.62	0	105642..106397	+	251	20806632	SmtA	TTE0102	-	SAM-dependent methyltransferase
91	 38.29	0	106400..107227	+	275	20806633	-	TTE0104	-	methyltransferase
92	 36.45	0	107332..108198	+	288	20806634	Mmt1	TTE0105	-	Co/Zn/Cd cation transporter
93	 40.00	0	108233..108487	-	84	20806635	-	TTE0106	-	transcription regulator AbrB
94	 41.20	0	108667..109251	+	194	20806636	SpmA	TTE0107	-	hypothetical protein
95	 39.55	0	109248..109778	+	176	20806637	SpmB	TTE0108	-	hypothetical protein
96	 37.76	0	109853..111253	+	466	20806638	PcnB	TTE0109	-	tRNA nucleotidyltransferase/poly(A) polymerase
97	 39.18	0	111613..113529	+	638	20806639	MetG	TTE0110	-	methionyl-tRNA synthetase
98	 36.84	0	113540..114310	+	256	20806640	TatD	TTE0111	-	Mg-dependent DNase
99	 42.87	+1	114449..115465	+	338	20806641	-	TTE0112	-	hypothetical protein
100	 36.43	0	115504..116310	+	268	20806642	KsgA	TTE0113	-	dimethyladenosine transferase (rRNA methylation)
37.40	MEAN

4.04	STD DEV
