IslandPath Analysis: Thermoanaerobacter pseudethanolicus ATCC 33223

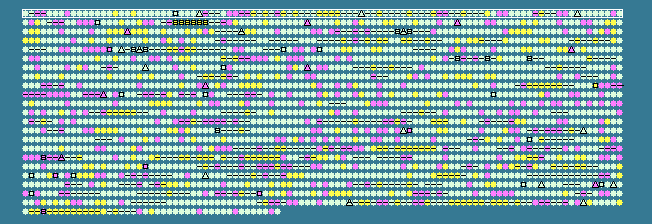

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.32 STD DEV: 4.01
Thermoanaerobacter pseudethanolicus ATCC 33223, complete genome - 1..2362816
2243 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 33.18	0	79..1410	+	443	167036432	-	Teth39_0001	-	chromosomal replication initiation protein
2	 31.36	0	1646..2758	+	370	167036433	-	Teth39_0002	-	DNA polymerase III subunit beta
3	 28.50	-1	2779..2985	+	68	167036434	-	Teth39_0003	-	RNA-binding S4 domain-containing protein
4	 27.36	-1	2996..4084	+	362	167036435	-	Teth39_0004	-	DNA replication and repair protein RecF
5	 35.27	0	4096..4353	+	85	167036436	-	Teth39_0005	-	hypothetical protein
6	 33.29	0	4366..6624	+	752	167036437	-	Teth39_0006	-	Alpha-glucosidase
7	 32.38	0	6642..7373	-	243	167036438	-	Teth39_0007	-	glutamine amidotransferase
8	 28.69	-1	7370..8725	-	451	167036439	-	Teth39_0008	-	hypothetical protein
9	 31.75	0	8739..8864	-	41	167036440	-	Teth39_0009	-	hypothetical protein
10	 35.28	0	9099..11000	+	633	167036441	-	Teth39_0010	-	DNA gyrase subunit B
11	 35.97	0	11015..13438	+	807	167036442	-	Teth39_0011	-	DNA gyrase, A subunit
12	 35.31	0	13464..14477	-	337	167036443	-	Teth39_0012	-	NADH:flavin oxidoreductase/NADH oxidase
13	 34.28	0	15006..15533	+	175	167036444	-	Teth39_0013	-	acetolactate synthase, small subunit
14	 37.05	0	15533..16528	+	331	167036445	-	Teth39_0014	-	ketol-acid reductoisomerase
15	 36.84	0	16548..17744	+	398	167036446	-	Teth39_0015	-	pyruvate carboxyltransferase
16	 38.68	+1	17735..18988	+	417	167036447	-	Teth39_0016	-	3-isopropylmalate dehydratase large subunit
17	 34.78	0	18991..19473	+	160	167036448	-	Teth39_0017	-	3-isopropylmalate dehydratase small subunit
18	 37.17	0	19476..20543	+	355	167036449	-	Teth39_0018	-	3-isopropylmalate dehydrogenase
19	 40.24	+1	20540..22219	+	559	167036450	-	Teth39_0019	-	dihydroxy-acid dehydratase
20	 37.30	0	22216..23880	+	554	167036451	-	Teth39_0020	-	acetolactate synthase, large subunit, biosynthetic type
21	 34.16	0	24076..25158	+	360	167036452	-	Teth39_0021	-	riboflavin biosynthesis protein RibD
22	 31.25	0	25169..25792	+	207	167036453	-	Teth39_0022	-	riboflavin synthase, alpha subunit
23	 35.94	0	25830..27020	+	396	167036454	-	Teth39_0023	-	GTP cyclohydrolase II
24	 36.77	0	27098..27562	+	154	167036455	-	Teth39_0024	-	riboflavin synthase
25	 34.18	0	27580..28758	-	392	167036456	-	Teth39_0025	-	hypothetical protein
26	 33.48	0	28792..30174	-	460	167036457	-	Teth39_0026	-	IS605 family transposase OrfB
27	 30.99	0	30485..30655	-	56	167036458	-	Teth39_0027	-	hypothetical protein
28	 32.20	0	30793..31323	+	176	167036459	-	Teth39_0028	-	signal peptidase I
29	 37.11	0	31599..32870	+	423	167036460	-	Teth39_0029	-	seryl-tRNA synthetase
30	 33.96	0	33516..34637	-	373	167036461	-	Teth39_0030	-	phage integrase family protein
31	 26.30	-2	34701..35468	-	255	167036462	-	Teth39_0031	-	phospholipase D/transphosphatidylase
32	 33.85	0	35855..36244	-	129	167036463	-	Teth39_0032	-	XRE family transcriptional regulator
33	 32.38	0	36396..36605	+	69	167036464	-	Teth39_0033	-	XRE family transcriptional regulator
34	 34.85	0	36691..37020	+	109	167036465	-	Teth39_0034	-	excision promoter, Xis
35	 28.48	-1	37215..37379	+	54	167036466	-	Teth39_0035	-	hypothetical protein
36	 23.68	-2	37424..37765	+	113	167036467	-	Teth39_0036	-	hypothetical protein
37	 25.67	-2	37749..38492	-	247	167036468	-	Teth39_0037	-	hypothetical protein
38	 30.35	0	38682..39050	+	122	167036469	-	Teth39_0038	-	hypothetical protein
39	 39.20	+1	39233..40237	+	334	167036470	-	Teth39_0039	-	hypothetical protein
40	 32.62	0	40284..40562	+	92	167036471	-	Teth39_0040	-	hypothetical protein
41	 38.72	+1	40580..41266	+	228	167036472	-	Teth39_0041	-	metal dependent phosphohydrolase
42	 34.11	0	41263..41520	+	85	167036473	-	Teth39_0042	-	hypothetical protein
43	 27.14	-1	41513..41980	+	155	167036474	-	Teth39_0043	-	nucleic acid binding protein
44	 39.79	+1	42040..43077	+	345	167036475	-	Teth39_0044	-	StbA family protein
45	 32.22	0	43259..43528	+	89	167036476	-	Teth39_0045	-	hypothetical protein
46	 38.19	0	43829..44116	+	95	167036477	-	Teth39_0046	-	hypothetical protein
47	 33.94	0	44140..44469	+	109	167036478	-	Teth39_0047	-	hypothetical protein
48	 31.47	0	44516..45160	+	214	167036479	-	Teth39_0048	-	hypothetical protein
49	 36.94	0	45616..47028	+	470	167036480	-	Teth39_0049	-	RNA-directed DNA polymerase (Reverse transcriptase)
50	 41.19	+1	47349..47717	+	122	167036481	-	Teth39_0050	-	hypothetical protein
51	 42.44	+2	47732..48895	+	387	167036482	-	Teth39_0051	-	hypothetical protein
52	 38.35	+1	48885..50717	+	610	167036483	-	Teth39_0052	-	TRAG family protein
53	 37.86	0	50730..50972	+	80	167036484	-	Teth39_0053	-	hypothetical protein
54	 36.95	0	51014..51871	+	285	167036485	-	Teth39_0054	-	hypothetical protein
55	 31.18	0	51877..52155	+	92	167036486	-	Teth39_0055	-	hypothetical protein
56	 34.34	0	52244..52840	+	198	167036487	-	Teth39_0056	-	hypothetical protein
57	 34.84	0	52977..54302	+	441	167036488	-	Teth39_0057	-	integrase catalytic subunit
58	 33.83	0	54319..55119	+	266	167036489	-	Teth39_0058	-	AAA ATPase
59	 32.85	0	55392..56018	+	208	167036490	-	Teth39_0059	-	hypothetical protein
60	 43.14	+2	56033..57817	+	594	167036491	-	Teth39_0060	-	Type IV secretory pathway VirB4 components-like protein
61	 35.77	0	57817..58761	+	314	167036492	-	Teth39_0061	-	peptidase M23B
62	 30.93	0	58776..59357	+	193	167036493	-	Teth39_0062	-	hypothetical protein
63	 32.97	0	59341..59883	+	180	167036494	-	Teth39_0063	-	SAF domain-containing protein
64	 36.68	0	59889..60605	+	238	167036495	-	Teth39_0064	-	ATPase involved in chromosome partitioning-like protein
65	 38.34	+1	60574..61731	+	385	167036496	-	Teth39_0065	-	type II secretion system protein E
66	 32.89	0	61733..62638	+	301	167036497	-	Teth39_0066	-	type II secretion system protein
67	 32.80	0	62635..63384	+	249	167036498	-	Teth39_0067	-	hypothetical protein
68	 34.68	0	63418..63639	+	73	167036499	-	Teth39_0068	-	hypothetical protein
69	 41.67	+1	63740..64039	+	99	167036500	-	Teth39_0069	-	hypothetical protein
70	 29.41	-1	64036..64443	+	135	167036501	-	Teth39_0070	-	hypothetical protein
71	 28.57	-1	64443..65261	+	272	167036502	-	Teth39_0071	-	hypothetical protein
72	 31.92	0	65925..66278	+	117	167036503	-	Teth39_0072	-	hypothetical protein
73	 35.74	0	66292..66873	+	193	167036504	-	Teth39_0073	-	XRE family transcriptional regulator
74	 39.76	+1	66953..67621	+	222	167036505	-	Teth39_0074	-	hypothetical protein
75	 36.30	0	67713..70982	+	1089	167036506	-	Teth39_0075	-	peptidoglycan binding domain-containing protein
76	 32.04	0	70979..71365	+	128	167036507	-	Teth39_0076	-	peptidase A24A, prepilin type IV
77	 37.76	0	71395..71913	+	172	167036508	-	Teth39_0077	-	metal dependent phosphohydrolase
78	 38.39	+1	71906..72934	+	342	167036509	-	Teth39_0078	-	hypothetical protein
79	 33.01	0	73393..73701	+	102	167036510	-	Teth39_0079	-	hypothetical protein
80	 29.45	-1	73921..74769	+	282	167036511	-	Teth39_0080	-	radical SAM domain-containing protein
81	 28.73	-1	74891..75976	+	361	167036512	-	Teth39_0081	-	hypothetical protein
82	 35.42	0	76461..77084	+	207	167036513	-	Teth39_0082	-	hypothetical protein
83	 36.31	0	77053..78729	+	558	167036514	-	Teth39_0083	-	Type IV secretory pathway VirD4 components-like protein
84	 35.74	0	79852..80100	+	82	167036515	-	Teth39_0084	-	hypothetical protein
85	 32.94	0	80107..80361	+	84	167036516	-	Teth39_0085	-	hypothetical protein
86	 29.82	-1	80859..81713	+	284	167036517	-	Teth39_0086	-	hypothetical protein
87	 44.61	+2	81822..82025	+	67	167036518	-	Teth39_0087	-	DNA binding domain-containing protein
88	 35.29	0	82479..83090	+	203	167036519	-	Teth39_0088	-	zinc finger, CHC2-family protein
89	 34.92	0	83066..84448	+	460	167036520	-	Teth39_0089	-	hypothetical protein
90	 28.10	-1	84702..85121	+	139	167036521	-	Teth39_0090	-	hypothetical protein
91	 28.89	-1	86078..86257	-	59	167036522	-	Teth39_0091	-	DNA binding domain-containing protein
92	 34.16	0	86489..86851	+	120	167036523	-	Teth39_0092	-	hypothetical protein
93	 32.10	0	86985..88196	+	403	167036524	-	Teth39_0093	-	phage integrase family protein
94	 33.78	0	88827..89048	+	73	167036525	-	Teth39_0094	-	hypothetical protein
95	 33.54	0	89099..90055	+	318	167036526	-	Teth39_0095	-	beta-lactamase domain-containing protein
96	 35.82	0	90142..91389	+	415	167036527	-	Teth39_0096	-	hypothetical protein
97	 36.80	0	91842..93254	+	470	167036528	-	Teth39_0097	-	RNA-directed DNA polymerase (Reverse transcriptase)
98	 31.88	0	93411..94853	+	480	167036529	-	Teth39_0098	-	peptidase M1, membrane alanine aminopeptidase
99	 28.15	-1	94850..95833	-	327	167036530	-	Teth39_0099	-	DNA replication protein DnaC
100	 33.64	0	95826..96800	-	324	167036531	-	Teth39_0100	-	primosome, DnaD subunit
34.32	MEAN

4.01	STD DEV
