IslandPath Analysis: Thiomicrospira crunogena XCL-2

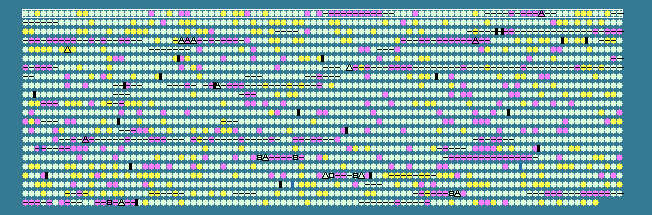

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 43.52   STD DEV: 3.38
Thiomicrospira crunogena XCL-2, complete genome - 1..2427734
2196 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 44.44	0	1..1404	+	467	78484347	-	Tcr_0001	-	chromosomal replication initiator protein DnaA
2	 44.44	0	1580..2686	+	368	78484348	-	Tcr_0002	-	DNA polymerase III, beta subunit
3	 48.48	+1	2785..3873	+	362	78484349	-	Tcr_0003	-	DNA replication and repair protein RecF
4	 44.79	0	3978..4649	+	223	78484350	-	Tcr_0004	-	two component transcriptional regulator
5	 44.44	0	4646..5986	+	446	78484351	-	Tcr_0005	-	periplasmic sensor signal transduction histidine kinase
6	 44.64	0	6102..7295	+	397	78484352	-	Tcr_0006	-	Outer membrane protein-like
7	 45.12	0	7292..8428	+	378	78484353	-	Tcr_0007	-	secretion protein HlyD
8	 46.97	+1	8430..11516	+	1028	78484354	-	Tcr_0008	-	heavy metal efflux pump CzcA
9	 44.55	0	11513..11833	+	106	78484355	-	Tcr_0009	-	hypothetical protein
10	 48.31	+1	11988..12548	+	186	78484356	-	Tcr_0010	-	hypothetical protein
11	 47.59	+1	12559..13596	+	345	78484357	-	Tcr_0011	-	hypothetical protein
12	 45.70	0	13889..16330	+	813	78484358	-	Tcr_0012	-	DNA gyrase, B subunit
13	 42.36	0	16506..17447	+	313	78484359	-	Tcr_0013	-	phosphoribulokinase
14	 43.47	0	17520..19403	-	627	78484360	-	Tcr_0014	-	hypothetical protein
15	 41.67	0	19571..20410	+	279	78484361	-	Tcr_0015	-	MltA-interacting MipA
16	 46.83	0	20441..20818	-	125	78484362	-	Tcr_0016	-	RNA-binding S4
17	 46.60	0	20832..21803	-	323	78484363	-	Tcr_0017	-	coproporphyrinogen III oxidase
18	 46.40	0	21893..22711	+	272	78484364	-	Tcr_0018	-	peptidase M48, Ste24p
19	 46.88	0	22708..23268	-	186	78484365	-	Tcr_0019	-	SUA5/yciO/yrdC-like
20	 44.42	0	23428..24573	+	381	78484366	-	Tcr_0020	-	polysaccharide deacetylase
21	 41.19	0	25085..26356	+	423	78484367	-	Tcr_0021	-	diguanylate cyclase
22	 38.81	-1	26396..26815	+	139	118139509	-	Tcr_0022	-	hypothetical protein
23	 45.40	0	26823..27452	+	209	78484369	-	Tcr_0023	-	lysine exporter protein LysE/YggA
24	 42.49	0	27566..28963	+	465	78484370	-	Tcr_0024	-	beta-lactamase-like
25	 50.56	+2	29245..29964	+	239	78484371	-	Tcr_0025	-	hypothetical protein
26	 45.10	0	29982..31052	-	356	78484372	-	Tcr_0026	-	hypothetical protein
27	 39.65	-1	31218..34097	-	959	78484373	-	Tcr_0027	-	methyl-accepting chemotaxis sensory transducer
28	 38.15	-1	34387..35154	-	255	78484374	-	Tcr_0028	-	diguanylate phosphodiesterase
29	 44.79	0	35332..36684	+	450	78484375	-	Tcr_0029	-	Sodium/sulphate symporter
30	 46.09	0	36688..37902	-	404	78484376	-	Tcr_0030	-	Sodium/hydrogen exchanger
31	 40.67	0	38186..39412	+	408	78484377	-	Tcr_0031	-	hypothetical protein
32	 41.85	0	39663..40460	+	265	78484378	-	Tcr_0032	-	ABC transporter related
33	 44.66	0	40487..41740	+	417	78484379	-	Tcr_0033	-	sulfonate ABC transporter, periplasmic sulfonate-binding protein, putative
34	 48.98	+1	41737..42567	+	276	78484380	-	Tcr_0034	-	binding-protein dependent transport system inner membrane protein
35	 45.43	0	42903..44597	+	564	78484381	-	Tcr_0035	-	NifA subfamily transcriptional regulator
36	 49.95	+1	44664..45698	-	344	78484382	-	Tcr_0036	-	ribosome-associated GTPase
37	 47.22	+1	46099..47466	-	455	78484383	-	Tcr_0037	-	rubredoxin-type Fe(Cys)4 protein
38	 39.61	-1	47476..48558	-	360	78484384	-	Tcr_0038	-	putative acyl-CoA dehydrogenase
39	 42.41	0	48617..49156	-	179	78484385	-	Tcr_0039	-	OsmC-like protein
40	 43.47	0	49479..49922	+	147	78484386	-	Tcr_0040	-	cyanate hydratase
41	 47.13	+1	50074..50718	+	214	78484387	-	Tcr_0041	-	2OG-Fe(II) oxygenase
42	 42.27	0	50787..51536	-	249	78484388	-	Tcr_0042	-	hypothetical protein
43	 42.51	0	51696..52676	-	326	78484389	-	Tcr_0043	-	homoserine kinase
44	 44.89	0	52701..55520	+	939	78484390	-	Tcr_0044	-	DNA polymerase I
45	 43.97	0	55621..56889	+	422	78484391	-	Tcr_0045	-	hypothetical protein
46	 41.02	0	56983..57711	+	242	78484392	-	Tcr_0046	-	hypothetical protein
47	 42.57	0	57757..58395	-	212	78484393	-	Tcr_0047	-	GTP-binding protein, HSR1-related
48	 39.45	-1	58499..60493	+	664	78484394	-	Tcr_0048	-	ResB-like
49	 41.24	0	60490..61665	+	391	78484395	-	Tcr_0049	-	cytochrome c assembly protein
50	 38.62	-1	61689..62312	+	207	78484396	-	Tcr_0050	-	DSBA oxidoreductase
51	 43.43	0	62478..64121	+	547	78484397	-	Tcr_0051	-	acetolactate synthase
52	 31.86	-2	64175..64513	+	112	78484398	-	Tcr_0052	-	hypothetical protein
53	 37.74	-1	64517..65083	-	188	78484399	-	Tcr_0053	-	nitroreductase
54	 34.97	-2	65366..66280	+	304	78484400	-	Tcr_0054	-	LysR family transcriptional regulator
55	 36.92	-1	66302..67054	+	250	78484401	-	Tcr_0055	-	VacJ-like lipoprotein
56	 37.65	-1	67064..68128	+	354	78484402	-	Tcr_0056	-	secretion protein HlyD
57	 38.40	-1	68140..71199	+	1019	78484403	-	Tcr_0057	-	acriflavin resistance protein
58	 38.68	-1	71226..71543	-	105	78484404	-	Tcr_0058	-	putative monovalent cation/H+ antiporter subunit G
59	 37.04	-1	71558..71827	-	89	78484405	-	Tcr_0059	-	putative monovalent cation/H+ antiporter subunit F
60	 37.75	-1	71821..72318	-	165	78484406	-	Tcr_0060	-	cation antiporter
61	 44.34	0	72315..73841	-	508	78484407	-	Tcr_0061	-	NADH dehydrogenase (quinone)
62	 44.94	0	73838..74242	-	134	78484408	-	Tcr_0062	-	NADH-ubiquinone oxidoreductase, chain 4L
63	 44.94	0	74242..77085	-	947	78484409	-	Tcr_0063	-	putative monovalent cation/H+ antiporter subunit A
64	 41.45	0	77383..79143	+	586	78484410	-	Tcr_0064	-	Na+/Pi-cotransporter
65	 41.67	0	79637..80056	-	139	78484411	-	Tcr_0065	-	hypothetical protein
66	 40.03	-1	80217..82382	+	721	78484412	-	Tcr_0066	-	periplasmic sensor hybrid histidine kinase
67	 44.59	0	82491..84542	+	683	78484413	-	Tcr_0067	-	oligopeptidase A
68	 43.70	0	84682..85935	+	417	78484414	-	Tcr_0068	-	aromatic hydrocarbon degradation protein
69	 42.25	0	85957..87246	+	429	78484415	-	Tcr_0069	-	major facilitator transporter
70	 44.48	0	87297..89450	+	717	78484416	-	Tcr_0070	-	AMP-dependent synthetase and ligase
71	 45.03	0	89481..91181	-	566	78484417	-	Tcr_0071	-	hypothetical protein
72	 45.81	0	91213..93207	-	664	78484418	-	Tcr_0072	-	TPR repeat-containing protein
73	 46.29	0	93207..94256	-	349	78484419	-	Tcr_0073	-	von Willebrand factor, type A
74	 46.25	0	94253..94732	-	159	78484420	-	Tcr_0074	-	hypothetical protein
75	 45.46	0	94732..95646	-	304	78484421	-	Tcr_0075	-	hypothetical protein
76	 47.43	+1	95671..96642	-	323	78484422	-	Tcr_0076	-	ATPase
77	 45.15	0	96811..99636	-	941	78484423	-	Tcr_0077	-	methyl-accepting chemotaxis sensory transducer
78	 46.25	0	99789..100787	-	332	78484424	-	Tcr_0078	-	methyltransferase, putative
79	 46.16	0	100812..101567	-	251	78484425	-	Tcr_0079	-	methyltransferase
80	 46.91	+1	101684..102817	-	377	78484426	-	Tcr_0080	-	lytic transglycosylase, catalytic
81	 46.15	0	102827..103723	-	298	78484427	-	Tcr_0081	-	DNA/RNA non-specific endonuclease
82	 34.30	-2	104344..108048	-	1234	78484428	-	Tcr_0083	-	hypothetical protein
83	 40.51	0	108554..109333	+	259	78484429	-	Tcr_0084	-	SmtA protein
84	 37.06	-1	110457..110885	-	142	78484430	-	Tcr_0085	-	hypothetical protein
85	 37.44	-1	110878..113217	-	779	78484431	-	Tcr_0086	-	hypothetical protein
86	 36.15	-2	113207..114802	-	531	78484432	-	Tcr_0087	-	hypothetical protein
87	 37.38	-1	114789..116072	-	427	78484433	-	Tcr_0088	-	Phage integrase
88	 45.50	0	116229..116828	-	199	78484434	-	Tcr_0089	-	SmtA protein
89	 41.73	0	117029..118291	+	420	78484435	-	Tcr_0090	-	diguanylate cyclase
90	 44.19	0	118336..119247	-	303	78484436	-	Tcr_0091	-	hypothetical protein
91	 44.14	0	119284..119838	-	184	78484437	-	Tcr_0092	-	rhodanese-like protein
92	 44.49	0	119967..120701	-	244	78484438	-	Tcr_0093	-	Beta-lactamase-like
93	 47.22	+1	120804..122063	+	419	78484439	-	Tcr_0094	-	major facilitator transporter
94	 47.58	+1	122219..123208	+	329	78484440	-	Tcr_0095	-	ATPase
95	 47.68	+1	123215..124225	+	336	78484441	-	Tcr_0096	-	hypothetical protein
96	 42.94	0	124212..124742	+	176	78484442	-	Tcr_0097	-	hypothetical protein
97	 45.24	0	124742..125833	+	363	78484443	-	Tcr_0098	-	von Willebrand factor, type A
98	 47.34	+1	125830..127785	+	651	78484444	-	Tcr_0099	-	von Willebrand factor, type A
99	 43.96	0	127779..129284	+	501	78484445	-	Tcr_0100	-	hypothetical protein
100	 40.24	0	129270..129515	-	81	78484446	-	Tcr_0101	-	hypothetical protein
43.52	MEAN

3.38	STD DEV
