IslandPath Analysis: Synechococcus sp. CC9311

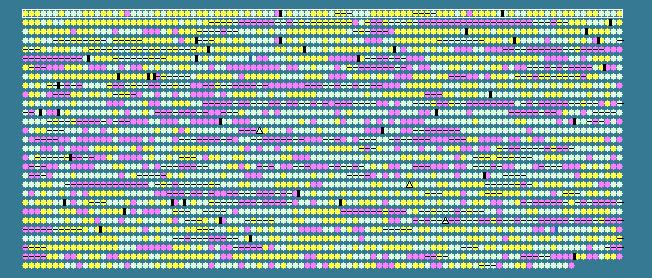

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.51 STD DEV: 5.59
Synechococcus sp. CC9311, complete genome - 1..2606748
2892 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 56.74	0	174..1331	+	385	113953564	dnaN	sync_0001	-	DNA polymerase III subunit beta
2	 58.05	0	1348..2148	+	266	113953136	-	sync_0002	-	hypothetical protein
3	 57.80	0	2185..4518	+	777	113955261	purL	sync_0003	-	phosphoribosylformylglycinamidine synthase II
4	 54.71	0	4518..6023	+	501	113954725	purF	sync_0004	-	amidophosphoribosyltransferase
5	 55.62	0	6024..8486	-	820	113953878	gyrA-1	sync_0005	-	DNA gyrase subunit A
6	 53.33	0	8556..9455	-	299	113953244	-	sync_0006	-	TPR repeat-containing protein
7	 56.62	0	9455..10429	-	324	113952821	-	sync_0007	-	iron-sulfur cluster binding protein, putative
8	 53.24	0	10474..11136	+	220	113953255	-	sync_0008	-	hypothetical protein
9	 51.47	0	11192..11941	+	249	113954152	-	sync_0009	-	hypothetical protein
10	 53.71	0	11963..12595	+	210	113954607	nusB	sync_0010	-	transcription antitermination protein NusB
11	 56.64	0	12600..14255	+	551	113955324	ftsY	sync_0011	-	signal recognition particle-docking protein FtsY
12	 56.67	0	14323..15732	+	469	113953373	-	sync_0012	-	SpoIIE domain-containing protein
13	 55.60	0	15764..17182	+	472	113954024	argH	sync_0013	-	argininosuccinate lyase
14	 62.82	+1	17309..17854	+	181	113955034	-	sync_0014	-	RNA recognition motif-containing protein
15	 57.51	0	17873..18877	-	334	113955552	-	sync_0015	-	tRNA-dihydrouridine synthase A
16	 54.58	0	18944..19456	+	170	113954714	msrB-1	sync_0016	-	methionine-R-sulfoxide reductase
17	 59.13	+1	19383..20696	+	437	113953859	-	sync_0017	-	hypothetical protein
18	 46.97	0	20744..24079	-	1111	113955252	-	sync_0018	-	hypothetical protein
19	 52.30	0	24218..25498	-	426	113955237	pilC	sync_0019	-	type IV pilus assembly protein PilC
20	 54.65	0	25515..26579	-	354	113954482	pilT	sync_0020	-	twitching motility protein
21	 51.60	0	26600..28471	-	623	113954125	pilB	sync_0021	-	type IV pilus assembly protein PilB
22	 55.43	0	28371..29180	+	269	113952817	grpE-1	sync_0022	-	co-chaperone GrpE
23	 57.29	0	29298..30353	+	351	113955228	-	sync_0023	-	DnaJ protein
24	 55.14	0	30357..30599	+	80	113954491	-	sync_0024	-	hypothetical protein
25	 58.36	+1	30586..31500	+	304	113955161	-	sync_0025	-	ribosome-associated GTPase YjeQ
26	 57.02	0	31475..31816	-	113	113952731	-	sync_0026	-	hypothetical protein
27	 58.15	+1	31841..32779	-	312	113955022	murB	sync_0027	-	UDP-N-acetylenolpyruvoylglucosamine reductase
28	 55.99	0	32755..34206	-	483	113954195	murC	sync_0028	-	UDP-N-acetylmuramate--alanine ligase
29	 53.61	0	34373..35398	+	341	113953745	gap-1	sync_0029	-	glyceraldehyde-3-phosphate dehydrogenase, type I
30	 60.86	+1	35461..36441	-	326	113952878	thiL	sync_0030	-	thiamine-monophosphate kinase
31	 56.15	0	36449..37522	-	357	113954808	-	sync_0031	-	peptidyl-prolyl cis-trans isomerase, cyclophilin-type
32	 52.84	0	37588..38151	+	187	113955533	efp	sync_0032	-	elongation factor P
33	 57.71	0	38154..38633	+	159	113953615	accB	sync_0033	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
34	 58.70	+1	38620..39648	-	342	113952791	pdxA	sync_0034	-	4-hydroxythreonine-4-phosphate dehydrogenase
35	 58.82	+1	39804..40733	-	309	113953487	wcaG-1	sync_0035	-	NAD dependent epimerase/dehydratase
36	 63.02	+1	40806..40997	+	63	113954479	-	sync_0036	-	Squash family serine protease inhibitor
37	 54.86	0	40998..41429	-	143	113955234	mcrA	sync_0037	-	HNH endonuclease:HNH nuclease
38	 57.79	0	41838..43223	+	461	113952800	-	sync_0038	-	helicase
39	 51.74	0	43576..44091	-	171	113953453	-	sync_0039	-	penicillin amidase
40	 58.33	+1	44072..44587	-	171	113954460	-	sync_0040	-	hypothetical protein
41	 53.26	0	44672..44962	+	96	113955144	-	sync_0041	-	methyl-accepting chemotaxis protein
42	 51.47	0	45001..45204	+	67	113953178	-	sync_0042	-	hypothetical protein
43	 46.49	-1	45259..45486	+	75	113953848	-	sync_0043	-	hypothetical protein
44	 55.93	0	45613..46767	-	384	113953744	-	sync_0045	-	soluble hydrogenase, tritium exchange subunit, putative
45	 57.83	0	46810..47997	+	395	113952935	cbiD	sync_0046	-	cobalt-precorrin-6A synthase
46	 52.05	0	48046..49632	+	528	113954939	guaA	sync_0047	-	bifunctional GMP synthase/glutamine amidotransferase protein
47	 54.07	0	50173..50553	+	126	113954102	-	sync_0048	-	hypothetical protein
48	 55.25	0	51902..52549	+	215	113953079	-	sync_0049	-	hypothetical protein
49	 56.14	0	52504..52959	+	151	113955380	-	sync_0050	-	hypothetical protein
50	 57.59	0	52965..54770	+	601	113954455	-	sync_0051	-	putative penicillin-binding protein
51	 60.38	+1	54772..55917	-	381	113953518	-	sync_0052	-	glycosyl transferase, group 1 family protein
52	 55.97	0	55931..57127	-	398	113953180	sqdB	sync_0053	-	sulfolipid biosynthesis protein SqdB
53	 59.52	+1	57186..57353	-	55	113953979	-	sync_0054	-	high light inducible protein
54	 59.66	+1	57488..58357	-	289	113954659	thiG	sync_0055	-	thiazole synthase
55	 53.82	0	58299..58913	+	204	113955196	-	sync_0056	-	hypothetical protein
56	 52.78	0	58881..59456	-	191	113953011	-	sync_0057	-	putative photosystem I assembly related protein Ycf37
57	 54.60	0	59493..59840	-	115	113955438	rplT	sync_0058	-	50S ribosomal protein L20
58	 55.56	0	59911..60108	-	65	113954838	rpmI	sync_0059	-	50S ribosomal protein L35
59	 59.91	+1	60053..61798	+	581	113953827	-	sync_0060	-	SpoIID/LytB domain-containing protein
60	 57.91	0	61805..63208	+	467	113954332	-	sync_0061	-	glycosyl transferase, group 2 family protein
61	 60.04	+1	63229..65160	-	643	113955220	dnaX	sync_0062	-	DNA polymerase III, subunits gamma and tau
62	 57.33	0	65184..65879	-	231	113954428	-	sync_0063	-	hypothetical protein
63	 56.93	0	65892..67247	-	451	113955227	clpX	sync_0064	-	ATP-dependent protease ATP-binding subunit
64	 56.38	0	67336..68025	-	229	113953857	clpP-1	sync_0065	-	ATP-dependent Clp protease, proteolytic subunit ClpP
65	 57.63	0	68072..69421	-	449	113954868	tig	sync_0066	-	trigger factor
66	 56.98	0	69595..70626	+	343	113955388	asd	sync_0067	-	aspartate-semialdehyde dehydrogenase
67	 58.42	+1	70632..71540	+	302	113952943	dapA	sync_0068	-	dihydrodipicolinate synthase
68	 56.87	0	71600..73630	+	676	113954463	-	sync_0069	-	metallo-beta-lactamase family protein
69	 54.72	0	73616..74251	-	211	113953477	-	sync_0070	-	hypothetical protein
70	 60.24	+1	74423..75418	-	331	113953772	-	sync_0071	-	MesJ-like protein
71	 61.24	+1	75518..76291	+	257	113953983	-	sync_0072	-	hypothetical protein
72	 58.22	+1	76413..76838	+	141	113955178	-	sync_0073	-	hypothetical protein
73	 52.25	0	76950..78989	+	679	113952727	uvrB	sync_0074	-	excinuclease ABC subunit B
74	 61.55	+1	78990..80807	-	605	113953978	-	sync_0075	-	aspartate kinase
75	 45.58	-1	80858..81763	+	301	113954436	-	sync_0076	-	curli production assembly/transport component CsgG subfamily protein
76	 58.82	+1	81808..82788	-	326	113953684	holA	sync_0077	-	DNA polymerase III subunit delta
77	 63.83	+2	82922..83485	+	187	113952958	cobH	sync_0078	-	precorrin-8X methylmutase
78	 61.40	+1	83470..86205	-	911	113955376	mutS	sync_0079	-	DNA mismatch repair protein
79	 60.32	+1	86371..86559	+	62	113953382	psbZ	sync_0080	-	photosystem II reaction center protein Z
80	 55.28	0	86622..87104	+	160	113954000	ribH	sync_0081	-	riboflavin synthase subunit beta
81	 52.57	0	87347..87949	+	200	113954986	-	sync_0083	-	glyoxalase family protein family
82	 60.31	+1	88284..88739	-	151	113952993	wecD	sync_0084	-	hypothetical protein
83	 54.99	0	88881..90002	+	373	113954981	-	sync_0085	-	glycosyl transferase, group 1 family protein
84	 55.66	0	90095..92947	+	950	113952715	secA	sync_0086	-	preprotein translocase subunit SecA
85	 56.76	0	92957..93703	-	248	113954660	cysE	sync_0087	-	serine O-acetyltransferase
86	 59.60	+1	93784..94773	-	329	113954360	-	sync_0088	-	transcriptional regulator, GntR family protein
87	 59.82	+1	94883..95656	+	257	113952933	-	sync_0089	-	dienelactone hydrolase
88	 54.77	0	95647..96285	-	212	113953559	infC	sync_0090	-	translation initiation factor IF-3
89	 60.88	+1	96339..97271	-	310	113955372	miaA	sync_0091	-	tRNA delta(2)-isopentenylpyrophosphate transferase
90	 52.34	0	97390..99357	+	655	113954544	gyrB	sync_0092	-	DNA gyrase subunit B
91	 61.27	+1	99381..99695	+	104	113954021	-	sync_0093	-	hypothetical protein
92	 56.45	0	99688..100098	+	136	113955029	-	sync_0094	-	protein CrcB homolog 1
93	 55.81	0	100098..100493	+	131	113954786	crcB	sync_0095	-	crcB protein
94	 54.37	0	100483..100962	-	159	113954274	-	sync_0096	-	glutathione peroxidase
95	 57.66	0	101040..102494	+	484	113954143	mgtE	sync_0097	-	magnesium transporter
96	 57.14	0	102547..103554	+	335	113954561	-	sync_0098	-	Type II alternative RNA polymerase sigma factor, sigma-70 family protein
97	 50.17	0	103539..104435	-	298	113953151	-	sync_0099	-	hydrolase
98	 52.04	0	104459..107713	-	1084	113954483	-	sync_0100	-	acriflavin resistance protein acrF
99	 50.56	0	107718..108872	-	384	113954092	-	sync_0101	-	RND family efflux transporter MFP subunit
100	 56.88	0	109043..110197	+	384	113954882	-	sync_0102	-	putative A/G-specific adenine glycosylase
52.51	MEAN

5.59	STD DEV
