IslandPath Analysis: Synechococcus sp. CC9902

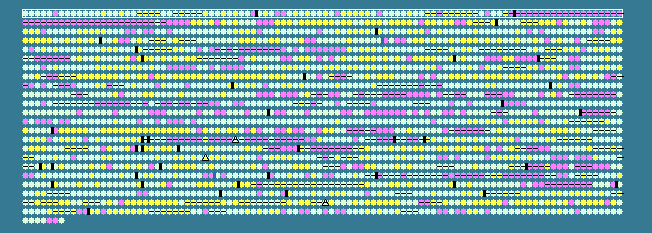

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 54.52   STD DEV: 5.62
Synechococcus sp. CC9902, complete genome - 1..2234828
2307 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 55.70	0	247..1404	+	385	78183585	-	Syncc9902_0001	-	DNA polymerase III subunit beta
2	 55.07	0	1406..2155	+	249	78183586	-	Syncc9902_0002	-	hypothetical protein
3	 57.06	0	2195..4495	+	766	78183587	-	Syncc9902_0003	-	phosphoribosylformylglycinamidine synthase II
4	 51.86	0	4495..6000	+	501	78183588	-	Syncc9902_0004	-	amidophosphoribosyltransferase
5	 55.35	0	5990..8410	-	806	78183589	-	Syncc9902_0005	-	DNA gyrase/topoisomerase IV, subunit A
6	 50.57	0	8498..9379	-	293	78183590	-	Syncc9902_0006	-	TPR repeat-containing protein
7	 55.52	0	9399..10394	-	331	78183591	-	Syncc9902_0007	-	4Fe-4S cluster binding
8	 57.72	0	10401..11048	+	215	78183592	-	Syncc9902_0008	-	hypothetical protein
9	 54.12	0	11065..11829	+	254	78183593	-	Syncc9902_0009	-	hypothetical protein
10	 54.09	0	11833..12468	+	211	78183594	nusB	Syncc9902_0010	-	transcription antitermination protein NusB
11	 56.47	0	12468..14036	+	522	78183595	-	Syncc9902_0011	-	cell division transporter substrate-binding protein FtsY
12	 56.38	0	14074..15483	+	469	78183596	-	Syncc9902_0012	-	serine phosphatase
13	 55.14	0	15521..16951	+	476	78183597	-	Syncc9902_0013	-	argininosuccinate lyase
14	 65.65	+1	17078..17668	+	196	78183598	-	Syncc9902_0014	-	RNA-binding region RNP-1
15	 57.11	0	17690..18694	-	334	78183599	-	Syncc9902_0015	-	tRNA-dihydrouridine synthase A
16	 53.45	0	18735..19241	+	168	78183600	-	Syncc9902_0016	-	methionine sulfoxide reductase B
17	 59.85	0	19264..20481	+	405	78183601	-	Syncc9902_0017	-	hypothetical protein
18	 57.14	0	20544..20711	-	55	78183602	-	Syncc9902_0018	-	general secretion pathway protein E
19	 56.44	0	20801..21475	+	224	78183603	-	Syncc9902_0019	-	putative heat shock protein GrpE
20	 59.15	0	21475..22605	+	376	78183604	-	Syncc9902_0020	-	heat shock protein DnaJ
21	 58.44	0	22602..22832	+	76	78183605	-	Syncc9902_0021	-	hypothetical protein
22	 59.36	0	22825..23727	+	300	78183606	-	Syncc9902_0022	-	GTPase EngC
23	 58.48	0	23702..24043	-	113	78183607	-	Syncc9902_0023	-	hypothetical protein
24	 57.53	0	24068..24964	-	298	78183608	-	Syncc9902_0024	-	UDP-N-acetylenolpyruvoylglucosamine reductase
25	 57.07	0	24961..26367	-	468	78183609	-	Syncc9902_0025	-	UDP-N-acetylmuramate--alanine ligase
26	 54.19	0	26528..27553	+	341	78183610	-	Syncc9902_0026	-	glyceraldehyde-3-phosphate dehydrogenase, type I
27	 60.64	+1	27609..28604	-	331	78183611	-	Syncc9902_0027	-	thiamine-monophosphate kinase
28	 57.21	0	28601..29710	-	369	78183612	-	Syncc9902_0028	-	putative cyclophilin-type peptidyl-prolyl cis-trans isomerase
29	 54.01	0	29743..30303	+	186	78183613	-	Syncc9902_0029	-	elongation factor P
30	 56.75	0	30303..30776	+	157	78183614	-	Syncc9902_0030	-	Acetyl-CoA biotin carboxyl carrier
31	 59.00	0	30779..31795	-	338	78183615	pdxA	Syncc9902_0031	-	4-hydroxythreonine-4-phosphate dehydrogenase
32	 56.71	0	31873..32796	-	307	78183616	-	Syncc9902_0032	-	hypothetical protein
33	 52.80	0	33001..33411	-	136	78183617	-	Syncc9902_0033	-	HNH nuclease
34	 59.96	0	33579..35174	+	531	78183618	-	Syncc9902_0034	-	DEAD/DEAH box helicase-like
35	 56.78	0	35514..35867	-	117	78183619	-	Syncc9902_0035	-	hypothetical protein
36	 59.18	0	35984..36517	-	177	78183620	-	Syncc9902_0036	-	hypothetical protein
37	 55.89	0	36581..36877	+	98	78183621	-	Syncc9902_0037	-	hypothetical protein
38	 53.41	0	36898..37146	+	82	78183622	-	Syncc9902_0038	-	hypothetical protein
39	 47.98	-1	37279..37476	+	65	78183623	-	Syncc9902_0039	-	hypothetical protein
40	 57.29	0	37604..38797	-	397	78183624	-	Syncc9902_0040	-	soluble hydrogenase small subunit
41	 59.41	0	38827..39915	+	362	78183625	cbiD	Syncc9902_0041	-	cobalt-precorrin-6A synthase
42	 52.11	0	39948..41534	+	528	78183626	guaA	Syncc9902_0042	-	bifunctional GMP synthase/glutamine amidotransferase protein
43	 47.78	-1	41718..42437	+	239	78183627	-	Syncc9902_0043	-	methylase involved in ubiquinone/menaquinone biosynthesis-like
44	 48.10	-1	42577..43260	+	227	78183628	-	Syncc9902_0044	-	hypothetical protein
45	 56.21	0	43319..43930	+	203	78183629	-	Syncc9902_0045	-	hypothetical protein
46	 59.14	0	43940..44311	+	123	78183630	-	Syncc9902_0046	-	hypothetical protein
47	 56.71	0	44315..46162	+	615	78183631	-	Syncc9902_0047	-	peptidoglycan glycosyltransferase
48	 58.14	0	46106..47254	-	382	78183632	-	Syncc9902_0048	-	SqdX
49	 56.39	0	47269..48465	-	398	78183633	-	Syncc9902_0049	-	sulfolipid (UDP-sulfoquinovose) biosynthesis protein
50	 53.45	0	48541..48714	-	57	78183634	-	Syncc9902_0050	-	high light-inducible protein-like
51	 58.03	0	48792..49613	-	273	78183635	thiG	Syncc9902_0051	-	thiazole synthase
52	 52.38	0	49665..50210	+	181	78183636	-	Syncc9902_0052	-	hypothetical protein
53	 48.45	-1	50232..50747	-	171	78183637	-	Syncc9902_0053	-	TPR repeat-containing protein
54	 60.06	0	50757..51104	-	115	78183638	rplT	Syncc9902_0054	-	50S ribosomal protein L20
55	 58.08	0	51158..51355	-	65	78183639	rpmI	Syncc9902_0055	-	50S ribosomal protein L35
56	 61.56	+1	51413..52960	+	515	78183640	-	Syncc9902_0056	-	amidase enhancer
57	 58.18	0	52985..54316	+	443	78183641	-	Syncc9902_0057	-	putative glycosyltransferase
58	 58.84	0	54450..56327	-	625	78183642	-	Syncc9902_0058	-	DNA-directed DNA polymerase
59	 57.70	0	56351..56986	-	211	78183643	-	Syncc9902_0059	-	hypothetical protein
60	 44.15	-1	57130..58395	-	421	78183644	-	Syncc9902_0060	-	peptidase, metallopeptidase
61	 53.58	0	58475..59827	-	450	78183645	clpX	Syncc9902_0061	-	ATP-dependent protease ATP-binding subunit
62	 54.97	0	59916..60539	-	207	78183646	-	Syncc9902_0062	-	peptidase S14, ClpP
63	 56.92	0	60634..61977	-	447	78183647	tig	Syncc9902_0063	-	trigger factor
64	 55.43	0	62146..63168	+	340	78183648	-	Syncc9902_0064	-	aspartate-semialdehyde dehydrogenase, USG-1 related
65	 58.20	0	63168..64076	+	302	78183649	dapA	Syncc9902_0065	-	dihydrodipicolinate synthase
66	 57.89	0	64129..66201	+	690	78183650	-	Syncc9902_0066	-	hypothetical protein
67	 55.51	0	66229..66963	-	244	78183651	-	Syncc9902_0067	-	hypothetical protein
68	 61.13	+1	67000..68805	-	601	78183652	-	Syncc9902_0068	-	aspartate kinase
69	 64.58	+1	68949..69236	+	95	78183653	-	Syncc9902_0069	-	hypothetical protein
70	 34.08	-2	69543..70748	-	401	78183654	-	Syncc9902_0070	-	hypothetical protein
71	 62.56	+1	71064..71258	-	64	78183655	-	Syncc9902_0071	-	aspartate kinase
72	 60.77	+1	71301..72266	-	321	78183656	-	Syncc9902_0072	-	DNA polymerase III subunit delta
73	 63.73	+1	72276..72923	+	215	78183657	-	Syncc9902_0073	-	putative precorrin-8X methylmutase CobH
74	 61.44	+1	72871..73884	-	337	78183658	-	Syncc9902_0074	-	MesJ-like protein
75	 63.77	+1	73918..74676	+	252	78183659	-	Syncc9902_0075	-	hypothetical protein
76	 57.66	0	74715..75125	+	136	78183660	-	Syncc9902_0076	-	hypothetical protein
77	 57.11	0	75197..77236	+	679	78183661	-	Syncc9902_0077	-	excinuclease ABC subunit B
78	 50.09	0	77370..77918	+	182	78183662	-	Syncc9902_0078	-	hypothetical protein
79	 57.68	0	78049..78504	-	151	78183663	-	Syncc9902_0079	-	hypothetical protein
80	 56.81	0	78547..79449	-	300	78183664	-	Syncc9902_0080	-	hypothetical protein
81	 61.37	+1	79456..82173	-	905	78183665	-	Syncc9902_0081	-	DNA mismatch repair protein
82	 45.50	-1	82312..82500	+	62	78183666	-	Syncc9902_0082	-	photosystem II reaction center protein Z
83	 34.79	-2	82945..83631	-	228	78183667	-	Syncc9902_0083	-	glycosyltransferase
84	 35.14	-2	83635..84684	-	349	78183668	-	Syncc9902_0084	-	N-acylneuraminate-9-phosphate synthase
85	 33.22	-2	84690..85556	-	288	78183669	-	Syncc9902_0085	-	dTDP-4-dehydrorhamnose reductase-like
86	 31.24	-2	85623..86480	+	285	78183670	-	Syncc9902_0086	-	hypothetical protein
87	 30.94	-2	86464..87384	+	306	78183671	-	Syncc9902_0087	-	hypothetical protein
88	 30.24	-2	87350..88222	+	290	78183672	-	Syncc9902_0088	-	hypothetical protein
89	 31.43	-2	88215..89054	+	279	78183673	-	Syncc9902_0089	-	hypothetical protein
90	 31.05	-2	89041..89652	+	203	78183674	-	Syncc9902_0090	-	hypothetical protein
91	 33.56	-2	89656..90540	+	294	78183675	-	Syncc9902_0091	-	hypothetical protein
92	 35.19	-2	90537..92585	+	682	78183676	-	Syncc9902_0092	-	glutamate-1-semialdehyde aminotransferase-like
93	 35.65	-2	92586..93320	+	244	78183677	-	Syncc9902_0093	-	hypothetical protein
94	 33.11	-2	93320..94198	+	292	78183678	-	Syncc9902_0094	-	hypothetical protein
95	 34.66	-2	94207..95187	+	326	78183679	-	Syncc9902_0095	-	dehydrogenase and related proteins-like
96	 37.23	-2	95180..96463	+	427	78183680	-	Syncc9902_0096	-	spore coat polysaccharide biosynthesis protein spsC
97	 35.48	-2	96504..97061	+	185	78183681	-	Syncc9902_0097	-	hypothetical protein
98	 32.43	-2	97058..98605	-	515	78183682	-	Syncc9902_0098	-	hypothetical protein
99	 29.36	-2	98602..99657	-	351	78183683	-	Syncc9902_0099	-	capsular polysaccharide biosynthesis protein-like
100	 31.98	-2	99650..101056	-	468	78183684	-	Syncc9902_0100	-	HAD family hydrolase
54.52	MEAN

5.62	STD DEV
