IslandPath Analysis: Synechococcus sp. WH 8102

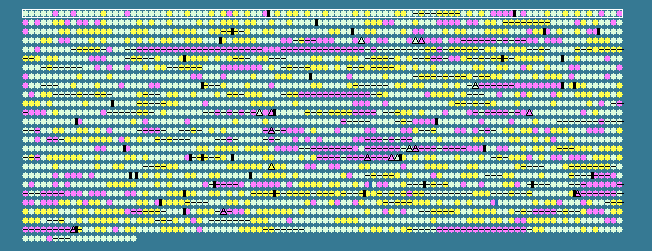

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 60.02   STD DEV: 6.10
Synechococcus sp. WH 8102, complete genome - 1..2434428
2519 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 60.88	0	174..1331	+	385	33864540	dnaN	SYNW0001	-	DNA polymerase III subunit beta
2	 62.81	0	1333..2058	+	241	33864541	-	SYNW0002	-	hypothetical protein
3	 62.20	0	2103..4409	+	768	33864542	purL	SYNW0003	-	phosphoribosylformylglycinamidine synthase II
4	 59.56	0	4393..5898	+	501	33864543	purF	SYNW0004	-	amidophosphoribosyltransferase
5	 60.40	0	5899..8373	-	824	33864544	-	SYNW0005	-	putative DNA topoisomerase chain A
6	 54.42	0	8419..9300	-	293	33864545	-	SYNW0006	-	hypothetical protein
7	 60.46	0	9319..10284	-	321	33864546	-	SYNW0007	-	hypothetical protein
8	 59.07	0	10334..10978	+	214	33864547	-	SYNW0008	-	hypothetical protein
9	 55.24	0	11028..11762	+	244	33864548	-	SYNW0009	-	hypothetical protein
10	 59.75	0	11766..12401	+	211	33864549	nusB	SYNW0010	-	transcription antitermination protein NusB
11	 60.01	0	12401..13858	+	485	33864550	ftsY	SYNW0011	-	signal recognition particle docking protein FtsY
12	 60.41	0	13895..15316	+	473	33864551	-	SYNW0012	-	hypothetical protein
13	 58.40	0	15337..16752	+	471	33864552	argH	SYNW0013	-	argininosuccinate lyase
14	 66.82	+1	16879..17523	+	214	33864553	-	SYNW0014	-	RNA recognition motif-containing protein
15	 62.84	0	17529..18521	-	330	33864554	-	SYNW0015	-	tRNA-dihydrouridine synthase A
16	 58.97	0	18563..19069	+	168	33864555	-	SYNW0016	-	hypothetical protein
17	 61.58	0	19080..20318	+	412	33864556	-	SYNW0017	-	hypothetical protein
18	 54.47	0	20293..21366	-	357	33864557	pilC	SYNW0018	-	pili biogenesis protein
19	 58.97	0	22538..24409	-	623	33864558	gspE1	SYNW0022	-	general secretion pathway protein E
20	 59.82	0	24509..25165	+	218	33864559	grpE	SYNW0023	-	putative heat shock protein GrpE
21	 62.87	0	25165..26298	+	377	33864560	dnaJ	SYNW0024	-	DnaJ protein
22	 61.90	0	26298..26528	+	76	33864561	-	SYNW0025	-	hypothetical protein
23	 61.11	0	26535..27434	+	299	33864562	-	SYNW0026	-	hypothetical protein
24	 60.82	0	27409..27750	-	113	33864563	-	SYNW0027	-	hypothetical protein
25	 63.67	0	27775..28674	-	299	33864564	murB	SYNW0028	-	UDP-N-acetylenolpyruvoylglucosamine reductase
26	 62.04	0	28674..30077	-	467	33864565	murC	SYNW0029	-	UDP-N-acetylmuramate-alanine ligase
27	 59.84	0	30250..31275	+	341	33864566	gap2	SYNW0030	-	glyceraldehyde 3-phosphate dehydrogenase (NADP+)
28	 65.15	0	31341..32327	-	328	33864567	thiL	SYNW0031	-	putative thiamine monophosphate kinase
29	 60.36	0	32324..33433	-	369	33864568	-	SYNW0032	-	putative cyclophilin-type peptidyl-prolyl cis-trans isomerase
30	 59.04	0	33466..34029	+	187	33864569	efp	SYNW0033	-	elongation factor P
31	 62.45	0	34026..34499	+	157	33864570	accB	SYNW0034	-	biotin carboxyl carrier protein (BCCP) subunit of acetyl-CoA carboxylase
32	 63.73	0	34496..35518	-	340	33864571	pdxA	SYNW0035	-	4-hydroxythreonine-4-phosphate dehydrogenase
33	 57.06	0	35524..35700	+	58	33864572	-	SYNW0036	-	hypothetical protein
34	 64.13	0	35685..36590	-	301	33864573	-	SYNW0037	-	hypothetical protein
35	 55.22	0	36800..37201	-	133	33864574	-	SYNW0038	-	HNH endonuclease:HNH nuclease
36	 64.26	0	37349..38968	+	539	33864575	-	SYNW0039	-	helicase
37	 61.03	0	39293..39718	-	141	33864576	-	SYNW0040	-	hypothetical protein
38	 67.06	+1	39765..40268	-	167	33864577	-	SYNW0041	-	hypothetical protein
39	 59.70	0	40277..40678	+	133	33864578	-	SYNW0042	-	hypothetical protein
40	 57.58	0	40717..40947	+	76	33864579	-	SYNW0043	-	hypothetical protein
41	 50.48	-1	41017..41226	+	69	33864580	-	SYNW0044	-	hypothetical protein
42	 62.84	0	41347..42573	-	408	33864581	DHSS	SYNW0045	-	soluble hydrogenase small subunit
43	 65.82	0	42588..43655	+	355	33864582	cbiD	SYNW0046	-	cobalt-precorrin-6A synthase
44	 61.94	0	43692..45278	+	528	33864583	guaA	SYNW0047	-	bifunctional GMP synthase/glutamine amidotransferase protein
45	 64.05	0	45331..45942	+	203	33864584	-	SYNW0048	-	hypothetical protein
46	 63.91	0	45952..46314	+	120	33864585	-	SYNW0049	-	hypothetical protein
47	 62.70	0	46318..48105	+	595	33864586	-	SYNW0050	-	putative penicillin-binding protein
48	 64.22	0	48109..49254	-	381	33864587	sqdX	SYNW0051	-	SqdX
49	 61.74	0	49268..50464	-	398	33864588	sqdB	SYNW0052	-	sulfolipid (UDP-sulfoquinovose) biosynthesis protein
50	 62.07	0	50538..50711	-	57	33864589	-	SYNW0053	-	high light-inducible protein
51	 64.00	0	50807..51631	-	274	33864590	thiG	SYNW0054	-	thiazole synthase
52	 59.42	0	51683..52234	+	183	33864591	-	SYNW0055	-	hypothetical protein
53	 56.78	0	52258..52773	-	171	33864592	-	SYNW0056	-	hypothetical protein
54	 62.36	0	52783..53130	-	115	33864593	rplT	SYNW0057	-	50S ribosomal protein L20
55	 61.62	0	53171..53368	-	65	33864594	rpmI	SYNW0058	-	50S ribosomal protein L35
56	 67.44	+1	53427..54974	+	515	33864595	-	SYNW0059	-	amidase enhancer
57	 63.19	0	54999..56321	+	440	33864596	-	SYNW0060	-	putative glycosyltransferase
58	 65.26	0	56384..58165	-	593	33864597	dnaX	SYNW0061	-	DNA polymerase, gamma and tau subunits
59	 62.91	0	58189..58827	-	212	33864598	-	SYNW0062	-	hypothetical protein
60	 62.22	0	58846..60195	-	449	33864599	clpX	SYNW0063	-	ATP-dependent protease ATP-binding subunit
61	 62.81	0	60277..60951	-	224	33864600	clpP2	SYNW0064	-	ATP-dependent Clp protease proteolytic subunit 2
62	 63.50	0	60995..62413	-	472	33864601	tig	SYNW0065	-	trigger factor
63	 63.83	0	62542..63600	+	352	33864602	asd	SYNW0066	-	aspartate-semialdehyde dehydrogenase
64	 64.14	0	63597..64505	+	302	33864603	dapA	SYNW0067	-	dihydrodipicolinate synthase
65	 62.59	0	64556..66592	+	678	33864604	-	SYNW0068	-	hypothetical protein
66	 62.68	0	66593..67519	-	308	33864605	-	SYNW0069	-	hypothetical protein
67	 67.44	+1	67497..69299	-	600	33864606	lysC	SYNW0070	-	aspartate kinase
68	 62.42	0	69352..69798	-	148	33864607	-	SYNW0071	-	hypothetical protein
69	 62.14	0	69779..70087	-	102	33864608	-	SYNW0072	-	hypothetical protein
70	 67.91	+1	70142..71107	-	321	33864609	-	SYNW0073	-	DNA polymerase III subunit delta
71	 68.74	+1	71117..71743	+	208	33864610	cobH	SYNW0074	-	putative precorrin-8X methylmutase CobH
72	 69.33	+1	71712..72761	-	349	33864611	-	SYNW0075	-	MesJ-like protein
73	 68.38	+1	72760..73518	+	252	33864612	-	SYNW0076	-	hypothetical protein
74	 61.70	0	73579..75612	+	677	33864613	uvrB	SYNW0077	-	excinuclease ABC subunit B
75	 66.85	+1	75609..78311	-	900	33864614	mutS	SYNW0078	-	DNA mismatch repair protein
76	 58.54	0	78348..79061	-	237	33864615	-	SYNW0079	-	hypothetical protein
77	 65.19	0	79065..79604	-	179	33864616	-	SYNW0080	-	hypothetical protein
78	 58.14	0	79539..79796	+	85	33864617	psbZ	SYNW0081	-	photosystem II reaction center protein Z
79	 53.00	-1	79853..80335	+	160	33864618	ribH	SYNW0082	-	riboflavin synthase subunit beta
80	 47.33	-2	80332..81060	+	242	33864619	-	SYNW0083	-	putative deacetylase sulfotransferase
81	 45.71	-2	81057..82268	+	403	33864620	-	SYNW0084	-	putative glycosyltransferase
82	 50.84	-1	82533..85040	-	835	33864621	swmA	SYNW0085	-	SwmA-cell surface protein required for swimming motility
83	 59.28	0	85592..88405	+	937	33864622	secA	SYNW0086	-	preprotein translocase subunit SecA
84	 54.68	0	88413..89363	+	316	33864623	-	SYNW0087	-	hypothetical protein
85	 58.74	0	89360..91012	+	550	33864624	-	SYNW0088	-	hypothetical protein
86	 61.39	0	91067..91843	+	258	33864625	-	SYNW0089	-	hypothetical protein
87	 62.92	0	91797..92543	-	248	33864626	cysE	SYNW0090	-	serine acetyltransferase
88	 64.27	0	92554..93555	-	333	33864627	-	SYNW0091	-	hypothetical protein
89	 62.98	0	93602..94387	+	261	33864628	-	SYNW0092	-	carboxymethylenebutenolidase
90	 61.31	0	94384..95037	-	217	33864629	infC	SYNW0093	-	translation initiation factor IF-3
91	 64.00	0	95094..95993	-	299	33864630	miaA	SYNW0094	-	tRNA delta-2-isopentenylpyrophosphate (IPP) transferase
92	 56.66	0	96148..98115	+	655	33864631	gyrB	SYNW0095	-	DNA gyrase subunit B
93	 64.96	0	98115..98465	+	116	33864632	-	SYNW0096	-	hypothetical protein
94	 62.73	0	98446..98826	+	126	33864633	-	SYNW0097	-	hypothetical protein
95	 64.91	0	98819..99217	+	132	33864634	-	SYNW0098	-	hypothetical protein
96	 63.08	0	99183..99656	-	157	33864635	-	SYNW0099	-	glutathione peroxidase
97	 44.30	-2	99682..100593	-	303	33864636	-	SYNW0100	-	hypothetical protein
98	 62.35	0	100801..102261	+	486	33864637	-	SYNW0101	-	Mg2+ transporter
99	 58.86	0	102314..103312	+	332	33864638	-	SYNW0102	-	type II alternative sigma-70 family RNA polymerase sigma factor
100	 46.51	-2	103634..104506	+	290	33864639	-	SYNW0103	-	hypothetical protein
60.02	MEAN

6.10	STD DEV
