IslandPath Analysis: Sulfurihydrogenibium sp. YO3AOP1

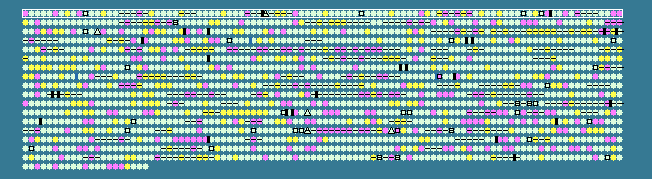

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 31.73   STD DEV: 3.45
Sulfurihydrogenibium sp. YO3AOP1, complete genome - 1..1838442
1721 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 28.19	-1	129..1508	+	459	188995956	-	SYO3AOP1_0001	-	chromosomal replication initiator protein DnaA
2	 32.67	0	2017..2769	+	250	188995957	-	SYO3AOP1_0003	-	RNA methyltransferase, TrmH family, group 3
3	 34.88	0	2753..4048	+	431	188995958	-	SYO3AOP1_0004	-	3-phosphoshikimate 1-carboxyvinyltransferase
4	 33.17	0	4593..5213	-	206	188995959	-	SYO3AOP1_0005	-	thiamine-phosphate pyrophosphorylase
5	 30.57	0	5366..6415	+	349	188995960	-	SYO3AOP1_0006	-	2-alkenal reductase
6	 27.82	-1	6942..7376	-	144	188995961	-	SYO3AOP1_0007	-	hypothetical protein
7	 29.25	0	7369..7662	-	97	188995962	-	SYO3AOP1_0008	-	DNA polymerase beta domain protein region
8	 36.43	+1	7659..9047	-	462	188995963	-	SYO3AOP1_0009	-	peptidase U62 modulator of DNA gyrase
9	 31.46	0	9060..9539	-	159	188995964	-	SYO3AOP1_0010	-	hypothetical protein
10	 26.58	-1	9746..12604	+	952	188995965	-	SYO3AOP1_0011	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
11	 29.48	0	13141..14127	+	328	188995966	-	SYO3AOP1_0012	-	transposase IS116/IS110/IS902 family protein
12	 31.02	0	14225..15652	-	475	188995967	-	SYO3AOP1_0013	-	flagellar hook-associated protein FlgK
13	 34.02	0	15961..16839	+	292	188995968	-	SYO3AOP1_0014	-	ROK family protein
14	 36.78	+1	16827..17174	-	115	188995969	-	SYO3AOP1_0015	-	6-pyruvoyl tetrahydropterin synthase and hypothetical protein
15	 29.03	0	17178..17711	-	177	188995970	-	SYO3AOP1_0016	-	hypothetical protein
16	 30.92	0	17708..18661	-	317	188995971	-	SYO3AOP1_0017	-	magnesium and cobalt transport protein CorA
17	 28.90	0	18670..19278	-	202	188995972	-	SYO3AOP1_0018	-	chromosome segregation and condensation protein ScpA
18	 30.67	0	19256..20233	-	325	188995973	-	SYO3AOP1_0019	-	tetraacyldisaccharide 4'-kinase
19	 28.54	0	20223..21203	-	326	188995974	-	SYO3AOP1_0020	-	ribonuclease Z
20	 28.05	-1	21207..21869	-	220	188995975	-	SYO3AOP1_0021	-	conserved hypothetical cytosolic protein
21	 30.67	0	21862..23100	-	412	188995976	-	SYO3AOP1_0022	-	DNA methylase N-4/N-6 domain protein
22	 37.14	+1	23093..24064	-	323	188995977	-	SYO3AOP1_0023	-	Inositol phosphatase/fructose-16-bisphosphatase
23	 31.43	0	24052..24576	-	174	188995978	-	SYO3AOP1_0024	-	hypothetical protein
24	 33.69	0	24577..25995	-	472	188995979	-	SYO3AOP1_0025	-	aldolase
25	 33.64	0	28269..29567	-	432	188995980	-	SYO3AOP1_0026	-	amidohydrolase
26	 29.91	0	29567..31114	-	515	188995981	-	SYO3AOP1_0027	-	protein of unknown function DUF1703
27	 35.37	+1	31119..33377	-	752	188995982	-	SYO3AOP1_0028	-	phosphoribosylformylglycinamidine synthase II
28	 29.09	0	33526..33996	+	156	188995983	-	SYO3AOP1_0029	-	NADH dehydrogenase (ubiquinone) 24 kDa subunit
29	 33.65	0	33980..35551	+	523	188995984	-	SYO3AOP1_0030	-	NADH dehydrogenase (quinone)
30	 34.10	0	35561..38563	+	1000	188995985	-	SYO3AOP1_0031	-	formate dehydrogenase, alpha subunit
31	 34.47	0	39141..40022	-	293	188995986	-	SYO3AOP1_0032	-	dihydrodipicolinate synthase
32	 29.55	0	40095..40490	+	131	188995987	-	SYO3AOP1_0033	-	protein of unknown function UPF0079
33	 31.89	0	42392..43990	+	532	188995988	-	SYO3AOP1_0036	-	DNA repair protein RecN
34	 35.50	+1	43978..46740	+	920	188995989	-	SYO3AOP1_0037	-	excinuclease ABC, A subunit
35	 34.19	0	46927..48441	-	504	188995990	-	SYO3AOP1_0038	-	Leucyl aminopeptidase
36	 29.06	0	48851..49318	+	155	188995991	-	SYO3AOP1_0039	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
37	 33.33	0	49334..49558	+	74	188995992	-	SYO3AOP1_0040	-	twin-arginine translocation protein, TatA/E family subunit
38	 25.18	-1	49565..51085	+	506	188995993	-	SYO3AOP1_0041	-	Peptidoglycan-binding domain 1 protein
39	 28.70	0	51078..51617	+	179	188995994	-	SYO3AOP1_0042	-	protein of unknown function DUF882
40	 28.91	0	51618..52001	-	127	188995995	-	SYO3AOP1_0043	-	hypothetical protein
41	 28.90	0	52465..53592	-	375	188995996	-	SYO3AOP1_0044	-	Integrase catalytic region
42	 34.83	0	54004..55074	-	356	188995997	-	SYO3AOP1_0045	-	hypothetical protein
43	 39.30	+2	55106..56395	-	429	188995998	-	SYO3AOP1_0046	-	ammonium transporter
44	 37.46	+1	56420..56758	-	112	188995999	-	SYO3AOP1_0047	-	nitrogen regulatory protein P-II
45	 32.27	0	57029..58472	+	480	188996000	-	SYO3AOP1_0048	-	hypothetical protein
46	 28.01	-1	58482..59063	+	193	188996001	-	SYO3AOP1_0049	-	siroheme synthase
47	 32.67	0	59092..60438	-	448	188996002	-	SYO3AOP1_0050	-	hypothetical protein
48	 34.96	0	60463..61200	-	245	188996003	-	SYO3AOP1_0051	-	uroporphyrin-III C-methyltransferase
49	 29.01	0	61193..61978	-	261	188996004	-	SYO3AOP1_0052	-	Uroporphyrinogen III synthase HEM4
50	 35.20	+1	61968..63944	-	658	188996005	-	SYO3AOP1_0053	-	molybdopterin oxidoreductase
51	 35.53	+1	63941..64714	-	257	188996006	-	SYO3AOP1_0054	-	nitrate ABC transporter, ATPase subunits C and D
52	 32.56	0	64711..65481	-	256	188996007	-	SYO3AOP1_0055	-	nitrate ABC transporter, inner membrane subunit
53	 34.98	0	65484..66701	-	405	188996008	-	SYO3AOP1_0056	-	NO3-/NO2-ABC transporter
54	 28.57	0	66978..67901	+	307	188996009	-	SYO3AOP1_0057	-	general glycosylation pathway protein
55	 28.37	0	68341..70356	-	671	188996010	-	SYO3AOP1_0058	-	Organic solvent tolerance protein
56	 30.78	0	70409..71191	+	260	188996011	-	SYO3AOP1_0059	-	GTP-binding protein HSR1-related
57	 29.38	0	72198..73436	-	412	188996012	-	SYO3AOP1_0061	-	transposase mutator type
58	 31.01	0	74168..75244	+	358	188996013	-	SYO3AOP1_0062	-	efflux transporter, RND family, MFP subunit
59	 30.56	0	75256..76482	+	408	188996014	-	SYO3AOP1_0063	-	outer membrane efflux protein
60	 29.25	0	76562..77419	+	285	188996015	-	SYO3AOP1_0064	-	RNA polymerase, sigma 32 subunit, RpoH
61	 34.27	0	77765..78298	+	177	188996016	-	SYO3AOP1_0065	-	molybdenum cofactor synthesis domain protein
62	 36.52	+1	78774..79118	-	114	188996017	-	SYO3AOP1_0066	-	iron-sulfur cluster assembly accessory protein
63	 34.67	0	79191..80015	-	274	188996018	-	SYO3AOP1_0067	-	signal peptide peptidase SppA, 36K type
64	 33.60	0	80027..81133	-	368	188996019	-	SYO3AOP1_0068	-	glutamate 5-kinase
65	 32.55	0	81134..81895	-	253	188996020	-	SYO3AOP1_0069	-	tRNA (adenine-N(1)-)-methyltransferase
66	 31.81	0	81892..82548	-	218	188996021	-	SYO3AOP1_0070	-	hypothetical protein
67	 27.38	-1	83189..83860	+	223	188996022	-	SYO3AOP1_0071	-	protein of unknown function DUF45
68	 35.47	+1	83938..84825	+	295	188996023	-	SYO3AOP1_0072	-	putative circadian clock protein, KaiC
69	 33.33	0	84830..85492	+	220	188996024	-	SYO3AOP1_0073	-	hypothetical protein
70	 37.17	+1	86473..86889	+	138	188996025	-	SYO3AOP1_0074	-	Nucleoside-diphosphate kinase
71	 26.71	-1	86879..87391	+	170	188996026	-	SYO3AOP1_0075	-	hypothetical protein
72	 29.27	0	87415..87783	+	122	188996027	-	SYO3AOP1_0076	-	putative sensor with HAMP domain
73	 26.03	-1	87789..88706	+	305	188996028	-	SYO3AOP1_0077	-	hypothetical protein
74	 36.39	+1	88719..89078	+	119	188996029	-	SYO3AOP1_0078	-	Roadblock/LC7 family protein
75	 25.72	-1	89106..89801	+	231	188996030	-	SYO3AOP1_0079	-	hypothetical protein
76	 32.58	0	89803..90336	+	177	188996031	-	SYO3AOP1_0080	-	small GTP-binding protein
77	 35.42	+1	91291..91722	-	143	188996032	-	SYO3AOP1_0081	-	UspA domain protein
78	 33.04	0	91727..92743	-	338	188996033	-	SYO3AOP1_0082	-	hypothetical protein
79	 28.32	0	92760..93038	-	92	188996034	-	SYO3AOP1_0083	-	cytochrome c oxidoreductase subunit B
80	 36.00	+1	93056..94294	-	412	188996035	-	SYO3AOP1_0084	-	oxidoreductase molybdopterin binding
81	 32.06	0	94536..95480	-	314	188996036	-	SYO3AOP1_0085	-	thiamine-monophosphate kinase
82	 29.76	0	95491..97029	-	512	188996037	-	SYO3AOP1_0086	-	glycosyl transferase family 39
83	 32.64	0	97344..99074	-	576	188996038	-	SYO3AOP1_0087	-	excinuclease ABC, C subunit
84	 29.54	0	99351..100589	-	412	188996039	-	SYO3AOP1_0088	-	transposase mutator type
85	 32.03	0	101083..101850	-	255	188996040	-	SYO3AOP1_0090	-	hydrolase, TatD family
86	 36.37	+1	101855..103732	-	625	188996041	-	SYO3AOP1_0091	-	ATP-dependent metalloprotease FtsH
87	 32.84	0	103775..105412	-	545	188996042	-	SYO3AOP1_0092	-	transposase
88	 27.15	-1	105494..106867	-	457	188996043	-	SYO3AOP1_0093	-	tRNA(Ile)-lysidine synthetase
89	 34.29	0	106981..107295	-	104	188996044	-	SYO3AOP1_0094	-	ribosomal protein S20
90	 33.33	0	107412..108614	+	400	188996045	-	SYO3AOP1_0095	-	Methionine adenosyltransferase
91	 24.97	-1	109219..110127	-	302	188996046	-	SYO3AOP1_0096	-	ribonuclease BN
92	 29.25	0	110108..110401	-	97	188996047	-	SYO3AOP1_0097	-	hypothetical protein
93	 24.74	-2	110414..110704	-	96	188996048	-	SYO3AOP1_0098	-	metal dependent phosphohydrolase
94	 29.44	0	110701..110931	-	76	188996049	-	SYO3AOP1_0099	-	hypothetical protein
95	 30.99	0	110943..111326	-	127	188996050	-	SYO3AOP1_0100	-	OsmC family protein
96	 30.40	0	111328..112008	-	226	188996051	-	SYO3AOP1_0101	-	Deoxyribonuclease V
97	 29.78	0	113516..114640	-	374	188996052	-	SYO3AOP1_0103	-	rod shape-determining protein RodA
98	 33.06	0	114640..116439	-	599	188996053	-	SYO3AOP1_0104	-	penicillin-binding protein 2
99	 19.14	-2	116426..116911	-	161	188996054	-	SYO3AOP1_0105	-	hypothetical protein
100	 25.83	-1	116908..117693	-	261	188996055	-	SYO3AOP1_0106	-	Rod shape-determining protein MreC
31.73	MEAN

3.45	STD DEV




Last Updated: Dec 04, 2008
