IslandPath Analysis: Sulfurovum sp. NBC37-1

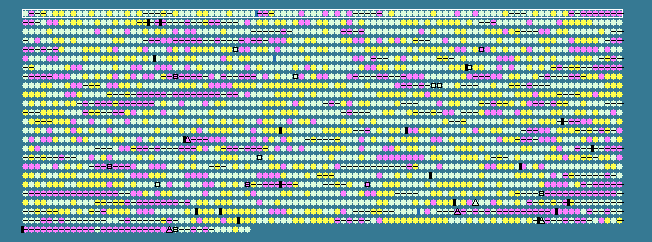

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 44.05   STD DEV: 5.28
Sulfurovum sp. NBC37-1, complete genome - 1..2562277
2438 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 41.99	0	65..1393	+	442	152991598	dnaA	SUN_0001	-	chromosomal replication initiation protein
2	 37.92	-1	1584..2651	+	355	152991599	dnaN	SUN_0002	-	DNA polymerase III subunit beta
3	 47.49	0	2663..4294	+	543	152991600	pyrG	SUN_0003	-	CTP synthetase
4	 50.19	+1	4295..5878	+	527	152991601	recJ	SUN_0004	-	single-strand DNA-specific exonuclease
5	 42.03	0	5881..6087	+	68	152991602	-	SUN_0005	-	hypothetical protein
6	 48.72	0	6135..7109	-	324	152991603	-	SUN_0006	-	hypothetical protein
7	 48.63	0	7187..8389	-	400	152991604	iscS	SUN_0007	-	cysteine desulfurase
8	 42.12	0	8705..9091	+	128	152991605	-	SUN_0008	-	hypothetical protein
9	 51.64	+1	9093..9671	-	192	152991606	-	SUN_0009	-	GTP cyclohydrolase I
10	 47.09	0	9713..10693	-	326	152991607	-	SUN_0010	-	A/G-specific adenine glycosylase
11	 45.87	0	10775..12058	+	427	152991608	tig	SUN_0011	-	trigger factor
12	 48.30	0	12345..12932	+	195	152991609	clpP	SUN_0012	-	ATP-dependent Clp protease proteolytic subunit
13	 44.38	0	12941..13465	+	174	152991610	-	SUN_0013	-	peptide deformylase
14	 46.53	0	13548..15131	+	527	152991611	-	SUN_0014	-	Mg chelatase-related protein
15	 50.75	+1	15241..16308	-	355	152991612	-	SUN_0015	-	hypothetical protein
16	 43.82	0	16431..17336	+	301	152991613	-	SUN_0016	-	LysR family transcriptional regulator
17	 42.33	0	17337..17903	-	188	152991614	-	SUN_0017	-	molybdopterin-guanine dinucleotide biosynthesis protein A
18	 47.77	0	17900..19021	-	373	152991615	-	SUN_0018	-	nucleoside:H+ symporter
19	 46.39	0	19018..19515	-	165	152991616	-	SUN_0019	-	hypothetical protein
20	 47.89	0	19515..20297	-	260	152991617	-	SUN_0020	-	hypothetical protein
21	 46.50	0	20334..21548	-	404	152991618	-	SUN_0021	-	type II secretion system protein F
22	 45.22	0	21668..22096	-	142	152991619	-	SUN_0022	-	hypothetical protein
23	 47.33	0	22093..22635	-	180	152991620	-	SUN_0023	-	hypothetical protein
24	 48.87	0	22644..23087	-	147	152991621	-	SUN_0024	-	type II secretion system protein G
25	 44.92	0	23148..24062	+	304	152991622	-	SUN_0025	-	hypothetical protein
26	 47.59	0	24040..24972	+	310	152991623	-	SUN_0026	-	hypothetical protein
27	 43.78	0	24969..25370	+	133	152991624	-	SUN_0027	-	hypothetical protein
28	 46.12	0	25358..25873	+	171	152991625	-	SUN_0028	-	hypothetical protein
29	 46.50	0	25857..26699	+	280	152991626	-	SUN_0029	-	hypothetical protein
30	 47.91	0	26686..28722	+	678	152991627	-	SUN_0030	-	type II secretion system protein D
31	 48.81	0	28722..30233	+	503	152991628	-	SUN_0031	-	type II secretion system protein E
32	 45.02	0	30211..30852	+	213	152991629	-	SUN_0032	-	hypothetical protein
33	 47.04	0	30907..33240	+	777	152991630	-	SUN_0033	-	hypothetical protein
34	 45.88	0	33313..33822	+	169	152991631	-	SUN_0034	-	hypothetical protein
35	 49.01	0	33843..34448	-	201	152991632	-	SUN_0035	-	orotate phosphoribosyltransferase
36	 43.37	0	34451..35008	-	185	152991633	frr	SUN_0036	-	ribosome recycling factor
37	 45.11	0	35140..35487	-	115	152991634	-	SUN_0037	-	preprotein translocase subunit G
38	 41.70	0	35597..36325	+	242	152991635	-	SUN_0038	-	methyl transferase
39	 46.87	0	36364..37050	-	228	152991636	-	SUN_0039	-	hypothetical protein
40	 36.46	-1	46040..46231	+	63	152991637	rpmI	SUN_0041	-	50S ribosomal protein L35
41	 39.78	0	46342..46698	+	118	152991638	rplT	SUN_0042	-	50S ribosomal protein L20
42	 47.92	0	46898..48001	+	367	152991639	-	SUN_0043	-	deoxyguanosinetriphosphate triphosphohydrolase
43	 43.25	0	48234..49766	+	510	152991640	-	SUN_0044	-	hypothetical protein
44	 43.49	0	50045..50635	+	196	152991641	-	SUN_0045	-	hypothetical protein
45	 44.09	0	50831..51202	+	123	152991642	-	SUN_0046	-	hypothetical protein
46	 44.44	0	51212..52687	+	491	152991643	-	SUN_0047	-	hypothetical protein
47	 36.43	-1	52711..53130	+	139	152991644	-	SUN_0048	-	hypothetical protein
48	 45.86	0	53157..54473	+	438	152991645	-	SUN_0049	-	sulfur oxidation protein SoxC
49	 45.35	0	54454..55626	+	390	152991646	-	SUN_0050	-	sulfur oxidation protein, cytochrome c subunit
50	 40.94	0	55666..56178	+	170	152991647	-	SUN_0051	-	sulfur oxidation protein SoxY
51	 33.66	-1	56258..56560	+	100	152991648	-	SUN_0052	-	sulfur oxidation protein SoxZ
52	 43.32	0	56570..57691	+	373	152991649	-	SUN_0053	-	hypothetical protein
53	 35.60	-1	57697..58137	+	146	152991650	-	SUN_0054	-	hypothetical protein
54	 43.40	0	58137..58583	+	148	152991651	-	SUN_0055	-	hypothetical protein
55	 39.81	0	58672..59427	+	251	152991652	-	SUN_0056	-	hypothetical protein
56	 41.93	0	59564..60505	+	313	152991653	-	SUN_0057	-	hypothetical protein
57	 41.30	0	60805..62172	-	455	152991654	-	SUN_0058	-	sulfur oxidation protein, flavocytochrome c
58	 44.23	0	62240..62707	-	155	152991655	-	SUN_0059	-	hypothetical protein
59	 41.01	0	62708..63124	-	138	152991656	-	SUN_0060	-	hypothetical protein
60	 37.53	-1	63286..64023	+	245	152991657	-	SUN_0061	-	hypothetical protein
61	 44.65	0	64025..65005	+	326	152991658	-	SUN_0062	-	hypothetical protein
62	 49.72	+1	65047..66114	-	355	152991659	prfA	SUN_0063	-	peptide chain release factor 1
63	 42.96	0	66192..66461	-	89	152991660	rpsT	SUN_0064	-	30S ribosomal protein S20
64	 47.46	0	66689..68026	+	445	152991661	glmM	SUN_0065	-	phosphoglucosamine mutase
65	 47.17	0	68026..68466	+	146	152991662	-	SUN_0066	-	lipoprotein signal peptidase
66	 45.95	0	68473..69423	+	316	152991663	-	SUN_0067	-	hypothetical protein
67	 43.47	0	69420..70238	+	272	152991664	-	SUN_0068	-	hypothetical protein
68	 43.70	0	70235..70504	-	89	152991665	-	SUN_0069	-	hypothetical protein
69	 49.16	0	70572..71045	-	157	152991666	moaC	SUN_0070	-	molybdenum cofactor biosynthesis protein C
70	 43.52	0	71236..71922	+	228	152991667	-	SUN_0071	-	hypothetical protein
71	 44.38	0	71922..73388	+	488	152991668	-	SUN_0072	-	ferredoxin-like protein
72	 47.14	0	73399..74571	+	390	152991669	-	SUN_0073	-	sulfide-quinone reductase
73	 39.10	0	74628..75026	+	132	152991670	-	SUN_0074	-	hypothetical protein
74	 45.21	0	75195..75716	+	173	152991671	tpx	SUN_0075	-	thiol peroxidase
75	 43.67	0	75744..76391	+	215	152991672	-	SUN_0076	-	hypothetical protein
76	 35.92	-1	76411..76797	+	128	152991673	-	SUN_0077	-	hypothetical protein
77	 45.85	0	76799..77389	+	196	152991674	-	SUN_0078	-	hypothetical protein
78	 43.57	0	77476..77973	+	165	152991675	-	SUN_0079	-	hypothetical protein
79	 44.02	0	77975..78751	-	258	152991676	-	SUN_0080	-	UDP-N-acetylenolpyruvoylglucosamine reductase
80	 45.79	0	78788..79654	-	288	152991677	-	SUN_0081	-	hypothetical protein
81	 49.71	+1	79932..80975	+	347	152991678	recA	SUN_0082	-	recombinase A
82	 46.67	0	81163..82437	+	424	152991679	-	SUN_0083	-	phosphopyruvate hydratase
83	 42.86	0	82446..82697	+	83	152991680	-	SUN_0084	-	hypothetical protein
84	 44.44	0	82701..83411	+	236	152991681	-	SUN_0085	-	hypothetical protein
85	 44.94	0	83408..84562	-	384	152991682	-	SUN_0086	-	NhaA family Na(+)/H(+) antiporter
86	 48.37	0	84549..85466	-	305	152991683	bioB	SUN_0087	-	biotin synthase
87	 45.88	0	85411..87609	-	732	152991684	topA	SUN_0088	-	DNA topoisomerase I
88	 45.92	0	87723..88628	-	301	152991685	-	SUN_0089	-	hypothetical protein
89	 47.80	0	88640..89206	-	188	152991686	dcd	SUN_0090	-	deoxycytidine triphosphate deaminase
90	 45.74	0	89224..90045	-	273	152991687	-	SUN_0091	-	hypothetical protein
91	 51.26	+1	90194..92569	+	791	152991688	-	SUN_0092	-	hypothetical protein
92	 39.56	0	92566..93528	+	320	152991689	-	SUN_0093	-	oxidoreductase
93	 44.56	0	93528..94097	+	189	152991690	-	SUN_0094	-	acetyltransferase
94	 38.86	0	94094..95179	+	361	152991691	-	SUN_0095	-	aminotransferase
95	 33.33	-2	95176..96441	+	421	152991692	-	SUN_0096	-	polysaccharide biosynthesis protein
96	 30.43	-2	96431..97153	+	240	152991693	-	SUN_0097	-	hypothetical protein
97	 30.38	-2	97146..98399	+	417	152991694	-	SUN_0098	-	polysaccharide biosynthesis protein
98	 29.84	-2	98443..99531	+	362	152991695	-	SUN_0099	-	hypothetical protein
99	 31.51	-2	99528..100625	+	365	152991696	-	SUN_0100	-	glycosyl transferase
100	 34.85	-1	100622..101017	+	131	152991697	-	SUN_0101	-	hypothetical protein
44.05	MEAN

5.28	STD DEV
