IslandPath Analysis: Streptococcus thermophilus LMD-9

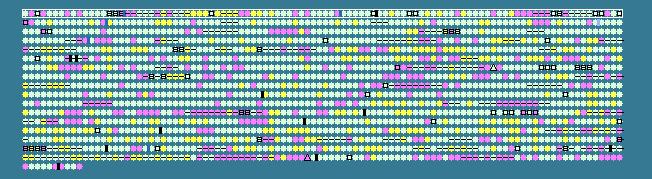

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 39.31   STD DEV: 4.08
Streptococcus thermophilus LMD-9, complete genome - 1..1856368
1710 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 36.85	0	101..1465	+	454	116626973	dnaA	STER_0001	-	chromosomal replication initiation protein
2	 35.36	0	1620..2756	+	378	116626974	-	STER_0002	-	DNA polymerase III subunit beta
3	 39.70	0	2825..4081	-	418	116626975	-	STER_0003	-	transposase
4	 35.42	0	4226..4417	+	63	116626976	-	STER_0004	-	hypothetical protein
5	 41.49	0	4630..5745	+	371	116626977	-	STER_0005	-	translation-associated GTPase
6	 36.67	0	5818..6387	+	189	116626978	-	STER_0006	-	peptidyl-tRNA hydrolase
7	 38.24	0	6380..9886	+	1168	116626979	-	STER_0007	-	transcription-repair coupling factor
8	 34.78	-1	10072..10347	+	91	116626980	-	STER_0008	-	S4 domain-containing protein
9	 37.10	0	10331..10702	+	123	116626981	-	STER_0009	-	cell-cycle protein, MesJ/Ycf62 family, putative
10	 33.33	-1	10702..10833	+	43	116626982	-	STER_0010	-	hypothetical protein
11	 36.58	0	10830..12122	+	430	116626983	-	STER_0011	-	hypothetical protein
12	 37.20	0	12122..13387	+	421	116626984	-	STER_0012	-	putative cell-cycle protein, MesJ/Ycf62 family
13	 36.28	0	13469..14011	+	180	116626985	-	STER_0013	-	hypoxanthine-guanine phosphoribosyltransferase
14	 39.99	0	14027..15994	+	655	116626986	-	STER_0014	-	cell division protein
15	 37.44	0	16037..16936	-	299	116626987	-	STER_0015	-	transposase
16	 37.24	0	17393..17929	+	178	116626988	-	STER_0016	-	transposase
17	 35.38	0	18257..18745	+	162	116626989	-	STER_0018	-	transposase
18	 31.77	-1	25595..26425	+	276	116626990	-	STER_0040	-	rod shape-determining protein MreC
19	 28.19	-2	26427..26951	+	174	116626991	-	STER_0041	-	rod shape-determining protein MreD
20	 42.25	0	27036..28403	+	455	116626992	-	STER_0042	-	glucan binding protein
21	 38.30	0	28617..29582	+	321	116626993	-	STER_0043	-	ribose-phosphate pyrophosphokinase
22	 38.10	0	30689..31864	+	391	116626994	-	STER_0045	-	aromatic amino acid aminotransferase
23	 35.27	0	31851..32624	+	257	116626995	recO	STER_0046	-	DNA repair protein RecO
24	 43.08	0	32842..33846	+	334	116626996	-	STER_0047	-	putative glycerol-3-phosphate acyltransferase PlsX
25	 33.33	-1	33846..34091	+	81	116626997	-	STER_0048	-	acyl carrier protein
26	 37.57	0	34376..35083	+	235	116626998	-	STER_0049	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
27	 41.98	0	35139..38864	+	1241	116626999	-	STER_0050	-	phosphoribosylformylglycinamidine synthase II (FGAM synthetase)
28	 42.92	0	39033..40472	+	479	116627000	-	STER_0051	-	amidophosphoribosyltransferase
29	 43.82	+1	40503..41522	+	339	116627001	-	STER_0052	-	phosphoribosylaminoimidazole synthetase
30	 45.77	+1	41522..42076	+	184	116627002	purN	STER_0053	-	phosphoribosylglycinamide formyltransferase
31	 45.41	+1	42145..43692	+	515	116627003	purH	STER_0054	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
32	 36.03	0	43864..44382	+	172	116627004	-	STER_0055	-	IS861, transposase (orf1), IS3 family, truncated
33	 46.07	+1	45089..45928	-	279	116627005	-	STER_0057	-	cell wall protein precursor, choline binding protein
34	 47.51	+2	46237..47499	+	420	116627006	-	STER_0058	-	phosphoribosylamine--glycine ligase
35	 49.10	+2	47833..48333	+	166	116627007	-	STER_0059	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
36	 46.25	+1	48320..49411	+	363	116627008	-	STER_0060	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
37	 31.67	-1	50368..50427	+	19	116627009	-	STER_0062	-	hypothetical protein
38	 35.76	0	50431..50595	+	54	116627010	-	STER_0063	-	hypothetical protein
39	 45.19	+1	50874..52172	+	432	116627011	-	STER_0064	-	adenylosuccinate lyase
40	 43.62	+1	53036..54727	-	563	116627012	argS	STER_0065	-	arginyl-tRNA synthetase
41	 42.25	0	54885..55310	+	141	116627013	-	STER_0066	-	arginine repressor
42	 43.06	0	55310..55669	+	119	116627014	-	STER_0067	-	hypothetical protein
43	 42.56	0	55662..58220	+	852	116627015	-	STER_0068	-	DNA mismatch repair protein
44	 42.54	0	58254..58709	-	151	116627016	-	STER_0069	-	hypothetical protein
45	 41.07	0	58723..59097	-	124	116627017	-	STER_0070	-	response regulator
46	 34.69	-1	59333..59626	+	97	116627018	-	STER_0071	-	hypothetical protein
47	 41.20	0	59678..61621	+	647	116627019	mutL	STER_0072	-	DNA mismatch repair protein
48	 32.88	-1	61751..61972	+	73	116627020	-	STER_0073	-	hypothetical protein
49	 38.92	0	62124..62714	+	196	116627021	ruvA	STER_0074	-	Holliday junction DNA helicase motor protein
50	 36.58	0	62721..63275	+	184	116627022	-	STER_0075	-	3-methyladenine DNA glycosylase
51	 40.09	0	63371..64642	+	423	116627023	-	STER_0076	-	competence damage-inducible protein A
52	 40.88	0	64678..65817	+	379	116627024	recA	STER_0077	-	recombinase A
53	 32.83	-1	65994..66392	+	132	116627025	spxA	STER_0078	-	transcriptional regulator Spx
54	 39.25	0	72798..77192	+	1464	116627026	polC	STER_0095	-	DNA polymerase III PolC
55	 42.35	0	77356..78597	+	413	116627027	-	STER_0096	-	aminopeptidase PepS
56	 39.39	0	78617..78847	+	76	116627028	-	STER_0097	-	hypothetical protein
57	 37.93	0	78980..79066	+	28	116627029	-	STER_0098	-	hypothetical protein
58	 37.86	0	79497..80048	+	183	116627030	-	STER_0100	-	hypothetical protein
59	 36.40	0	80098..80586	-	162	116627031	-	STER_0101	-	transposase
60	 41.41	0	82956..83723	+	255	116627032	rpsB	STER_0105	-	30S ribosomal protein S2
61	 40.63	0	83841..84881	+	346	116627033	tsf	STER_0106	-	elongation factor Ts
62	 46.28	+1	84991..85461	-	156	116627034	-	STER_0107	-	hypothetical protein
63	 39.69	0	85705..86160	+	151	116627035	-	STER_0108	-	class III stress gene transcriptional regulator
64	 42.47	0	86161..88611	+	816	116627036	-	STER_0109	-	ATP-dependent Clp protease, ATP-binding subunit
65	 40.47	0	90195..90881	+	228	116627037	-	STER_0111	-	transposase
66	 40.11	0	90896..91765	+	289	116627038	-	STER_0112	-	transposase
67	 40.43	0	91828..93081	-	417	116627039	-	STER_0113	-	D-alanyl-D-alanine carboxypeptidase, penicillin-binding protein
68	 43.49	+1	93284..95509	+	741	116627040	-	STER_0114	-	polynucleotide phosphorylase/polyadenylase
69	 41.12	0	95518..96288	+	256	116627041	-	STER_0115	-	hypothetical protein
70	 45.09	+1	96361..96981	+	206	116627042	-	STER_0116	-	serine acetyltransferase
71	 40.48	0	97363..98706	+	447	116627043	cysS	STER_0117	-	cysteinyl-tRNA synthetase
72	 40.55	0	98699..99100	+	133	116627044	-	STER_0118	-	hypothetical protein
73	 32.69	-1	99382..99537	+	51	116627045	-	STER_0119	-	hypothetical protein
74	 46.03	+1	99613..99801	+	62	116627046	-	STER_0120	-	hypothetical protein
75	 39.51	0	99872..100114	+	80	116627047	-	STER_0121	-	hypothetical protein
76	 42.74	0	100162..100905	+	247	116627048	-	STER_0122	-	tRNA/rRNA methyltransferase
77	 40.62	0	100944..101423	+	159	116627049	-	STER_0123	-	RNA-binding protein
78	 42.28	0	101432..102292	+	286	116627050	-	STER_0124	-	hypothetical protein
79	 33.33	-1	102593..103093	+	166	116627051	-	STER_0125	-	hypothetical protein
80	 38.56	0	103241..104197	+	318	116627052	-	STER_0126	-	2-dehydropantoate 2-reductase
81	 40.94	0	104406..104852	+	148	116627053	rplM	STER_0127	-	50S ribosomal protein L13
82	 45.80	+1	104880..105272	+	130	116627054	rpsI	STER_0128	-	30S ribosomal protein S9
83	 33.33	-1	106260..106364	+	34	116627055	-	STER_0130	-	hypothetical protein
84	 31.99	-1	106407..108122	+	571	116627056	-	STER_0131	-	hypothetical protein
85	 29.43	-2	109965..110810	+	281	116627057	-	STER_0134	-	hypothetical protein
86	 30.95	-2	110820..110987	+	55	116627058	-	STER_0135	-	hypothetical protein
87	 35.67	0	111038..111550	+	170	116627059	-	STER_0136	-	transcription regulator
88	 31.43	-1	111672..111776	+	34	116627060	-	STER_0137	-	hypothetical protein
89	 39.06	0	111876..113132	-	418	116627061	-	STER_0138	-	transposase
90	 38.91	0	113500..114180	-	226	116627062	-	STER_0139	-	transposase
91	 23.98	-2	114897..115067	+	56	116627063	-	STER_0141	-	hypothetical protein
92	 36.84	0	115091..116746	+	551	116627064	-	STER_0142	-	ABC-type oligopeptide transport system, periplasmic component
93	 39.38	0	116849..117907	+	352	116627065	-	STER_0143	-	ABC-type dipeptide/oligopeptide/nickel transport system, permease component
94	 41.61	0	117907..118860	+	317	116627066	-	STER_0144	-	ABC-type dipeptide/oligopeptide/nickel transport system, permease component
95	 40.28	0	118857..120554	+	565	116627067	-	STER_0145	-	ABC-type dipeptide/oligopeptide/nickel transport system, ATPase component
96	 35.86	0	121047..121997	+	316	116627068	-	STER_0147	-	IS5 family transposase
97	 39.21	0	121994..122674	-	226	116627069	-	STER_0148	-	transposase
98	 34.76	-1	122832..124025	-	397	116627070	-	STER_0149	-	cell wall biosynthesis glycosyltransferase
99	 37.00	0	124093..125211	-	372	116627071	-	STER_0150	-	UDP-glucose 6-dehydrogenase
100	 39.54	0	125383..126639	+	418	116627072	-	STER_0151	-	transposase
39.31	MEAN

4.08	STD DEV
