IslandPath Analysis: Streptococcus pyogenes NZ131

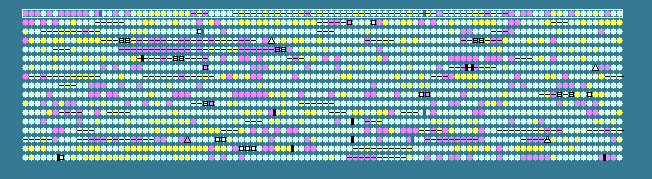

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.61   STD DEV: 3.77
Streptococcus pyogenes NZ131, complete genome - 1..1815785
1700 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 33.55	-1	232..1587	+	451	209558588	dnaA	Spy49_0001	-	Chromosomal replication initiator protein dnaA
2	 33.42	-1	1742..2878	+	378	209558589	dnaN	Spy49_0002	-	Beta subunit of DNA polymerase III
3	 32.32	-1	2953..3150	+	65	209558590	-	Spy49_0003	-	hypothetical protein
4	 37.28	0	3480..4595	+	371	209558591	-	Spy49_0004	-	GTP-binding and nucleic acid-binding protein YchF
5	 31.58	-1	4665..5234	+	189	209558592	pth	Spy49_0005	-	Peptidyl-tRNA hydrolase
6	 35.26	0	5321..8740	+	1139	209558593	trcF	Spy49_0006	-	Transcription-repair coupling factor
7	 30.77	-2	8902..9174	+	90	209558594	-	Spy49_0008	-	hypothetical protein
8	 26.61	-2	9161..9532	+	123	209558595	divIC	Spy49_0009	-	Putative cell division protein
9	 31.55	-1	9667..10953	+	428	209558596	-	Spy49_0010	-	hypothetical protein
10	 28.67	-2	10950..12236	+	428	209558597	mesJ	Spy49_0011	-	tRNA(Ile)-lysidine synthetase
11	 30.39	-2	12241..12783	+	180	209558598	hpt	Spy49_0012	-	Hypoxanthine-guanine phosphoribosyltransferase
12	 37.63	0	12805..14784	+	659	209558599	ftsH	Spy49_0013	-	Cell division protein ftsH
13	 32.65	-1	15041..16501	+	486	209558600	-	Spy49_0014	-	Putative amino acid permease
14	 39.93	0	31169..32365	+	398	209558601	-	Spy49_0015	-	Putative secreted protein Streptputative secreted protein
15	 39.36	0	32618..33580	+	320	209558602	prsA	Spy49_0016	-	Ribose-phosphate pyrophosphokinase
16	 31.08	-1	33766..34521	+	251	209558603	recO	Spy49_0017	-	DNA repair protein recO
17	 38.10	0	34624..35631	+	335	209558604	-	Spy49_0018	-	Fatty acid/phospholipid synthesis protein plsX
18	 30.45	-2	35624..35866	+	80	209558605	acp	Spy49_0019	-	Acyl carrier protein
19	 35.65	0	35987..36721	+	244	209558606	purC	Spy49_0020	-	Phosphoribosylaminoimidazole-succinocarboxamide synthase
20	 44.86	+1	36798..40571	+	1257	209558607	purL	Spy49_0021	-	Phosphoribosylformylglycinamidine synthase, synthetase subunit/Phosphoribosylformylglycinamidine synthase, glutamine amidotransferase subunit
21	 38.76	0	40805..42259	+	484	209558608	purF	Spy49_0022	-	Amidophosphoribosyltransferase
22	 43.01	+1	42287..43309	+	340	209558609	purM	Spy49_0023	-	Phosphoribosylformylglycinamidine cyclo-ligase
23	 46.85	+2	43477..44031	+	184	209558610	purN	Spy49_0024	-	Phosphoribosylglycinamide formyltransferase
24	 46.96	+2	44215..45762	+	515	209558611	purH	Spy49_0025	-	IMP cyclohydrolase/ Phosphoribosylaminoimidazolecarboxamide formyltransferase
25	 39.64	0	45820..46944	-	374	209558612	-	Spy49_0026c	-	Autolysin
26	 47.12	+2	47107..48462	+	451	209558613	purD	Spy49_0027	-	Phosphoribosylamine--glycine ligase
27	 48.86	+2	48621..49232	+	203	209558614	purE	Spy49_0028	-	Phosphoribosylaminoimidazole carboxylase catalytic subunit
28	 49.49	+2	49216..50292	+	358	209558615	purK	Spy49_0029	-	Phosphoribosylaminoimidazole carboxylase ATPase subunit
29	 27.33	-2	50394..51875	+	493	209558616	-	Spy49_0030	-	hypothetical protein
30	 45.17	+1	52048..53340	+	430	209558617	purB	Spy49_0031	-	Adenylosuccinate lyase
31	 29.32	-2	53471..54391	+	306	209558618	-	Spy49_0032	-	Transcriptional regulator, Cro/CI family
32	 39.74	0	54617..55615	+	332	209558619	ruvB	Spy49_0033	-	Holliday junction DNA helicase ruvB
33	 35.84	0	55753..56190	+	145	209558620	-	Spy49_0035	-	Low molecular weight protein tyrosine phosphatase
34	 35.57	0	56213..56614	+	133	209558621	-	Spy49_0036	-	hypothetical protein
35	 36.66	0	56611..58386	+	591	209558622	-	Spy49_0037	-	Putative acyltransferase
36	 40.64	0	58695..61337	+	880	209558623	adhE	Spy49_0038	-	Alcohol dehydrogenase
37	 42.38	+1	61589..62605	+	338	209558624	adhP	Spy49_0039	-	Alcohol dehydrogenase
38	 41.32	0	62993..64282	+	429	209558625	norM	Spy49_0040	-	Na+ driven multidrug efflux pump
39	 40.13	0	64481..64789	+	102	209558626	rpsJ	Spy49_0044	-	SSU ribosomal protein S10p (S20e)
40	 41.79	0	65037..65663	+	208	209558627	rplC	Spy49_0045	-	LSU ribosomal protein L3p (L3e)
41	 42.63	+1	65687..66310	+	207	209558628	rplD	Spy49_0046	-	LSU ribosomal protein L4p (L1e)
42	 37.23	0	66310..66540	+	76	209558629	rplW	Spy49_0048	-	LSU ribosomal protein L23p (L23Ae)
43	 43.53	+1	66625..67458	+	277	209558630	rplB	Spy49_0049	-	LSU ribosomal protein L2p (L8e)
44	 41.58	0	67597..67875	+	92	209558631	rpsS	Spy49_0050	-	SSU ribosomal protein S19p (S15e)
45	 39.71	0	67891..68235	+	114	209558632	rplV	Spy49_0052	-	LSU ribosomal protein L22p (L17e)
46	 41.63	0	68275..68901	+	208	209558633	rpsC	Spy49_0053	-	SSU ribosomal protein S3p (S3e)
47	 43.24	+1	68905..69318	+	137	209558634	rplP	Spy49_0054	-	LSU ribosomal protein L16p (L10e)
48	 34.78	-1	69328..69534	+	68	209558635	rpmC	Spy49_0055	-	LSU ribosomal protein L29p (L35e)
49	 38.31	0	69560..69820	+	86	209558636	rpsQ	Spy49_0056	-	SSU ribosomal protein S17p (S11e)
50	 44.17	+1	69845..70213	+	122	209558637	rplN	Spy49_0057	-	LSU ribosomal protein L14p (L23e)
51	 36.60	0	70292..70597	+	101	209558638	rplX	Spy49_0058	-	LSU ribosomal protein L24p (L26e)
52	 40.70	0	70621..71163	+	180	209558639	rplE	Spy49_0059	-	LSU ribosomal protein L5p (L11e)
53	 40.32	0	71179..71364	+	61	209558640	rpsN.1	Spy49_0060	-	SSU ribosomal protein S14p (S29e)
54	 37.09	0	71515..71913	+	132	209558641	rpsH	Spy49_0061	-	SSU ribosomal protein S8p (S15Ae)
55	 39.11	0	72116..72652	+	178	209558642	rplF	Spy49_0062	-	LSU ribosomal protein L6p (L9e)
56	 45.94	+1	72757..73113	+	118	209558643	rplR	Spy49_0064	-	LSU ribosomal protein L18p (L5e)
57	 42.83	+1	73132..73626	+	164	209558644	rpsE	Spy49_0065	-	SSU ribosomal protein S5p (S2e)
58	 37.16	0	73641..73823	+	60	209558645	rpmD	Spy49_0066	-	LSU ribosomal protein L30p (L7e)
59	 39.68	0	74038..74478	+	146	209558646	rplO	Spy49_0067	-	LSU ribosomal protein L15p (L27Ae)
60	 36.63	0	74495..75799	+	434	209558647	secY	Spy49_0068	-	Preprotein translocase secY subunit
61	 39.44	0	75949..76587	+	212	209558648	adk	Spy49_0069	-	Adenylate kinase
62	 36.99	0	76705..76923	+	72	209558649	infA	Spy49_0070	-	Translation initiation factor 1
63	 37.61	0	76949..77065	+	38	209558650	rpmJ	Spy49_0071	-	LSU ribosomal protein L36p
64	 39.34	0	77083..77448	+	121	209558651	rpsM	Spy49_0072	-	SSU ribosomal protein S13p (S18e)
65	 43.75	+1	77466..77849	+	127	209558652	rpsK	Spy49_0073	-	SSU ribosomal protein S11p (S14e)
66	 38.23	0	77895..78833	+	312	209558653	rpoA	Spy49_0074	-	DNA-directed RNA polymerase alpha subunit
67	 40.83	0	78848..79234	+	128	209558654	rplQ	Spy49_0075	-	LSU ribosomal protein L17p
68	 43.78	+1	87367..87615	+	82	209558655	-	Spy49_0078	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
69	 38.03	0	87670..87882	+	70	209558656	-	Spy49_0079	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
70	 33.78	-1	87992..88435	+	147	209558657	adrR	Spy49_0080	-	Putative repressor protein
71	 40.97	0	88439..89158	+	239	209558658	adrC	Spy49_0081	-	ABC transporter
72	 38.60	0	89151..89966	+	271	209558659	adrB	Spy49_0082	-	Putative ABC transporter
73	 40.89	0	90006..90389	-	127	209558660	-	Spy49_0083c	-	Putative histidine triad (HIT) protein
74	 41.37	0	90440..91696	-	418	209558661	tyrS	Spy49_0084	-	Tyrosyl-tRNA synthetase
75	 40.42	0	91800..94100	+	766	209558662	pbp1b	Spy49_0086	-	Multimodular transpeptidase-transglycosylase
76	 43.31	+1	94364..97930	+	1188	209558663	rpoB	Spy49_0087	-	DNA-directed RNA polymerase beta subunit
77	 43.98	+1	98048..101662	+	1204	209558664	rpoC	Spy49_0088	-	DNA-directed RNA polymerase beta subunit
78	 34.70	-1	101814..102179	+	121	209558665	-	Spy49_0089	-	Putative DNA binding protein
79	 37.70	0	102272..103210	+	312	209558666	comYA	Spy49_0090	-	Putative ABC transporter subunit ComYA
80	 35.50	0	103305..104180	+	291	209558667	comYB	Spy49_0091	-	Putative competence protein, ABC transporter subunit
81	 33.94	-1	104182..104508	+	108	209558668	comYC	Spy49_0092	-	Putative competence protein
82	 34.27	-1	104483..104911	+	142	209558669	-	Spy49_0093	-	Competence protein
83	 37.19	0	104868..105152	+	94	209558670	-	Spy49_0094	-	hypothetical protein
84	 34.94	0	105145..105579	+	144	209558671	comYD	Spy49_0095	-	Putative competence protein
85	 34.36	-1	105599..105889	+	96	209558672	-	Spy49_0096	-	hypothetical protein
86	 38.47	0	105987..106940	+	317	209558673	-	Spy49_0097	-	Adenine-specific methyltransferase
87	 38.76	0	106999..108195	+	398	209558674	ackA	Spy49_0098	-	Acetate kinase
88	 34.57	-1	108381..108623	+	80	209558675	-	Spy49_0099	-	hypothetical protein
89	 43.71	+1	108772..109542	-	256	209558676	proC	Spy49_0100	-	Pyrroline-5-carboxylate reductase
90	 45.69	+1	109590..110657	-	355	209558677	pepA	Spy49_0101	-	Putative glutamyl-aminopeptidase
91	 37.07	0	112439..112732	+	97	209558678	-	Spy49_0103	-	hypothetical protein
92	 34.91	0	112729..113046	+	105	209558679	trx.1	Spy49_0104	-	Putative thioredoxin
93	 42.79	+1	113064..113708	+	214	209558680	-	Spy49_0105	-	tRNA binding domain protein
94	 38.38	0	113842..114237	+	131	209558681	ssb	Spy49_0107	-	Single-stranded DNA-binding protein
95	 39.56	0	114497..115138	-	213	209558682	-	Spy49_0108c	-	Deoxyadenosine kinase/Deoxyguanosine kinase
96	 46.11	+1	115158..116135	-	325	209558683	-	Spy49_0109c	-	putative transcriptional regulator
97	 41.47	0	116122..116994	-	290	209558684	-	Spy49_0110c	-	33 kDa chaperonin
98	 31.77	-1	117120..118655	-	511	209558685	nra	Spy49_0111	-	Regulatory protein
99	 35.30	0	119085..121319	+	744	209558686	cbp	Spy49_0112	-	Putative collagen binding protein
100	 36.97	0	121312..121833	+	173	209558687	lepA-1	Spy49_0113	-	Putative signal peptidase I
38.61	MEAN

3.77	STD DEV
