IslandPath Analysis: Streptococcus pyogenes MGAS2096

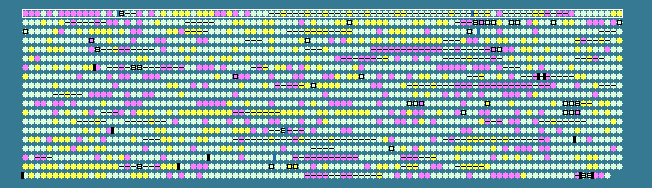

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.64   STD DEV: 4.01
Streptococcus pyogenes MGAS2096, complete genome - 1..1860355
1898 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 33.33	-1	202..1557	+	451	94991498	dnaA	MGAS2096_Spy0001	-	chromosomal replication initiation protein
2	 33.51	-1	1712..2848	+	378	94991499	dnaN	MGAS2096_Spy0002	-	DNA polymerase III subunit beta
3	 32.32	-1	2923..3120	+	65	94991500	-	MGAS2096_Spy0003	-	putative cytoplasmic protein
4	 37.46	0	3450..4565	+	371	94991501	-	MGAS2096_Spy0004	-	translation-associated GTPase
5	 32.03	-1	4590..5204	+	204	94991502	pth	MGAS2096_Spy0005	-	peptidyl-tRNA hydrolase
6	 35.45	0	5207..8710	+	1167	94991503	trcF	MGAS2096_Spy0006	-	transcription-repair coupling factor
7	 30.77	-1	8872..9144	+	90	94991504	-	MGAS2096_Spy0007	-	heat shock protein 15
8	 26.88	-2	9131..9502	+	123	94991505	divIC	MGAS2096_Spy0008	-	cell division protein DIVIC
9	 26.98	-2	9499..9624	+	41	94991506	-	MGAS2096_Spy0009	-	hypothetical protein
10	 31.70	-1	9637..10923	+	428	94991507	-	MGAS2096_Spy0010	-	Beta-lactamase
11	 28.59	-2	10920..12206	+	428	94991508	tilS	MGAS2096_Spy0011	-	tRNA(Ile)-lysidine synthetase TilS
12	 30.39	-2	12211..12753	+	180	94991509	-	MGAS2096_Spy0012	-	hypoxanthine-guanine phosphoribosyltransferase
13	 30.45	-2	12775..13155	+	126	94991510	-	MGAS2096_Spy0013	-	cell division protein ftsH
14	 39.31	0	13133..14755	+	540	94991511	ftsH	MGAS2096_Spy0014	-	cell division protein ftsH
15	 32.51	-1	15013..16473	+	486	94991512	-	MGAS2096_Spy0015	-	amino acid permease
16	 36.30	0	16815..16949	-	44	94991513	-	MGAS2096_Spy0016	-	hypothetical protein
17	 37.68	0	30142..30348	-	68	94991514	-	MGAS2096_Spy0017	-	transposase
18	 40.27	0	30845..32041	+	398	94991515	sibA	MGAS2096_Spy0018	-	hypothetical protein
19	 39.28	0	32282..33256	+	324	94991516	prsA2	MGAS2096_Spy0019	-	ribose-phosphate pyrophosphokinase
20	 31.35	-1	33442..34197	+	251	94991517	recO	MGAS2096_Spy0020	-	DNA repair protein RecO
21	 37.02	0	34222..35307	+	361	94991518	plsX	MGAS2096_Spy0021	-	putative glycerol-3-phosphate acyltransferase PlsX
22	 31.28	-1	35300..35542	+	80	94991519	acpP2	MGAS2096_Spy0022	-	acyl carrier protein
23	 35.78	0	35663..36397	+	244	94991520	-	MGAS2096_Spy0023	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
24	 44.54	+1	36473..40246	+	1257	94991521	-	MGAS2096_Spy0024	-	phosphoribosylformylglycinamidine synthase
25	 38.49	0	40350..41861	+	503	94991522	purF	MGAS2096_Spy0025	-	amidophosphoribosyltransferase
26	 43.70	+1	41889..42911	+	340	94991523	purM	MGAS2096_Spy0026	-	phosphoribosylaminoimidazole synthetase
27	 46.67	+2	43079..43633	+	184	94991524	purN	MGAS2096_Spy0027	-	phosphoribosylglycinamide formyltransferase
28	 47.09	+2	43817..45364	+	515	94991525	purH	MGAS2096_Spy0028	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
29	 39.64	0	45422..46546	-	374	94991526	-	MGAS2096_Spy0029	-	autolysin
30	 46.50	+1	46652..48064	+	470	94991527	purD	MGAS2096_Spy0030	-	phosphoribosylamine--glycine ligase
31	 50.20	+2	48342..48833	+	163	94991528	purE	MGAS2096_Spy0031	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
32	 50.00	+2	48784..49893	+	369	94991529	purK	MGAS2096_Spy0032	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
33	 28.86	-2	49914..51254	+	446	94991530	-	MGAS2096_Spy0033	-	putative cytoplasmic protein
34	 29.56	-2	51255..51413	-	52	94991531	-	MGAS2096_Spy0034	-	hypothetical protein
35	 44.62	+1	51623..52915	+	430	94991532	purB	MGAS2096_Spy0035	-	adenylosuccinate lyase
36	 29.39	-2	53048..53959	+	303	94991533	-	MGAS2096_Spy0036	-	transcriptional regulator
37	 39.40	0	54113..55183	+	356	94991534	ruvB	MGAS2096_Spy0037	-	Holliday junction DNA helicase B
38	 34.93	0	55321..55758	+	145	94991535	-	MGAS2096_Spy0038	-	protein tyrosine phosphatase
39	 35.32	0	55782..56183	+	133	94991536	-	MGAS2096_Spy0039	-	hypothetical protein
40	 36.37	0	56180..57955	+	591	94991537	-	MGAS2096_Spy0040	-	acyltransferase
41	 40.22	0	58265..60907	+	880	94991538	-	MGAS2096_Spy0041	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
42	 39.78	0	61102..61566	+	154	94991539	adhA	MGAS2096_Spy0042	-	alcohol dehydrogenase
43	 41.16	0	61735..62028	+	97	94991540	-	MGAS2096_Spy0043	-	alcohol dehydrogenase
44	 42.92	+1	61958..62176	+	72	94991541	-	MGAS2096_Spy0044	-	alcohol dehydrogenase
45	 41.40	0	62564..63853	+	429	94991542	-	MGAS2096_Spy0045	-	Na+ driven multidrug efflux pump
46	 39.81	0	64052..64360	+	102	94991543	rpsJ	MGAS2096_Spy0046	-	30S ribosomal protein S10
47	 41.79	0	64608..65234	+	208	94991544	rplC	MGAS2096_Spy0047	-	50S ribosomal protein L3
48	 46.06	+1	65258..65587	+	109	94991545	-	MGAS2096_Spy0048	-	50S ribosomal protein L1E (L4P)
49	 38.05	0	65584..65880	+	98	94991546	rplD	MGAS2096_Spy0049	-	50S ribosomal protein L1E (L4P)
50	 37.71	0	65880..66176	+	98	94991547	rplW	MGAS2096_Spy0050	-	50S ribosomal protein L23
51	 43.53	+1	66194..67027	+	277	94991548	rplB	MGAS2096_Spy0051	-	50S ribosomal protein L2
52	 40.50	0	67167..67445	+	92	162139140	rpsS	MGAS2096_Spy0052	-	30S ribosomal protein S19
53	 39.71	0	67461..67805	+	114	94991550	rplV	MGAS2096_Spy0053	-	50S ribosomal protein L22
54	 41.59	0	67818..68471	+	217	94991551	rpsC	MGAS2096_Spy0054	-	30S ribosomal protein S3
55	 43.24	+1	68475..68888	+	137	94991552	rplP	MGAS2096_Spy0055	-	50S ribosomal protein L16
56	 35.27	0	68898..69104	+	68	94991553	rpmC	MGAS2096_Spy0056	-	50S ribosomal protein L29
57	 38.31	0	69130..69390	+	86	94991554	rpsQ	MGAS2096_Spy0057	-	30S ribosomal protein S17
58	 44.44	+1	69415..69783	+	122	94991555	rplN	MGAS2096_Spy0058	-	50S ribosomal protein L14
59	 36.60	0	69865..70170	+	101	94991556	rplX	MGAS2096_Spy0059	-	50S ribosomal protein L24
60	 40.70	0	70194..70736	+	180	94991557	rplE	MGAS2096_Spy0060	-	50S ribosomal protein L5
61	 36.84	0	71087..71485	+	132	94991558	rpsH	MGAS2096_Spy0061	-	30S ribosomal protein S8
62	 39.11	0	71688..72224	+	178	94991559	rplF	MGAS2096_Spy0062	-	50S ribosomal protein L6
63	 45.36	+1	72320..72685	+	121	94991560	rplR	MGAS2096_Spy0063	-	50S ribosomal protein L18
64	 42.63	0	72704..73198	+	164	94991561	rpsE	MGAS2096_Spy0064	-	30S ribosomal protein S5
65	 37.16	0	73213..73395	+	60	94991562	rpmD	MGAS2096_Spy0065	-	50S ribosomal protein L30
66	 39.68	0	73610..74050	+	146	94991563	rplO	MGAS2096_Spy0066	-	50S ribosomal protein L15
67	 36.40	0	74067..75371	+	434	162139139	secY	MGAS2096_Spy0067	-	preprotein translocase subunit SecY
68	 39.44	0	75521..76159	+	212	94991565	adk	MGAS2096_Spy0068	-	adenylate kinase
69	 38.10	0	76223..76495	+	90	94991566	infA	MGAS2096_Spy0069	-	translation initiation factor IF-1
70	 37.61	0	76521..76637	+	38	94991567	rpmJ	MGAS2096_Spy0070	-	50S ribosomal protein L36
71	 39.34	0	76655..77020	+	121	94991568	rpsM	MGAS2096_Spy0071	-	30S ribosomal protein S13
72	 44.01	+1	77038..77421	+	127	94991569	rpsK	MGAS2096_Spy0072	-	30S ribosomal protein S11
73	 37.91	0	77467..78405	+	312	94991570	rpoA	MGAS2096_Spy0073	-	DNA-directed RNA polymerase subunit alpha
74	 40.57	0	78420..78806	+	128	94991571	rplQ	MGAS2096_Spy0074	-	50S ribosomal protein L17
75	 35.56	0	79402..79536	-	44	94991572	-	MGAS2096_Spy0075	-	hypothetical protein
76	 42.47	0	86048..86233	+	61	94991573	-	MGAS2096_Spy0076	-	hypothetical protein
77	 36.19	0	86737..86841	+	34	94991574	-	MGAS2096_Spy0077	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
78	 42.39	0	86872..87180	+	102	94991575	-	MGAS2096_Spy0078	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
79	 38.60	0	87220..87447	+	75	94991576	-	MGAS2096_Spy0079	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
80	 34.46	-1	87557..88000	+	147	94991577	adcR	MGAS2096_Spy0080	-	MarR family transcriptional regulator
81	 41.25	0	88004..88723	+	239	94991578	adcC	MGAS2096_Spy0081	-	high-affinity zinc uptake system ATP-binding protein znuC
82	 38.71	0	88677..89531	+	284	94991579	adcB	MGAS2096_Spy0082	-	high-affinity zinc uptake system membrane protein znuB
83	 40.62	0	89571..89954	-	127	94991580	-	MGAS2096_Spy0083	-	bis(5'-nucleosyl)-tetraphosphatase (asymmetrical)
84	 41.93	0	90006..91262	-	418	94991581	tyrS	MGAS2096_Spy0084	-	tyrosyl-tRNA synthetase
85	 40.34	0	91354..93666	+	770	94991582	pbp1b	MGAS2096_Spy0085	-	multimodular transpeptidase-transglycosylase PBP 1B
86	 43.12	+1	93930..97496	+	1188	94991583	rpoB	MGAS2096_Spy0086	-	DNA-directed RNA polymerase subunit beta
87	 44.09	+1	97587..101210	+	1207	94991584	rpoC	MGAS2096_Spy0087	-	DNA-directed RNA polymerase subunit beta'
88	 34.70	0	101362..101727	+	121	94991585	-	MGAS2096_Spy0088	-	putative DNA binding protein
89	 37.38	0	101820..102758	+	312	94991586	comYA	MGAS2096_Spy0089	-	ComG operon protein 1
90	 34.89	0	102637..103728	+	363	94991587	comYB	MGAS2096_Spy0090	-	ComG operon protein 2
91	 33.64	-1	103730..104056	+	108	94991588	comYC	MGAS2096_Spy0091	-	ComG operon protein 3
92	 34.27	-1	104031..104459	+	142	94991589	-	MGAS2096_Spy0092	-	ComG operon protein 4
93	 37.54	0	104416..104700	+	94	94991590	-	MGAS2096_Spy0093	-	hypothetical protein
94	 35.63	0	104693..105127	+	144	94991591	comYD	MGAS2096_Spy0094	-	ComG operon protein 6
95	 35.78	0	105111..105437	+	108	94991592	-	MGAS2096_Spy0095	-	ComG operon protein 6
96	 37.94	0	105490..106488	+	332	94991593	-	MGAS2096_Spy0096	-	adenine-specific methyltransferase
97	 38.68	0	106547..107743	+	398	94991594	ackA	MGAS2096_Spy0097	-	acetate kinase
98	 35.92	0	107930..108238	+	102	94991595	-	MGAS2096_Spy0098	-	hypothetical protein
99	 43.58	+1	108321..109091	-	256	94991596	proC	MGAS2096_Spy0099	-	pyrroline-5-carboxylate reductase
100	 45.88	+1	109139..110206	-	355	94991597	pepA	MGAS2096_Spy0100	-	glutamyl aminopeptidase
38.64	MEAN

4.01	STD DEV
