IslandPath Analysis: Streptococcus pyogenes SSI-1

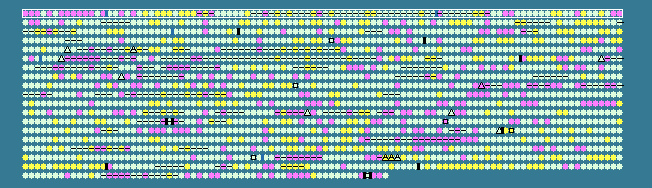

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.53   STD DEV: 3.74
Streptococcus pyogenes SSI-1, complete genome - 1..1894275
1861 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 33.26	-1	232..1587	+	451	28894913	dnaA	SPs0001	-	chromosomal replication initiation protein
2	 33.42	-1	1742..2878	+	378	28894914	-	SPs0002	-	DNA polymerase III subunit beta
3	 32.32	-1	2953..3150	+	65	28894915	-	SPs0003	-	hypothetical protein
4	 37.28	0	3480..4595	+	371	28894916	-	SPs0004	-	translation-associated GTPase
5	 31.75	-1	4665..5234	+	189	28894917	-	SPs0005	-	peptidyl-tRNA hydrolase
6	 35.42	0	5237..8740	+	1167	28894918	-	SPs0006	-	putative transcription-repair coupling factor
7	 30.98	-2	8878..9174	+	98	28894919	-	SPs0007	-	hypothetical protein
8	 26.34	-2	9161..9532	+	123	28894920	-	SPs0008	-	putative cell division protein (DivIC)
9	 26.98	-2	9529..9654	+	41	28894921	-	SPs0009	-	hypothetical protein
10	 31.47	-1	9667..10953	+	428	28894922	-	SPs0010	-	hypothetical protein
11	 28.52	-2	10950..12236	+	428	28894923	-	SPs0011	-	putative cell cycle protein
12	 30.76	-2	12241..12783	+	180	28894924	-	SPs0012	-	hypoxanthine-guanine phosphoribosyltransferase
13	 37.63	0	12805..14784	+	659	28894925	-	SPs0013	-	putative cell division protein
14	 32.58	-1	15041..16501	+	486	28894926	-	SPs0014	-	putative amino acid permease
15	 40.69	0	25194..26390	+	398	28894927	-	SPs0015	-	putative secreted protein streptputative secreted protein
16	 38.94	0	26643..27605	+	320	28894928	-	SPs0016	-	ribose-phosphate pyrophosphokinase
17	 31.22	-1	27791..28546	+	251	28894929	recO	SPs0017	-	DNA repair protein RecO
18	 38.10	0	28649..29656	+	335	28894930	-	SPs0018	-	putative glycerol-3-phosphate acyltransferase PlsX
19	 30.86	-2	29649..29891	+	80	28894931	-	SPs0019	-	acyl carrier protein
20	 35.78	0	30013..30747	+	244	28894932	-	SPs0020	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
21	 44.82	+1	30872..34597	+	1241	28894933	-	SPs0021	-	putative phosphoribosylformylglycinamidine synthase II
22	 38.76	0	34831..36285	+	484	28894934	-	SPs0022	-	amidophosphoribosyltransferase
23	 42.82	+1	36313..37335	+	340	28894935	-	SPs0023	-	phosphoribosylaminoimidazole synthetase
24	 47.03	+2	37503..38057	+	184	28894936	purN	SPs0024	-	phosphoribosylglycinamide formyltransferase
25	 47.16	+2	38241..39788	+	515	28894937	purH	SPs0025	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
26	 39.29	0	39847..40971	-	374	28894938	-	SPs0026	-	putative choline binding protein
27	 47.20	+2	41136..42491	+	451	28894939	-	SPs0027	-	phosphoribosylamine--glycine ligase
28	 48.69	+2	42649..43260	+	203	28894940	-	SPs0028	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
29	 50.09	+2	43211..44320	+	369	28894941	-	SPs0029	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
30	 28.71	-2	44341..45681	+	446	28894942	-	SPs0030	-	hypothetical protein
31	 44.86	+1	46050..47342	+	430	28894943	-	SPs0031	-	adenylosuccinate lyase
32	 29.61	-2	47473..48384	+	303	28894944	-	SPs0032	-	hypothetical protein
33	 39.64	0	48604..49602	+	332	28894945	ruvB	SPs0033	-	Holliday junction DNA helicase B
34	 35.62	0	49740..50177	+	145	28894946	-	SPs0034	-	putative protein-tyrosine phosphatase
35	 35.07	0	50200..50601	+	133	28894947	-	SPs0035	-	hypothetical protein
36	 36.71	0	50598..52373	+	591	28894948	-	SPs0036	-	putative acyltransferase
37	 40.33	0	52682..55324	+	880	28894949	-	SPs0037	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
38	 42.38	+1	55577..56593	+	338	161486361	-	SPs0038	-	alcohol dehydrogenase
39	 41.63	0	56981..58270	+	429	28894951	-	SPs0039	-	Na+ driven multidrug efflux pump
40	 40.13	0	58469..58777	+	102	28894952	rpsJ	SPs0040	-	30S ribosomal protein S10
41	 30.63	-2	58840..58950	+	36	28894953	-	SPs0041	-	hypothetical protein
42	 41.95	0	59025..59651	+	208	28894954	rplC	SPs0042	-	50S ribosomal protein L3
43	 42.31	+1	59675..60298	+	207	28894955	rplD	SPs0043	-	50S ribosomal protein L4
44	 37.37	0	60298..60594	+	98	28894956	rplW	SPs0044	-	50S ribosomal protein L23
45	 43.65	+1	60612..61445	+	277	161486360	rplB	SPs0045	-	50S ribosomal protein L2
46	 40.50	0	61584..61862	+	92	28894958	rpsS	SPs0046	-	30S ribosomal protein S19
47	 39.71	0	61878..62222	+	114	28894959	rplV	SPs0047	-	50S ribosomal protein L22
48	 41.44	0	62235..62888	+	217	161486359	rpsC	SPs0048	-	30S ribosomal protein S3
49	 43.24	+1	62892..63305	+	137	28894961	rplP	SPs0049	-	50S ribosomal protein L16
50	 34.78	-1	63315..63521	+	68	28894962	rpmC	SPs0050	-	50S ribosomal protein L29
51	 38.31	0	63547..63807	+	86	28894963	rpsQ	SPs0051	-	30S ribosomal protein S17
52	 44.17	+1	63832..64200	+	122	28894964	rplN	SPs0052	-	50S ribosomal protein L14
53	 36.60	0	64279..64584	+	101	28894965	rplX	SPs0053	-	50S ribosomal protein L24
54	 40.52	0	64608..65150	+	180	28894966	rplE	SPs0054	-	50S ribosomal protein L5
55	 39.25	0	65166..65351	+	61	28894967	rpsN	SPs0055	-	30S ribosomal protein S14
56	 36.84	0	65502..65900	+	132	28894968	rpsH	SPs0056	-	30S ribosomal protein S8
57	 38.92	0	66103..66639	+	178	28894969	rplF	SPs0057	-	50S ribosomal protein L6
58	 44.19	+1	66834..67100	+	88	28894970	-	SPs0058	-	50S ribosomal protein L18
59	 42.42	+1	67119..67613	+	164	28894971	rpsE	SPs0059	-	30S ribosomal protein S5
60	 37.16	0	67628..67810	+	60	28894972	rpmD	SPs0060	-	50S ribosomal protein L30
61	 39.68	0	68026..68466	+	146	28894973	rplO	SPs0061	-	50S ribosomal protein L15
62	 36.48	0	68483..69787	+	434	28894974	secY	SPs0062	-	preprotein translocase subunit SecY
63	 39.44	0	69937..70575	+	212	28894975	adk	SPs0063	-	adenylate kinase
64	 36.26	0	70741..70911	+	56	28894976	-	SPs0064	-	putative translation initiation factor IF-1
65	 37.61	0	70937..71053	+	38	28894977	rpmJ	SPs0065	-	50S ribosomal protein L36
66	 39.34	0	71071..71436	+	121	28894978	rpsM	SPs0066	-	30S ribosomal protein S13
67	 44.01	+1	71454..71837	+	127	28894979	-	SPs0067	-	30S ribosomal protein S11
68	 37.91	0	71883..72821	+	312	28894980	-	SPs0068	-	DNA-directed RNA polymerase subunit alpha
69	 40.57	0	72836..73222	+	128	28894981	rplQ	SPs0069	-	50S ribosomal protein L17
70	 33.78	-1	81975..82418	+	147	28894982	-	SPs0070	-	putative repressor protein
71	 40.83	0	82422..83141	+	239	28894983	-	SPs0071	-	putative ABC transporter ATP-binding protein
72	 38.69	0	83128..83949	+	273	28894984	-	SPs0072	-	putative ABC transporter (permease)
73	 40.62	0	83989..84372	-	127	28894985	-	SPs0073	-	putative histidine triad (HIT) protein
74	 41.61	0	84428..85684	-	418	28894986	-	SPs0074	-	tyrosyl-tRNA synthetase
75	 40.29	0	85776..88088	+	770	28894987	-	SPs0075	-	putative penicillin-binding protein 1b
76	 43.06	+1	88352..91918	+	1188	28894988	rpoB	SPs0076	-	DNA-directed RNA polymerase subunit beta
77	 44.12	+1	92036..95632	+	1198	28894989	-	SPs0077	-	DNA-directed RNA polymerase subunit beta'
78	 34.97	0	95784..96149	+	121	28894990	-	SPs0078	-	putative DNA binding protein
79	 37.59	0	96242..97180	+	312	28894991	-	SPs0079	-	putative ABC transporter (subunit ComYA)
80	 35.57	0	97302..98150	+	282	28894992	-	SPs0080	-	putative competence protein, ABC transporter subunit
81	 34.83	0	98212..98478	+	88	28894993	-	SPs0081	-	putative competence protein
82	 33.56	-1	98438..98881	+	147	28894994	-	SPs0082	-	putative competence protein
83	 38.82	0	98886..99122	+	78	28894995	-	SPs0083	-	hypothetical protein
84	 35.40	0	99115..99549	+	144	28894996	-	SPs0084	-	putative competence protein
85	 35.47	0	99533..99859	+	108	28894997	-	SPs0085	-	hypothetical protein
86	 38.16	0	99957..100910	+	317	28894998	-	SPs0086	-	hypothetical protein
87	 39.10	0	100969..102165	+	398	28894999	-	SPs0087	-	acetate kinase
88	 35.92	0	102366..102674	+	102	28895000	-	SPs0088	-	hypothetical protein
89	 43.58	+1	102757..103527	-	256	28895001	-	SPs0089	-	pyrroline-5-carboxylate reductase
90	 45.51	+1	103575..104642	-	355	28895002	-	SPs0090	-	putative glutamyl-aminopeptidase
91	 38.18	0	104752..104916	-	54	28895003	-	SPs0091	-	hypothetical protein
92	 37.07	0	105098..105391	+	97	28895004	-	SPs0092	-	hypothetical protein
93	 34.91	0	105388..105705	+	105	28895005	-	SPs0093	-	putative H-type thioredoxin
94	 42.58	+1	105723..106349	+	208	28895006	-	SPs0094	-	hypothetical protein
95	 38.13	0	106501..106896	+	131	28895007	-	SPs0095	-	single-strand DNA-binding protein
96	 39.88	0	107156..107797	-	213	28895008	-	SPs0096	-	hypothetical protein
97	 45.81	+1	107817..108794	-	325	28895009	-	SPs0097	-	tRNA-dihydrouridine synthase
98	 41.92	0	108781..109653	-	290	28895010	hslO	SPs0098	-	Hsp33-like chaperonin
99	 31.97	-1	109779..111314	-	511	28895011	-	SPs0099	-	Nra
100	 35.03	0	111745..113979	+	744	28895012	-	SPs0100	-	Cpa
38.53	MEAN

3.74	STD DEV
