IslandPath Analysis: Streptococcus pyogenes MGAS315

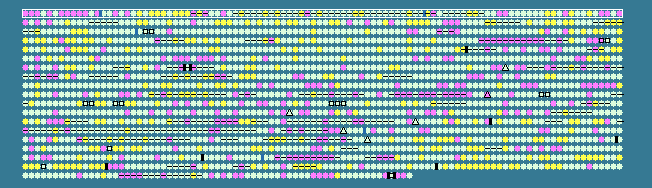

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 38.60 STD DEV: 3.72
Streptococcus pyogenes MGAS315, complete genome - 1..1900521
1865 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 33.26	-1	232..1587	+	451	21909537	dnaA	SpyM3_0001	-	chromosomal replication initiation protein
2	 33.42	-1	1742..2878	+	378	21909538	dnaN	SpyM3_0002	-	DNA polymerase III subunit beta
3	 32.32	-1	2953..3150	+	65	21909539	-	SpyM3_0003	-	hypothetical protein
4	 37.28	0	3480..4595	+	371	21909540	-	SpyM3_0004	-	translation-associated GTPase
5	 31.75	-1	4665..5234	+	189	21909541	pth	SpyM3_0005	-	peptidyl-tRNA hydrolase
6	 35.41	0	5321..8740	+	1139	21909542	trcF	SpyM3_0006	-	putative transcription-repair coupling factor
7	 30.77	-2	8902..9174	+	90	21909543	-	SpyM3_0007	-	hypothetical protein
8	 26.34	-2	9161..9532	+	123	21909544	divIC	SpyM3_0008	-	putative cell division protein
9	 31.55	-1	9667..10953	+	428	21909545	-	SpyM3_0009	-	hypothetical protein
10	 28.62	-2	11049..12236	+	395	21909546	mesJ	SpyM3_0010	-	putative cell-cycle protein
11	 30.76	-2	12241..12783	+	180	21909547	hpt	SpyM3_0011	-	hypoxanthine-guanine phosphoribosyltransferase
12	 37.63	0	12805..14784	+	659	21909548	ftsH	SpyM3_0012	-	putative cell division protein
13	 32.97	-1	15110..16501	+	463	21909549	-	SpyM3_0013	-	putative amino acid permease
14	 40.69	0	31195..32391	+	398	21909550	-	SpyM3_0014	-	putative secreted protein
15	 38.94	0	32644..33606	+	320	21909551	prsA	SpyM3_0015	-	ribose-phosphate pyrophosphokinase
16	 31.22	-1	33792..34547	+	251	161485758	recO	SpyM3_0016	-	DNA repair protein RecO
17	 38.10	0	34650..35657	+	335	21909553	plsX	SpyM3_0017	-	putative glycerol-3-phosphate acyltransferase PlsX
18	 30.86	-2	35650..35892	+	80	21909554	acpP.1	SpyM3_0018	-	acyl carrier protein
19	 36.03	0	36044..36748	+	234	21909555	purC	SpyM3_0019	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
20	 44.98	+1	36942..40598	+	1218	21909556	purL	SpyM3_0020	-	putative phosphoribosylformylglycinamidine synthase II
21	 38.76	0	40832..42286	+	484	21909557	purF	SpyM3_0021	-	amidophosphoribosyltransferase
22	 42.82	+1	42314..43336	+	340	21909558	purM	SpyM3_0022	-	phosphoribosylaminoimidazole synthetase
23	 47.03	+2	43504..44058	+	184	21909559	purN	SpyM3_0023	-	phosphoribosylglycinamide formyltransferase
24	 47.16	+2	44242..45789	+	515	21909560	purH	SpyM3_0024	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
25	 39.29	0	45848..46972	-	374	21909561	-	SpyM3_0025	-	putative choline binding protein
26	 48.78	+2	47218..48492	+	424	21909562	purD	SpyM3_0026	-	phosphoribosylamine--glycine ligase
27	 48.69	+2	48650..49261	+	203	21909563	purE	SpyM3_0027	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
28	 50.29	+2	49302..50321	+	339	21909564	purK	SpyM3_0028	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
29	 28.71	-2	50342..51682	+	446	21909565	-	SpyM3_0029	-	hypothetical protein
30	 44.86	+1	52051..53343	+	430	21909566	purB	SpyM3_0030	-	adenylosuccinate lyase
31	 29.61	-2	53474..54385	+	303	21909567	-	SpyM3_0031	-	hypothetical protein
32	 39.64	0	54605..55603	+	332	21909568	ruvB	SpyM3_0032	-	Holliday junction DNA helicase B
33	 35.62	0	55741..56178	+	145	21909569	-	SpyM3_0033	-	putative protein-tyrosine phosphatase
34	 35.07	0	56201..56602	+	133	21909570	-	SpyM3_0034	-	hypothetical protein
35	 36.71	0	56599..58374	+	591	21909571	-	SpyM3_0035	-	putative acyltransferase
36	 40.33	0	58683..61325	+	880	21909572	adh2	SpyM3_0036	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
37	 42.38	+1	61578..62594	+	338	21909573	adh1	SpyM3_0037	-	alcohol dehydrogenase
38	 41.63	0	62982..64271	+	429	21909574	-	SpyM3_0038	-	multi antimicrobial extrusion (MATE) family transporter
39	 40.13	0	64470..64778	+	102	21909575	rpsJ	SpyM3_0039	-	30S ribosomal protein S10
40	 41.95	0	65026..65652	+	208	21909576	rplC	SpyM3_0040	-	50S ribosomal protein L3
41	 42.15	0	65676..66299	+	207	21909577	rplD	SpyM3_0041	-	50S ribosomal protein L4
42	 37.37	0	66299..66595	+	98	21909578	rplW	SpyM3_0042	-	50S ribosomal protein L23
43	 43.65	+1	66613..67446	+	277	21909579	rplB	SpyM3_0043	-	50S ribosomal protein L2
44	 40.50	0	67585..67863	+	92	21909580	rpsS	SpyM3_0044	-	30S ribosomal protein S19
45	 39.71	0	67879..68223	+	114	21909581	rplV	SpyM3_0045	-	50S ribosomal protein L22
46	 41.44	0	68236..68889	+	217	161485757	rpsC	SpyM3_0046	-	30S ribosomal protein S3
47	 43.24	+1	68893..69306	+	137	21909583	rplP	SpyM3_0047	-	50S ribosomal protein L16
48	 34.78	-1	69316..69522	+	68	21909584	rpmC	SpyM3_0048	-	50S ribosomal protein L29
49	 38.31	0	69548..69808	+	86	21909585	rpsQ	SpyM3_0049	-	30S ribosomal protein S17
50	 44.17	+1	69833..70201	+	122	21909586	rplN	SpyM3_0050	-	50S ribosomal protein L14
51	 36.60	0	70280..70585	+	101	21909587	rplX	SpyM3_0051	-	50S ribosomal protein L24
52	 40.52	0	70609..71151	+	180	21909588	rplE	SpyM3_0052	-	50S ribosomal protein L5
53	 39.25	0	71167..71352	+	61	21909589	rpsN	SpyM3_0053	-	30S ribosomal protein S14
54	 36.84	0	71503..71901	+	132	21909590	rpsH	SpyM3_0054	-	30S ribosomal protein S8
55	 38.92	0	72104..72640	+	178	21909591	rplF	SpyM3_0055	-	50S ribosomal protein L6
56	 45.94	+1	72745..73101	+	118	21909592	rplR	SpyM3_0056	-	50S ribosomal protein L18
57	 42.42	+1	73120..73614	+	164	21909593	rpsE	SpyM3_0057	-	30S ribosomal protein S5
58	 37.16	0	73629..73811	+	60	21909594	rpmD	SpyM3_0058	-	50S ribosomal protein L30
59	 39.68	0	74027..74467	+	146	21909595	rplO	SpyM3_0059	-	50S ribosomal protein L15
60	 36.48	0	74484..75788	+	434	21909596	secY	SpyM3_0060	-	preprotein translocase subunit SecY
61	 39.44	0	75938..76576	+	212	21909597	adk	SpyM3_0061	-	adenylate kinase
62	 36.99	0	76694..76912	+	72	21909598	infA	SpyM3_0062	-	translation initiation factor IF-1
63	 37.61	0	76938..77054	+	38	21909599	rpmJ	SpyM3_0063	-	50S ribosomal protein L36
64	 39.34	0	77072..77437	+	121	21909600	rpsM	SpyM3_0064	-	30S ribosomal protein S13
65	 44.01	+1	77455..77838	+	127	161485756	rpsK	SpyM3_0065	-	30S ribosomal protein S11
66	 37.91	0	77884..78822	+	312	21909602	rpoA	SpyM3_0066	-	DNA-directed RNA polymerase subunit alpha
67	 40.57	0	78837..79223	+	128	21909603	rplQ	SpyM3_0067	-	50S ribosomal protein L17
68	 42.47	+1	86467..86652	+	61	21909604	-	SpyM3_0068	-	hypothetical protein
69	 33.78	-1	87975..88418	+	147	21909605	adcR	SpyM3_0069	-	putative repressor protein
70	 40.83	0	88422..89141	+	239	21909606	adcC	SpyM3_0070	-	ABC transporter ATP-binding protein
71	 38.60	0	89134..89949	+	271	21909607	adcB	SpyM3_0071	-	putative ABC transporter (permease)
72	 40.62	0	89989..90372	-	127	21909608	-	SpyM3_0072	-	putative histidine triad (HIT) protein
73	 41.61	0	90428..91684	-	418	21909609	tyrS	SpyM3_0073	-	tyrosyl-tRNA synthetase
74	 40.37	0	91788..94088	+	766	21909610	pbp1B	SpyM3_0074	-	putative penicillin-binding protein 1b
75	 43.06	+1	94352..97918	+	1188	21909611	rpoB	SpyM3_0075	-	DNA-directed RNA polymerase subunit beta
76	 44.07	+1	98009..101632	+	1207	21909612	rpoC	SpyM3_0076	-	DNA-directed RNA polymerase subunit beta'
77	 35.92	0	101802..102149	+	115	21909613	-	SpyM3_0077	-	putative DNA binding protein
78	 37.59	0	102242..103180	+	312	21909614	comYA	SpyM3_0078	-	putative ABC transporter subunit ComYA
79	 35.27	0	103116..104150	+	344	21909615	comYB	SpyM3_0079	-	putative ABC transporter subunit ComYB
80	 34.25	-1	104152..104478	+	108	21909616	comYC	SpyM3_0080	-	putative competence protein
81	 33.56	-1	104438..104881	+	147	21909617	-	SpyM3_0081	-	putative competence protein
82	 38.25	0	104838..105122	+	94	21909618	-	SpyM3_0082	-	hypothetical protein
83	 35.40	0	105115..105549	+	144	21909619	comYD	SpyM3_0083	-	putative competence protein
84	 35.47	0	105533..105859	+	108	21909620	-	SpyM3_0084	-	hypothetical protein
85	 38.16	0	105957..106910	+	317	21909621	-	SpyM3_0085	-	hypothetical protein
86	 39.10	0	106969..108165	+	398	21909622	ackA	SpyM3_0086	-	acetate kinase
87	 35.92	0	108351..108659	+	102	21909623	-	SpyM3_0087	-	hypothetical protein
88	 43.58	+1	108742..109512	-	256	21909624	proC	SpyM3_0088	-	pyrroline-5-carboxylate reductase
89	 45.51	+1	109560..110627	-	355	21909625	pepA	SpyM3_0089	-	putative glutamyl-aminopeptidase
90	 36.84	0	111092..111376	+	94	21909626	-	SpyM3_0090	-	hypothetical protein
91	 34.91	0	111373..111690	+	105	21909627	trx.1	SpyM3_0091	-	putative thioredoxin
92	 42.58	+1	111708..112334	+	208	21909628	-	SpyM3_0092	-	hypothetical protein
93	 38.13	0	112486..112881	+	131	21909629	ssb.1	SpyM3_0093	-	single-strand DNA-binding protein
94	 39.88	0	113141..113782	-	213	21909630	-	SpyM3_0094	-	putative deoxyguanosine kinase/deoxyadenosine kinase(I)subunit
95	 45.81	+1	113802..114779	-	325	21909631	-	SpyM3_0095	-	tRNA-dihydrouridine synthase
96	 41.92	0	114766..115638	-	290	21909632	hslO	SpyM3_0096	-	Hsp33-like chaperonin
97	 31.97	-1	115764..117299	-	511	21909633	nra	SpyM3_0097	-	negative transcriptional regulator
98	 35.03	0	117729..119963	+	744	21909634	cbp	SpyM3_0098	-	putative collagen binding protein
99	 38.12	0	119960..120481	+	173	21909635	-	SpyM3_0099	-	hypothetical protein
100	 33.82	-1	120502..121536	+	344	21909636	-	SpyM3_0100	-	hypothetical protein
38.60	MEAN

3.72	STD DEV
