IslandPath Analysis: Streptococcus pneumoniae R6

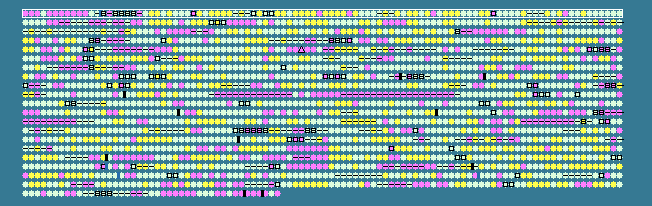

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 39.86   STD DEV: 4.53
Streptococcus pneumoniae R6, complete genome - 1..2038615
2043 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 36.34	0	1..1362	+	453	15902045	dnaA	spr0001	-	chromosomal replication initiation protein
2	 34.48	-1	1521..2657	+	378	15902046	dnaN	spr0002	-	DNA polymerase III subunit beta
3	 34.87	-1	2722..2916	+	64	15902047	-	spr0003	-	hypothetical protein
4	 39.96	0	3000..4115	+	371	15902048	-	spr0004	-	translation-associated GTPase
5	 33.33	-1	4186..4755	+	189	15902049	pth	spr0005	-	peptidyl-tRNA hydrolase
6	 35.01	-1	4756..8265	+	1169	15902050	mfd	spr0006	-	transcription-repair coupling factor
7	 34.83	-1	8323..8589	+	88	15902051	-	spr0007	-	S4 domain protein
8	 34.69	-1	8582..8950	+	122	15902052	-	spr0008	-	hypothetical protein
9	 32.74	-1	9001..10338	+	445	15902053	-	spr0009	-	hypothetical protein
10	 33.72	-1	10335..11612	+	425	15902054	-	spr0010	-	hypothetical protein
11	 33.33	-1	11616..12158	+	180	15902055	hgt	spr0011	-	hypoxanthine-guanine phosphoribosyltransferase
12	 39.20	0	12174..14132	+	652	15902056	ftsH	spr0012	-	cell division protein FtsH
13	 37.29	0	14254..14733	+	159	15902057	comX1	spr0013	-	competence-specific global transcription modulator
14	 36.78	0	20207..20554	+	115	15902058	transposase_A	spr0014	-	transposase
15	 33.96	-1	20593..20751	-	52	15902059	-	spr0015	-	hypothetical protein
16	 38.05	0	20733..21071	+	112	15902060	transposase_B	spr0016	-	transposase
17	 36.71	0	21106..21312	-	68	15902061	IS1167-truncation	spr0017	-	degenerate transposase (orf2)
18	 40.00	0	21455..21604	-	49	15902062	IS1167-truncation	spr0018	-	degenerate transposase (orf2)
19	 37.20	0	21645..21851	-	68	15902063	IS1167-truncation	spr0019	-	degenerate transposase (orf1)
20	 29.22	-2	22162..22404	+	80	15902064	-	spr0020	-	hypothetical protein
21	 40.71	0	22635..23921	+	428	15902065	purA	spr0021	-	adenylosuccinate synthetase
22	 43.80	0	24122..24589	+	155	15902066	-	spr0022	-	cytidine/deoxycytidylate deaminase family protein
23	 44.59	+1	24776..25219	+	147	15902067	dut	spr0023	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
24	 42.31	0	25158..25736	+	192	15902068	-	spr0024	-	hypothetical protein
25	 47.66	+1	25849..27111	+	420	15902069	radA	spr0025	-	DNA repair protein RadA
26	 42.15	0	27115..27681	+	188	15902070	-	spr0026	-	hypothetical protein
27	 37.27	0	27706..28365	+	219	15902071	-	spr0027	-	hypothetical protein
28	 41.67	0	28583..29602	+	339	15902072	prsA	spr0028	-	ribose-phosphate pyrophosphokinase
29	 35.11	-1	29624..30016	-	130	15902073	IS1167-truncation	spr0029	-	degenerate transposase (orf1)
30	 46.31	+1	30143..30481	-	112	15902074	-	spr0030	-	hypothetical protein
31	 39.83	0	30700..31053	-	117	15902075	-	spr0031	-	hypothetical protein
32	 43.93	0	31306..33939	+	877	15902076	polA	spr0032	-	DNA polymerase I
33	 44.29	0	34024..34461	+	145	15902077	-	spr0033	-	hypothetical protein
34	 46.24	+1	34652..35674	-	340	15902078	-	spr0034	-	hypothetical protein
35	 45.98	+1	35811..36980	+	389	15902079	aspC	spr0035	-	aromatic amino acid aminotransferase
36	 41.63	0	36977..37747	+	256	15902080	recO	spr0036	-	DNA repair protein RecO
37	 47.83	+1	37744..38736	+	330	15902081	plsX	spr0037	-	putative glycerol-3-phosphate acyltransferase PlsX
38	 38.89	0	38742..38975	+	77	15902082	acpP	spr0038	-	acyl carrier protein, putative
39	 38.10	0	39018..39311	+	97	15902083	IS1381-truncation	spr0039	-	degenerate transposase (orf2)
40	 46.75	+1	39514..39744	+	76	15902084	thmA	spr0040	-	amphipathic pore-forming peptide precursor
41	 38.02	0	40224..40991	-	255	15902085	IS1167	spr0041	-	transposase
42	 37.96	0	40982..41500	-	172	15902086	IS1167	spr0042	-	transposase
43	 44.66	+1	41902..44055	+	717	15902087	comA	spr0043	-	competence factor transporting ATP-binding/permease protein ComA
44	 44.52	+1	44068..45417	+	449	15902088	comB	spr0044	-	competence factor transport protein ComB
45	 40.00	0	45545..46294	+	249	15902089	purC	spr0045	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
46	 45.48	+1	46493..50221	+	1242	15902090	purL	spr0046	-	phosphoribosylformylglycinamidine synthase, putative
47	 46.71	+1	50314..51756	+	480	15902091	purF	spr0047	-	amidophosphoribosyltransferase
48	 47.02	+1	51793..52815	+	340	15902092	purM	spr0048	-	phosphoribosylaminoimidazole synthetase
49	 47.07	+1	52812..53357	+	181	15902093	purN	spr0049	-	phosphoribosylglycinamide formyltransferase
50	 29.41	-2	53441..53950	+	169	15902094	vanZ	spr0050	-	vanZ protein, putative
51	 47.61	+1	53954..55522	+	522	15902095	purH	spr0051	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
52	 47.51	+1	55644..56906	+	420	15902096	purD	spr0052	-	phosphoribosylamine--glycine ligase
53	 49.23	+2	57276..57797	+	173	15902097	purE	spr0053	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
54	 47.66	+1	57724..58875	+	383	15902098	purK	spr0054	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
55	 35.96	0	58885..59112	+	75	15902099	-	spr0055	-	hypothetical protein
56	 46.34	+1	59175..60473	+	432	15902100	purB	spr0056	-	adenylosuccinate lyase
57	 42.14	0	60528..64466	-	1312	15902101	strH	spr0057	-	beta-N-acetylhexosaminidase
58	 37.15	0	64781..65539	-	252	15902102	-	spr0058	-	hypothetical protein
59	 41.95	0	65845..67632	+	595	15902103	bgaC	spr0059	-	Beta-galactosidase 3
60	 41.09	0	67629..68105	+	158	15902104	PTS-EIIB	spr0060	-	PTS system, IIB component
61	 44.37	0	68133..69038	+	301	15902105	PTS-EIIC	spr0061	-	PTS system, IIC component
62	 40.43	0	69010..69840	+	276	15902106	PTS-EIID	spr0062	-	PTS system, IID component
63	 43.95	0	69847..70251	+	134	15902107	PTS-EII	spr0063	-	PTS system, IIA component
64	 42.25	0	70549..71715	+	388	15902108	agaS	spr0064	-	sugar isomerase domain protein AgaS
65	 45.47	+1	71831..72868	+	345	15902109	galM	spr0065	-	aldose 1-epimerase
66	 44.33	0	73075..73929	+	284	15902110	-	spr0066	-	hypothetical protein
67	 39.53	0	74079..74336	+	85	15902111	-	spr0067	-	hypothetical protein
68	 48.63	+1	75311..76075	+	254	15902112	-	spr0068	-	hypothetical protein
69	 32.08	-1	76547..76705	+	52	15902113	-	spr0069	-	hypothetical protein
70	 41.45	0	76686..78065	+	459	15902114	trkH	spr0070	-	Trk transporter membrane-spanning protein - K+ transport
71	 43.52	0	78058..78744	+	228	15902115	trkA	spr0071	-	Trk transporter NAD+ binding protein - K+ transport
72	 44.63	+1	79054..79593	+	179	15902116	-	spr0072	-	hypothetical protein
73	 44.74	+1	79471..80040	-	189	15902117	-	spr0073	-	hypothetical protein
74	 42.34	0	79660..80070	+	136	15902118	-	spr0074	-	hypothetical protein
75	 42.94	0	80186..83671	+	1161	15902119	-	spr0075	-	cell wall surface anchor family protein
76	 41.77	0	83838..84536	+	232	15902120	rr08	spr0076	-	DNA-binding response regulator
77	 43.97	0	84533..85585	+	350	15902121	hk08	spr0077	-	sensor histidine kinase
78	 43.63	0	85780..86391	+	203	15902122	rpsD	spr0078	-	30S ribosomal protein S4
79	 35.03	-1	86559..86735	+	58	15902123	transposase_A	spr0079	-	degenerative transposase
80	 42.22	0	87044..87313	+	89	15902124	-	spr0080	-	hypothetical protein
81	 40.83	0	87777..88736	+	319	15902125	ABC-MSP	spr0081	-	ABC transporter permease
82	 42.21	0	88750..89673	+	307	15902126	ABC-MSP	spr0082	-	ABC transporter permease
83	 37.61	0	89862..91406	+	514	15902127	ABC-SBP	spr0083	-	ABC transporter substrate-binding protein
84	 44.48	+1	91678..92664	+	328	15902128	-	spr0084	-	hypothetical protein
85	 40.34	0	92633..93646	+	337	15902129	-	spr0085	-	hypothetical protein
86	 40.00	0	93718..94782	-	354	15902130	-	spr0086	-	hypothetical protein
87	 40.60	0	94845..95807	-	320	15902131	-	spr0087	-	hypothetical protein
88	 43.94	0	95749..96342	-	197	15902132	-	spr0088	-	hypothetical protein
89	 42.20	0	96329..96655	-	108	15902133	-	spr0089	-	hypothetical protein
90	 44.82	+1	96794..97960	-	388	15902134	-	spr0090	-	transporter, putative
91	 33.33	-1	98018..99175	+	385	15902135	-	spr0091	-	hypothetical protein
92	 42.19	0	99217..101067	+	616	15902136	capD	spr0092	-	CapD protein, required for the biosynthesis of type 1 capsular polysaccharide
93	 43.13	0	101463..102095	-	210	15902137	gph	spr0093	-	phosphoglycolate phosphatase
94	 48.00	+1	102117..102989	-	290	15902138	sdaA	spr0094	-	L-serine dehydratase, iron-sulfur-dependent, alpha subunit
95	 41.67	0	102998..103669	-	223	15902139	sdaB	spr0095	-	L-serine dehydratase, iron-sulfur-dependent, beta subunit
96	 40.87	0	103911..104414	+	167	15902140	-	spr0096	-	LysM domain protein
97	 38.55	0	104537..104785	-	82	15902141	-	spr0097	-	hypothetical protein
98	 39.36	0	105242..105490	+	82	15902142	-	spr0098	-	bacteriocin, putative
99	 37.89	0	105545..107653	+	702	15902143	ABC-MSP	spr0099	-	ABC transporter membrane-spanning permease - amino acid transport
100	 40.81	0	107650..108291	+	213	15902144	ABC-NBD	spr0100	-	amino acid ABC transporter ATP-binding protein
39.86	MEAN

4.53	STD DEV
