IslandPath Analysis: Streptococcus pneumoniae TIGR4

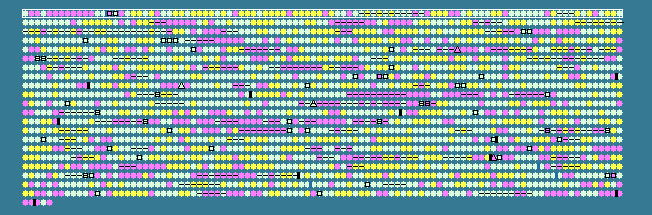

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 39.46   STD DEV: 5.02
Streptococcus pneumoniae TIGR4, complete genome - 1..2160842
2105 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 36.49	0	197..1558	+	453	15899950	dnaA	SP_0001	-	chromosomal replication initiation protein
2	 34.30	-1	1717..2853	+	378	15899951	-	SP_0002	-	DNA polymerase III subunit beta
3	 34.94	0	2864..3112	+	82	15899952	-	SP_0003	-	hypothetical protein
4	 40.23	0	3196..4311	+	371	15899953	-	SP_0004	-	translation-associated GTPase
5	 33.68	-1	4382..4951	+	189	15899954	-	SP_0005	-	peptidyl-tRNA hydrolase
6	 35.01	0	4952..8461	+	1169	15899955	-	SP_0006	-	transcription-repair coupling factor
7	 34.83	0	8519..8785	+	88	15899956	-	SP_0007	-	S4 domain-containing protein
8	 34.69	0	8778..9146	+	122	15899957	-	SP_0008	-	hypothetical protein
9	 30.89	-1	9151..9273	+	40	15899958	-	SP_0009	-	hypothetical protein
10	 32.78	-1	9266..10534	+	422	15899959	-	SP_0010	-	hypothetical protein
11	 33.80	-1	10531..11808	+	425	15899960	-	SP_0011	-	MesJ/Ycf62 family protein
12	 33.15	-1	11812..12354	+	180	15899961	-	SP_0012	-	hypoxanthine-guanine phosphoribosyltransferase
13	 39.10	0	12370..14328	+	652	15899962	-	SP_0013	-	cell division protein FtsH
14	 37.50	0	14450..14929	+	159	15899963	-	SP_0014	-	transcriptional regulator ComX1
15	 35.49	0	20404..20820	+	138	15899964	-	SP_0015	-	IS630-Spn1, transposase Orf1
16	 38.05	0	20929..21267	+	112	15899965	-	SP_0016	-	IS630-Spn1, transposase Orf2
17	 28.81	-2	22359..22601	+	80	15899966	-	SP_0018	-	hypothetical protein
18	 40.56	0	22832..24118	+	428	15899967	-	SP_0019	-	adenylosuccinate synthetase
19	 43.59	0	24319..24786	+	155	15899968	-	SP_0020	-	cytidine/deoxycytidylate deaminase family protein
20	 44.37	0	24973..25416	+	147	15899969	dut	SP_0021	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
21	 41.09	0	25418..25933	+	171	15899970	-	SP_0022	-	hypothetical protein
22	 43.57	0	27381..27878	+	165	15899971	-	SP_0024	-	hypothetical protein
23	 34.76	0	27903..28112	+	69	15899972	-	SP_0025	-	hypothetical protein
24	 39.10	0	28094..28717	+	207	15899973	-	SP_0026	-	hypothetical protein
25	 41.69	0	28862..29830	+	322	15899974	-	SP_0027	-	ribose-phosphate pyrophosphokinase
26	 44.87	+1	30372..30605	-	77	15899975	-	SP_0029	-	hypothetical protein
27	 43.73	0	30563..30889	-	108	15899976	-	SP_0030	-	competence-induced protein Ccs16
28	 39.05	0	30929..31243	-	104	15899977	-	SP_0031	-	hypothetical protein
29	 43.77	0	31535..34168	+	877	15899978	-	SP_0032	-	DNA polymerase I
30	 44.52	+1	34253..34690	+	145	15899979	-	SP_0033	-	hypothetical protein
31	 46.59	+1	35009..36019	-	336	15899980	-	SP_0034	-	hypothetical protein
32	 46.07	+1	36168..37337	+	389	15899981	-	SP_0035	-	aromatic amino acid aminotransferase
33	 41.50	0	37334..38104	+	256	15899982	recO	SP_0036	-	DNA repair protein RecO
34	 47.63	+1	38101..39093	+	330	15899983	-	SP_0037	-	putative glycerol-3-phosphate acyltransferase PlsX
35	 38.89	0	39099..39332	+	77	15899984	-	SP_0038	-	acyl carrier protein, putative
36	 26.19	-2	39716..39841	-	41	15899985	-	SP_0040	-	hypothetical protein
37	 47.19	+1	39871..40101	+	76	15899986	-	SP_0041	-	bacteriocin BlpU
38	 44.34	0	40816..42969	+	717	15899987	-	SP_0042	-	competence factor transporting ATP-binding/permease protein ComA
39	 44.52	+1	42982..44331	+	449	15899988	-	SP_0043	-	competence factor transport protein ComB
40	 40.11	0	44501..45208	+	235	15899989	-	SP_0044	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
41	 45.54	+1	45410..49135	+	1241	15899990	-	SP_0045	-	phosphoribosylformylglycinamidine synthase, putative
42	 46.50	+1	49228..50670	+	480	15899991	-	SP_0046	-	amidophosphoribosyltransferase
43	 47.02	+1	50889..51911	+	340	15899992	-	SP_0047	-	phosphoribosylaminoimidazole synthetase
44	 47.44	+1	51908..52453	+	181	15899993	purN	SP_0048	-	phosphoribosylglycinamide formyltransferase
45	 29.22	-2	52537..53046	+	169	15899994	-	SP_0049	-	vanZ protein, putative
46	 47.03	+1	53071..54618	+	515	15899995	purH	SP_0050	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
47	 47.74	+1	54740..56002	+	420	15899996	-	SP_0051	-	phosphoribosylamine--glycine ligase
48	 47.01	+1	56259..56375	+	38	15899997	-	SP_0052	-	hypothetical protein
49	 50.31	+2	56405..56893	+	162	15899998	-	SP_0053	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
50	 47.07	+1	56880..57971	+	363	15899999	-	SP_0054	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
51	 35.53	0	57981..58208	+	75	15900000	-	SP_0055	-	hypothetical protein
52	 46.42	+1	58271..59569	+	432	15900001	-	SP_0056	-	adenylosuccinate lyase
53	 42.22	0	59624..63562	-	1312	15900002	-	SP_0057	-	beta-N-acetylhexosaminidase
54	 37.52	0	63890..64606	-	238	15900003	-	SP_0058	-	GntR family transcriptional regulator
55	 24.51	-2	64593..64694	+	33	15900004	-	SP_0059	-	hypothetical protein
56	 42.11	0	64955..66742	+	595	15900005	-	SP_0060	-	Beta-galactosidase 3
57	 41.30	0	66739..67215	+	158	15900006	-	SP_0061	-	PTS system, IIB component
58	 44.26	0	67243..68148	+	301	15900007	-	SP_0062	-	PTS system, IIC component
59	 40.44	0	68135..68950	+	271	15900008	-	SP_0063	-	PTS system, IID component
60	 43.70	0	68957..69361	+	134	15900009	-	SP_0064	-	PTS system, IIA component
61	 41.73	0	69660..70826	+	388	15900010	-	SP_0065	-	sugar isomerase domain-containing protein
62	 45.38	+1	70942..71979	+	345	15900011	-	SP_0066	-	aldose 1-epimerase
63	 40.23	0	72141..72401	+	86	15900012	-	SP_0067	-	hypothetical protein
64	 38.89	0	72456..72653	+	65	15900013	-	SP_0068	-	hypothetical protein
65	 42.14	0	72674..73309	+	211	15900014	-	SP_0069	-	choline binding protein I
66	 35.29	0	73353..73454	+	33	15900015	-	SP_0070	-	hypothetical protein
67	 36.89	0	73761..79331	+	1856	15900016	-	SP_0071	-	immunoglobulin A1 protease
68	 35.96	0	79434..79547	+	37	15900017	-	SP_0072	-	hypothetical protein
69	 44.80	+1	79687..80541	+	284	15900018	-	SP_0073	-	hypothetical protein
70	 46.24	+1	80647..81204	+	185	15900019	-	SP_0074	-	acetyltransferase
71	 49.65	+2	81481..82185	+	234	15900020	-	SP_0075	-	phosphorylase Pnp/Udp family protein
72	 35.48	0	82590..82682	-	30	15900021	-	SP_0076	-	hypothetical protein
73	 31.45	-1	82659..82817	+	52	15900022	-	SP_0077	-	hypothetical protein
74	 41.52	0	82798..84177	+	459	15900023	-	SP_0078	-	Trk family potassium uptake protein
75	 43.69	0	84191..84856	+	221	15900024	-	SP_0079	-	Trk family potassium uptake protein
76	 37.96	0	84877..84984	+	35	15900025	-	SP_0080	-	hypothetical protein
77	 42.93	0	86298..88871	+	857	15900026	-	SP_0082	-	cell wall surface anchor family protein
78	 41.63	0	89038..89736	+	232	15900027	-	SP_0083	-	DNA-binding response regulator
79	 44.06	0	89733..90785	+	350	15900028	-	SP_0084	-	sensor histidine kinase
80	 43.30	0	90980..91591	+	203	15900029	rpsD	SP_0085	-	30S ribosomal protein S4
81	 29.79	-1	92025..92165	-	46	15900030	-	SP_0087	-	hypothetical protein
82	 42.22	0	92236..92505	+	89	15900031	-	SP_0088	-	hypothetical protein
83	 38.54	0	92585..92680	+	31	15900032	-	SP_0089	-	hypothetical protein
84	 40.83	0	92969..93928	+	319	15900033	-	SP_0090	-	ABC transporter, permease protein
85	 41.99	0	93942..94865	+	307	15900034	-	SP_0091	-	ABC transporter, permease protein
86	 38.41	0	95123..96598	+	491	15900035	-	SP_0092	-	ABC transporter, substrate-binding protein
87	 39.47	0	96628..96741	-	37	15900036	-	SP_0093	-	hypothetical protein
88	 33.33	-1	96713..96820	+	35	15900037	-	SP_0094	-	hypothetical protein
89	 44.07	0	96870..97856	+	328	15900038	-	SP_0095	-	hypothetical protein
90	 41.23	0	98131..98991	+	286	15900039	-	SP_0096	-	hypothetical protein
91	 40.19	0	99169..100233	-	354	15900040	-	SP_0097	-	hypothetical protein
92	 41.01	0	100296..101207	-	303	15900041	-	SP_0098	-	hypothetical protein
93	 43.94	0	101200..101793	-	197	15900042	-	SP_0099	-	hypothetical protein
94	 42.20	0	101780..102106	-	108	15900043	-	SP_0100	-	hypothetical protein
95	 44.82	+1	102245..103411	-	388	15900044	-	SP_0101	-	transporter, putative
96	 32.96	-1	103562..104626	+	354	15900045	-	SP_0102	-	glycosyl transferase
97	 42.14	0	104668..106518	+	616	15900046	-	SP_0103	-	capsular polysaccharide biosynthesis protein, putative
98	 42.97	0	106956..107588	-	210	15900047	-	SP_0104	-	HAD superfamily hydrolase
99	 47.88	+1	107610..108482	-	290	15900048	-	SP_0105	-	L-serine dehydratase, iron-sulfur-dependent, alpha subunit
100	 41.67	0	108491..109162	-	223	15900049	-	SP_0106	-	L-serine dehydratase, iron-sulfur-dependent, beta subunit
39.46	MEAN

5.02	STD DEV
