IslandPath Analysis: Streptomyces coelicolor A3(2)

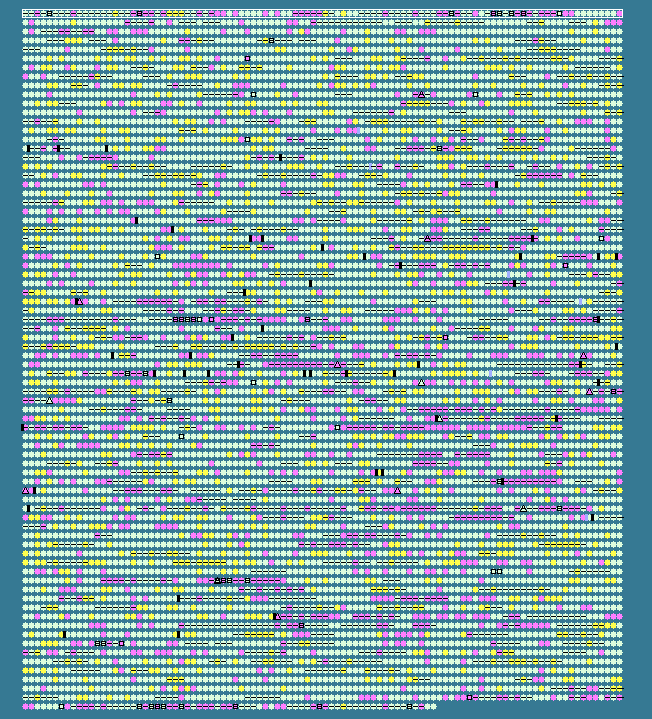

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 72.07   STD DEV: 3.61
Streptomyces coelicolor A3(2), complete genome - 1..8667507
7769 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 71.09	0	446..1123	+	225	21218583	-	SCO0001	-	hypothetical protein
2	 70.73	0	1252..3813	+	853	21218584	-	SCO0002	-	hypothetical protein
3	 68.49	0	3869..6220	+	783	21218585	-	SCO0003	-	DNA-binding protein
4	 72.36	0	6226..7173	+	315	21226092	-	SCO0004	-	hypothetical protein
5	 70.82	0	7187..9307	+	706	32141096	-	SCO0005	-	transposase
6	 71.82	0	9304..10410	+	368	21226090	-	SCO0006	-	ATP/GTP-binding protein
7	 74.05	0	10554..11000	-	148	21218589	-	SCO0007	-	hypothetical protein
8	 72.36	0	11010..11360	-	116	21218590	-	SCO0008	-	hypothetical protein
9	 66.07	-1	11617..11952	-	111	21218591	-	SCO0009	-	hypothetical protein
10	 68.96	0	12366..13457	+	363	21218592	-	SCO0010	-	hypothetical protein
11	 70.86	0	13214..14023	-	269	21218593	-	SCO0011	-	hypothetical protein
12	 72.51	0	14044..14454	-	136	21218594	-	SCO0012	-	hypothetical protein
13	 73.20	0	14739..15029	-	96	21218595	-	SCO0013	-	hypothetical protein
14	 69.18	0	15317..15595	-	92	21218596	-	SCO0014	-	hypothetical protein
15	 72.83	0	16070..17302	-	410	21218597	-	SCO0015	-	Na+/H+ antiporter
16	 78.92	+1	17715..17918	+	67	21218598	-	SCO0016	-	hypothetical protein
17	 74.20	0	17919..18263	+	114	21218599	-	SCO0017	-	hypothetical protein
18	 68.74	0	18485..19351	-	288	21218600	-	SCO0018	-	hypothetical protein
19	 63.14	-2	19517..19771	-	84	21218601	-	SCO0019	-	hypothetical protein
20	 67.15	-1	19974..21620	+	548	32141097	-	SCO0020	-	transposase
21	 63.47	-2	21617..22210	+	197	21218602	-	SCO0021	-	hypothetical protein
22	 67.49	-1	22156..22761	-	140	21218603	-	SCO0022	-	IS element ATP-binding protein
23	 70.32	0	22843..23061	+	72	21218604	-	SCO0025	-	IS element ATP-binding protein
24	 67.25	-1	23316..23831	+	171	21218605	-	SCO0026	-	secreted protein
25	 76.15	+1	23977..24345	-	122	21218606	-	SCO0027	-	hypothetical protein
26	 76.39	+1	24378..24521	-	47	21218607	-	SCO0028	-	hypothetical protein
27	 76.00	+1	24644..24943	+	99	21218608	-	SCO0029	-	hypothetical protein
28	 69.89	0	25251..25871	+	206	21218609	-	SCO0030	-	hypothetical protein
29	 69.80	0	25843..26385	-	180	21218610	-	SCO0031	-	hypothetical protein
30	 61.67	-2	26393..26452	-	19	21218611	-	SCO0032	-	hypothetical protein
31	 69.69	0	26527..28773	-	748	21218612	-	SCO0033	-	secreted neuraminidase
32	 66.67	-1	29040..29519	+	159	21218613	-	SCO0034	-	hypothetical protein
33	 61.11	-2	29605..30054	-	149	21218614	-	SCO0035	-	hypothetical protein
34	 66.67	-1	30116..30355	-	79	21218615	-	SCO0036	-	hypothetical protein
35	 71.18	0	30379..31131	-	250	21218616	-	SCO0037	-	sigma factor
36	 67.44	-1	31146..31274	-	42	21218617	-	SCO0038	-	sigma factor
37	 74.27	0	31520..32137	+	205	21218618	-	SCO0039	-	hypothetical protein
38	 72.30	0	32134..33357	+	407	21218619	-	SCO0040	-	glycosyl transferase
39	 74.28	0	33360..33845	+	161	21218620	-	SCO0041	-	integral membrane protein
40	 72.22	0	33842..34777	+	311	21218621	-	SCO0042	-	hypothetical protein
41	 68.45	-1	35179..35907	-	242	21218622	-	SCO0043	-	hypothetical protein
42	 69.66	0	36006..36674	-	222	21218623	-	SCO0044	-	oxidoreductase
43	 56.59	-2	36689..36817	-	42	21218624	-	SCO0045	-	hypothetical protein
44	 69.98	0	36816..37478	+	220	21218625	-	SCO0046	-	hydrolase
45	 71.69	0	37614..38768	-	384	21218626	-	SCO0047	-	transcriptional regulator
46	 67.19	-1	39107..39490	-	127	21218627	-	SCO0048	-	hypothetical protein
47	 64.20	-2	39489..39812	+	107	21218628	-	SCO0049	-	hypothetical protein
48	 63.99	-2	39877..40212	+	111	21218629	-	SCO0050	-	hypothetical protein
49	 66.27	-1	42171..43682	-	503	21218630	-	SCO0055	-	membrane-associated oxidoreductase
50	 64.44	-2	43768..43857	+	29	21218631	-	SCO0056	-	hypothetical protein
51	 75.89	+1	43950..44090	+	46	21218632	-	SCO0057	-	hypothetical protein
52	 70.82	0	44253..44975	+	240	21218633	-	SCO0058	-	hypothetical protein
53	 72.00	0	45267..46073	+	268	21218634	-	SCO0059	-	zinc-binding oxidoreductase
54	 76.09	+1	46064..46201	+	45	21218635	-	SCO0060	-	hypothetical protein
55	 69.20	0	46430..47734	-	434	21218636	-	SCO0061	-	hypothetical protein
56	 70.47	0	47789..48892	-	367	21218637	-	SCO0062	-	LacI family transcriptional regulator
57	 74.79	0	48889..49824	-	311	21218638	-	SCO0063	-	glucokinase
58	 72.02	0	49821..51539	-	572	21218639	-	SCO0064	-	hypothetical protein
59	 70.02	0	51831..53144	+	437	21218640	-	SCO0065	-	extracellular binding protein
60	 69.48	0	53141..54100	+	319	21218641	-	SCO0066	-	integral membrane permease
61	 66.42	-1	54097..54918	+	273	21218642	-	SCO0067	-	integral membrane permease
62	 72.31	0	54968..56173	+	401	21218643	-	SCO0068	-	hydrolase (secreted protein)
63	 72.65	0	56225..59383	+	1052	21218644	-	SCO0069	-	hypothetical protein
64	 71.05	0	59558..60241	+	227	21218645	-	SCO0070	-	hypothetical protein
65	 69.08	0	60069..60275	-	68	21218646	-	SCO0071	-	hypothetical protein
66	 67.29	-1	60740..64093	-	1117	32141098	-	SCO0072	-	secreted protein
67	 69.78	0	64605..64925	+	106	21218647	-	SCO0073	-	hypothetical protein
68	 71.72	0	64994..65092	+	32	21218648	-	SCO0074	-	hypothetical protein
69	 71.09	0	65092..65679	+	195	21218649	-	SCO0075	-	hypothetical protein
70	 62.83	-2	66688..67911	-	407	21218650	-	SCO0079	-	integral membrane transport protein
71	 64.53	-2	68372..68887	+	171	21218651	-	SCO0080	-	hypothetical protein
72	 70.44	0	69799..70647	+	282	21218652	-	SCO0083	-	transposase
73	 63.62	-2	70777..71235	+	152	21218653	-	SCO0084	-	hypothetical protein
74	 71.95	0	71648..72139	-	163	21218654	-	SCO0085	-	hypothetical protein
75	 69.86	0	72159..73097	-	312	21218655	-	SCO0086	-	ribosylglycohydrolase (secreted protein)
76	 68.38	-1	73784..74833	-	349	21218656	-	SCO0087	-	secreted protein
77	 68.85	0	74917..75876	-	319	21218657	-	SCO0088	-	secreted beta-lactamase
78	 70.13	0	75856..76893	+	345	21218658	-	SCO0089	-	transcriptional regulator
79	 62.38	-2	76895..77314	-	139	21218659	-	SCO0090	-	transposase
80	 71.26	0	77315..78271	+	318	21218660	-	SCO0091	-	IS1652 transposase
81	 70.56	0	78983..79702	-	239	21218661	-	SCO0095	-	hypothetical protein
82	 69.84	0	79839..80690	-	283	21218662	-	SCO0096	-	noncomposite transposon transposase
83	 65.11	-1	80845..81165	-	106	21218663	-	SCO0097	-	integral membrane protein
84	 63.10	-2	81602..82441	-	279	21218664	-	SCO0098	-	transposase
85	 68.55	0	83516..83992	-	158	161353684	-	SCO0101	-	hypothetical protein
86	 68.90	0	84893..85339	+	148	21218666	-	SCO0102	-	hypothetical protein
87	 68.27	-1	85336..86643	+	435	21218667	-	SCO0103	-	flavohemoprotein
88	 68.15	-1	86640..87311	+	223	21218668	-	SCO0104	-	hydrolase
89	 64.74	-2	87907..88632	-	241	21218669	-	SCO0105	-	endo-1,4-beta-xylanase (secreted protein)
90	 70.48	0	89073..89465	+	130	21218670	-	SCO0106	-	insertion element transposase
91	 63.98	-2	89486..90043	-	185	21218671	-	SCO0107	-	aminoglycoside nucleotidyltransferase
92	 62.00	-2	90242..90391	+	49	21218672	-	SCO0108	-	hypothetical protein
93	 68.79	0	90395..90865	-	156	21218673	-	SCO0109	-	hypothetical protein
94	 70.00	0	90951..91790	-	279	21218674	-	SCO0110	-	DNA-binding protein
95	 69.06	0	91977..92729	+	250	21218675	-	SCO0111	-	oxidoreductase
96	 69.87	0	92773..92928	-	51	21218676	-	SCO0112	-	hypothetical protein
97	 71.60	0	94306..94872	-	188	21218677	-	SCO0116	-	TetR family transcriptional regulator
98	 70.13	0	94989..95681	+	230	21218678	-	SCO0117	-	short chain dehydrogenase
99	 71.18	0	95989..97518	+	509	21218679	-	SCO0118	-	xylosidase/arabinosidase
100	 68.01	-1	97760..98281	-	173	21218680	-	SCO0119	-	small secreted protein
72.07	MEAN

3.61	STD DEV
