IslandPath Analysis: Staphylococcus aureus subsp. aureus Mu3

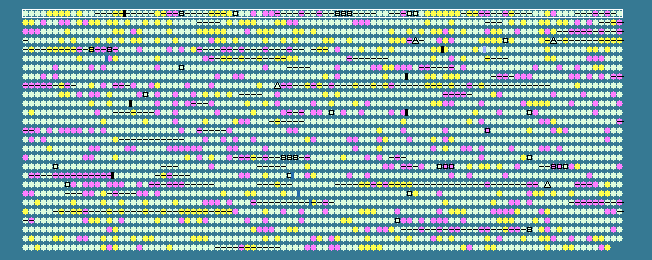

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 33.04 STD DEV: 3.32
Staphylococcus aureus subsp. aureus Mu3, complete genome - 1..2880168
2698 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 32.67	0	517..1878	+	453	156978332	dnaA	SAHV_0001	-	chromosomal replication initiation protein
2	 32.80	0	2156..3289	+	377	156978333	dnaN	SAHV_0002	-	DNA polymerase III subunit beta
3	 35.37	0	3670..3915	+	81	156978334	-	SAHV_0003	-	hypothetical protein
4	 33.69	0	3912..5024	+	370	156978335	recF	SAHV_0004	-	recombination protein F
5	 36.95	+1	5034..6968	+	644	156978336	gyrB	SAHV_0005	-	DNA gyrase subunit B
6	 36.67	+1	7005..9674	+	889	156978337	gyrA	SAHV_0006	-	DNA gyrase subunit A
7	 36.58	+1	9762..10592	-	276	156978338	-	SAHV_0007	-	hypothetical protein
8	 36.98	+1	10879..12414	+	511	156978339	hutH	SAHV_0008	-	histidine ammonia-lyase
9	 34.42	0	12793..14079	+	428	156978340	serS	SAHV_0009	-	seryl-tRNA synthetase
10	 37.07	+1	14730..15425	+	231	156978341	-	SAHV_0010	-	hypothetical protein
11	 33.94	0	15422..15751	+	109	156978342	-	SAHV_0011	-	hypothetical protein
12	 35.45	0	16094..17083	+	329	156978343	-	SAHV_0012	-	hypothetical protein
13	 32.43	0	17319..18314	+	331	156978344	-	SAHV_0013	-	hypothetical protein
14	 35.16	0	18329..20296	+	655	156978345	-	SAHV_0014	-	hypothetical protein
15	 31.54	0	20293..20739	+	148	156978346	rplI	SAHV_0015	-	50S ribosomal protein L9
16	 38.26	+1	20771..22171	+	466	156978347	dnaC	SAHV_0016	-	replicative DNA helicase
17	 36.60	+1	22449..23732	+	427	156978348	purA	SAHV_0017	-	adenylosuccinate synthetase
18	 36.44	+1	24929..25636	+	235	156978349	vicR	SAHV_0018	-	response regulator
19	 34.92	0	25649..27475	+	608	156978350	vicK	SAHV_0019	-	two-component sensor histidine kinase
20	 35.39	0	27441..28802	+	453	156978351	-	SAHV_0020	-	hypothetical protein
21	 32.70	0	28803..29591	+	262	156978352	-	SAHV_0021	-	hypothetical protein
22	 35.96	0	29980..30780	+	266	156978353	-	SAHV_0022	-	hypothetical protein
23	 38.34	+1	31007..33325	+	772	156978354	-	SAHV_0023	-	hypothetical protein
24	 39.38	+1	33693..34172	+	159	156978355	-	SAHV_0024	-	hypothetical protein
25	 28.32	-1	34455..35750	+	431	156978356	-	SAHV_0025	-	hypothetical protein
26	 24.58	-2	36165..36404	+	79	156978357	-	SAHV_0026	-	hypothetical protein
27	 34.37	0	36436..37110	-	224	156978358	tnp	SAHV_0027	-	transposase for IS-like element
28	 32.85	0	37201..37407	-	68	156978359	-	SAHV_0028	-	truncated replication protein for plasmid
29	 32.33	0	37411..38205	-	264	156978360	-	SAHV_0029	-	truncated replication protein for pUB110 plasmid
30	 30.86	0	38230..38310	-	26	156978361	-	SAHV_0030	-	hypothetical protein
31	 33.65	0	38429..39691	-	420	156978362	pre	SAHV_0031	-	plasmid recombination enzyme
32	 46.10	+2	39800..39940	+	46	156978363	-	SAHV_0032	-	hypothetical protein
33	 37.50	+1	39988..40179	+	63	156978364	-	SAHV_0033	-	hypothetical protein
34	 40.49	+2	40198..40602	-	134	156978365	bleO	SAHV_0034	-	bleomycin resistance protein
35	 42.28	+2	40819..41589	-	256	156978366	aadD	SAHV_0035	-	kanamycin nucleotidyltransferase
36	 34.00	0	42007..42456	-	149	156978367	tnp	SAHV_0036	-	transposase for IS-like element
37	 30.12	0	42540..42881	+	113	156978368	-	SAHV_0037	-	HMG-CoA synthase
38	 33.47	0	43678..44421	+	247	156978369	-	SAHV_0038	-	glycerophosphoryl diester phosphodiesterase-like protein
39	 29.14	-1	44518..44946	+	142	156978370	-	SAHV_0039	-	hypothetical protein
40	 30.59	0	44992..46998	-	668	156978371	mecA	SAHV_0040	-	penicillin binding protein 2 prime
41	 28.67	-1	47098..48855	+	585	156978372	mecR1	SAHV_0041	-	methicillin resistance protein
42	 25.54	-2	48855..49226	+	123	156978373	mecI	SAHV_0042	-	methicillin resistance regulatory protein
43	 28.91	-1	49713..50843	+	376	156978374	xylR	SAHV_0043	-	xylose repressor homologue
44	 30.53	0	50957..51349	-	130	156978375	-	SAHV_0044	-	hypothetical protein
45	 33.12	0	51353..52291	-	312	156978376	-	SAHV_0045	-	hypothetical protein
46	 32.30	0	52324..53388	-	354	156978377	-	SAHV_0046	-	hypothetical protein
47	 24.90	-2	53524..53784	+	86	156978378	-	SAHV_0047	-	hypothetical protein
48	 32.87	0	53784..54428	+	214	156978379	-	SAHV_0048	-	hypothetical protein
49	 34.23	0	54767..55435	-	222	156978380	-	SAHV_0049	-	hypothetical protein
50	 27.59	-1	55788..55961	-	57	156978381	-	SAHV_0050	-	hypothetical protein
51	 32.51	0	55963..56694	+	243	156978382	ermA	SAHV_0051	-	rRNA methylase
52	 36.40	+1	56820..57602	-	260	156978383	ant(9)	SAHV_0052	-	O-nucleotidylltransferase
53	 29.89	0	57753..58130	-	125	156978384	tnpC	SAHV_0053	-	transposase C
54	 33.86	0	58137..60029	-	630	156978385	tnpB	SAHV_0054	-	transposase B
55	 32.14	0	60026..61111	-	361	156978386	tnpA	SAHV_0055	-	transposase A
56	 33.96	0	61230..61547	-	105	156978387	-	SAHV_0056	-	hypothetical protein
57	 35.84	0	61568..62086	-	172	156978388	-	SAHV_0057	-	hypothetical protein
58	 32.05	0	62092..62403	-	103	156978389	-	SAHV_0058	-	hypothetical protein
59	 34.76	0	62490..62840	-	116	156978390	-	SAHV_0059	-	hypothetical protein
60	 35.05	0	63358..64986	-	542	156978391	ccrB	SAHV_0060	-	cassette chromosome recombinase B
61	 34.81	0	65008..66357	-	449	156978392	ccrA	SAHV_0061	-	cassette chromosome recombinase A
62	 34.45	0	66591..68384	-	597	156978393	-	SAHV_0062	-	hypothetical protein
63	 34.68	0	68384..68680	-	98	156978394	-	SAHV_0063	-	hypothetical protein
64	 25.12	-2	68873..69919	-	348	156978395	-	SAHV_0064	-	hypothetical protein
65	 32.80	0	70170..70547	-	125	156978396	tnp	SAHV_0065	-	transposase
66	 30.23	0	70659..71012	-	117	156978397	tnp	SAHV_0066	-	transposase
67	 30.79	0	70997..71311	-	104	156978398	-	SAHV_0067	-	hypothetical protein
68	 37.26	+1	71822..72406	-	194	156978399	-	SAHV_0068	-	hypothetical protein
69	 37.36	+1	73470..74165	-	231	156978400	kdpE	SAHV_0069	-	hypothetical protein
70	 36.71	+1	74140..76773	-	877	156978401	kdpD	SAHV_0070	-	hypothetical protein
71	 36.79	+1	77077..78753	+	558	156978402	-	SAHV_0071	-	potassium-transporting ATPase subunit A
72	 39.76	+2	78772..80793	+	673	156978403	kdpB	SAHV_0072	-	potassium-transporting ATPase B chain homologue
73	 37.14	+1	80842..81366	+	174	156978404	kdpC	SAHV_0073	-	potassium-transporting ATPase C chain homologue
74	 33.56	0	81911..82780	-	289	156978405	-	SAHV_0074	-	hypothetical protein
75	 36.66	+1	82790..83692	-	300	156978406	-	SAHV_0075	-	hypothetical protein
76	 40.48	+2	83728..83853	+	41	156978407	-	SAHV_0076	-	hypothetical protein
77	 27.29	-1	83886..84365	-	159	156978408	-	SAHV_0077	-	hypothetical protein
78	 28.83	-1	84428..84760	-	110	156978409	-	SAHV_0078	-	hypothetical protein
79	 29.67	-1	84805..85431	-	208	156978410	-	SAHV_0079	-	hypothetical protein
80	 31.21	0	85546..87054	+	502	156978411	-	SAHV_0080	-	hypothetical protein
81	 25.66	-2	87653..89386	+	577	156978412	-	SAHV_0081	-	hypothetical protein
82	 37.46	+1	89570..89908	-	112	156978413	-	SAHV_0082	-	hypothetical protein
83	 31.48	0	90330..91085	-	251	156978414	-	SAHV_0083	-	hypothetical protein
84	 30.65	0	91085..91345	-	86	156978415	-	SAHV_0084	-	hypothetical protein
85	 31.64	0	91482..92546	+	354	156978416	-	SAHV_0085	-	hypothetical protein
86	 33.48	0	92577..93911	+	444	156978417	-	SAHV_0086	-	hypothetical protein
87	 32.66	0	93930..95123	+	397	156978418	-	SAHV_0087	-	hypothetical protein
88	 38.91	+1	95790..96776	-	328	156978419	-	SAHV_0088	-	hypothetical protein
89	 26.96	-1	97085..97288	+	67	156978420	-	SAHV_0089	-	hypothetical protein
90	 30.30	0	97337..97633	+	98	156978421	-	SAHV_0090	-	hypothetical protein
91	 31.05	0	97832..98443	+	203	156978422	-	SAHV_0091	-	hypothetical protein
92	 31.24	0	98710..101862	+	1050	156978423	-	SAHV_0092	-	hypothetical protein
93	 31.88	0	101919..102401	+	160	156978424	-	SAHV_0093	-	hypothetical protein
94	 33.74	0	102607..103593	+	328	156978425	plc	SAHV_0094	-	1-phosphatidylinositol phosphodiesterase precurosr
95	 30.09	0	103814..104584	+	256	156978426	-	SAHV_0095	-	hypothetical protein
96	 29.31	-1	104636..105406	+	256	156978427	-	SAHV_0096	-	hypothetical protein
97	 29.95	0	105474..106241	+	255	156978428	-	SAHV_0097	-	hypothetical protein
98	 29.05	-1	106306..107076	+	256	156978429	-	SAHV_0098	-	hypothetical protein
99	 30.86	0	107143..107910	+	255	156978430	-	SAHV_0099	-	hypothetical protein
100	 33.69	0	108007..110244	+	745	156978431	-	SAHV_0100	-	hypothetical protein
33.04	MEAN

3.32	STD DEV
