IslandPath Analysis: Staphylococcus aureus subsp. aureus N315

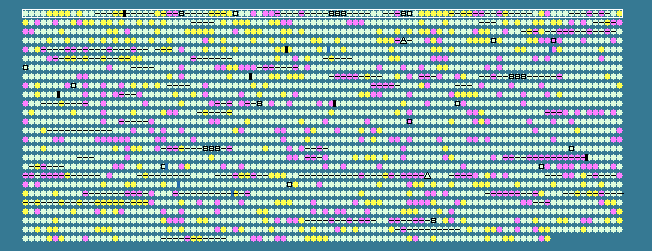

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 33.01   STD DEV: 3.29
Staphylococcus aureus subsp. aureus N315, complete genome - 1..2814816
2588 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 32.67	0	517..1878	+	453	15925706	dnaA	SA0001	-	chromosomal replication initiation protein
2	 32.80	0	2156..3289	+	377	15925707	dnaN	SA0002	-	DNA polymerase III subunit beta
3	 35.37	0	3670..3915	+	81	15925708	-	SA0003	-	hypothetical protein
4	 33.69	0	3912..5024	+	370	15925709	recF	SA0004	-	recombination protein F
5	 36.95	+1	5034..6968	+	644	15925710	gyrB	SA0005	-	DNA gyrase subunit B
6	 36.74	+1	7005..9674	+	889	15925711	gyrA	SA0006	-	DNA gyrase subunit A
7	 36.58	+1	9762..10592	-	276	15925712	-	SA0007	-	hypothetical protein
8	 37.03	+1	10900..12414	+	504	161376701	hutH	SA0008	-	histidine ammonia-lyase
9	 34.42	0	12793..14079	+	428	15925714	serS	SA0009	-	seryl-tRNA synthetase
10	 37.07	+1	14730..15425	+	231	15925715	-	SA0010	-	hypothetical protein
11	 33.94	0	15422..15751	+	109	15925716	-	SAS001	-	hypothetical protein
12	 35.45	0	16093..17082	+	329	15925717	-	SA0011	-	hypothetical protein
13	 32.43	0	17318..18313	+	331	15925718	-	SA0012	-	hypothetical protein
14	 35.16	0	18328..20295	+	655	15925719	-	SA0013	-	hypothetical protein
15	 31.54	0	20292..20738	+	148	15925720	rplI	SA0014	-	50S ribosomal protein L9
16	 38.26	+1	20770..22170	+	466	15925721	dnaC	SA0015	-	replicative DNA helicase
17	 36.60	+1	22448..23731	+	427	15925722	purA	SA0016	-	adenylosuccinate synthetase
18	 36.44	+1	24928..25635	+	235	15925723	vicR	SA0017	-	response regulator
19	 34.92	0	25648..27474	+	608	15925724	vicK	SA0018	-	two-component sensor histidine kinase
20	 35.39	0	27440..28801	+	453	15925725	-	SA0019	-	hypothetical protein
21	 32.70	0	28802..29590	+	262	15925726	-	SA0020	-	hypothetical protein
22	 35.96	0	29979..30779	+	266	15925727	-	SA0021	-	hypothetical protein
23	 38.38	+1	31006..33324	+	772	15925728	-	SA0022	-	hypothetical protein
24	 39.38	+1	33692..34171	+	159	15925729	orfX	SA0023	-	hypothetical protein
25	 28.32	-1	34454..35749	+	431	15925730	-	SA0024	-	hypothetical protein
26	 24.58	-2	36164..36403	+	79	15925731	-	SA0025	-	hypothetical protein
27	 34.37	0	36435..37109	-	224	15925732	-	SA0026	-	transposase for IS-like element
28	 32.85	0	37200..37406	-	68	15925733	-	SA0027	-	truncated replication protein for plasmid
29	 32.58	0	37410..38204	-	264	15925734	-	SA0028	-	truncated replication protein for pUB110 plasmid
30	 30.86	0	38229..38309	-	26	15925735	-	SAS002	-	hypothetical protein
31	 33.73	0	38428..39690	-	420	15925736	pre	SA0029	-	plasmid recombination enzyme
32	 46.10	+2	39799..39939	+	46	15925737	-	SA0030	-	hypothetical protein
33	 37.50	+1	39987..40178	+	63	15925738	-	SA0031	-	hypothetical protein
34	 40.49	+2	40197..40601	-	134	15925739	bleO	SA0032	-	bleomycin resistance protein
35	 42.28	+2	40818..41588	-	256	15925740	aadD	SA0033	-	kanamycin nucleotidyltransferase
36	 34.37	0	41781..42455	-	224	15925741	-	SA0034	-	transposase for IS-like element
37	 30.12	0	42539..42880	+	113	15925742	-	SA0035	-	HMG-CoA synthase
38	 33.47	0	43717..44460	+	247	29165616	-	SA0036	-	hypothetical protein
39	 29.14	-1	44557..44985	+	142	15925744	-	SA0037	-	hypothetical protein
40	 30.64	0	45031..47037	-	668	15925745	mecA	SA0038	-	penicillin binding protein 2 prime
41	 28.67	-1	47137..48894	+	585	15925746	mecR1	SA0039	-	methicillin resistance protein
42	 25.81	-2	48894..49265	+	123	15925747	mecI	SA0040	-	methicillin resistance regulatory protein
43	 29.00	-1	49752..50882	+	376	15925748	xylR	SA0041	-	hypothetical protein
44	 30.53	0	50996..51388	-	130	15925749	-	SA0042	-	hypothetical protein
45	 33.12	0	51392..52330	-	312	15925750	-	SA0043	-	hypothetical protein
46	 32.30	0	52363..53427	-	354	15925751	-	SA0044	-	hypothetical protein
47	 24.90	-2	53563..53823	+	86	15925752	-	SA0045	-	hypothetical protein
48	 32.87	0	53823..54467	+	214	15925753	-	SA0046	-	hypothetical protein
49	 34.23	0	54806..55474	-	222	15925754	-	SA0047	-	hypothetical protein
50	 32.51	0	56002..56733	+	243	15925755	ermA	SA0048	-	rRNA methylase
51	 36.40	+1	56859..57641	-	260	15925756	ant(9)	SA0049	-	O-nucleotidylltransferase(9)
52	 29.89	0	57792..58169	-	125	15925757	tnpC	SA0050	-	transposase for Tn554
53	 33.86	0	58176..60068	-	630	15925758	tnpB	SA0051	-	transposase B for Tn554
54	 32.14	0	60065..61150	-	361	15925759	tnpA	SA0052	-	transposase A for Tn554
55	 33.96	0	61269..61586	-	105	15925760	radC	SA0053	-	hypothetical protein
56	 35.84	0	61607..62125	-	172	15925761	-	SA0054	-	hypothetical protein
57	 32.05	0	62131..62442	-	103	15925762	-	SA0055	-	hypothetical protein
58	 34.76	0	62529..62879	-	116	15925763	-	SA0056	-	hypothetical protein
59	 35.05	0	63397..65025	-	542	15925764	ccrB	SA0057	-	cassette chromosome recombinase B
60	 34.81	0	65047..66396	-	449	15925765	ccrA	SA0058	-	cassette chromosome recombinase A
61	 34.45	0	66630..68423	-	597	15925766	-	SA0059	-	hypothetical protein
62	 34.68	0	68423..68719	-	98	15925767	-	SA0060	-	hypothetical protein
63	 25.12	-2	68912..69958	-	348	15925768	-	SA0061	-	hypothetical protein
64	 32.80	0	70209..70586	-	125	15925769	-	SA0062	-	transposase
65	 30.23	0	70698..71051	-	117	29165617	tnp	SA0063	-	transposase
66	 30.79	0	71036..71350	-	104	29165618	-	SA0064	-	hypothetical protein
67	 37.26	+1	71861..72445	-	194	15925772	-	SA0065	-	hypothetical protein
68	 37.36	+1	73509..74204	-	231	15925773	kdpE	SA0066	-	hypothetical protein
69	 36.71	+1	74179..76812	-	877	15925774	kdpD	SA0067	-	hypothetical protein
70	 36.79	+1	77116..78792	+	558	29165619	kdpA	SA0068	-	potassium-transporting ATPase subunit A
71	 39.76	+2	78811..80832	+	673	15925777	kdpB	SA0070	-	hypothetical protein
72	 40.05	+2	80880..81251	+	123	15925778	kdpC	SA0071	-	hypothetical protein
73	 33.56	0	81950..82819	-	289	15925779	-	SA0072	-	hypothetical protein
74	 36.66	+1	82829..83731	-	300	15925780	-	SA0073	-	hypothetical protein
75	 40.48	+2	83767..83892	+	41	15925781	-	SAS003	-	hypothetical protein
76	 27.29	-1	83925..84404	-	159	15925782	-	SA0074	-	hypothetical protein
77	 28.83	-1	84467..84799	-	110	15925783	-	SA0075	-	hypothetical protein
78	 29.67	-1	84844..85470	-	208	15925784	-	SA0076	-	hypothetical protein
79	 31.21	0	85585..87093	+	502	15925785	-	SA0077	-	hypothetical protein
80	 25.66	-2	87692..89425	+	577	15925786	-	SA0078	-	hypothetical protein
81	 37.46	+1	89609..89947	-	112	15925787	-	SA0079	-	hypothetical protein
82	 31.48	0	90369..91124	-	251	15925788	-	SA0080	-	hypothetical protein
83	 30.65	0	91124..91384	-	86	15925789	-	SA0081	-	hypothetical protein
84	 31.64	0	91521..92585	+	354	15925790	-	SA0082	-	hypothetical protein
85	 33.48	0	92616..93950	+	444	15925791	-	SA0083	-	hypothetical protein
86	 32.66	0	93969..95162	+	397	15925792	-	SA0084	-	hypothetical protein
87	 38.91	+1	95829..96815	-	328	15925793	-	SA0085	-	hypothetical protein
88	 26.96	-1	97124..97327	+	67	15925794	-	SA0086	-	hypothetical protein
89	 30.30	0	97376..97672	+	98	15925795	-	SA0087	-	hypothetical protein
90	 31.05	0	97871..98482	+	203	15925796	-	SA0088	-	hypothetical protein
91	 31.24	0	98749..101901	+	1050	15925797	-	SA0089	-	hypothetical protein
92	 31.88	0	101958..102440	+	160	15925798	-	SA0090	-	hypothetical protein
93	 33.74	0	102646..103632	+	328	15925799	plc	SA0091	-	1-phosphatidylinositol phosphodiesterase precurosr
94	 30.09	0	103853..104623	+	256	15925800	-	SA0092	-	hypothetical protein
95	 29.31	-1	104675..105445	+	256	15925801	-	SA0093	-	hypothetical protein
96	 29.95	0	105513..106280	+	255	15925802	-	SA0094	-	hypothetical protein
97	 29.05	-1	106345..107115	+	256	15925803	-	SA0095	-	hypothetical protein
98	 30.86	0	107182..107949	+	255	15925804	-	SA0096	-	hypothetical protein
99	 33.69	0	108046..110283	+	745	15925805	-	SA0097	-	hypothetical protein
100	 37.23	+1	110434..111612	+	392	15925806	-	SA0098	-	hypothetical protein
33.01	MEAN

3.29	STD DEV
