IslandPath Analysis: Streptococcus agalactiae NEM316

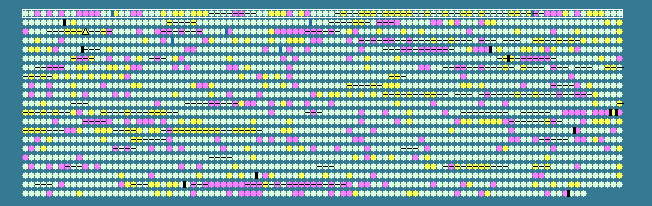

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 35.67   STD DEV: 3.51
Streptococcus agalactiae NEM316, complete genome - 1..2211485
2094 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 35.10	0	176..1537	+	453	25010076	dnaA	gbs0001	-	chromosomal replication initiation protein
2	 33.60	0	1692..2828	+	378	25010077	dnaN	gbs0002	-	DNA polymerase III subunit beta
3	 31.18	-1	2898..3779	+	293	25010078	-	gbs0003	-	hypothetical protein
4	 33.33	0	3789..3986	+	65	25010079	-	gbs0004	-	hypothetical protein
5	 25.00	-2	4188..4391	+	67	25010080	-	gbs0005	-	hypothetical protein
6	 36.29	0	4551..5666	+	371	25010081	-	gbs0006	-	translation-associated GTPase
7	 30.38	-1	5750..6325	+	191	25010082	-	gbs0007	-	peptidyl-tRNA hydrolase
8	 33.68	0	6322..9819	+	1165	25010083	-	gbs0008	-	transcription-repair coupling factor
9	 35.53	0	10110..10382	+	90	25010084	-	gbs0009	-	S4 domain protein
10	 31.99	-1	10369..10740	+	123	25010085	-	gbs0010	-	hypothetical protein
11	 29.63	-1	10743..10877	+	44	25010086	-	gbs0011	-	hypothetical protein
12	 32.01	-1	10877..12163	+	428	25010087	-	gbs0012	-	hypothetical protein
13	 31.84	-1	12165..13439	+	424	25010088	-	gbs0013	-	hypothetical protein
14	 32.23	0	13444..13986	+	180	25010089	-	gbs0014	-	hypoxanthine-guanine phosphoribosyltransferase
15	 37.89	0	14009..15985	+	658	25010090	ftsH	gbs0015	-	cell division protein FtsH
16	 40.85	+1	28975..30318	+	447	25010091	pcsB	gbs0016	-	PcsB protein
17	 37.87	0	30442..31410	+	322	25010092	-	gbs0017	-	ribose-phosphate pyrophosphokinase
18	 35.03	0	31518..32693	+	391	25010093	-	gbs0018	-	aromatic amino acid aminotransferase
19	 30.31	-1	32683..33444	+	253	25010094	recO	gbs0019	-	DNA repair protein RecO
20	 29.81	-1	33507..34385	+	292	25010095	-	gbs0020	-	hypothetical protein
21	 37.26	0	34463..35455	+	330	25010096	-	gbs0021	-	putative glycerol-3-phosphate acyltransferase PlsX
22	 35.83	0	35466..35705	+	79	25010097	-	gbs0022	-	acyl carrier protein
23	 36.45	0	35829..36533	+	234	25010098	-	gbs0023	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
24	 45.06	+2	36656..40381	+	1241	25010099	-	gbs0024	-	hypothetical protein
25	 38.76	0	40615..42069	+	484	25010100	-	gbs0025	-	amidophosphoribosyltransferase
26	 44.28	+2	42097..43119	+	340	25010101	-	gbs0026	-	phosphoribosylaminoimidazole synthetase
27	 46.81	+2	43287..43835	+	182	25010102	purN	gbs0027	-	phosphoribosylglycinamide formyltransferase
28	 35.59	0	43858..44610	+	250	25010103	-	gbs0028	-	GNAT family acetyltransferase
29	 47.09	+2	44630..46177	+	515	25010104	purH	gbs0029	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
30	 40.89	+1	46370..47269	+	299	25010105	-	gbs0030	-	hypothetical protein
31	 40.77	+1	47416..48720	+	434	25010106	-	gbs0031	-	group B streptococcal surface immunogenic protein
32	 38.63	0	48967..49665	+	232	25010107	-	gbs0032	-	N-acetylmannosamine-6-phosphate 2-epimerase
33	 35.00	0	49712..51028	+	438	25010108	-	gbs0033	-	hypothetical protein
34	 34.35	0	51116..52003	+	295	25010109	-	gbs0034	-	hypothetical protein
35	 35.98	0	52013..52843	+	276	25010110	-	gbs0035	-	hypothetical protein
36	 31.76	-1	52856..53299	+	147	25010111	-	gbs0036	-	hypothetical protein
37	 31.52	-1	53319..53981	+	220	25010112	-	gbs0037	-	hypothetical protein
38	 34.86	0	53978..54895	+	305	25010113	-	gbs0038	-	N-acetylneuraminate lyase, putative
39	 37.98	0	54912..55793	+	293	25010114	-	gbs0039	-	ROK family protein
40	 35.69	0	55801..56778	+	325	25010115	-	gbs0040	-	acetyl xylan esterase, putative
41	 35.32	0	56801..57604	-	267	25010116	-	gbs0041	-	phosphosugar-binding transcriptional regulator, RpiR family
42	 49.41	+2	57888..59150	+	420	25010117	-	gbs0042	-	phosphoribosylamine--glycine ligase
43	 49.80	+2	59431..59922	+	163	25010118	-	gbs0043	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
44	 49.35	+2	59909..60982	+	357	25010119	-	gbs0044	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
45	 31.78	-1	60992..61249	+	85	25010120	-	gbs0045	-	hypothetical protein
46	 35.69	0	61615..62718	+	367	25010121	-	gbs0046	-	hypothetical protein
47	 44.26	+2	62804..64102	+	432	25010122	-	gbs0047	-	adenylosuccinate lyase
48	 28.13	-2	64256..65158	+	300	25010123	-	gbs0048	-	hypothetical protein
49	 37.84	0	65447..66445	+	332	25010124	ruvB	gbs0049	-	Holliday junction DNA helicase B
50	 38.81	0	66597..67034	+	145	25010125	-	gbs0050	-	hypothetical protein
51	 34.65	0	67041..67421	+	126	25010126	-	gbs0051	-	hypothetical protein
52	 34.46	0	67418..69196	+	592	25010127	-	gbs0052	-	hypothetical protein
53	 39.05	0	69465..72107	+	880	25010128	-	gbs0053	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
54	 43.07	+2	72286..73302	+	338	25010129	-	gbs0054	-	alcohol dehydrogenase
55	 35.95	0	73423..74913	+	496	25010130	thrC	gbs0055	-	threonine synthase
56	 35.99	0	75018..76298	+	426	25010131	-	gbs0056	-	MATE efflux family protein
57	 41.10	+1	76504..76812	+	102	25010132	rpsJ	gbs0057	-	30S ribosomal protein S10
58	 42.11	+1	76917..77543	+	208	25010133	rplC	gbs0058	-	50S ribosomal protein L3
59	 42.79	+2	77567..78190	+	207	25010134	rplD	gbs0059	-	50S ribosomal protein L4
60	 36.70	0	78190..78486	+	98	25010135	rplW	gbs0060	-	50S ribosomal protein L23
61	 40.77	+1	78504..79337	+	277	25010136	rplB	gbs0061	-	50S ribosomal protein L2
62	 39.78	+1	79436..79714	+	92	25010137	rpsS	gbs0062	-	30S ribosomal protein S19
63	 39.71	+1	79730..80074	+	114	25010138	rplV	gbs0063	-	50S ribosomal protein L22
64	 40.52	+1	80087..80740	+	217	25010139	rpsC	gbs0064	-	30S ribosomal protein S3
65	 42.75	+2	80744..81157	+	137	25010140	rplP	gbs0065	-	50S ribosomal protein L16
66	 34.78	0	81167..81373	+	68	25010141	rpmC	gbs0066	-	50S ribosomal protein L29
67	 37.93	0	81399..81659	+	86	25010142	rpsQ	gbs0067	-	30S ribosomal protein S17
68	 44.17	+2	81684..82052	+	122	25010143	rplN	gbs0068	-	50S ribosomal protein L14
69	 38.89	0	82132..82437	+	101	25010144	rplX	gbs0069	-	50S ribosomal protein L24
70	 38.86	0	82461..83003	+	180	25010145	rplE	gbs0070	-	50S ribosomal protein L5
71	 43.55	+2	83021..83206	+	61	25010146	rpsN	gbs0071	-	30S ribosomal protein S14
72	 35.34	0	83361..83759	+	132	25010147	rpsH	gbs0072	-	30S ribosomal protein S8
73	 39.11	0	83869..84405	+	178	25010148	rplF	gbs0073	-	50S ribosomal protein L6
74	 44.54	+2	84506..84862	+	118	25010149	rplR	gbs0074	-	50S ribosomal protein L18
75	 43.64	+2	84881..85375	+	164	25010150	rpsE	gbs0075	-	30S ribosomal protein S5
76	 37.78	0	85390..85569	+	59	25010151	rpmD	gbs0076	-	50S ribosomal protein L30
77	 41.27	+1	85694..86134	+	146	25010152	rplO	gbs0077	-	50S ribosomal protein L15
78	 34.87	0	86155..87459	+	434	25010153	secY	gbs0078	-	preprotein translocase subunit SecY
79	 38.34	0	87554..88192	+	212	25010154	adk	gbs0079	-	adenylate kinase
80	 37.90	0	88308..88526	+	72	25010155	infA	gbs0080	-	translation initiation factor IF-1
81	 37.61	0	88552..88668	+	38	25010156	rpmJ	gbs0081	-	50S ribosomal protein L36
82	 40.16	+1	88686..89051	+	121	25010157	rpsM	gbs0082	-	30S ribosomal protein S13
83	 44.01	+2	89069..89452	+	127	25010158	rpsK	gbs0083	-	30S ribosomal protein S11
84	 37.06	0	89502..90440	+	312	25010159	rpoA	gbs0084	-	DNA-directed RNA polymerase subunit alpha
85	 39.79	+1	90455..90841	+	128	25010160	rplQ	gbs0085	-	50S ribosomal protein L17
86	 28.04	-2	97797..97985	+	62	25010161	-	gbs0086	-	hypothetical protein
87	 36.45	0	98319..98639	+	106	25010162	-	gbs0087	-	hypothetical protein
88	 30.43	-1	99429..99980	+	183	25010163	-	gbs0088	-	hypothetical protein
89	 28.57	-2	100200..100619	+	139	25010164	-	gbs0089	-	hypothetical protein
90	 30.00	-1	100819..101298	+	159	25010165	-	gbs0090	-	hypothetical protein
91	 39.25	+1	101420..102112	+	230	25010166	-	gbs0091	-	phosphoglycerate mutase family protein
92	 35.86	0	102109..102861	+	250	25010167	-	gbs0092	-	hypothetical protein
93	 31.94	-1	102858..103433	+	191	25010168	-	gbs0093	-	hypothetical protein
94	 37.68	0	103576..104610	+	344	25010169	hrcA	gbs0094	-	heat-inducible transcription repressor
95	 40.84	+1	104613..105185	+	190	25010170	-	gbs0095	-	hypothetical protein
96	 39.78	+1	105366..107195	+	609	25010171	dnaK	gbs0096	-	molecular chaperone DnaK
97	 41.49	+1	107484..108623	+	379	25010172	dnaJ	gbs0097	-	chaperone protein DnaJ
98	 34.21	0	108741..109988	+	415	25010173	-	gbs0098	-	GntR family transcriptional regulator
99	 36.29	0	110059..110835	+	258	25010174	truA	gbs0099	-	tRNA pseudouridine synthase A
100	 36.63	0	110798..111556	+	252	25010175	-	gbs0100	-	phosphomethylpyrimidine kinase
35.67	MEAN

3.51	STD DEV
