IslandPath Analysis: Sodalis glossinidius str. 'morsitans'

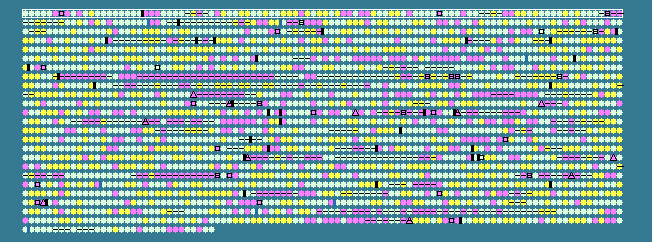

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 55.45   STD DEV: 5.35
Sodalis glossinidius str. 'morsitans', complete genome - 1..4171146
2432 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 55.05	0	1..1395	+	464	85057979	dnaA	SG0001	-	chromosomal replication initiation protein
2	 57.77	0	1398..2498	+	366	85057980	-	SG0002	-	DNA polymerase III subunit beta
3	 56.16	0	2525..3619	+	364	85057981	recF	SG0003	-	recombination protein F
4	 55.73	0	3638..6052	+	804	85057982	gyrB	SG0004	-	DNA gyrase subunit B
5	 53.96	0	7385..7927	+	180	85057983	-	SG0005	-	putative galactonate operon transcriptional repressor
6	 43.64	-2	10538..11701	-	387	85057984	-	SG0006	-	putative effector protein
7	 50.97	0	12873..13439	+	188	85057985	-	SG0007	-	putative transposase
8	 50.24	0	18087..18500	+	137	85057986	-	SG0008	-	heat shock protein IbpA
9	 57.07	0	19297..20484	-	395	85057987	avtA	SG0009	-	valine--pyruvate transaminase
10	 50.60	0	20622..21623	-	333	85057988	-	SG0010	-	hypothetical protein
11	 56.72	0	22715..23629	+	304	85057989	glyQ	SG0011	-	glycyl-tRNA synthetase subunit alpha
12	 61.06	+1	23639..25708	+	689	85057990	glyS	SG0012	-	glycyl-tRNA synthetase subunit beta
13	 54.76	0	25779..26282	+	167	85057991	-	SG0013	-	hypothetical protein
14	 55.30	0	27270..29195	+	641	85057992	-	SG0014	-	PTS system mannitol-specific IIABC component
15	 58.14	0	29282..30430	+	382	85057993	-	SG0015	-	mannitol-1-phosphate 5-dehydrogenase
16	 57.38	0	30489..31037	+	182	162382801	mtlR	SG0016	-	mannitol repressor protein
17	 55.18	0	31283..31900	-	205	85057995	-	SG0017	-	superoxide dismutase
18	 52.14	0	34679..35098	+	139	85057996	-	SG0018	-	hypothetical protein
19	 57.65	0	35597..36805	-	402	85057997	-	SG0019	-	putative transport protein
20	 56.64	0	37556..38014	+	152	85057998	-	SG0020	-	transcriptional regulator
21	 46.84	-1	41668..42015	+	115	85057999	-	SG0021	-	transcriptional activator FlhD
22	 48.90	-1	42020..42610	+	196	85058000	-	SG0022	-	transcriptional activator FlhC
23	 47.94	-1	42706..43602	+	298	85058001	-	SG0023	-	flagellar motor protein MotA
24	 56.82	0	43599..44624	+	341	85058002	motB	SG0024	-	flagellar motor protein MotB
25	 57.65	0	45031..46194	+	387	85058003	-	SG0025	-	flagellar biosynthetic protein FlhB
26	 57.42	0	46175..48271	+	698	85058004	flhA	SG0026	-	flagellar biosynthesis protein FlhA
27	 55.86	0	48762..49205	-	147	85058005	-	SG0027	-	flagellar protein FlgN
28	 52.89	0	49244..49468	-	74	85058006	-	SG0028	-	negative regulator of flagellin synthesis FlgM
29	 60.11	0	49511..50227	-	238	85058007	-	SG0029	-	flagellar basal body P-ring formation protein FlgA
30	 49.03	-1	50405..50818	+	137	85058008	-	SG0030	-	flagellar basal-body rod protein FlgB
31	 56.05	0	50825..51229	+	134	85058009	flgC	SG0031	-	flagellar basal body rod protein FlgC
32	 52.35	0	51241..52050	+	269	85058010	-	SG0032	-	flagellar basal-body rod modification protein FlgD
33	 49.38	-1	52102..53316	+	404	85058011	-	SG0033	-	flagellar hook protein FlgE
34	 64.16	+1	53329..54087	+	252	85058012	-	SG0034	-	flagellar basal-body rod protein FlgF
35	 57.85	0	54108..54890	+	260	85058013	flgG	SG0035	-	flagellar basal body rod protein FlgG
36	 58.40	0	54954..55715	+	253	85058014	flgH	SG0036	-	flagellar basal body L-ring protein
37	 60.02	0	55746..56843	+	365	85058015	flgI	SG0037	-	flagellar basal body P-ring protein
38	 63.62	+1	56843..57760	+	305	85058016	flgJ	SG0038	-	peptidoglycan hydrolase
39	 54.22	0	57892..59562	+	556	85058017	-	SG0039	-	flagellar hook-associated protein 1 FlgK
40	 55.84	0	59619..60560	+	313	85058018	-	SG0040	-	flagellar hook-associated protein 3 FlgL
41	 59.06	0	60611..61399	-	262	85058019	fliR	SG0041	-	flagellar biosynthesis protein FliR
42	 55.56	0	61407..61676	-	89	85058020	fliQ	SG0042	-	flagellar biosynthesis protein FliQ
43	 58.11	0	61695..62465	-	256	85058021	fliP	SG0043	-	flagellar biosynthesis protein FliP
44	 68.53	+2	62495..62869	-	124	85058022	-	SG0044	-	flagellar protein FliO
45	 60.49	0	62870..63274	-	134	85058023	-	SG0045	-	flagellar motor switch protein FliN
46	 60.41	0	63267..64289	-	340	85058024	-	SG0046	-	flagellar motor switch protein FliM
47	 50.92	0	64286..64774	-	162	85058025	-	SG0047	-	flagellar protein FliL
48	 62.02	+1	64908..66026	-	372	85058026	-	SG0048	-	flagellar hook-length control protein FliK
49	 52.22	0	66023..66472	-	149	85058027	fliJ	SG0049	-	flagellar biosynthesis chaperone
50	 60.86	+1	66483..67859	-	458	85058028	fliI	SG0050	-	flagellum-specific ATP synthase
51	 63.17	+1	67831..68544	-	237	85058029	fliH	SG0051	-	flagellar assembly protein H
52	 57.68	0	68537..69526	-	329	85058030	-	SG0052	-	flagellar motor switch protein FliG
53	 59.58	0	69523..71229	-	568	85058031	-	SG0053	-	flagellar basal-body M-ring protein FliF
54	 50.00	-1	71471..71794	+	107	85058032	-	SG0054	-	flagellar hook-basal body complex protein FliE
55	 41.52	-2	71863..72204	-	113	85058033	-	SG0055	-	flagellar protein FliT
56	 53.33	0	72218..72607	-	129	85058034	-	SG0056	-	flagellar protein FliS
57	 50.24	0	72688..74148	-	486	85058035	-	SG0057	-	flagellar hook-associated protein 2 FliD
58	 48.49	-1	74875..76134	+	419	85058036	-	SG0058	-	flagellin FliC
59	 60.19	0	76289..77014	+	241	85058037	fliA	SG0059	-	flagellar biosynthesis sigma factor
60	 53.73	0	77593..79200	+	535	85058038	-	SG0060	-	dipeptide ABC transporter periplasmic component
61	 58.92	0	79401..80420	+	339	85058039	-	SG0061	-	dipeptide transporter permease DppB
62	 61.37	+1	80432..81337	+	301	85058040	-	SG0062	-	dipeptide transporter
63	 60.04	0	81348..82328	+	326	85058041	dppD	SG0063	-	dipeptide transporter ATP-binding subunit
64	 56.97	0	82325..83335	+	336	85058042	dppF	SG0064	-	dipeptide transporter ATP-binding subunit
65	 33.33	-2	84328..84642	-	104	85058043	-	SG0065	-	hypothetical protein
66	 58.67	0	94714..95814	+	366	85058044	-	SG0066	-	hypothetical protein
67	 57.32	0	98463..99404	-	313	85058045	-	SG0067	-	ketodeoxygluconokinase
68	 55.58	0	104605..105957	-	450	85058046	-	SG0068	-	glutathione reductase
69	 58.48	0	106056..106898	-	280	85058047	-	SG0069	-	hypothetical protein
70	 51.38	0	107125..107667	+	180	85058048	-	SG0070	-	putative transposase
71	 54.49	0	108772..110085	+	437	85058049	-	SG0071	-	cytosine transport protein
72	 58.50	0	111196..111648	+	150	85058050	-	SG0072	-	hypothetical protein
73	 57.38	0	112733..114757	+	674	85058051	-	SG0073	-	oligopeptidase A
74	 51.83	0	116767..117231	-	154	85058052	-	SG0074	-	universal stress protein A
75	 58.60	0	118069..119667	-	532	85058053	-	SG0075	-	low-affinity inorganic phosphate transport protein
76	 55.61	0	121369..122535	-	388	85058054	-	SG0076	-	putative salicylate hydroxylase
77	 54.90	0	126303..126863	-	186	85058055	-	SG0077	-	hypothetical protein
78	 52.85	0	127001..127666	-	221	85058056	-	SG0078	-	hypothetical protein
79	 61.18	+1	127863..128117	+	84	85058057	-	SG0079	-	hypothetical protein
80	 55.82	0	128145..128771	-	208	85058058	-	SG0080	-	hypothetical protein
81	 47.98	-1	128966..129286	+	106	85058059	-	SG0081	-	hypothetical protein
82	 51.20	0	129363..129653	-	96	85058060	-	SG0082	-	hypothetical protein
83	 61.88	+1	129640..130245	-	201	85058061	-	SG0083	-	16S rRNA m(2)G966-methyltransferase
84	 59.93	0	130474..131988	+	504	85058062	-	SG0084	-	cell division protein
85	 56.20	0	131995..132663	+	222	85058063	-	SG0085	-	cell division protein FtsE
86	 59.69	0	132653..133669	+	338	85058064	ftsX	SG0086	-	cell division protein FtsX
87	 56.99	0	133828..134685	+	285	85058065	-	SG0087	-	RNA polymerase factor sigma-32
88	 57.64	0	134822..135220	-	132	85058066	-	SG0088	-	hypothetical protein
89	 53.55	0	136547..137278	+	243	85058067	-	SG0089	-	glycerol-3-phosphate ABC transporter permease component
90	 52.29	0	139775..140539	+	254	85058068	-	SG0090	-	hypothetical protein
91	 59.65	0	140708..141619	-	303	85058069	-	SG0091	-	LysR family transcriptional regulator
92	 58.59	0	141722..143998	+	758	85058070	-	SG0092	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
93	 60.72	0	145857..146327	+	156	85058071	-	SG0093	-	hypothetical protein
94	 56.56	0	150427..150891	+	154	85058072	-	SG0094	-	phage lysozyme lysis protein
95	 57.95	0	152777..154003	+	408	85058073	-	SG0095	-	hypothetical protein
96	 53.52	0	154000..154653	+	217	85058074	-	SG0096	-	hypothetical protein
97	 57.21	0	154660..155484	+	274	85058075	-	SG0097	-	hypothetical protein
98	 51.41	0	156879..157802	+	307	85058076	-	SG0098	-	transposase
99	 48.40	-1	158286..158690	+	134	85058077	-	SG0099	-	hypothetical protein
100	 47.49	-1	165067..165843	+	258	85058078	-	SG0100	-	putative N-acetylmuramoyl-L-alanine amidase
55.45	MEAN

5.35	STD DEV
