IslandPath Analysis: Sinorhizobium medicae WSM419

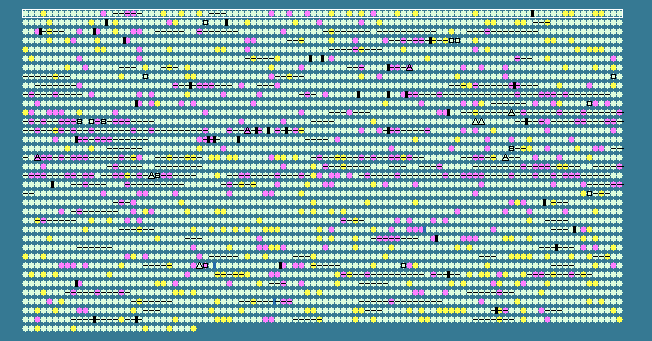

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 61.69   STD DEV: 2.82
Sinorhizobium medicae WSM419, complete genome - 1..3781904
3529 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 61.80	0	135..401	+	88	150395229	rpsT	Smed_0001	-	30S ribosomal protein S20
2	 61.62	0	1405..2850	+	481	150395230	dnaA	Smed_0002	-	chromosomal replication initiation protein
3	 60.80	0	3085..3459	+	124	150395231	-	Smed_0003	-	DGPFAETKE family protein
4	 66.04	+1	3456..4739	+	427	150395232	-	Smed_0004	-	RNA polymerase ECF-subfamily sigma factor
5	 59.83	0	5026..5508	+	160	150395233	-	Smed_0005	-	activator of Hsp90 ATPase 1 family protein
6	 63.55	0	5532..6398	+	288	150395234	-	Smed_0006	-	glyoxalase/bleomycin resistance protein/dioxygenase
7	 62.91	0	6437..7582	-	381	150395235	-	Smed_0007	-	coproporphyrinogen III oxidase
8	 64.65	+1	7630..8274	-	214	150395236	-	Smed_0008	-	putative deoxyribonucleotide triphosphate pyrophosphatase
9	 62.32	0	8305..8718	-	137	150395237	-	Smed_0009	-	glyoxalase/bleomycin resistance protein/dioxygenase
10	 61.67	0	8747..9466	-	239	150395238	rph	Smed_0010	-	ribonuclease PH
11	 62.13	0	9671..10750	+	359	150395239	hrcA	Smed_0011	-	heat-inducible transcription repressor
12	 63.16	0	10909..11535	+	208	150395240	-	Smed_0012	-	ribulose-phosphate 3-epimerase
13	 62.15	0	11674..12138	-	154	150395241	-	Smed_0013	-	PTS IIA-like nitrogen-regulatory protein PtsN
14	 56.72	-1	12312..12884	-	190	150395242	-	Smed_0014	-	sigma 54 modulation protein/ribosomal protein S30EA
15	 61.09	0	13139..14680	-	513	150395243	-	Smed_0015	-	RNA polymerase factor sigma-54
16	 62.73	0	14869..15681	-	270	150395244	-	Smed_0016	-	ABC transporter related
17	 60.43	0	15694..16254	-	186	150395245	-	Smed_0017	-	OstA family protein
18	 54.86	-2	16286..16954	-	222	150395246	-	Smed_0018	-	hypothetical protein
19	 57.33	-1	17030..17254	+	74	150395247	-	Smed_0019	-	hypothetical protein
20	 63.23	0	17332..18291	+	319	150395248	-	Smed_0020	-	signal peptide peptidase SppA, 36K type
21	 58.65	-1	18394..18705	+	103	150395249	ihfB	Smed_0021	-	integration host factor subunit beta
22	 62.32	0	18885..19229	+	114	150395250	-	Smed_0022	-	hypothetical protein
23	 61.87	0	19245..19703	-	152	150395251	-	Smed_0023	-	carbon monoxide dehydrogenase subunit G
24	 66.58	+1	19875..21032	+	385	150395252	-	Smed_0024	-	hypothetical protein
25	 62.95	0	21029..21889	+	286	150395253	-	Smed_0025	-	tRNA/rRNA methyltransferase (SpoU)
26	 59.04	0	21889..22386	+	165	150395254	-	Smed_0026	-	lipoprotein signal peptidase
27	 66.49	+1	22461..24680	+	739	150395255	-	Smed_0027	-	integral membrane sensor hybrid histidine kinase
28	 61.17	0	24797..25687	+	296	150395256	-	Smed_0028	-	hypothetical protein
29	 63.04	0	25946..28231	-	761	150395257	-	Smed_0029	-	malic enzyme
30	 65.76	+1	28334..31081	+	915	150395258	-	Smed_0030	-	DNA mismatch repair protein
31	 62.00	0	31282..34131	+	949	150395259	-	Smed_0031	-	PII uridylyl-transferase
32	 64.24	0	34128..35735	+	535	150395260	-	Smed_0032	-	integral membrane protein MviN
33	 63.59	0	35732..36121	+	129	150395261	-	Smed_0033	-	glyoxalase/bleomycin resistance protein/dioxygenase
34	 61.97	0	36212..37276	+	354	150395262	-	Smed_0034	-	tryptophanyl-tRNA synthetase
35	 61.99	0	37329..37820	+	163	150395263	-	Smed_0035	-	UspA domain-containing protein
36	 59.96	0	38024..38590	+	188	150395264	-	Smed_0036	-	scaffold protein Nfu/NifU
37	 65.14	+1	38810..39466	+	218	150395265	-	Smed_0037	-	peptidase M22 glycoprotease
38	 63.89	0	39542..40045	+	167	150395266	-	Smed_0038	-	GCN5-related N-acetyltransferase
39	 65.17	+1	40085..40954	+	289	150395267	-	Smed_0039	-	phospholipid/glycerol acyltransferase
40	 62.86	0	41068..42486	+	472	150395268	-	Smed_0040	-	RNA modification protein
41	 61.55	0	42491..43546	+	351	150395269	-	Smed_0041	-	PhoH family protein
42	 57.99	-1	43610..44116	+	168	150395270	-	Smed_0042	-	hypothetical protein
43	 64.29	0	44129..45304	+	391	150395271	-	Smed_0043	-	CBS domain-containing protein
44	 60.91	0	45522..47153	+	543	150395272	lnt	Smed_0044	-	apolipoprotein N-acyltransferase
45	 57.14	-1	47291..47710	+	139	150395273	-	Smed_0045	-	XRE family transcriptional regulator
46	 60.89	0	48104..49384	+	426	150395274	-	Smed_0046	-	S-adenosylmethionine synthetase
47	 62.52	0	49601..50299	+	232	150395275	trmB	Smed_0047	-	tRNA (guanine-N(7))-methyltransferase
48	 58.14	-1	50450..50707	-	85	150395276	-	Smed_0048	-	hypothetical protein
49	 59.26	0	50758..51189	-	143	150395277	-	Smed_0049	-	heat shock protein Hsp20
50	 62.43	0	51351..52295	+	314	150395278	-	Smed_0050	-	inosine/uridine-preferring nucleoside hydrolase
51	 62.99	0	52377..54767	-	796	150395279	-	Smed_0051	-	methyl-accepting chemotaxis sensory transducer
52	 66.12	+1	55019..55939	-	306	150395280	-	Smed_0052	-	ribokinase-like domain-containing protein
53	 61.92	0	56040..57239	-	399	150395281	-	Smed_0053	-	hypothetical protein
54	 59.24	0	57379..57903	+	174	150395282	def	Smed_0054	-	peptide deformylase
55	 66.45	+1	57979..58914	+	311	150395283	fmt	Smed_0055	-	methionyl-tRNA formyltransferase
56	 64.11	0	58914..59657	+	247	150395284	truA	Smed_0056	-	tRNA pseudouridine synthase A
57	 65.28	+1	59712..61664	-	650	150395285	-	Smed_0057	-	putative Chase2 sensor protein
58	 62.64	0	61664..65260	-	1198	150395286	-	Smed_0058	-	TonB-dependent receptor
59	 56.59	-1	65391..65936	+	181	150395287	-	Smed_0059	-	hypothetical protein
60	 63.32	0	65990..66586	-	198	150395288	-	Smed_0060	-	hypothetical protein
61	 63.31	0	66573..67853	-	426	150395289	-	Smed_0061	-	succinyl-diaminopimelate desuccinylase
62	 63.53	0	67949..71134	-	1061	150395290	-	Smed_0062	-	hydrophobe/amphiphile efflux-1 (HAE1) family protein
63	 66.58	+1	71262..72470	-	402	150395291	-	Smed_0063	-	RND family efflux transporter MFP subunit
64	 64.45	0	72537..73349	-	270	150395292	-	Smed_0064	-	alpha/beta hydrolase domain-containing protein
65	 61.61	0	73489..74397	+	302	150395293	-	Smed_0065	-	LysR family transcriptional regulator
66	 66.03	+1	74407..74562	-	51	150395294	-	Smed_0066	-	hypothetical protein
67	 65.12	+1	74665..76545	-	626	150395295	-	Smed_0067	-	DEAD/DEAH box helicase domain-containing protein
68	 62.79	0	76698..77084	-	128	150395296	-	Smed_0068	-	hypothetical protein
69	 64.57	+1	77087..77944	-	285	150395297	dapD	Smed_0069	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
70	 62.33	0	78206..79105	+	299	150395298	-	Smed_0070	-	hypothetical protein
71	 61.06	0	79106..79819	-	237	150395299	-	Smed_0071	-	pyrimidine 5'-nucleotidase
72	 60.77	0	80028..80942	+	304	150395300	-	Smed_0072	-	hypothetical protein
73	 63.97	0	81018..82130	+	370	150395301	-	Smed_0073	-	methylated-DNA--protein-cysteine methyltransferase
74	 64.86	+1	82168..82944	+	258	150395302	-	Smed_0074	-	hypothetical protein
75	 61.26	0	83044..83931	-	295	150395303	-	Smed_0075	-	acetylglutamate kinase
76	 66.81	+1	84285..84995	+	236	150395304	-	Smed_0076	-	hypothetical protein
77	 61.67	0	85094..85633	-	179	150395305	-	Smed_0077	-	hypothetical protein
78	 62.54	0	85776..86429	-	217	150395306	-	Smed_0078	-	GTPase EngB
79	 59.36	0	86577..88370	-	597	150395307	-	Smed_0079	-	putative inner membrane protein translocase component YidC
80	 58.90	0	88367..88765	-	132	150395308	rnpA	Smed_0080	-	ribonuclease P
81	 62.96	0	88787..88921	-	44	150395309	rpmH	Smed_0081	-	50S ribosomal protein L34
82	 61.41	0	89239..91236	+	665	150395310	-	Smed_0082	-	methyl-accepting chemotaxis sensory transducer
83	 64.54	+1	91523..92323	+	266	150395311	-	Smed_0083	-	SNARE associated Golgi protein
84	 64.35	0	92349..93770	+	473	150395312	-	Smed_0084	-	pyridine nucleotide-disulphide oxidoreductase dimerisation region
85	 64.10	0	93792..95273	+	493	150395313	-	Smed_0085	-	integral membrane sensor signal transduction histidine kinase
86	 62.56	0	95969..97768	+	599	150395314	-	Smed_0086	-	YadA domain-containing protein
87	 62.15	0	97770..98345	+	191	150395315	-	Smed_0087	-	invasion associated locus B family protein
88	 62.88	0	98359..99045	+	228	150395316	-	Smed_0088	-	putative signal peptide protein
89	 62.42	0	99072..99542	-	156	150395317	-	Smed_0089	-	YbaK/prolyl-tRNA synthetase associated region
90	 62.96	0	99866..100297	-	143	150395318	-	Smed_0090	-	hypothetical protein
91	 65.47	+1	100484..101068	-	194	150395319	-	Smed_0091	-	hypothetical protein
92	 65.26	+1	101142..104843	-	1233	150395320	-	Smed_0092	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
93	 63.86	0	105021..105341	-	106	150395321	-	Smed_0093	-	hypothetical protein
94	 61.96	0	105400..106206	-	268	150395322	-	Smed_0094	-	metallophosphoesterase
95	 64.72	+1	106316..106879	-	187	150395323	-	Smed_0095	-	Sel1 domain-containing protein
96	 66.83	+1	107072..107686	+	204	150395324	-	Smed_0096	-	hypothetical protein
97	 65.46	+1	107735..109642	-	635	150395325	-	Smed_0097	-	putative Chase2 sensor protein
98	 62.70	0	109731..110435	-	234	150395326	-	Smed_0098	-	CRP/FNR family transcriptional regulator
99	 61.42	0	110674..111111	+	145	150395327	-	Smed_0099	-	DoxX family protein
100	 61.07	0	111196..111624	-	142	150395328	-	Smed_0100	-	RbsD or FucU transport
61.69	MEAN

2.82	STD DEV
