IslandPath Analysis: Shewanella halifaxensis HAW-EB4

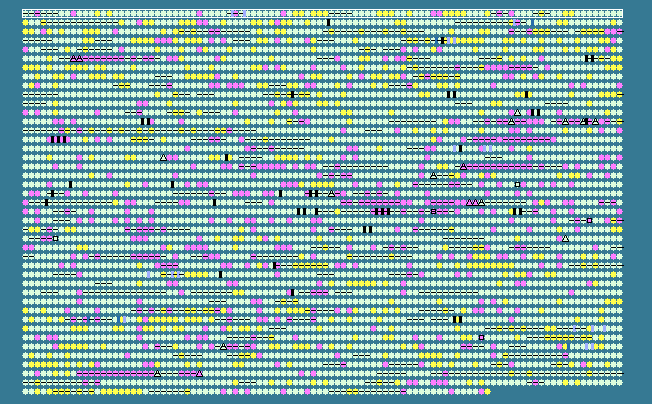

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 45.20   STD DEV: 3.38
Shewanella halifaxensis HAW-EB4, complete genome - 1..5226917
4278 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 42.21	0	81..1466	+	461	167621942	-	Shal_0001	-	chromosomal replication initiation protein
2	 44.87	0	1486..2586	+	366	167621943	-	Shal_0002	-	DNA polymerase III, beta subunit
3	 41.71	-1	2806..3903	+	365	167621944	-	Shal_0003	-	DNA replication and repair protein RecF
4	 44.35	0	3881..6322	+	813	167621945	-	Shal_0004	-	DNA gyrase, B subunit
5	 43.57	0	6360..7463	+	367	167621946	-	Shal_0005	-	putative signal transduction protein
6	 47.44	0	7531..9600	-	689	167621947	-	Shal_0006	-	glycyl-tRNA synthetase subunit beta
7	 47.68	0	9612..10517	-	301	167621948	-	Shal_0007	-	glycyl-tRNA synthetase subunit alpha
8	 41.89	0	10636..11196	+	186	167621949	-	Shal_0008	-	DNA-3-methyladenine glycosylase I
9	 40.09	-1	11215..11880	-	221	167621950	-	Shal_0009	-	hypothetical protein
10	 46.89	0	12121..15315	-	1064	167621951	-	Shal_0010	-	amidohydrolase
11	 48.63	+1	15903..16085	-	60	167621952	-	Shal_0011	-	hypothetical protein
12	 45.12	0	16120..16365	-	81	167621953	-	Shal_0012	-	SirA family protein
13	 50.43	+1	16512..16979	-	155	167621954	-	Shal_0013	-	ybaK/ebsC protein
14	 43.29	0	17018..17479	-	153	167621955	-	Shal_0014	-	GCN5-related N-acetyltransferase
15	 50.69	+1	17651..18814	-	387	167621956	-	Shal_0015	-	3-ketoacyl-CoA thiolase
16	 48.33	0	18833..20986	-	717	167621957	-	Shal_0016	-	multifunctional fatty acid oxidation complex subunit alpha
17	 45.05	0	21349..22671	+	440	167621958	-	Shal_0017	-	proline dipeptidase
18	 43.25	0	22740..23354	+	204	167621959	-	Shal_0018	-	hypothetical protein
19	 47.53	0	23478..24935	+	485	167621960	-	Shal_0019	-	TrkH family potassium uptake protein
20	 44.13	0	25075..25602	+	175	167621961	-	Shal_0020	-	protoporphyrinogen oxidase
21	 45.75	0	25667..25972	-	101	167621962	-	Shal_0021	-	ArsR family transcriptional regulator
22	 44.26	0	26185..26724	+	179	167621963	-	Shal_0022	-	protoporphyrinogen oxidase
23	 47.82	0	26783..28225	-	480	167621964	-	Shal_0023	-	TrkH family potassium uptake protein
24	 48.58	0	28246..29655	-	469	167621965	-	Shal_0024	-	potassium transporter peripheral membrane component
25	 48.32	0	29663..30943	-	426	167621966	-	Shal_0025	-	sun protein
26	 47.31	0	30950..31915	-	321	167621967	-	Shal_0026	-	methionyl-tRNA formyltransferase
27	 42.83	0	31920..32519	-	199	167621968	-	Shal_0027	-	peptide deformylase
28	 47.14	0	32569..33669	+	366	167621969	-	Shal_0028	-	peptidoglycan-binding LysM
29	 46.96	0	33823..34842	+	339	167621970	-	Shal_0029	-	DNA protecting protein DprA
30	 41.35	-1	34845..35318	+	157	167621971	-	Shal_0030	-	hypothetical protein
31	 45.46	0	35594..37366	-	590	167621972	-	Shal_0031	-	collagenase
32	 45.57	0	37503..38066	+	187	167621973	-	Shal_0032	-	DNA topoisomerase type IA Zn finger domain-containing protein
33	 46.28	0	38154..38717	+	187	167621974	-	Shal_0033	-	SUA5/yciO/yrdC domain-containing protein
34	 46.78	0	38739..39653	+	304	167621975	-	Shal_0034	-	coproporphyrinogen III oxidase
35	 45.71	0	39744..40583	+	279	167621976	-	Shal_0035	-	shikimate 5-dehydrogenase
36	 40.14	-1	40614..40892	+	92	167621977	-	Shal_0036	-	hypothetical protein
37	 46.24	0	40938..41495	-	185	167621978	-	Shal_0037	-	carbonic anhydrase
38	 45.49	0	47722..47976	+	84	167621979	-	Shal_0038	-	hypothetical protein
39	 43.56	0	48028..48477	+	149	167621980	-	Shal_0039	-	BadM/Rrf2 family transcriptional regulator
40	 44.88	0	48463..49155	-	230	167621981	-	Shal_0040	-	protein of unknown function DUF610 YibQ
41	 43.78	0	49225..50430	-	401	167621982	-	Shal_0041	-	carboxyl-terminal protease
42	 43.03	0	50464..51597	-	377	167621983	-	Shal_0042	-	peptidase M23B
43	 47.12	0	51870..53414	-	514	167621984	-	Shal_0043	-	phosphoglyceromutase
44	 39.08	-1	53653..54087	+	144	167621985	-	Shal_0044	-	rhodanese domain-containing protein
45	 43.42	0	54318..54803	+	161	167621986	-	Shal_0045	-	preprotein translocase subunit SecB
46	 49.22	+1	54808..55827	+	339	167621987	-	Shal_0046	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
47	 49.54	+1	56080..57264	+	394	167621988	-	Shal_0047	-	hypothetical protein
48	 45.47	0	57512..58129	+	205	167621989	-	Shal_0048	-	hypothetical protein
49	 53.94	+2	58290..59240	+	316	167621990	-	Shal_0049	-	hypothetical protein
50	 49.13	+1	59237..60160	+	307	167621991	-	Shal_0050	-	ABC transporter related
51	 49.04	+1	60157..61302	+	381	167621992	-	Shal_0051	-	ABC-2 type transporter
52	 46.92	0	61627..62097	+	156	167621993	-	Shal_0052	-	NLP/P60 protein
53	 47.27	0	62177..63109	-	310	167621994	-	Shal_0053	-	hypothetical protein
54	 47.44	0	63133..64458	-	441	167621995	-	Shal_0054	-	hypothetical protein
55	 47.75	0	64809..65342	+	177	167621996	-	Shal_0055	-	molybdenum cofactor biosynthesis protein
56	 45.95	0	65381..65491	+	36	167621997	-	Shal_0056	-	hypothetical protein
57	 45.95	0	65530..65640	+	36	167621998	-	Shal_0057	-	hypothetical protein
58	 46.38	0	65679..65885	+	68	167621999	-	Shal_0058	-	hypothetical protein
59	 45.93	0	66300..67958	+	552	167622000	-	Shal_0059	-	methyl-accepting chemotaxis sensory transducer
60	 48.72	+1	68037..69173	-	378	167622001	-	Shal_0060	-	ABC-2 type transporter
61	 49.39	+1	69199..69933	-	244	167622002	-	Shal_0061	-	ABC transporter related
62	 51.26	+1	69944..71527	-	527	167622003	-	Shal_0062	-	TAP domain-containing protein
63	 47.25	0	72038..73834	+	598	167622004	-	Shal_0063	-	AMP-dependent synthetase and ligase
64	 47.41	0	74073..74477	+	134	167622005	-	Shal_0064	-	thioesterase superfamily protein
65	 49.28	+1	74528..74803	-	91	167622006	-	Shal_0065	-	hypothetical protein
66	 44.99	0	74882..75310	-	142	167622007	-	Shal_0066	-	thioesterase superfamily protein
67	 43.66	0	75502..76179	-	225	167622008	-	Shal_0067	-	2,3-diketo-5-methylthio-1-phosphopentane phosphatase
68	 48.19	0	76436..77485	-	349	167622009	-	Shal_0068	-	lytic transglycosylase catalytic
69	 36.06	-2	78106..79353	+	415	167622010	-	Shal_0069	-	AAA ATPase
70	 37.42	-2	79346..80005	+	219	167622011	-	Shal_0070	-	hypothetical protein
71	 50.94	+1	80432..81658	-	408	167622012	-	Shal_0071	-	imidazolonepropionase
72	 49.79	+1	81834..82538	+	234	167622013	-	Shal_0072	-	histidine utilization repressor
73	 52.43	+2	82702..84366	+	554	167622014	-	Shal_0073	-	urocanate hydratase
74	 52.12	+2	84387..85919	+	510	167622015	-	Shal_0074	-	histidine ammonia-lyase
75	 47.79	0	85995..86402	-	135	167622016	-	Shal_0075	-	GCN5-related N-acetyltransferase
76	 46.39	0	86747..87673	+	308	167622017	-	Shal_0076	-	LysR family transcriptional regulator
77	 45.48	0	87756..88142	-	128	167622018	-	Shal_0077	-	putative endoribonuclease L-PSP
78	 50.39	+1	88218..89630	-	470	167622019	-	Shal_0078	-	Na+/H+ antiporter NhaC
79	 46.47	0	89748..90767	-	339	167622020	-	Shal_0079	-	1-aminocyclopropane-1-carboxylate deaminase
80	 38.46	-1	90860..91600	-	246	167622021	-	Shal_0080	-	hypothetical protein
81	 47.23	0	91842..92510	-	222	167622022	-	Shal_0081	-	hypothetical protein
82	 41.41	-1	92692..93087	-	131	167622023	-	Shal_0082	-	hypothetical protein
83	 44.10	0	93176..94327	-	383	167622024	-	Shal_0083	-	iron-containing alcohol dehydrogenase
84	 47.11	0	94707..95243	-	178	167622025	-	Shal_0084	-	hypothetical protein
85	 44.50	0	95438..96691	+	417	167622026	-	Shal_0085	-	MscS mechanosensitive ion channel
86	 47.53	0	96832..97458	-	208	167622027	-	Shal_0086	-	lysine exporter protein LysE/YggA
87	 48.73	+1	97559..98110	-	183	167622028	-	Shal_0087	-	phospholipid/glycerol acyltransferase
88	 43.26	0	98253..98675	+	140	167622029	-	Shal_0088	-	hypothetical protein
89	 47.14	0	98905..99672	-	255	167622030	-	Shal_0089	-	hypothetical protein
90	 48.68	+1	99753..101381	-	542	167622031	-	Shal_0090	-	hypothetical protein
91	 50.25	+1	101599..102195	+	198	167622032	-	Shal_0091	-	multiple antibiotic resistance (MarC)-related protein
92	 50.18	+1	102372..104537	+	721	167622033	-	Shal_0092	-	glycoside hydrolase family protein
93	 41.91	0	104681..104983	+	100	167622034	-	Shal_0093	-	hypothetical protein
94	 46.10	0	104985..107789	+	934	167622035	-	Shal_0094	-	peptidase M6 immune inhibitor A
95	 44.86	0	107848..108411	-	187	167622036	-	Shal_0095	-	chorismate lyase
96	 41.79	-1	108565..108966	+	133	167622037	-	Shal_0096	-	flagellar basal body-associated protein FliL-like protein
97	 45.41	0	109024..110166	+	380	167622038	-	Shal_0097	-	putative SAM-dependent methyltransferase
98	 48.12	0	110298..111203	-	301	167622039	-	Shal_0098	-	DNA binding domain-containing protein
99	 45.31	0	111251..112093	-	280	167622040	-	Shal_0099	-	formate dehydrogenase subunit FdhD
100	 48.29	0	112377..112844	+	155	167622041	-	Shal_0100	-	hypothetical protein
45.20	MEAN

3.38	STD DEV
